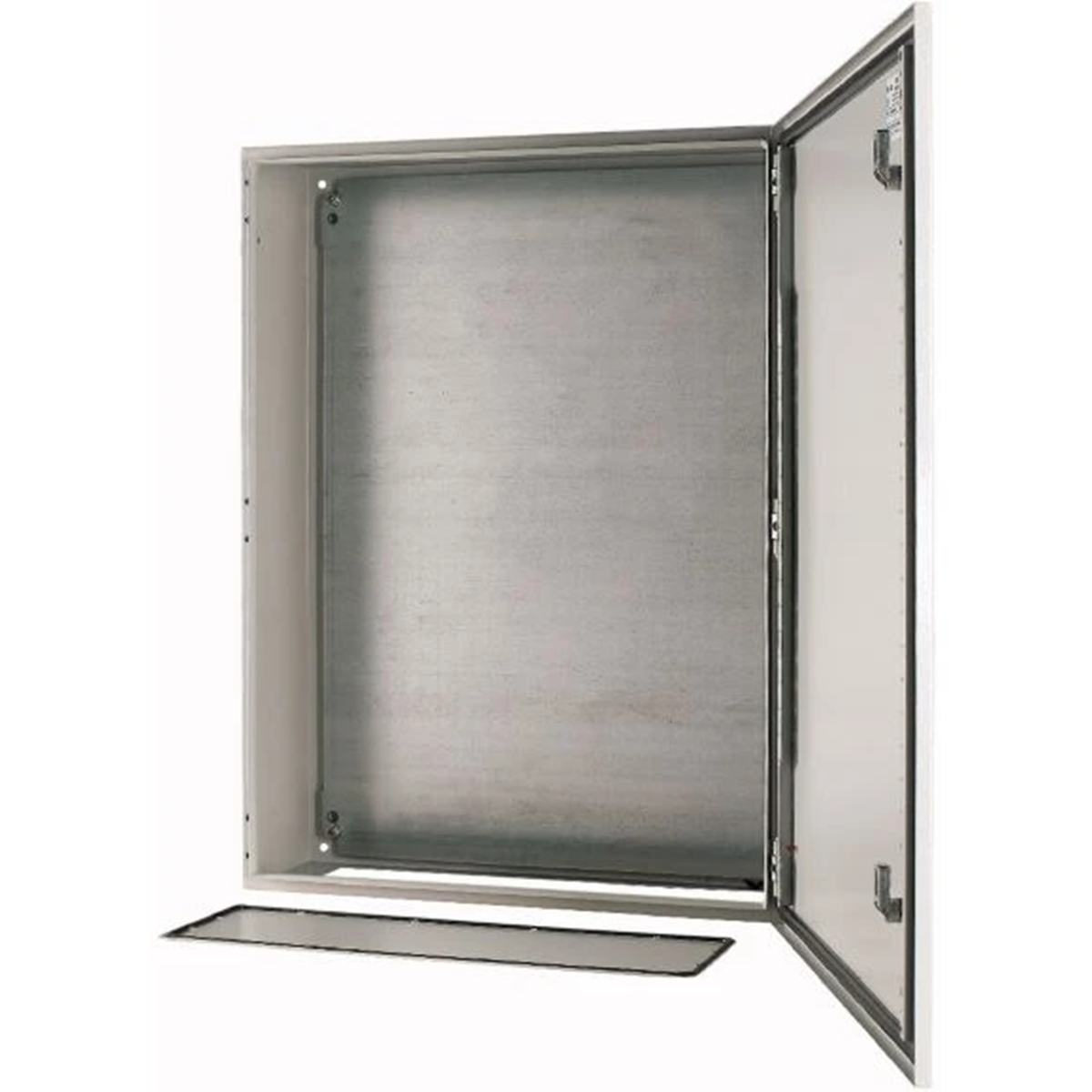

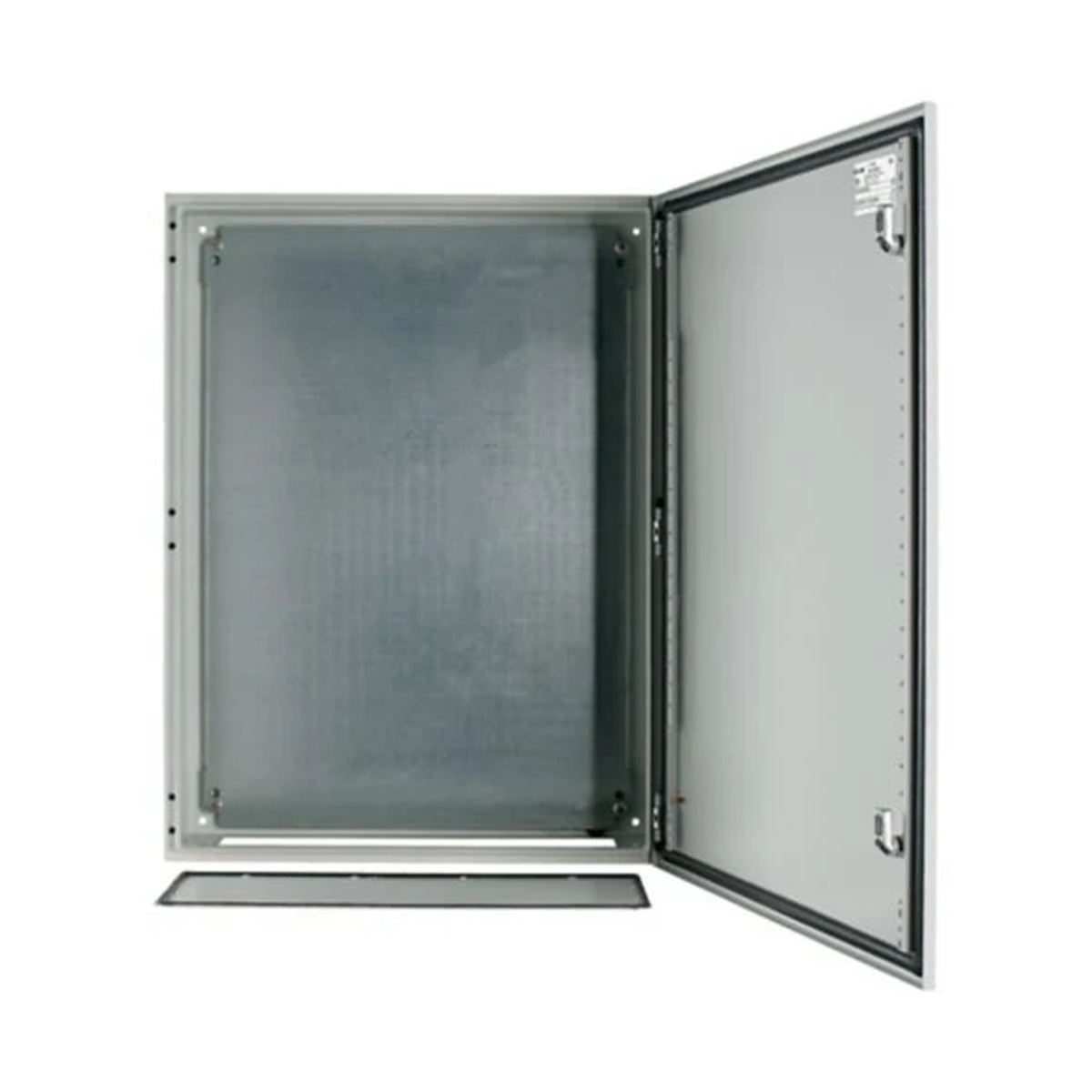

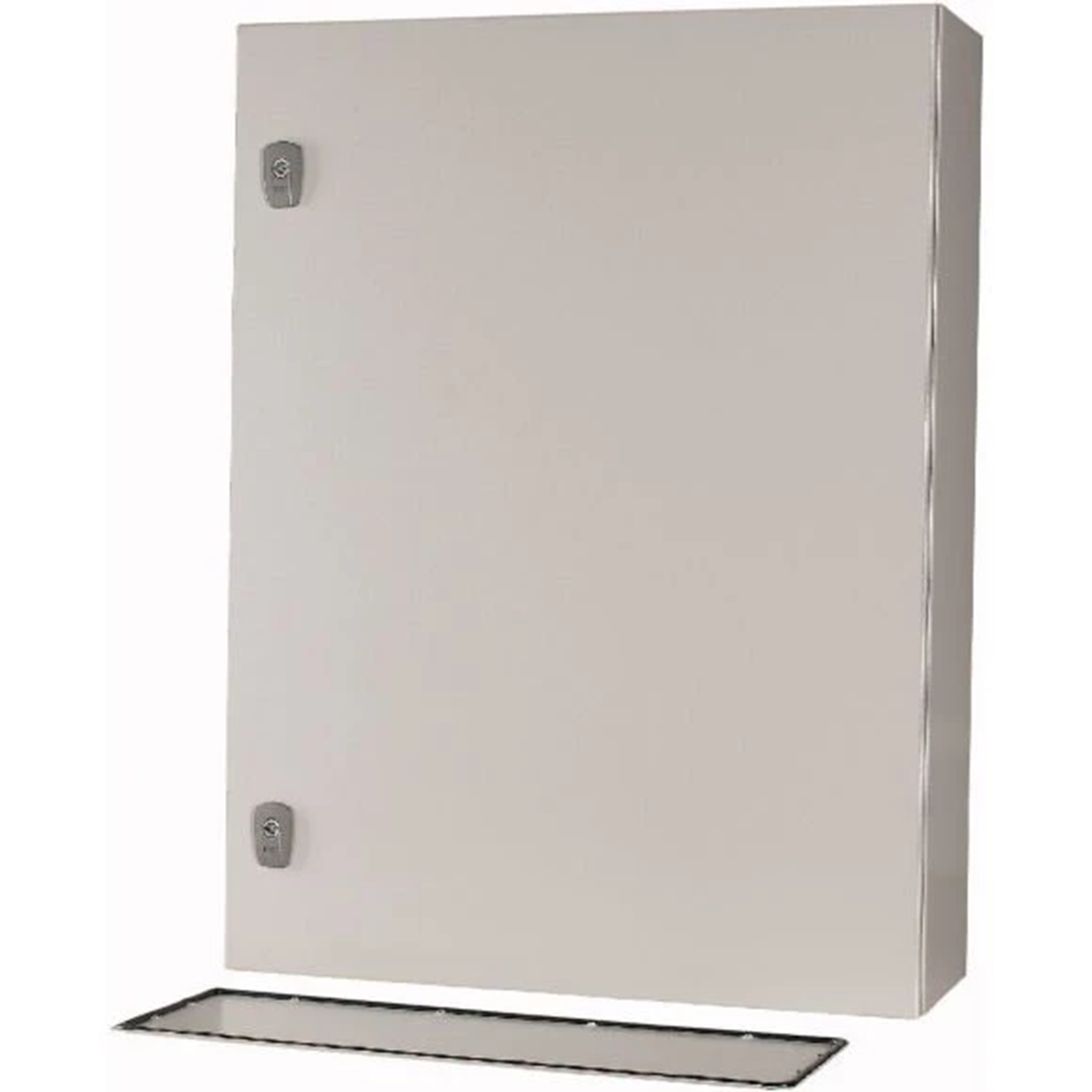

Housing with mounting plate. (800x600x200), CS-86/200 111706
local index:
RMH076MOEL
Catalog No:
111706
EAN code:
4015081112654
Manufacturer:
EATON
Color: Gray
Price:
290,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).
Technical data
-
ColorGray
-
PKWIU27.40.12.0
Other technical data
-
Width600 mm
-
Depth200 mm
-
Material qualityOther
-
ColourGrey
-
FreestandingNo
-
Suitable for wall mountingYes
-
Intermediate mountingYes
-
With mounting plateYes
-
Suitable for wall built-inYes
-
Number of doors1
-
Suitable for metrical mountingYes
-
Pitched roofNo
-
With glazed doorNo
-
With rear doorNo
-
Degree of protection (IP)IP66
-
Thermal dissipation (Delta T = 20 K) according to IEC/TR 6089068 W
-
Max. permissible load of the door(s) according to IEC 62208250 N
-
Height800 mm
-
MaterialSteel
-
Surface finishingPowder coating
-
RAL-number7035
-
Floor standing wall modelYes
-
Corner modelNo
-
CouplableNo
-
Mounting plate depth-adjustableNo
-
Pole fasteningYes
-
Number of locks2
-
Suitable for outdoor set-upNo
-
EMC-versionNo
-
With ventilation doorNo
-
Impact strengthIK09
-
Degree of protection (NEMA)12
-
Max. permissible load of the enclosure according to IEC 622083250 N
-
Max. permissible load of the mounting plate according to IEC 622083000 N
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 31,650 |
| Volume (m3) | 0,102 |
| Width (m) | 0,608 |
| Length (m) | 0,208 |
| Depth (m) | 0,808 |
