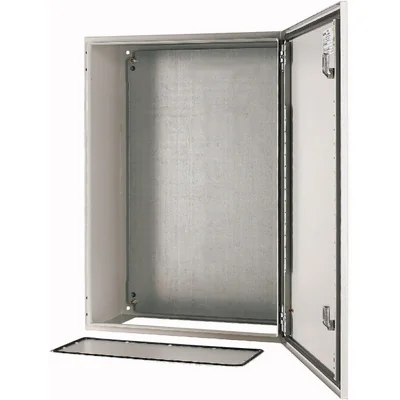

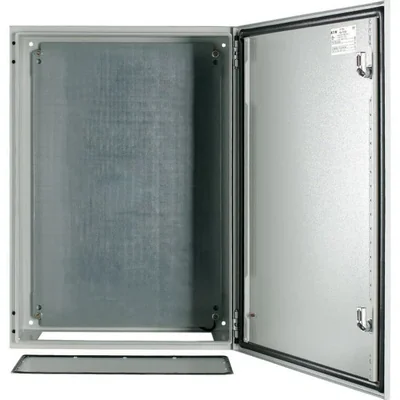

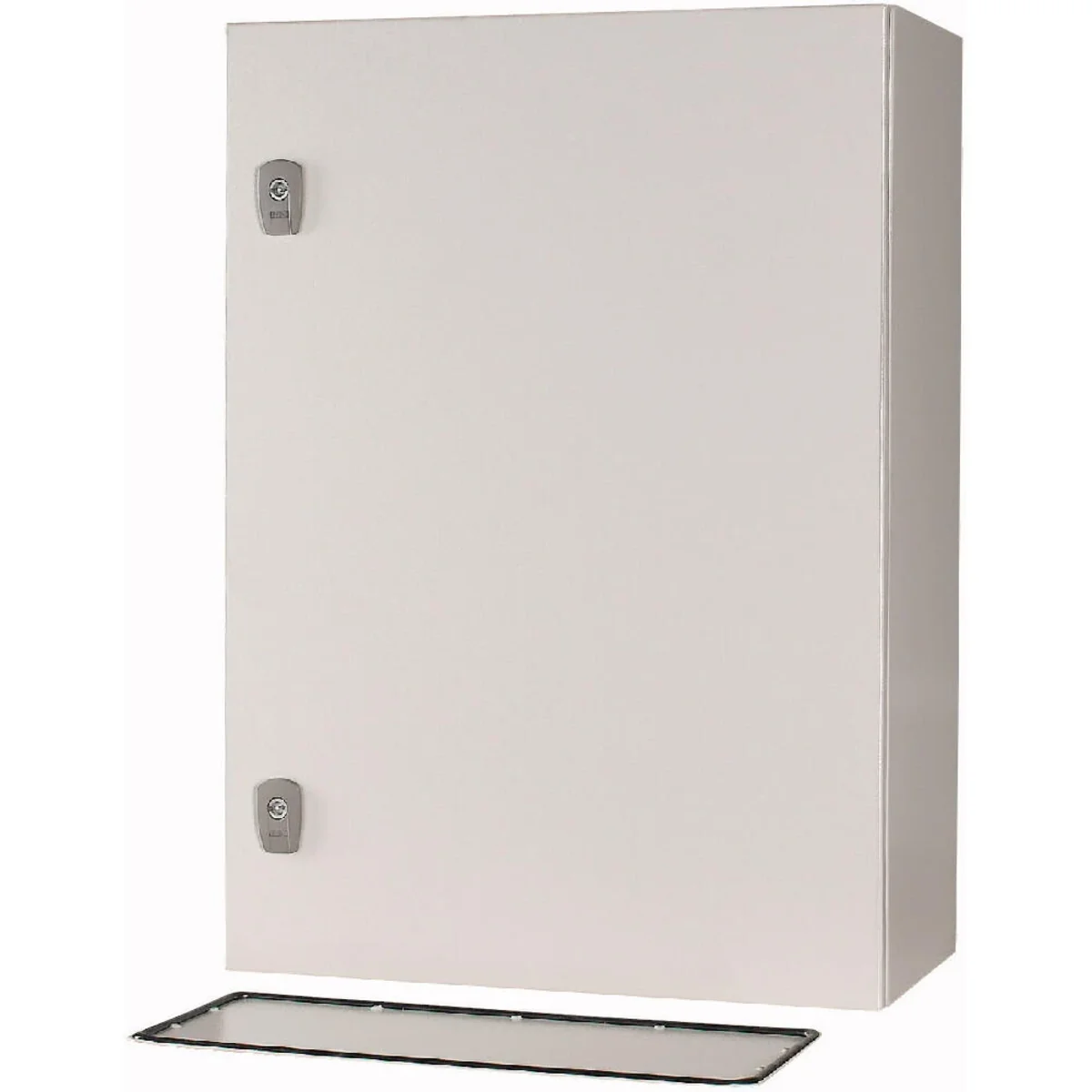

Housing with mounting plate. (700x500x250), CS-75/250 111703

local index:
RMH084MOEL
Catalog No:
111703
EAN code:
4015081112623
Manufacturer: EATON
Depth [mm]: 250
Width [mm]: 500
Height [mm]: 700
Price:
249,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).

Technical data

  • Depth [mm]
    250
  • Height [mm]
    700
  • Width [mm]
    500
  • PKWIU
    27.33.14.0

Other technical data

  • Width
    500 mm
  • Depth
    250 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    No
  • Suitable for wall mounting
    Yes
  • Intermediate mounting
    Yes
  • With mounting plate
    Yes
  • Suitable for wall built-in
    Yes
  • Number of doors
    1
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    59 W
  • Max. permissible load of the door(s) according to IEC 62208
    250 N
  • Height
    700 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    Yes
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    No
  • Pole fastening
    Yes
  • Number of locks
    2
  • Suitable for outdoor set-up
    No
  • EMC-version
    No
  • With ventilation door
    No
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    2750 N
  • Max. permissible load of the mounting plate according to IEC 62208
    2500 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 23,470
Volume (m3) 0,093
Width (m) 0,508
Length (m) 0,258
Depth (m) 0,708
