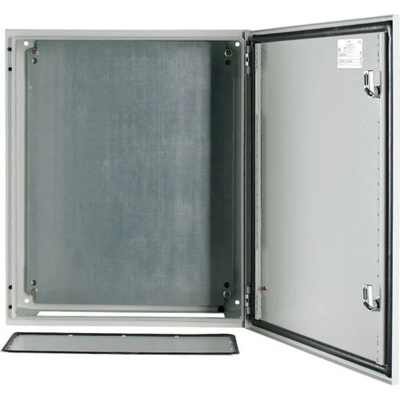

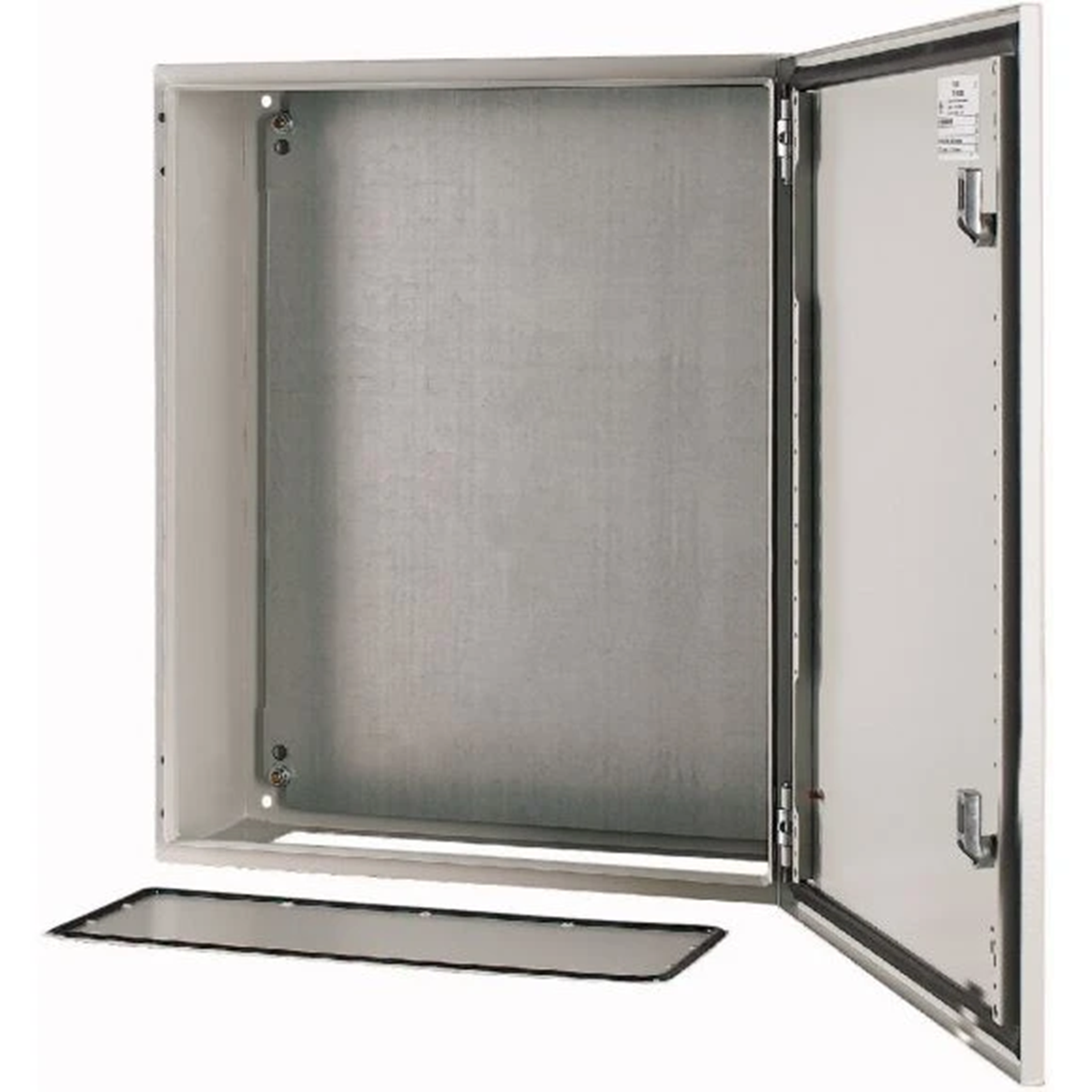

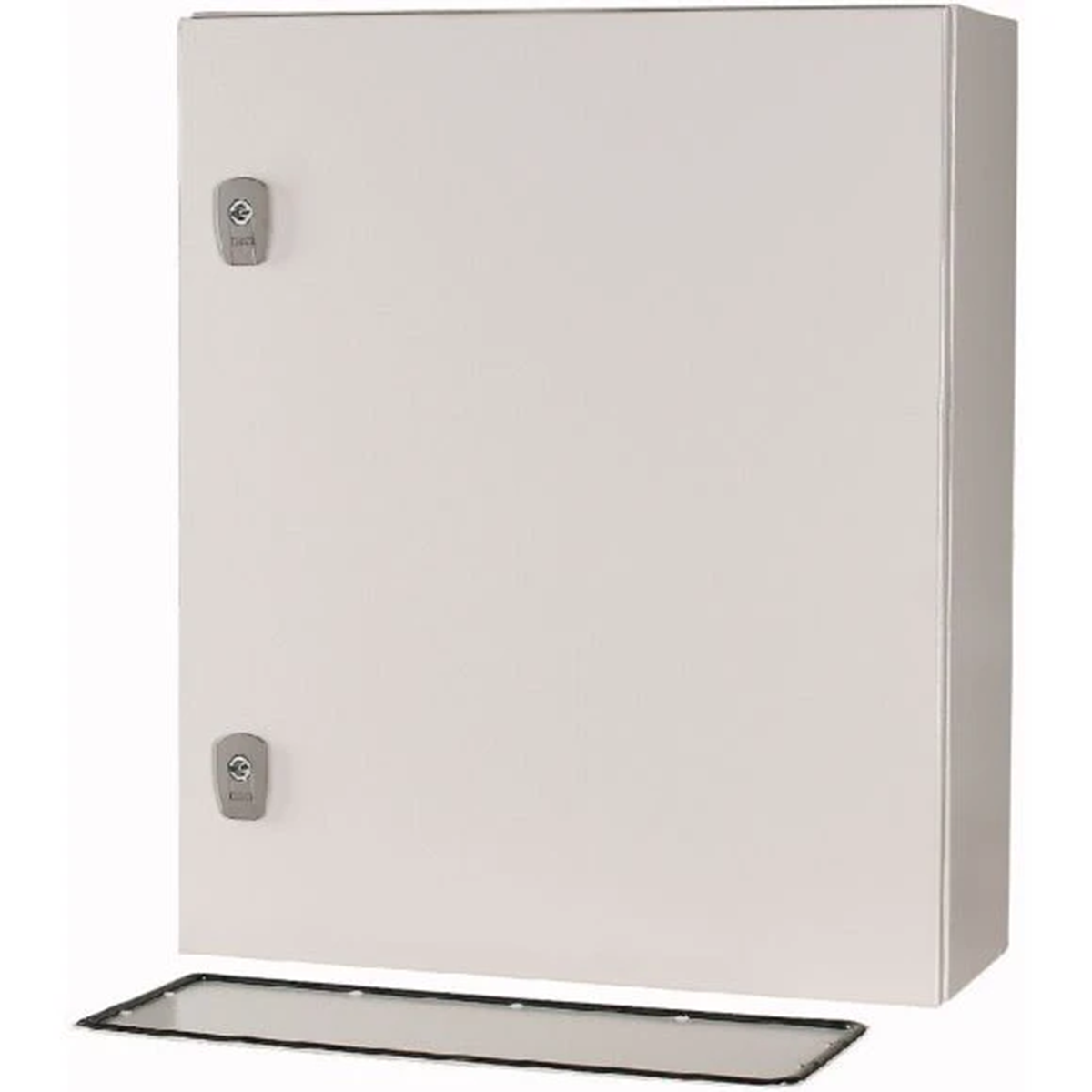

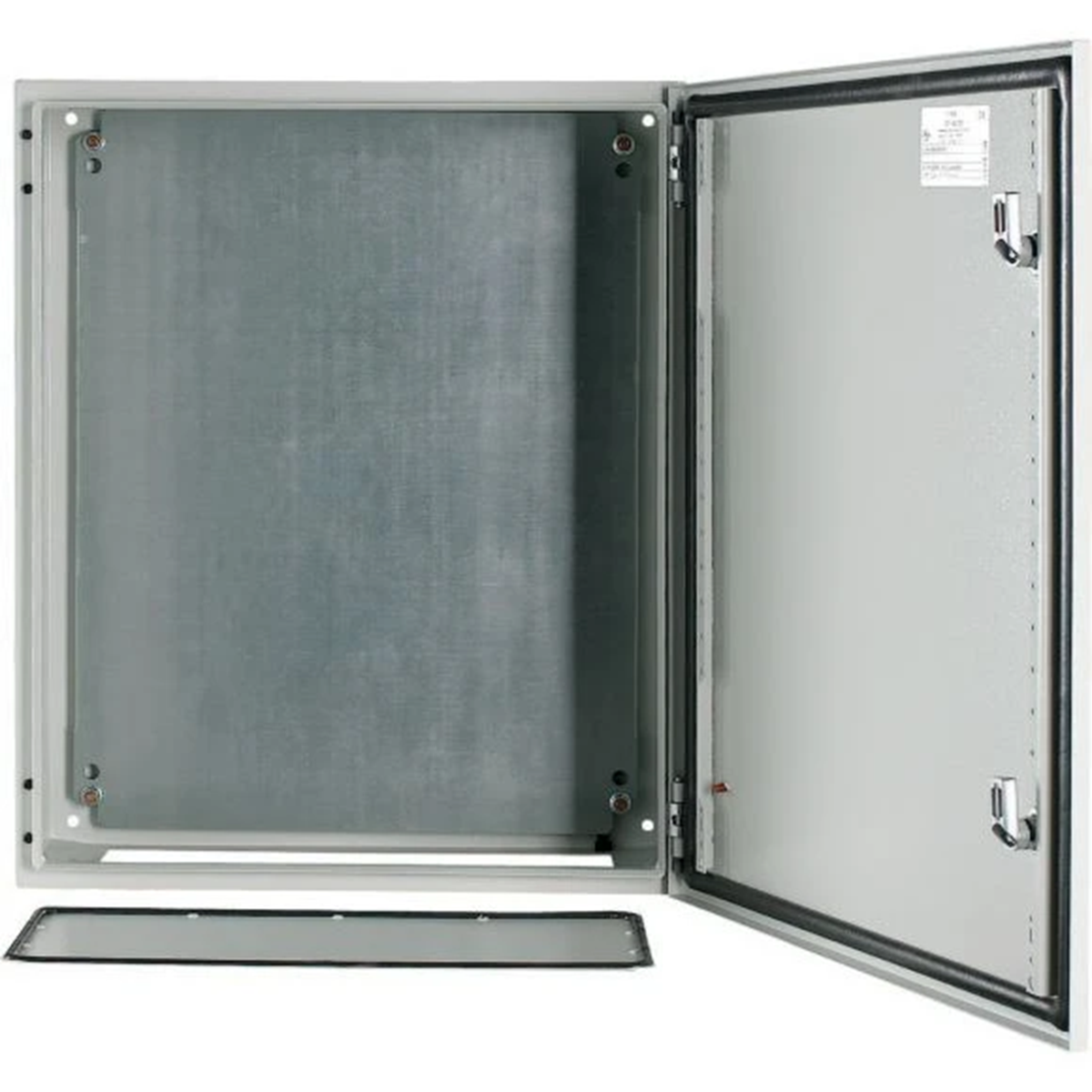

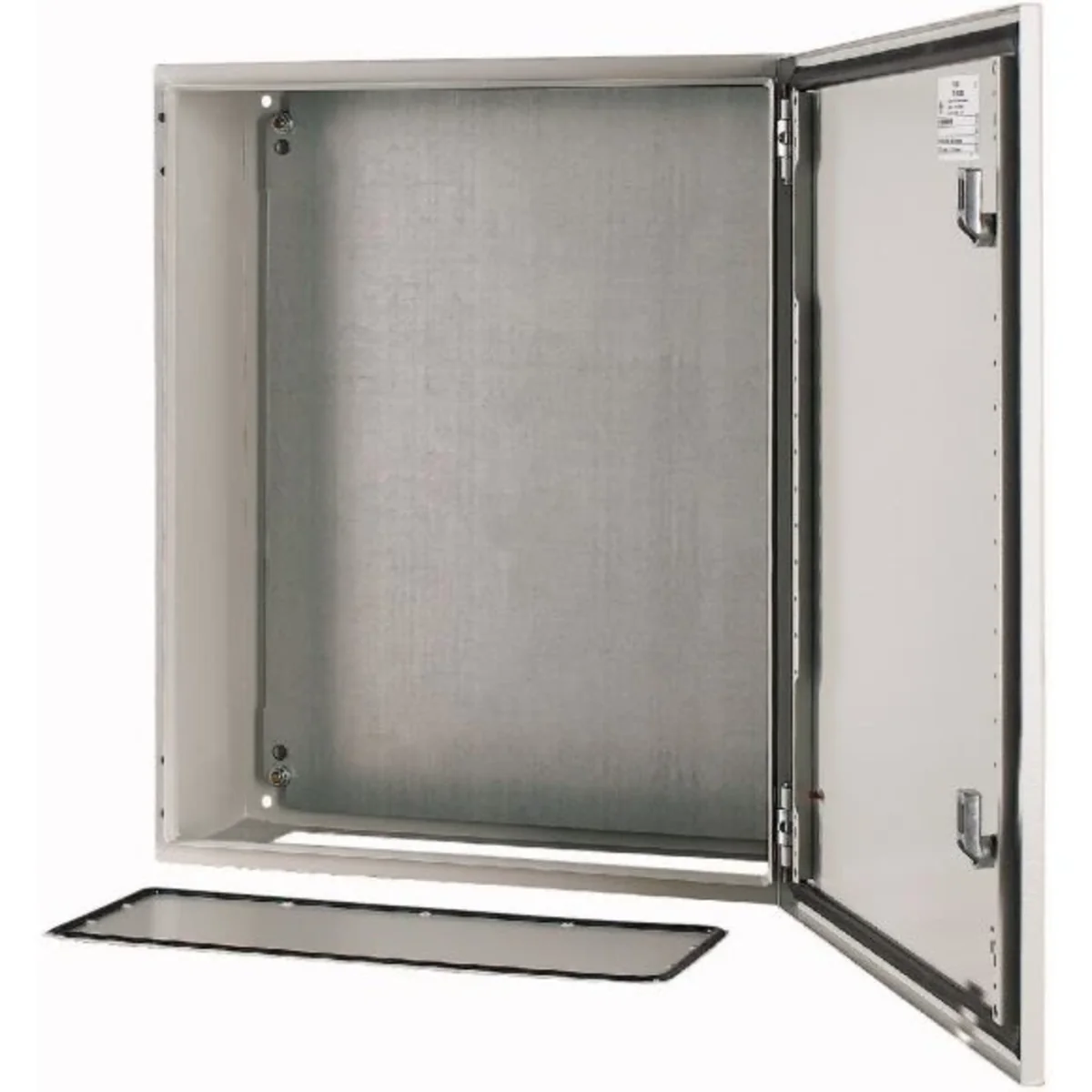

Housing with mounting plate. (600x500x200), CS-65/200 111696

local index:
RMH072MOEL
Catalog No:
111696
EAN code:
4015081112555
Manufacturer: EATON
Color: Gray
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
107,24 €
gross / pcs.
(including VAT 23%)
Last lowest price: 106,48 € gross
Base price: 516,30 € gross -79%
Delivery in 3h
Accessible 10 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

CS universal housings. Enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).


Technical data

  • Color
    Gray
  • PKWIU
    27.40.12.0

Other technical data

  • Width
    500 mm
  • Depth
    200 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    No
  • Suitable for wall mounting
    Yes
  • Intermediate mounting
    Yes
  • With mounting plate
    Yes
  • Suitable for wall built-in
    Yes
  • Number of doors
    1
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    47 W
  • Max. permissible load of the door(s) according to IEC 62208
    250 N
  • Height
    600 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    Yes
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    No
  • Pole fastening
    Yes
  • Number of locks
    2
  • Suitable for outdoor set-up
    No
  • EMC-version
    No
  • With ventilation door
    No
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    2750 N
  • Max. permissible load of the mounting plate according to IEC 62208
    2500 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 16,990
Volume (m3) 0,064
Width (m) 0,508
Length (m) 0,208
Depth (m) 0,608
