EATON

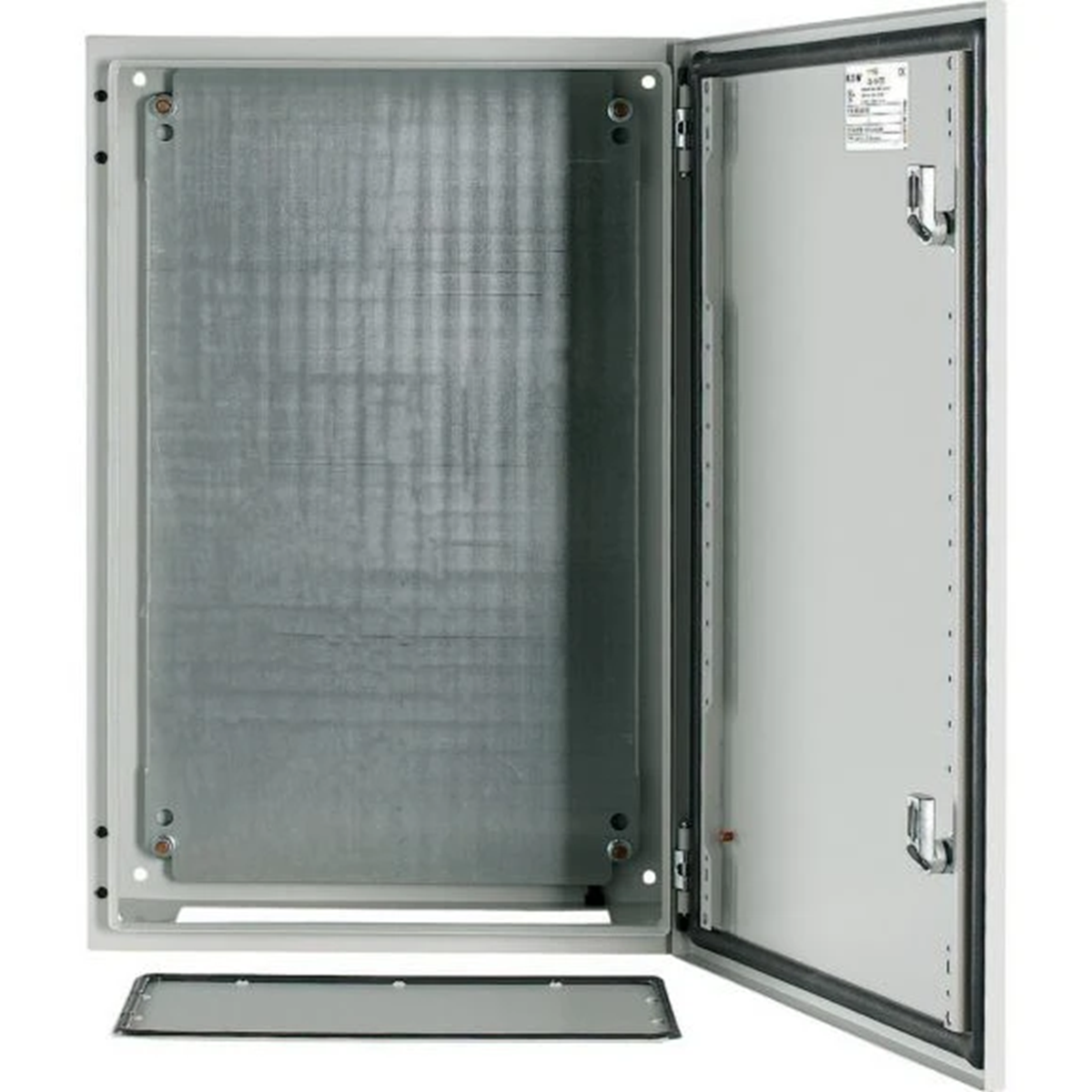

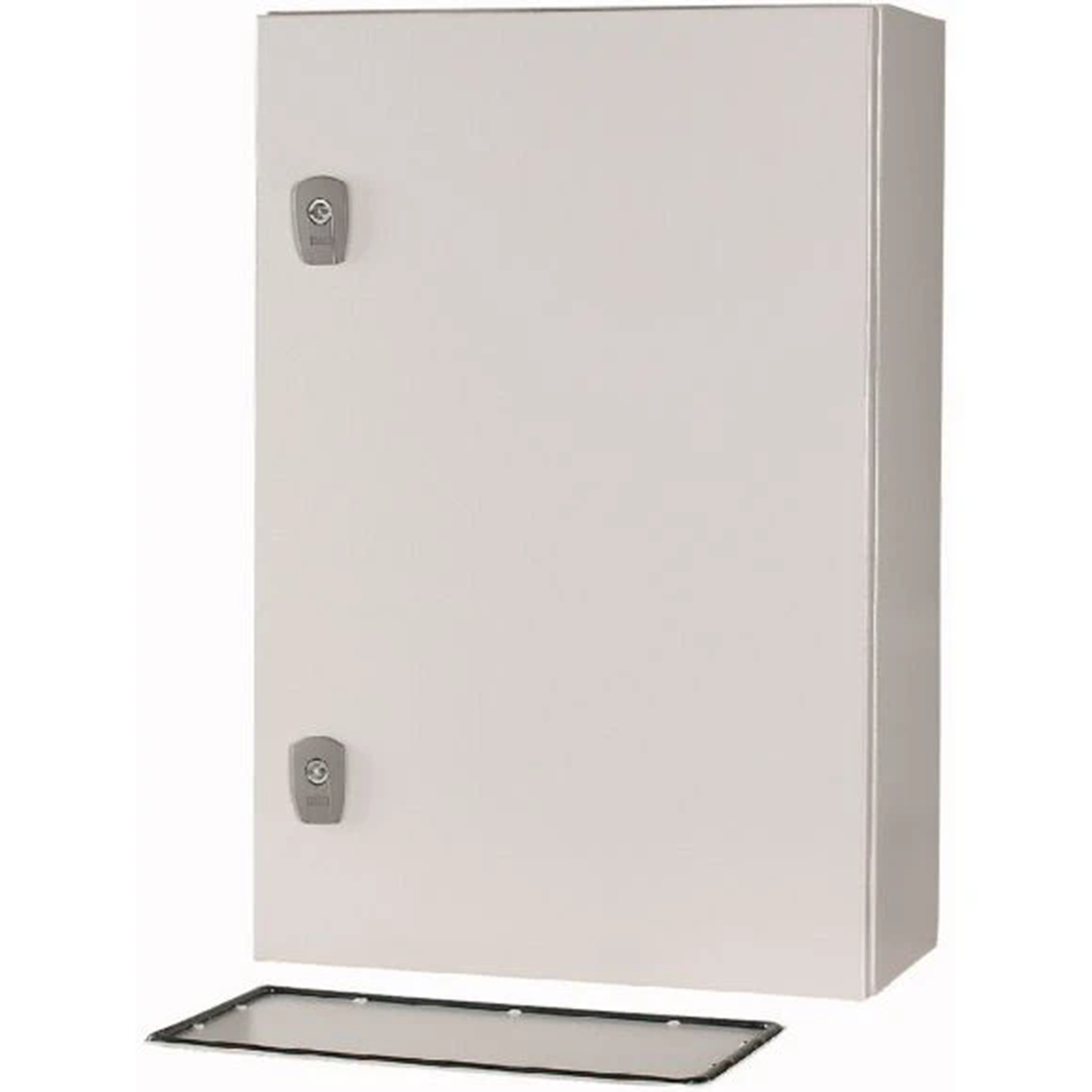

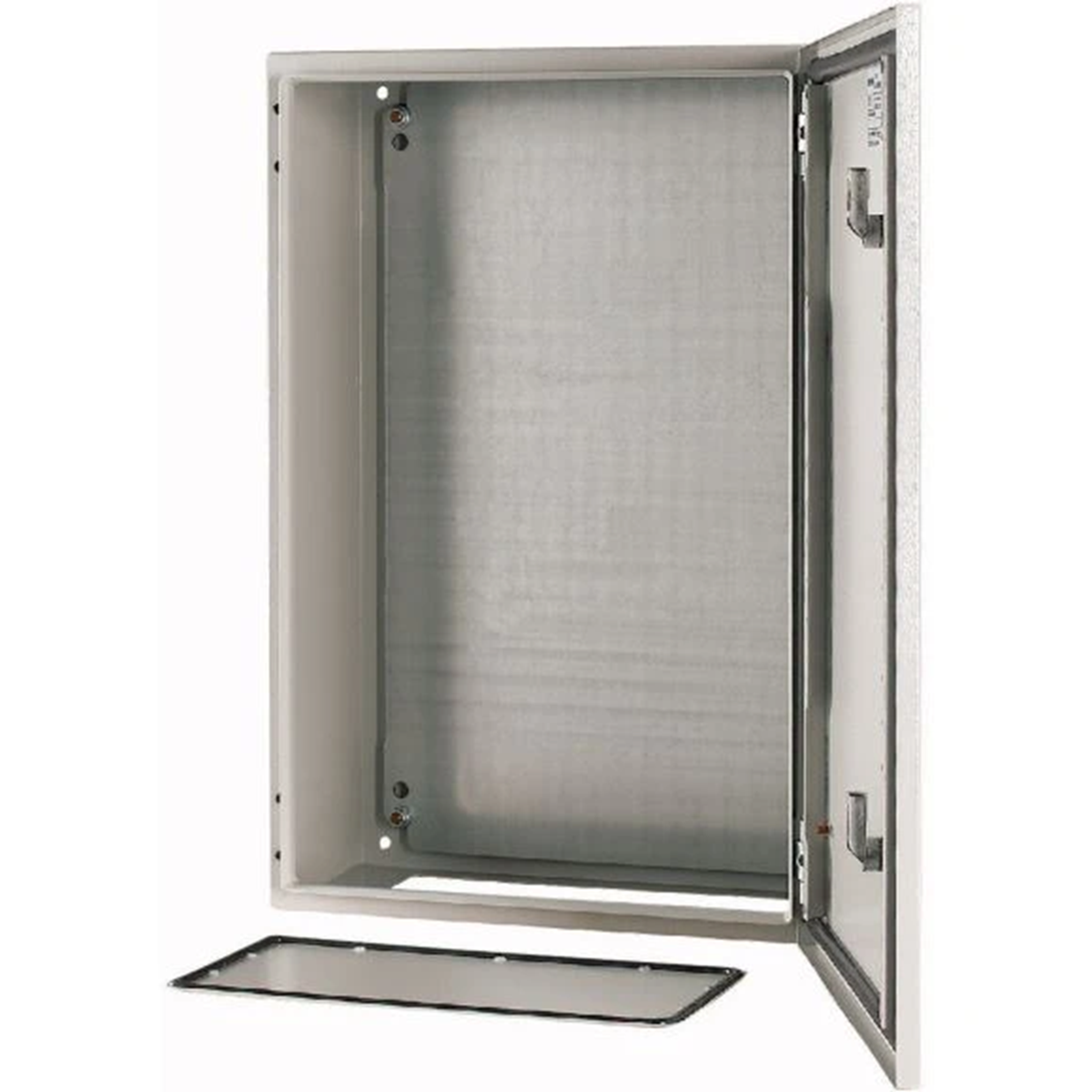

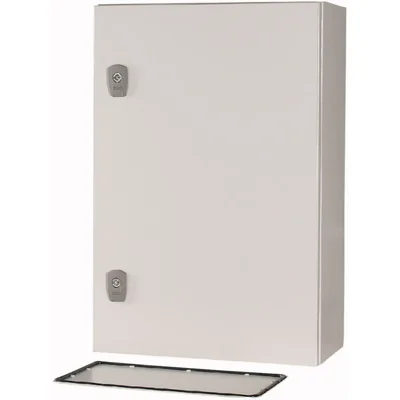

Housing with mounting plate. (600x400x200), CS-64/200 111693

local index:
RMH070MOEL
Catalog No:
111693
EAN code:
4015081112524
Price:
184,04 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 16 pcs.
Delivery:
From 3,71 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).

Technical data

  • Depth [mm]
    200
  • Height [mm]
    600
  • Width [mm]
    400

Other technical data

  • Width
    400 mm
  • Depth
    200 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    no
  • Suitable for wall mounting
    yes
  • Intermediate mounting
    yes
  • With mounting plate
    yes
  • Suitable for wall built-in
    yes
  • Number of doors
    1
  • Suitable for metrical mounting
    yes
  • Pitched roof
    no
  • With glazed door
    no
  • With rear door
    no
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    40 W
  • Max. permissible load of the door(s) according to IEC 62208
    250 N
  • Height
    600 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    yes
  • Corner model
    no
  • Couplable
    no
  • Mounting plate depth-adjustable
    no
  • Pole fastening
    yes
  • Number of locks
    2
  • Suitable for outdoor set-up
    no
  • EMC-version
    no
  • With ventilation door
    no
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    2250 N
  • Max. permissible load of the mounting plate according to IEC 62208
    2000 N
