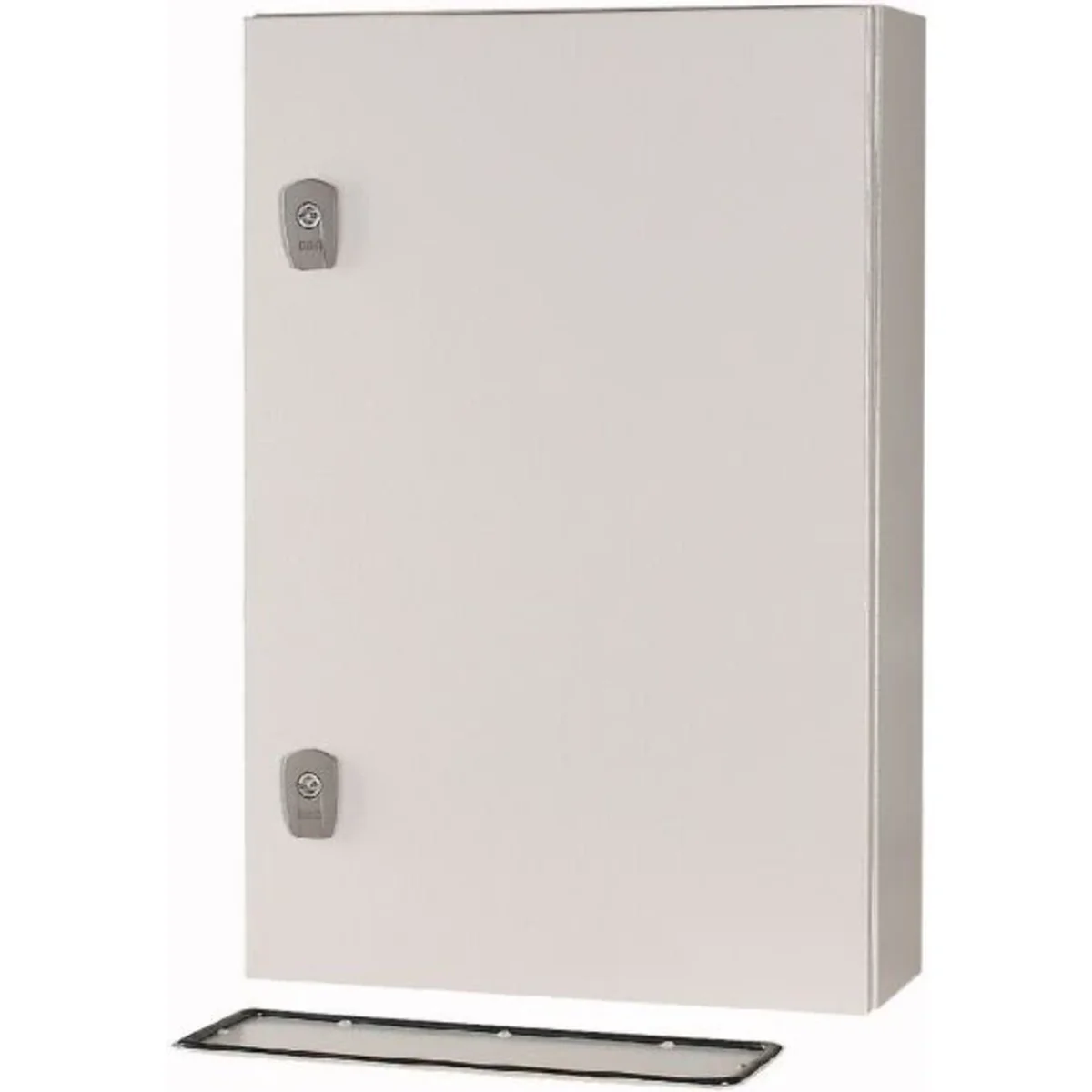

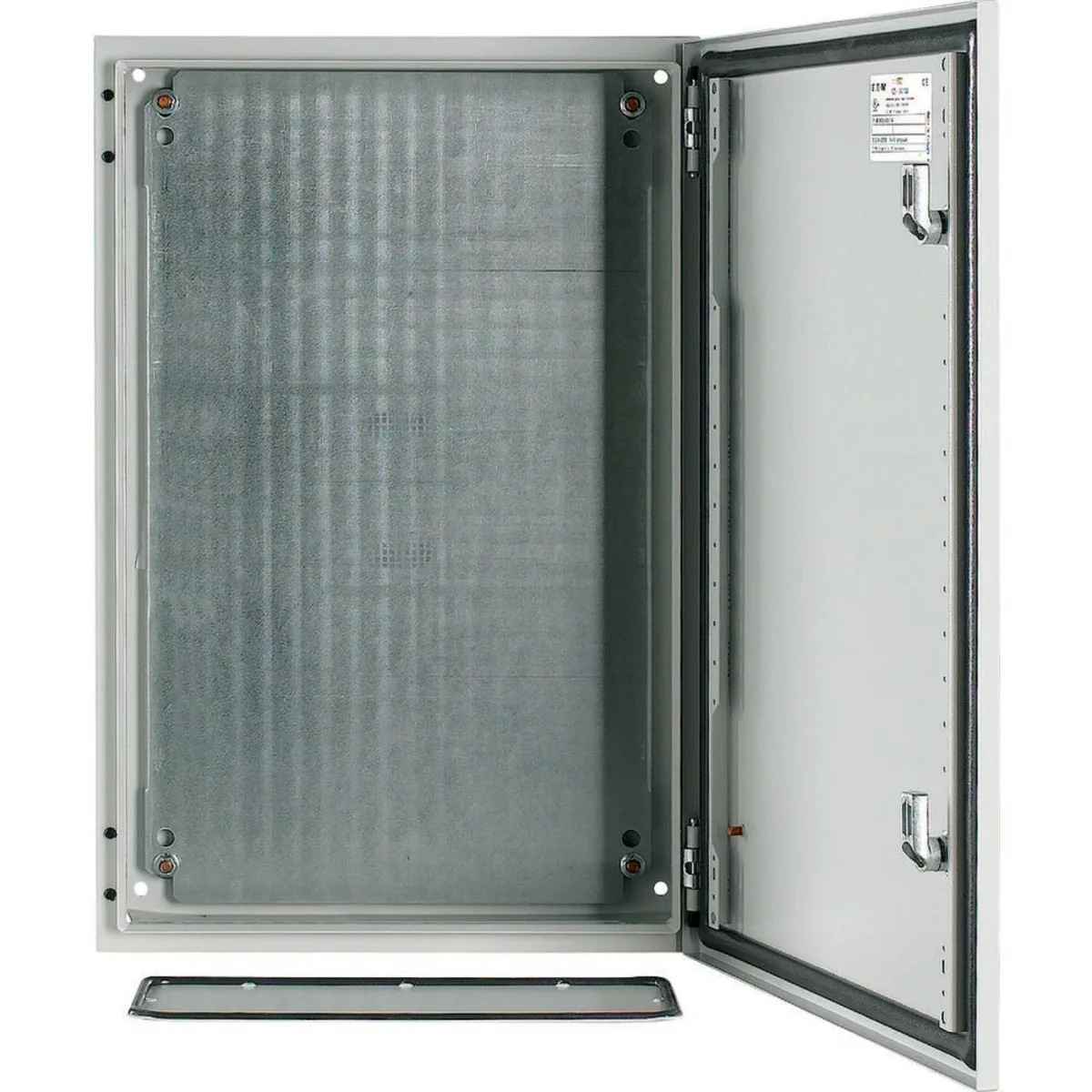

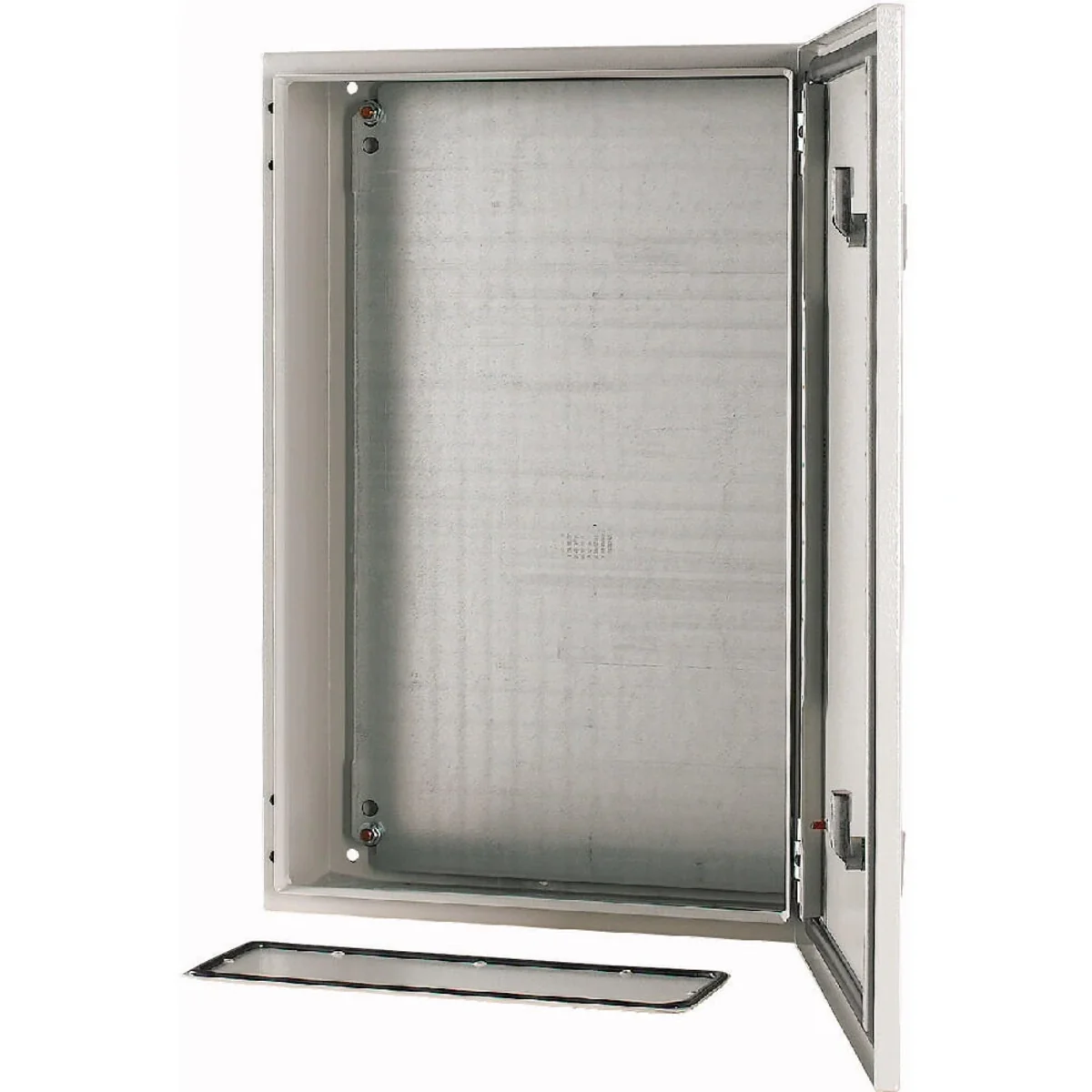

CS wall-mounted enclosure, door with all-round foam seal, impact resistance category IK09 according to EN 62262, base plate with foam seal, seal with protection in the recessed area, single-door, right door stop, door opening angle 120°, Door hinge pins with Quick-Change technology, profiled door strip with 25 mm perforation for attaching DIN mounting rails or for attaching cable hoses or cables, standardized locking system with all-metal locking lever, with sheet steel mounting plate , scope of delivery: lock, 3mm double-bit useful additional equipment, e.g. comfortable knob PHZ-A-ADD-ON with cylinder lock PHZ-E10/30-GS.

Depth [mm]

150
Color

Gray
Level of security

IP66
Material

steel
PKWIU

22.21.21.0

Number of locks

2
Installation

wall-mounted
Width [mm]

400
Height [mm]

600

Other technical data

Width

400 mm
Depth

150 mm
Material quality

Other
Colour

Grey
Freestanding

No
Suitable for wall mounting

Yes
Intermediate mounting

Yes
With mounting plate

Yes
Suitable for wall built-in

Yes
Number of doors

1
Suitable for metrical mounting

Yes
Pitched roof

No
With glazed door

No
With rear door

No
Degree of protection (IP)

IP66
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

35 W
Max. permissible load of the door(s) according to IEC 62208

250 N

Height

600 mm
Material

Steel
Surface finishing

Powder coating
RAL-number

7035
Floor standing wall model

Yes
Corner model

No
Couplable

No
Mounting plate depth-adjustable

No
Pole fastening

Yes
Number of locks

2
Suitable for outdoor set-up

No
EMC-version

No
With ventilation door

No
Impact strength

IK09
Degree of protection (NEMA)

12
Max. permissible load of the enclosure according to IEC 62208

2250 N
Max. permissible load of the mounting plate according to IEC 62208

2000 N

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
E-mail

pl-gdansk@eaton.com
WWW

https://www.moeller.pl
Tax identification number

5841022327
GLN

5900009970944

A kind of package		Skrzynia
Quantity	1 pcs.	1 pcs.
Weight (kg)	12,350	12,750
Volume (m3)	0,036	0,039
Width (m)	0,400	0,408
Length (m)	0,150	0,158
Depth (m)	0,600	0,608
