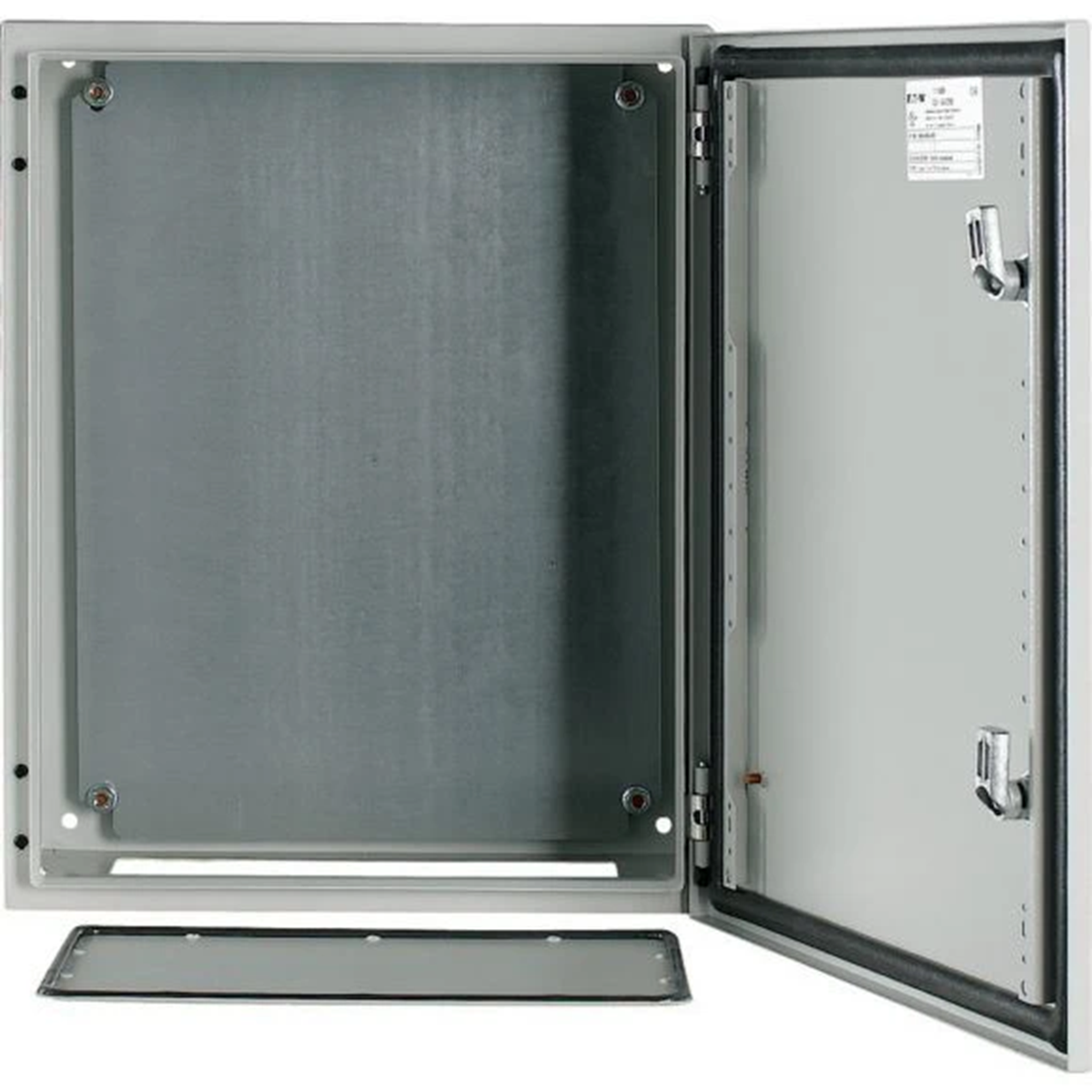

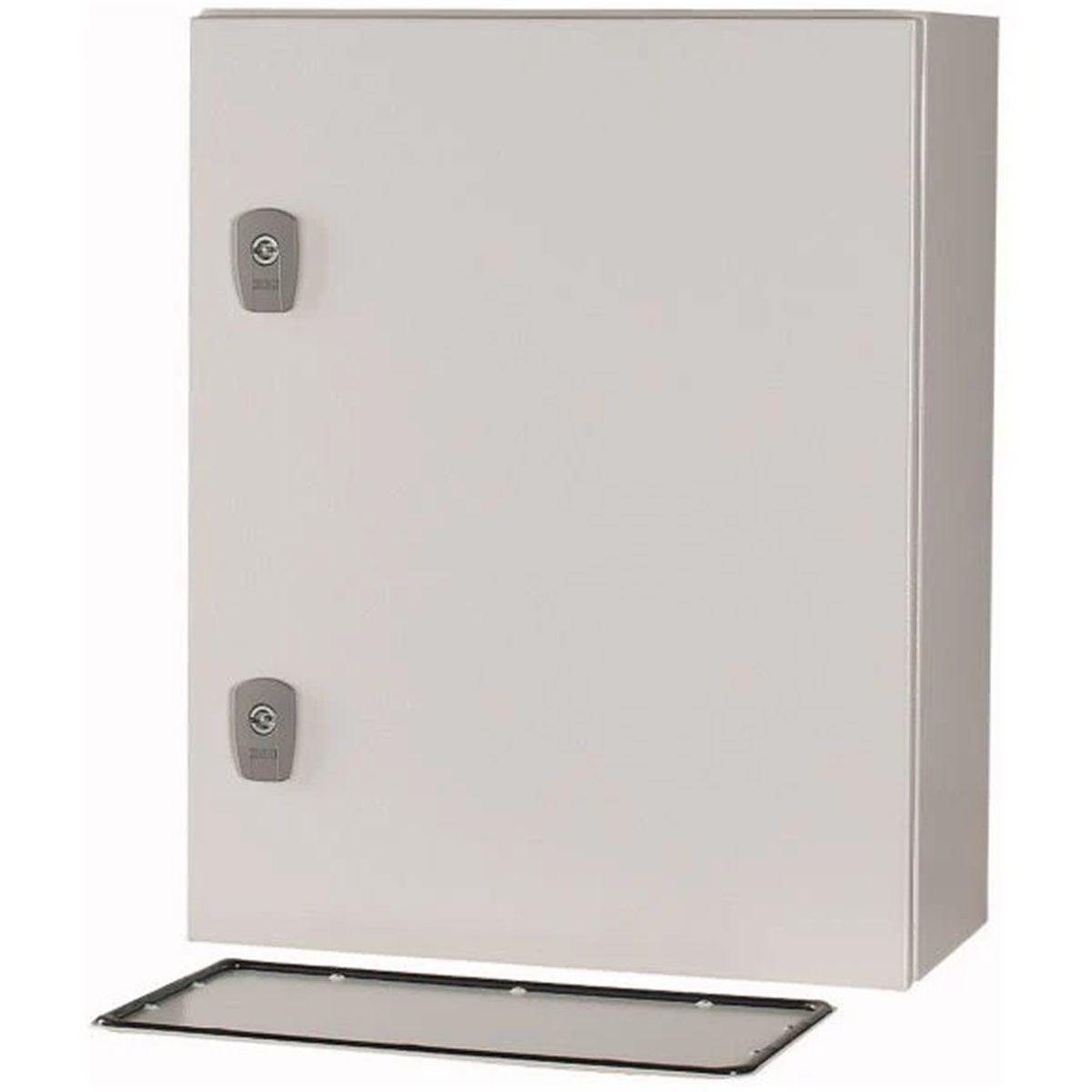

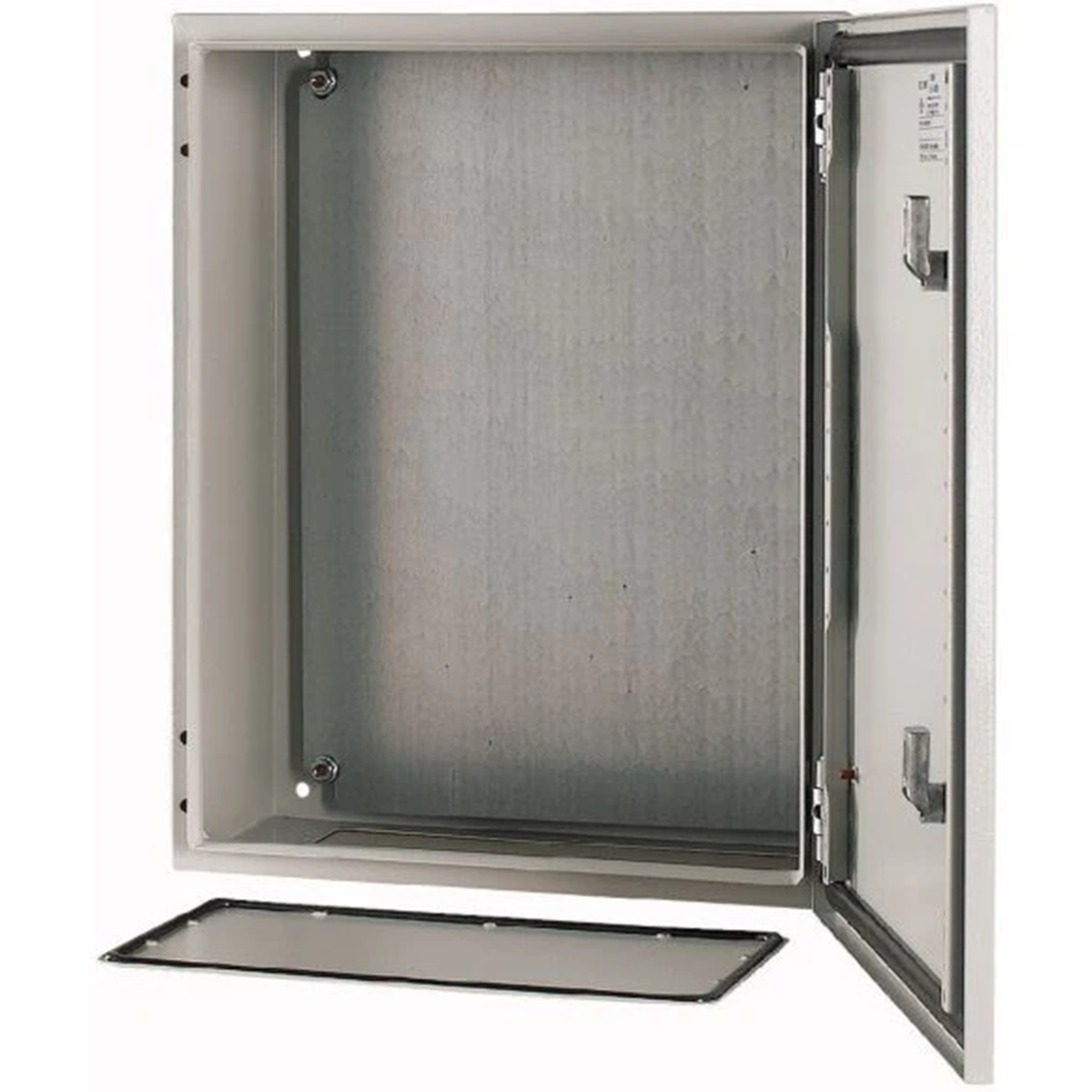

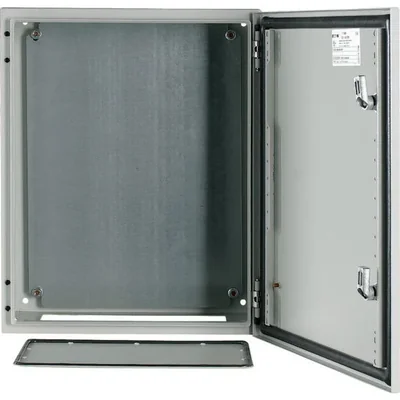

Housing with mounting plate. (500x400x200), CS-54/200 111689

Indeks lokalny:
RMH099MOEL
Nr katalogowy:
111689
Kod EAN:
4015081112487
Producent: EATON
Depth [mm]: 200
Width [mm]: 400
Height [mm]: 500
Cena:
162,83 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Dostępne 13 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).

Dane techniczne

  • Depth [mm]
    200
  • Height [mm]
    500
  • Width [mm]
    400
  • PKWIU
    22.21.21.0

Pozostałe dane techniczne

  • Width
    400 mm
  • Depth
    200 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    No
  • Suitable for wall mounting
    Yes
  • Intermediate mounting
    Yes
  • With mounting plate
    Yes
  • Suitable for wall built-in
    Yes
  • Number of doors
    1
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    35 W
  • Max. permissible load of the door(s) according to IEC 62208
    250 N
  • Height
    500 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    Yes
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    No
  • Pole fastening
    Yes
  • Number of locks
    2
  • Suitable for outdoor set-up
    No
  • EMC-version
    No
  • With ventilation door
    No
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    2250 N
  • Max. permissible load of the mounting plate according to IEC 62208
    2000 N

Dane producenta

  • Producent
    EATON Electric Sp. z o.o.
  • Adres
    80-299 Gdańsk ul. Galaktyczna 30
  • NIP
    5841022327

Opakowania zbiorcze

Rodzaj opakowania Skrzynia
Ilość 1 szt.
Waga (kg) 11,730
Objętość (m3) 0,043
Szerokość (m) 0,408
Długość (m) 0,208
Głębokość (m) 0,508
