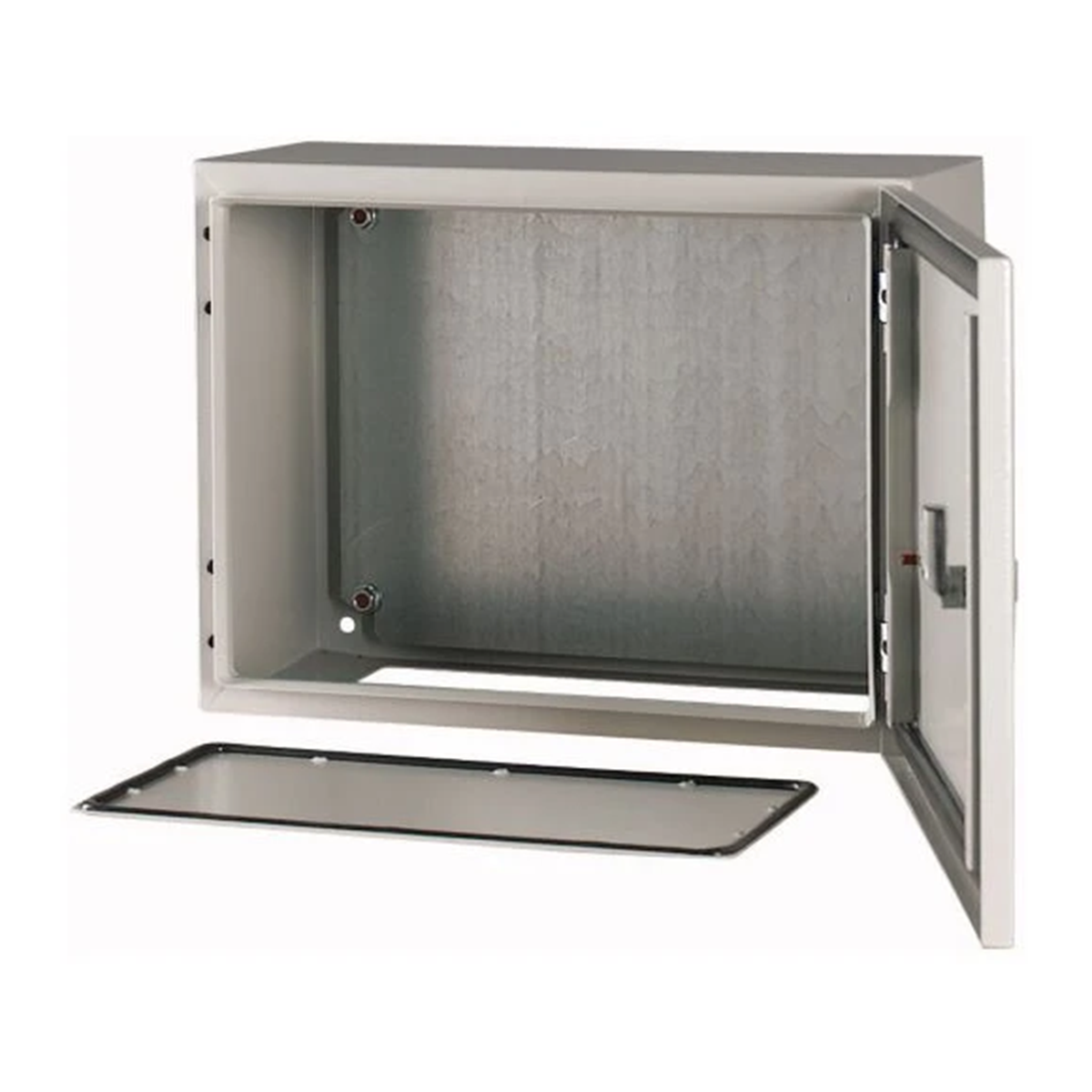

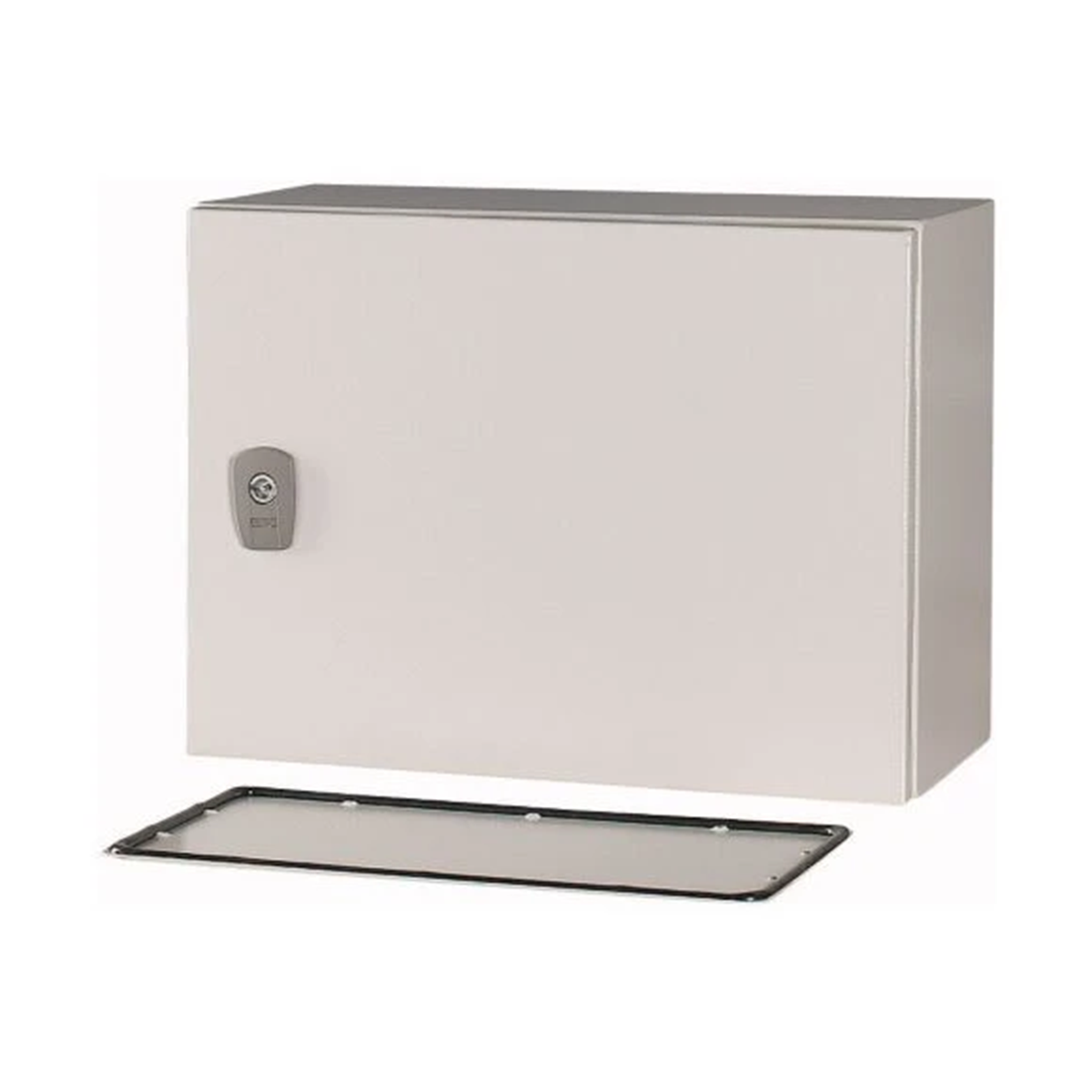

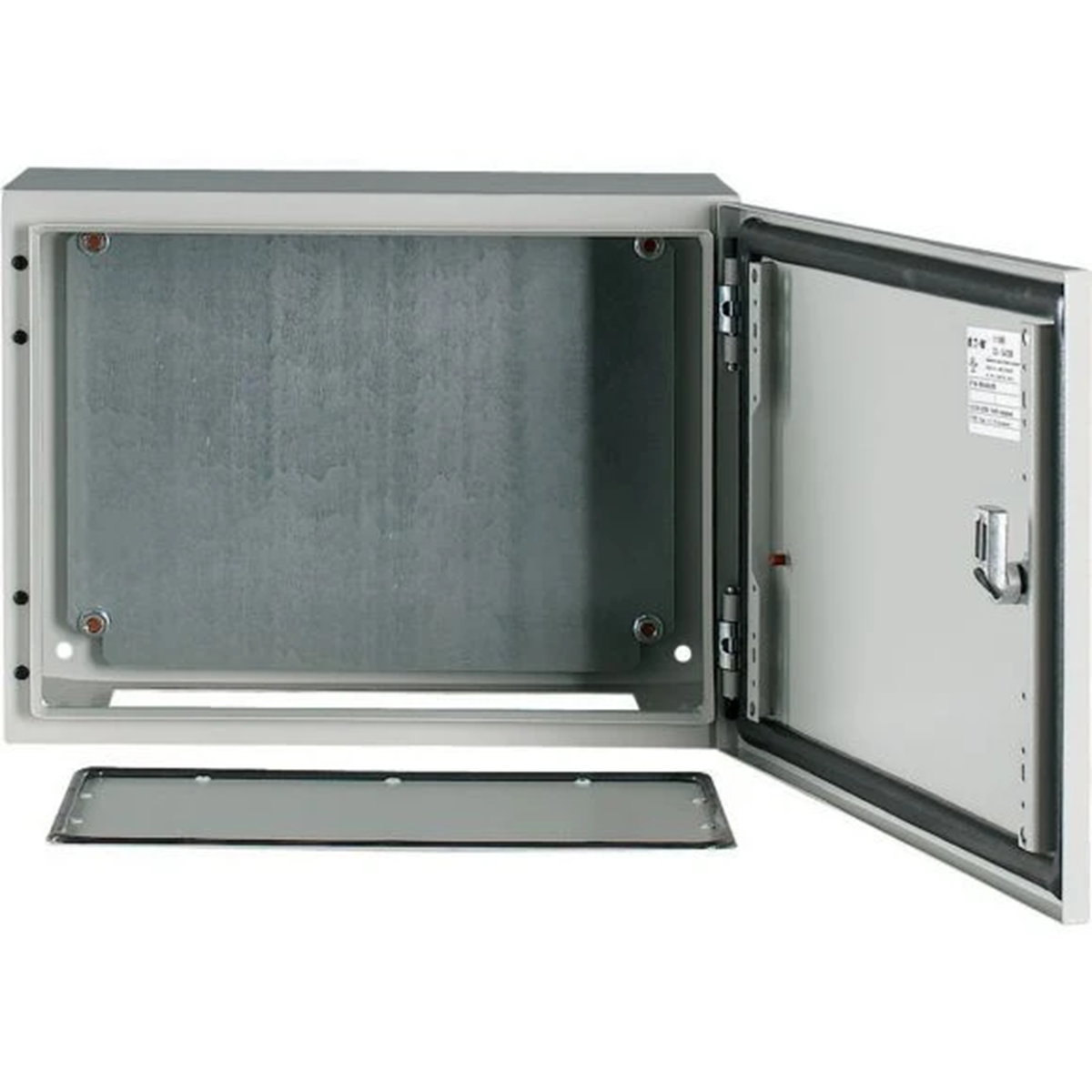

Housing with mounting plate. (300x400x200), CS-34/200 111680

local index:
RMH063MOEL
Catalog No:
111680
EAN code:
4015081112098
Manufacturer: EATON
Color: Gray
Price:
146,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 13 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).

Technical data

  • Color
    Gray
  • PKWIU
    27.40.12.0

Other technical data

  • Width
    400 mm
  • Depth
    200 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    no
  • Suitable for wall mounting
    yes
  • Intermediate mounting
    yes
  • With mounting plate
    yes
  • Suitable for wall built-in
    yes
  • Number of doors
    1
  • Suitable for metrical mounting
    yes
  • Pitched roof
    no
  • With glazed door
    no
  • With rear door
    no
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    23 W
  • Max. permissible load of the door(s) according to IEC 62208
    250 N
  • Height
    300 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    yes
  • Corner model
    no
  • Couplable
    no
  • Mounting plate depth-adjustable
    no
  • Pole fastening
    yes
  • Number of locks
    1
  • Suitable for outdoor set-up
    no
  • EMC-version
    no
  • With ventilation door
    no
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    1750 N
  • Max. permissible load of the mounting plate according to IEC 62208
    1500 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 7,920
Volume (m3) 0,026
Width (m) 0,408
Length (m) 0,208
Depth (m) 0,308
