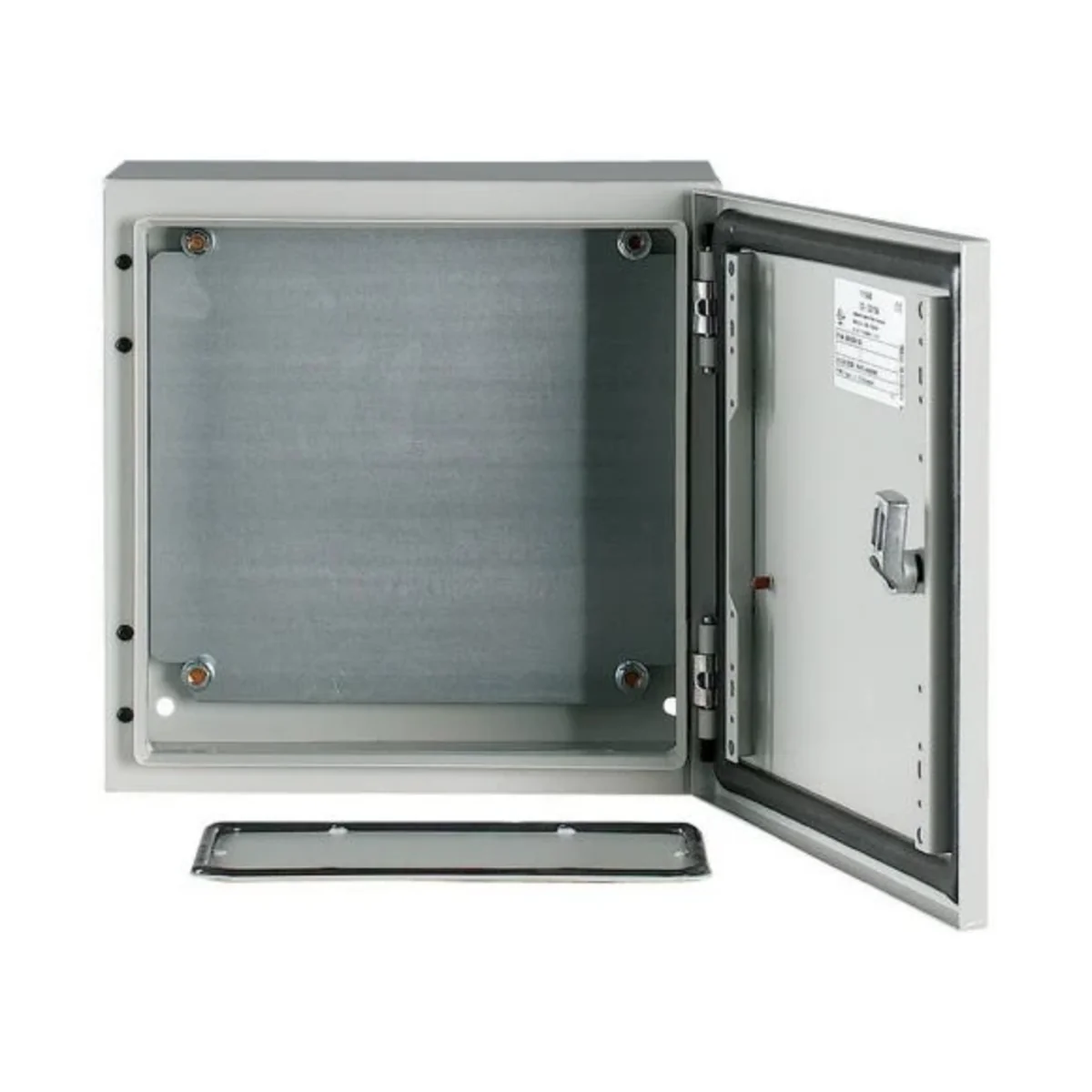

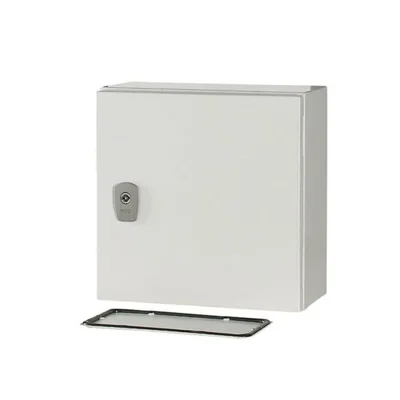

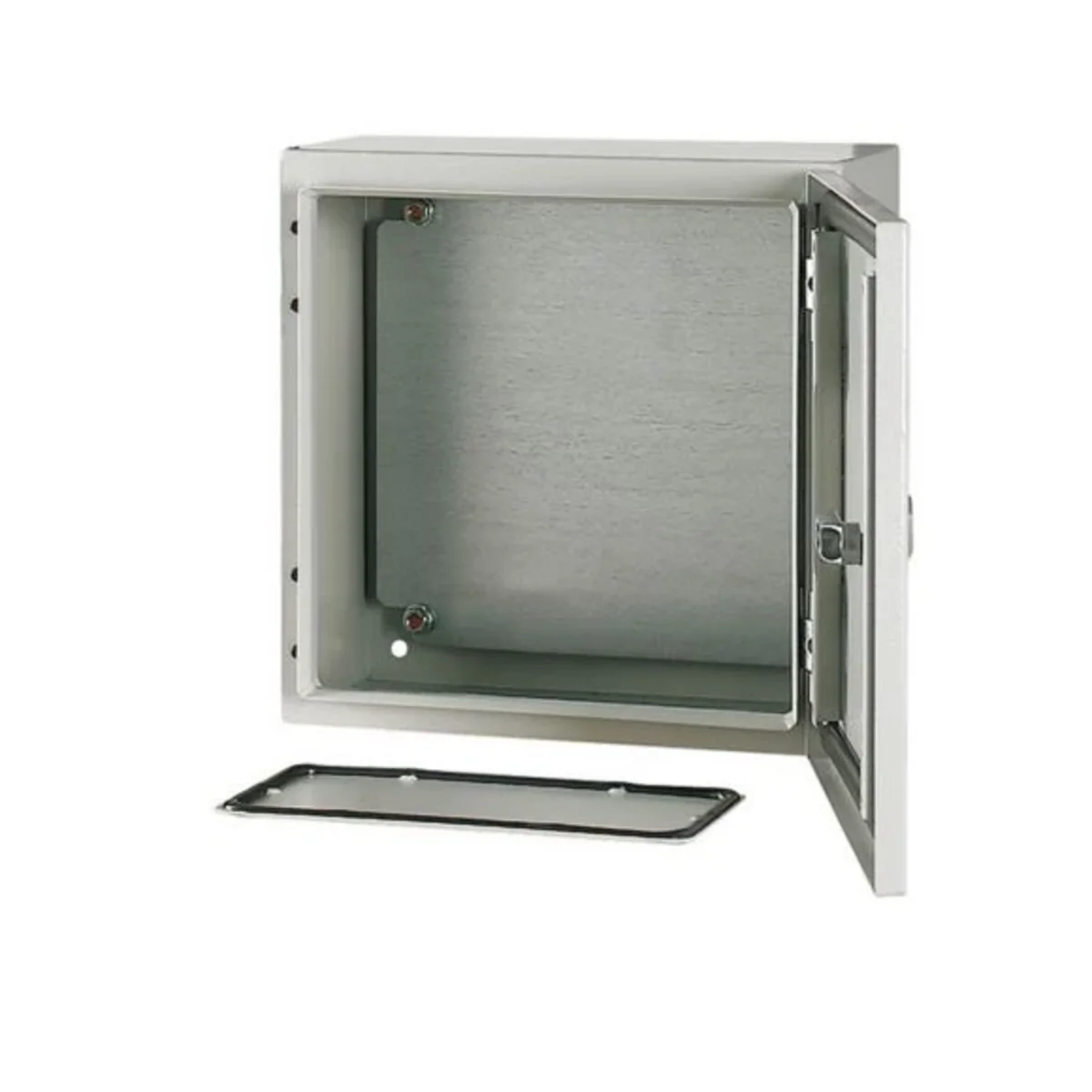

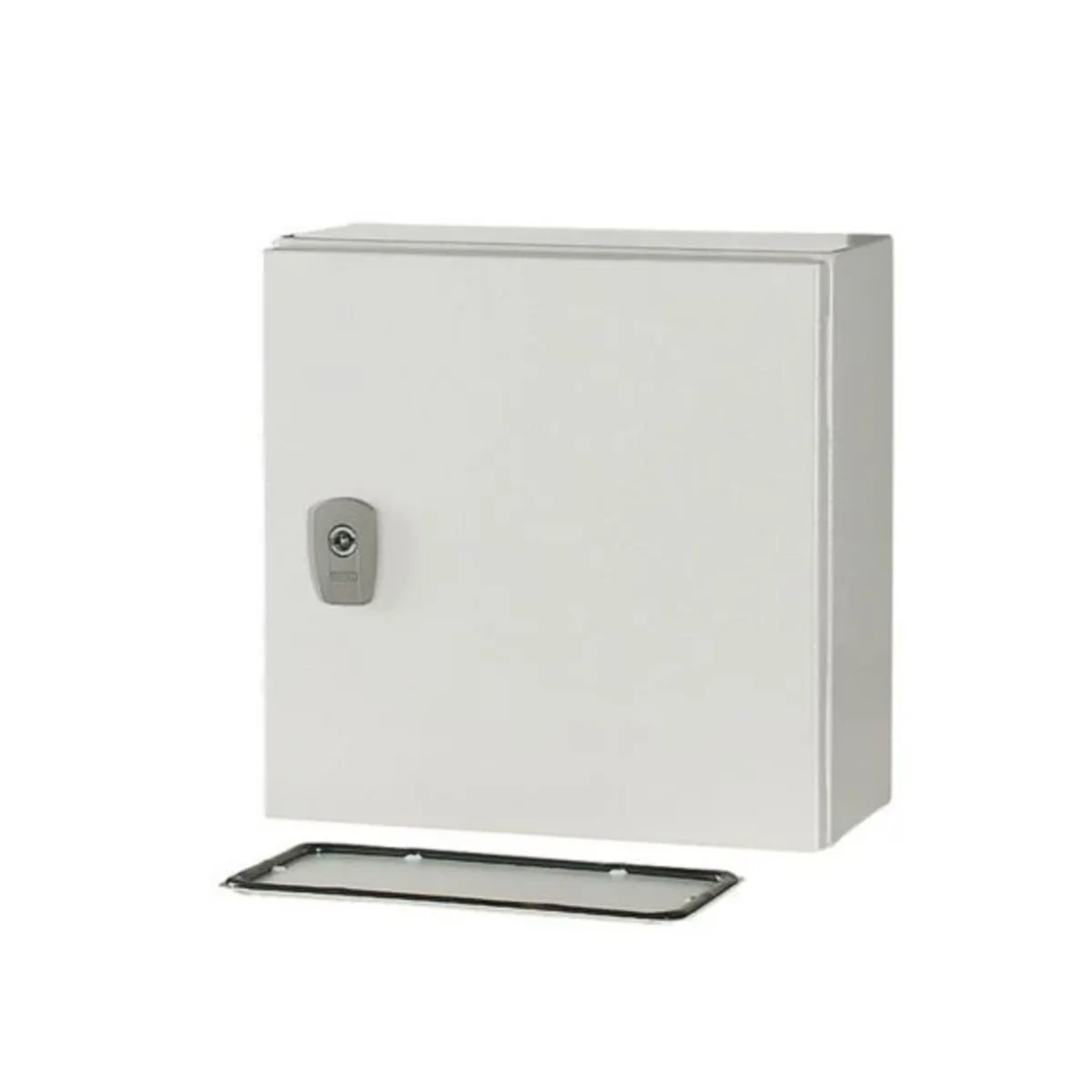

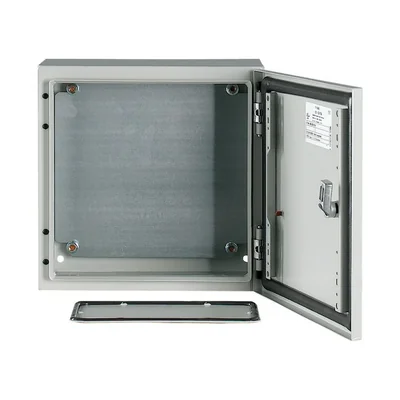

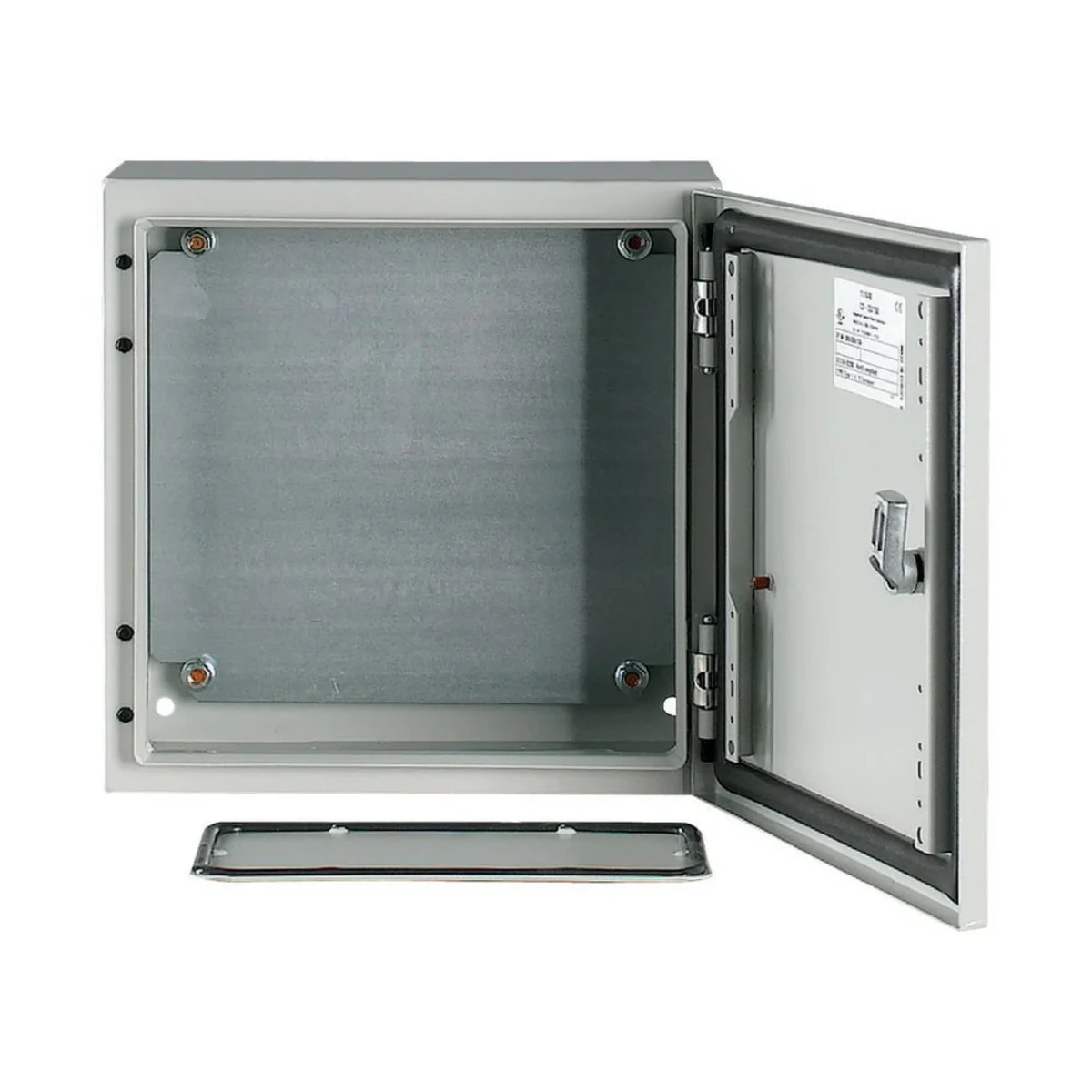

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).
Technical data
Depth [mm]
150
Height [mm]
300
Width [mm]
300
Other technical data
Width
300 mm
Depth
150 mm
Material quality
Other
Colour
Grey
Freestanding
No
Suitable for wall mounting
Yes
Intermediate mounting
Yes
With mounting plate
Yes
Suitable for wall built-in
Yes
Number of doors
1
Suitable for metrical mounting
Yes
Pitched roof
No
With glazed door
No
With rear door
No
Degree of protection (IP)
IP66
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
16 W
Max. permissible load of the door(s) according to IEC 62208
250 N
Height
300 mm
Material
Steel
Surface finishing
Powder coating
RAL-number
7035
Floor standing wall model
Yes
Corner model
No
Couplable
No
Mounting plate depth-adjustable
No
Pole fastening
Yes
Number of locks
1
Suitable for outdoor set-up
No
EMC-version
No
With ventilation door
No
Impact strength
IK09
Degree of protection (NEMA)
12
Max. permissible load of the enclosure according to IEC 62208
1500 N
Max. permissible load of the mounting plate according to IEC 62208
