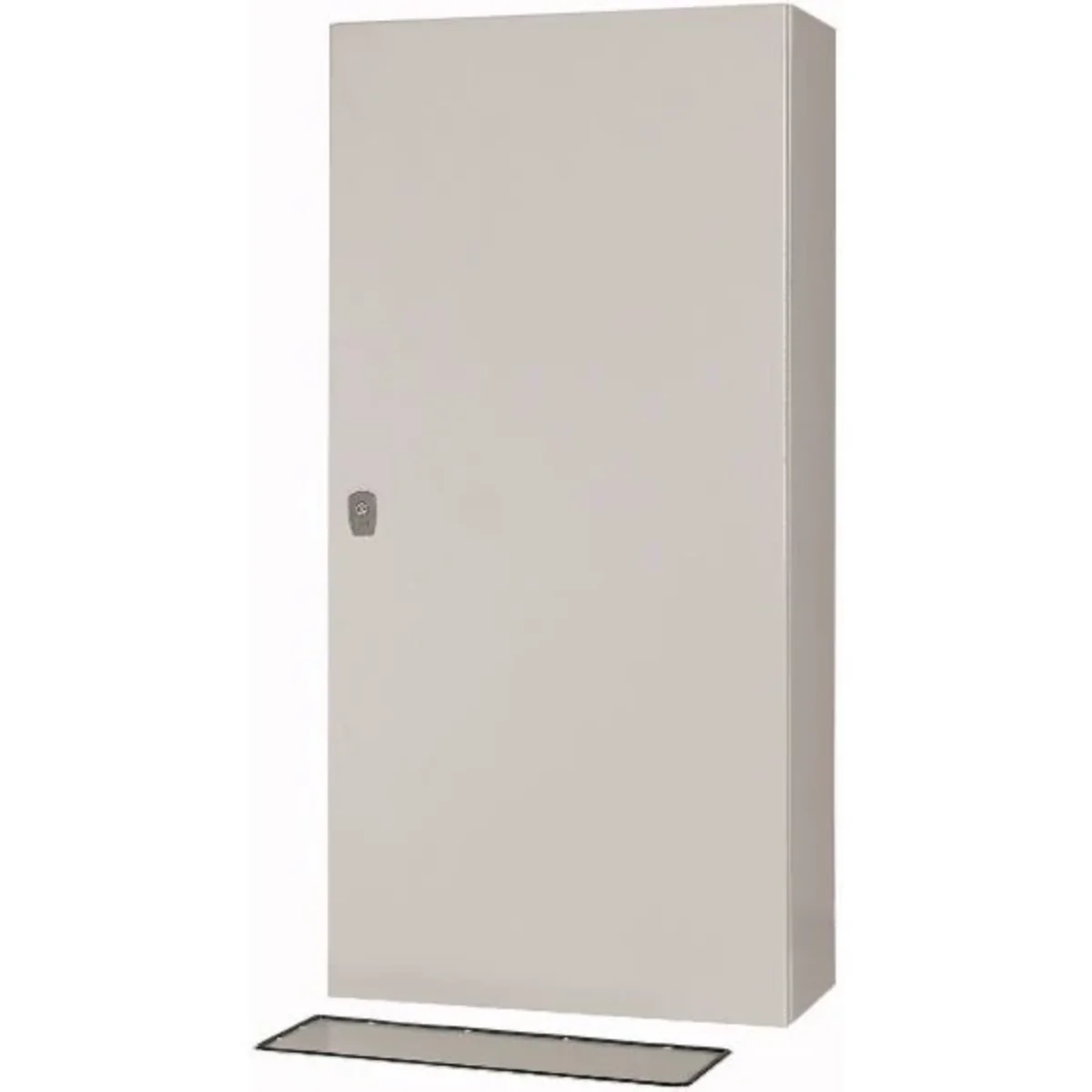

Housing with mounting plate. (1200x600x250), CS-126/250 111717

local index:
RMH001MOEL
Catalog No:
111717
EAN code:
4015081112760
Manufacturer: EATON
Depth [mm]: 250
Width [mm]: 600
Height [mm]: 1200
Large-size product
Price:
676,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

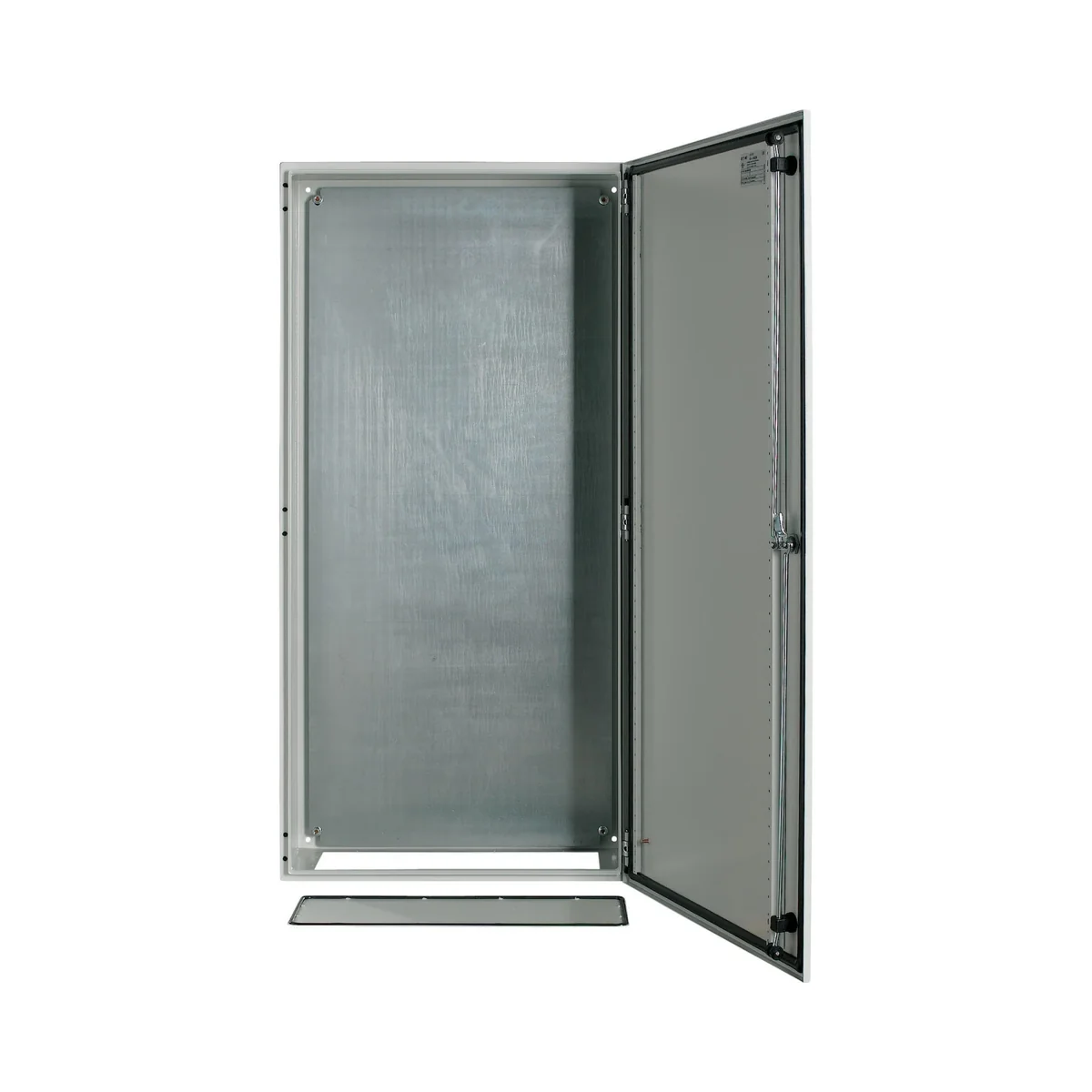

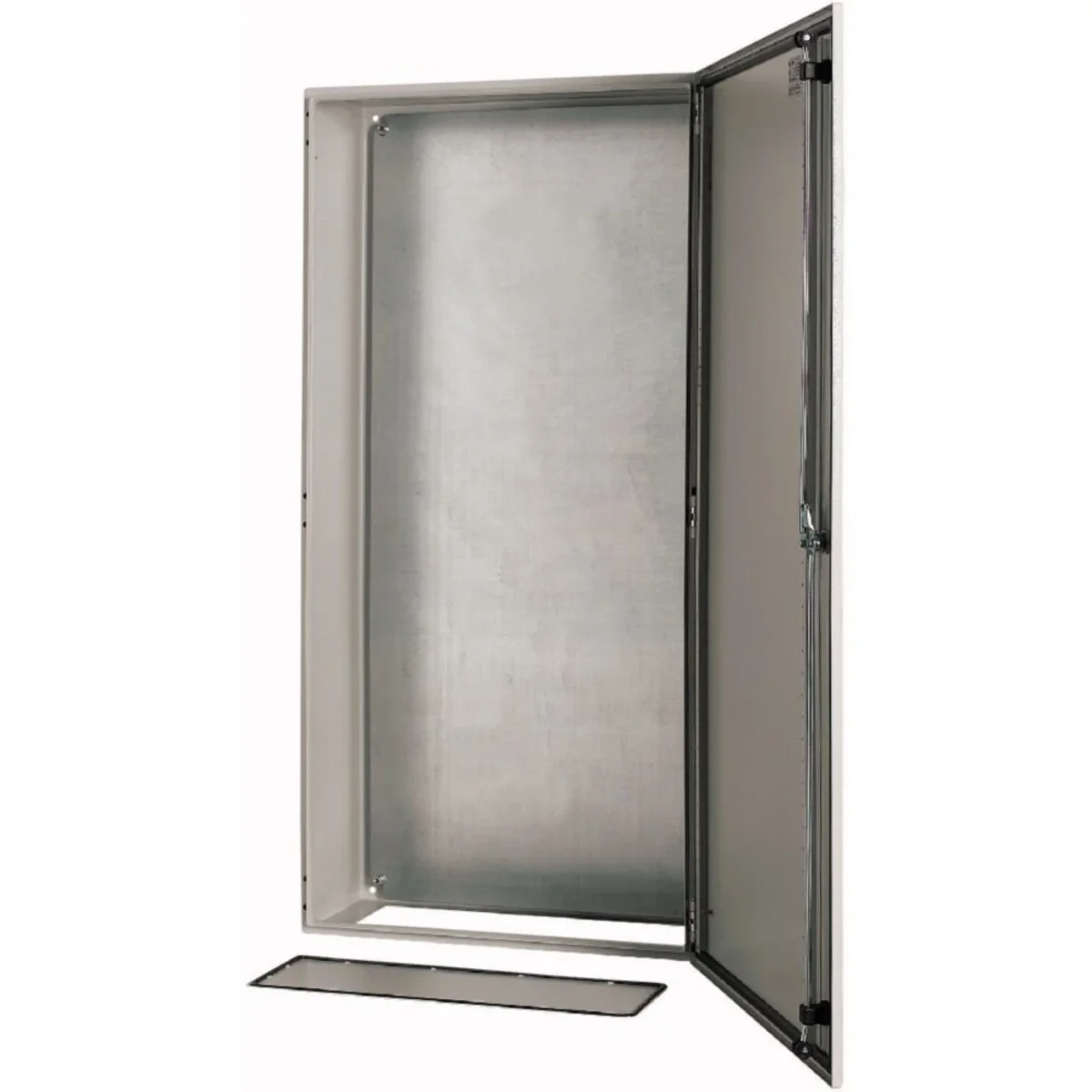

CS universal housings. The enclosures are equipped with: mounting plate, lock, door, full blanking plate. It is possible to order a switchgear in a different color and dimensions (on request).

Technical data

  • Depth [mm]
    250
  • Height [mm]
    1200
  • Width [mm]
    600
  • PKWIU
    25.11.23.0

Other technical data

  • Width
    600 mm
  • Depth
    250 mm
  • Material quality
    Other
  • Colour
    Grey
  • Freestanding
    No
  • Suitable for wall mounting
    Yes
  • Intermediate mounting
    Yes
  • With mounting plate
    Yes
  • Suitable for wall built-in
    Yes
  • Number of doors
    1
  • Suitable for metrical mounting
    Yes
  • Pitched roof
    No
  • With glazed door
    No
  • With rear door
    No
  • Degree of protection (IP)
    IP66
  • Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
    106 W
  • Max. permissible load of the door(s) according to IEC 62208
    400 N
  • Height
    1200 mm
  • Material
    Steel
  • Surface finishing
    Powder coating
  • RAL-number
    7035
  • Floor standing wall model
    Yes
  • Corner model
    No
  • Couplable
    No
  • Mounting plate depth-adjustable
    No
  • Pole fastening
    Yes
  • Number of locks
    1
  • Suitable for outdoor set-up
    No
  • EMC-version
    No
  • With ventilation door
    No
  • Impact strength
    IK09
  • Degree of protection (NEMA)
    12
  • Max. permissible load of the enclosure according to IEC 62208
    3900 N
  • Max. permissible load of the mounting plate according to IEC 62208
    3500 N

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 50,140
Volume (m3) 0,189
Width (m) 0,608
Length (m) 0,258
Depth (m) 1,208
