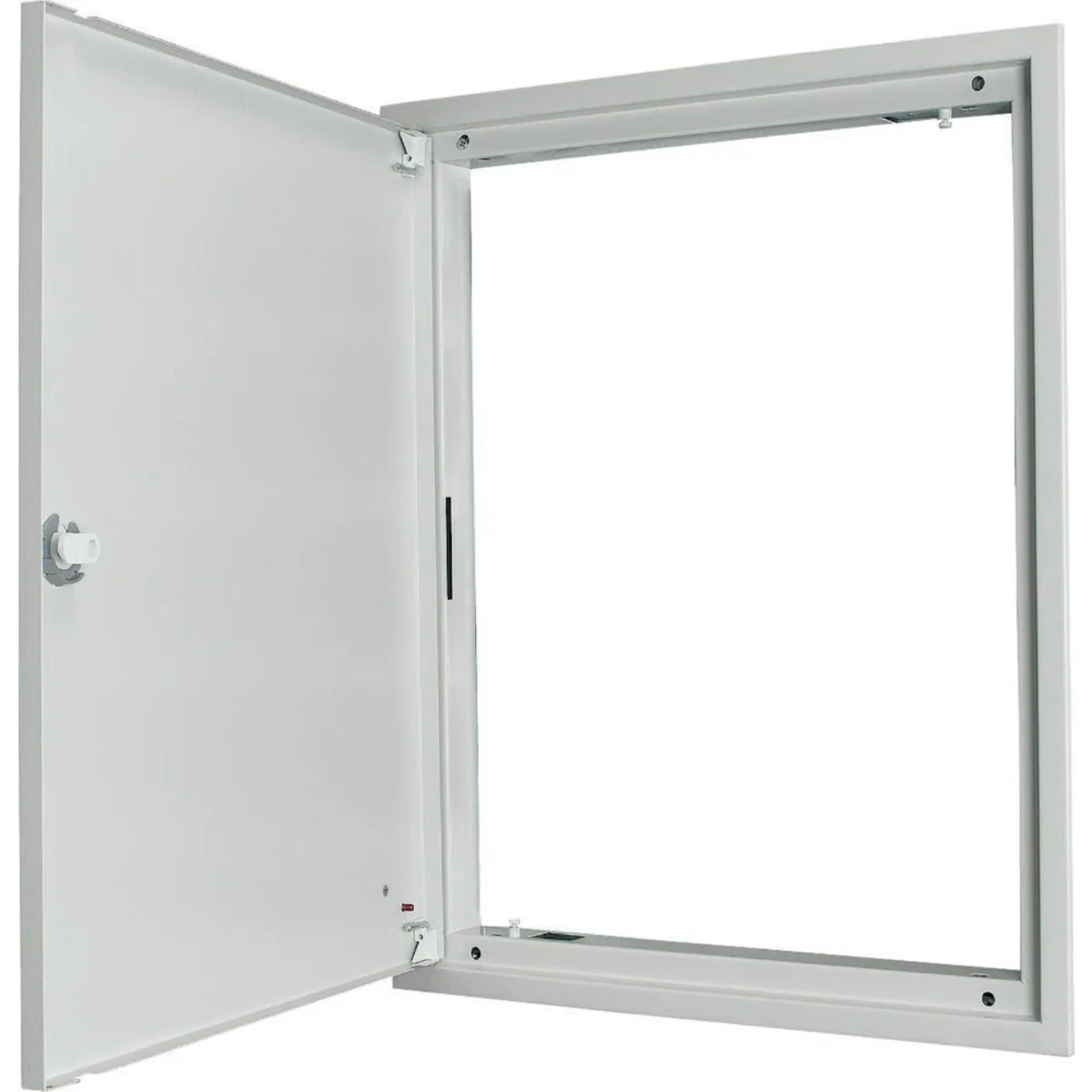

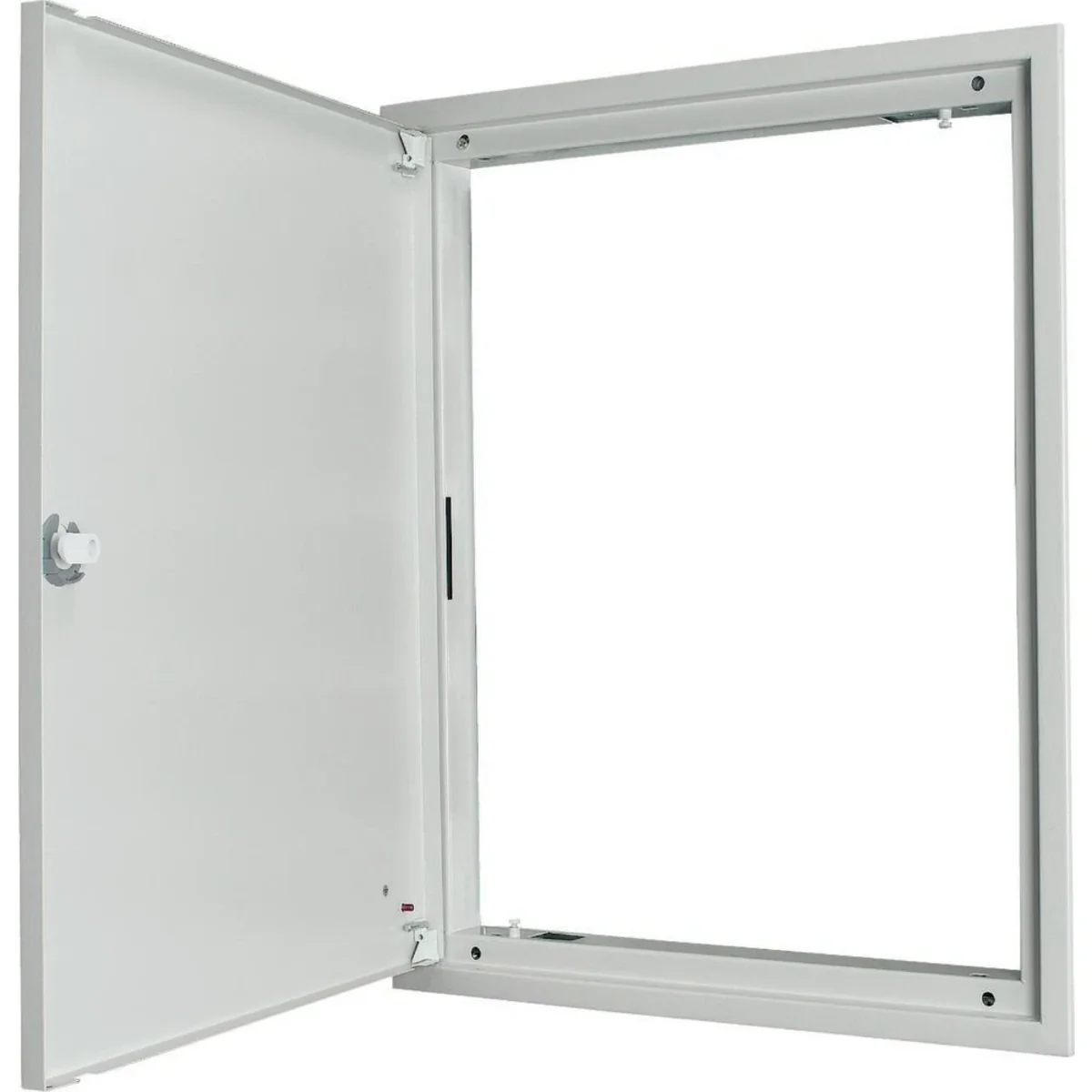

Door with frame IP 30 type BP-U-3S, BP-U-3S-800/17 111166

local index:
RMP005MOEL
Catalog No:
111166
EAN code:
4015081107278
Manufacturer: EATON
Level of security: IP30
Width [mm]: 800
Height [mm]: 1760
Price:
318,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Door with frame IP30, type BP-U-3S...
• Mounted in the BPZ-WB3S flush-mounted cassette
• Supplied with a plastic lock
• Possibility of installing a lock with a key SS-KS-61005

Technical data

  • Level of security
    IP30
  • Height [mm]
    1760
  • Width [mm]
    800

Other technical data

  • Model
    Lock door
  • Version as door for disconnecting switch interlocking
    No
  • Height
    1765 mm
  • EMC-version
    Yes
  • Surface finishing
    Powder coating
  • Degree of protection (IP)
    IP30
  • Version as glazed door
    No
  • Width
    835 mm
  • Depth
    70 mm
  • Material
    Steel
  • Colour
    Grey
  • Degree of protection (NEMA)
    Other

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 16,294
Volume (m3) 0,103
Width (m) 0,835
Length (m) 0,070
Depth (m) 1,765
