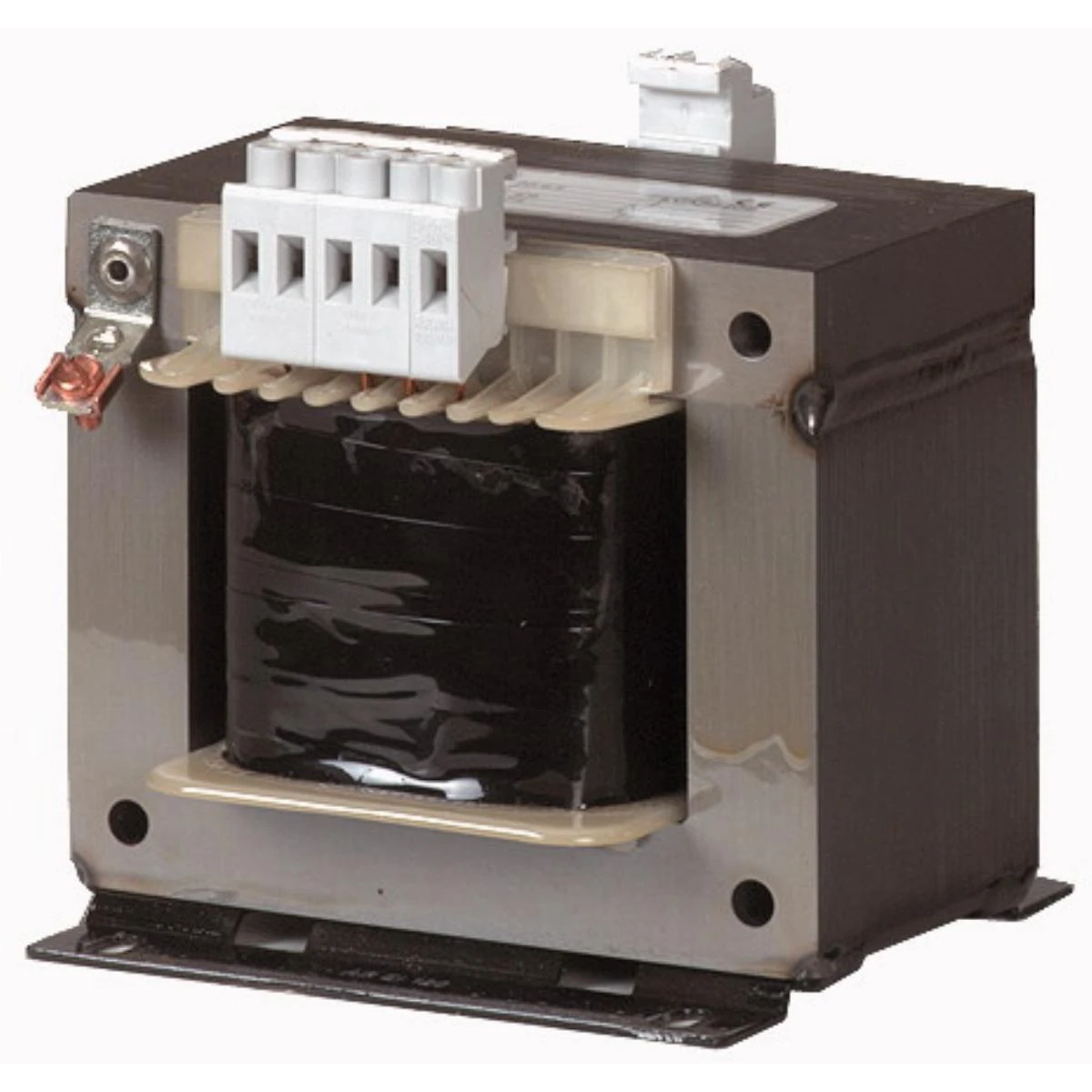

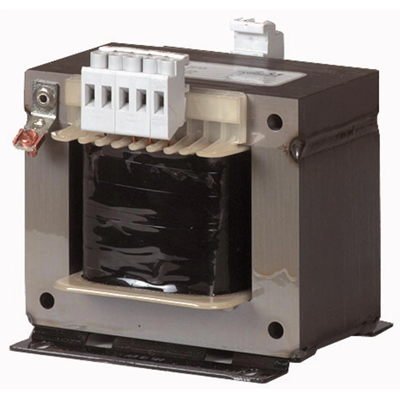

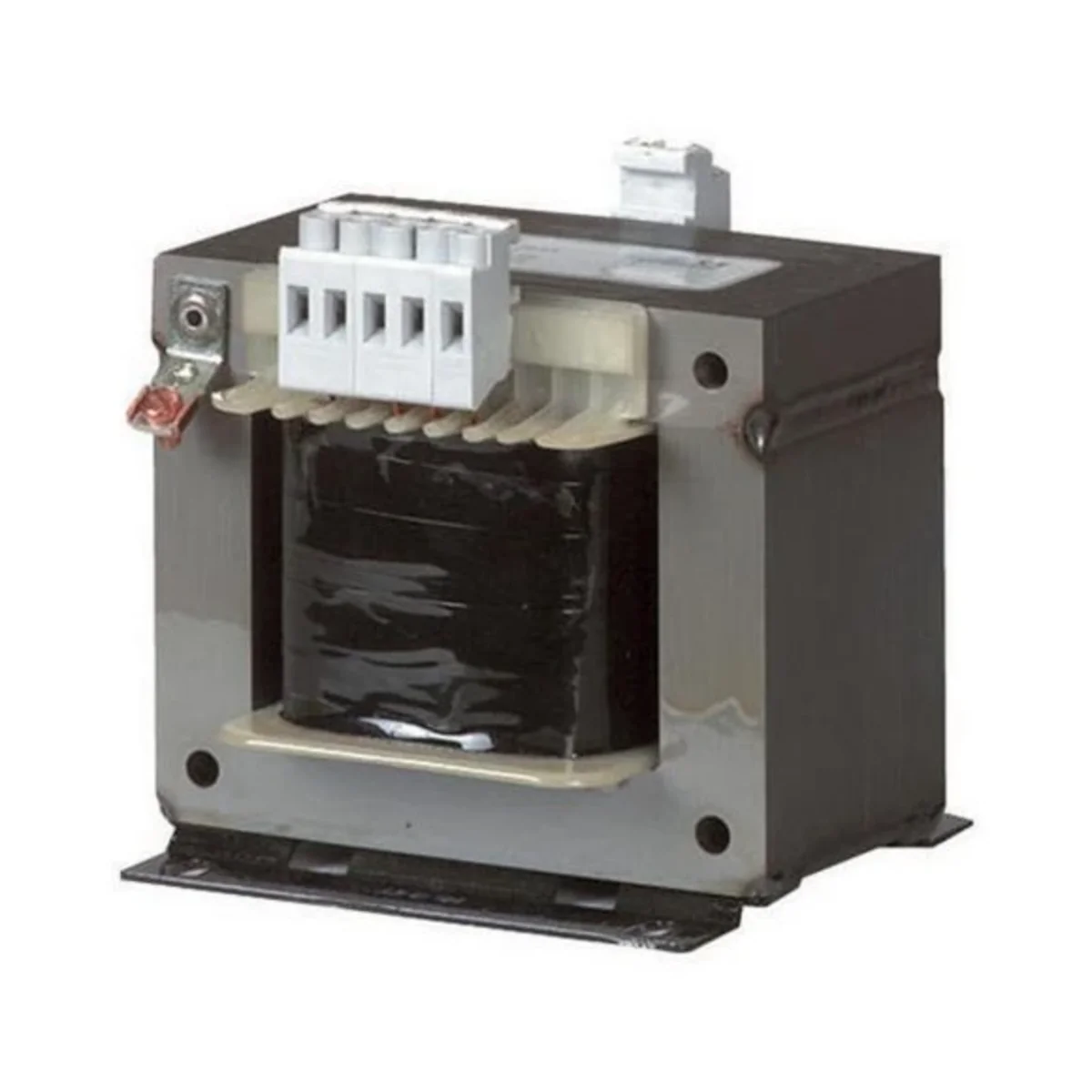

Control transformer, 315VA, STN0.315(400/24) 221511

Name: Control transformer, 315VA, STN0.315(400/24)
Brand: EATON
SKU: AUN002MOEL
Price: 1002.11 PLN
Availability: BackOrder

Index local:

AUN002MOEL

Numéro de catalogue:

221511

Code EAN:

4015082215118

Control transformer, 315VA, STN0.315(400/24)

Cliquer sur la photo pour l'agrandir

Producteur: EATON

Power [VA]: 315

Short-time power [kVA]: 0.6

Power [kVA]: 0.315

Voir la description complète

Prix:

1002,11 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Single-phase control, isolation and safety transformers with preferred voltage IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers ). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.

Données techniques

Power [VA]

315
Power [kVA]

0.315
Secondary voltage [V]

24

Short-time power [kVA]

0.6
Primary voltage [V]

40
Rated voltage [V]

400

Autres données techniques

Built as safety transformer

No
Built as energy saving transformer

No
Primary voltage 2

0 ... 0 V
Primary voltage 4

0 ... 0 V
Primary voltage 6

0 ... 0 V
Primary voltage 8

0 ... 0 V
Primary voltage 10

0 ... 0 V
Secondary voltage 2

0 ... 0 V
Secondary voltage 4

0 ... 0 V
Secondary voltage 6

0 ... 0 V
Secondary voltage 8

0 ... 0 V
Secondary voltage 10

0 ... 0 V
Type of insulation material according to IEC 85

B
Relative short circuit voltage

5.3 %
Height

112 mm
Degree of protection (IP)

IP00
Suitable for mounting on PCB

No
Conductor material

Copper

Built as isolating transformer

No
Primary voltage 1

400 ... 400 V
Primary voltage 3

0 ... 0 V
Primary voltage 5

0 ... 0 V
Primary voltage 7

0 ... 0 V
Primary voltage 9

0 ... 0 V
Secondary voltage 1

24 ... 24 V
Secondary voltage 3

0 ... 0 V
Secondary voltage 5

0 ... 0 V
Secondary voltage 7

0 ... 0 V
Secondary voltage 9

0 ... 0 V
Rated apparent power

315 VA
Short-circuit-proof

No
Width

106 mm
Depth

91 mm
Ring core

No
Modular version

No

Détails du fabricant

Producteur

Eaton Electric Sp. z o.o.
Adresse

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Emballage en vrac

Une sorte de paquet	Skrzynia
Quantité	1 pcs.
poids (kg)	4,870
Volume (m3)	0,004
Largeur (m)	0,181
Longueur (m)	0,131
Profondeur (m)	0,152
