Control Transformer, 160VA, STI0, 16(400/24) 046634

Name: Control Transformer, 160VA, STI0, 16(400/24)
Brand: EATON
SKU: AUL001MOEL
Price: 861.86 PLN
Availability: BackOrder

Índice local:

AUL001MOEL

Número de catálogo:

046634

Código EAN:

4015080466345

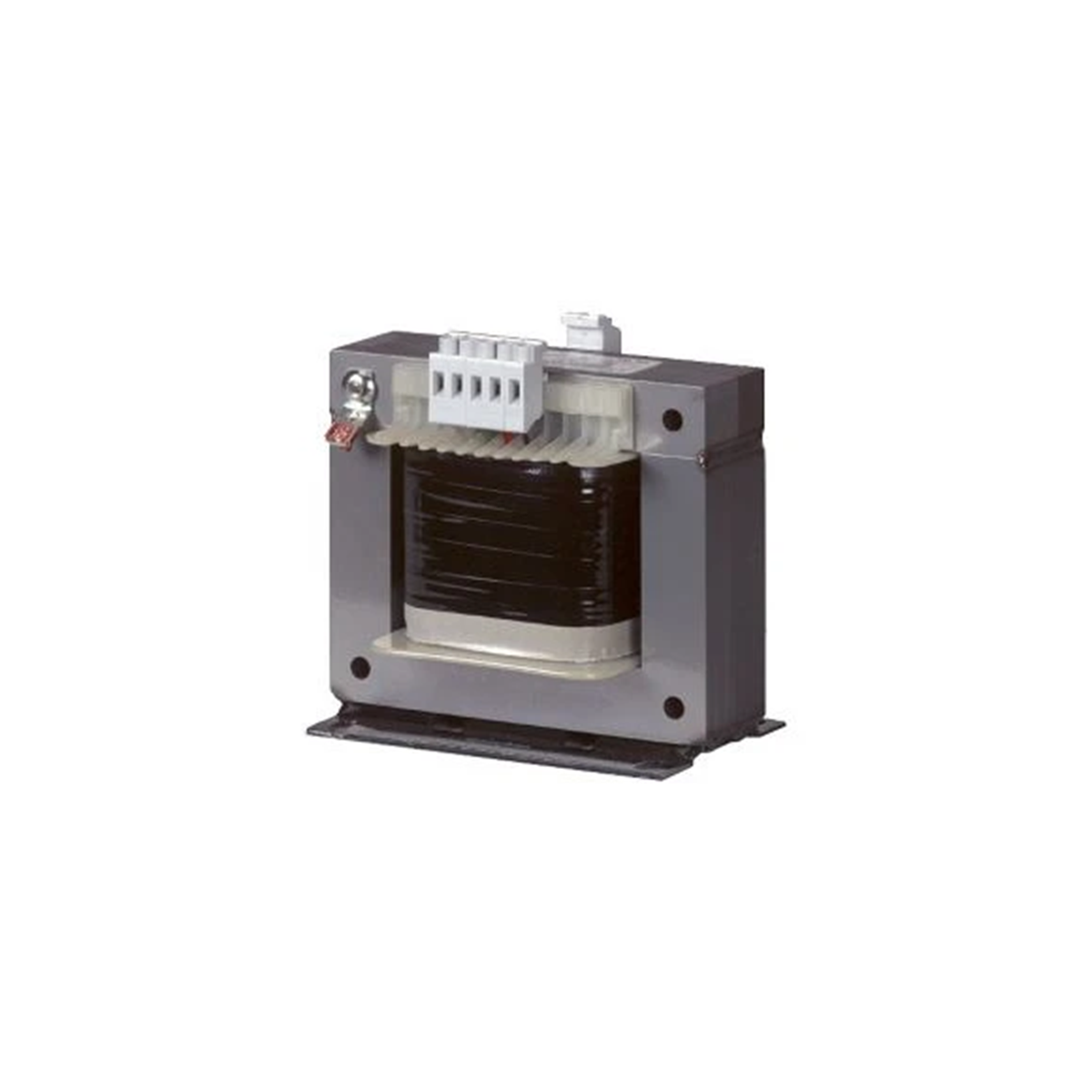

Control Transformer, 160VA, STI0, 16(400/24)

Haga clic en la foto para ampliar

Fabricante: EATON

Power [VA]: 160

Short-time power [kVA]: 0.36

Power [kVA]: 0.16

Ver descripción completa

Precio:

861,86 zł

gross / uds.

(IVA incluido 23%)

hasta 2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Control transformer, 160VA, STI0, 16(400/24). Single-phase control, isolation and safety transformers with preferred voltage IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers ). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.

Datos técnicos

Power [VA]

160
Power [kVA]

0.16
Secondary voltage [V]

24

Short-time power [kVA]

0.36
Primary voltage [V]

400
Rated voltage [V]

400

Otros datos técnicos

Built as safety transformer

Yes
Built as energy saving transformer

No
Primary voltage 2

0 ... 0 V
Primary voltage 4

0 ... 0 V
Primary voltage 6

0 ... 0 V
Primary voltage 8

0 ... 0 V
Primary voltage 10

0 ... 0 V
Secondary voltage 2

0 ... 0 V
Secondary voltage 4

0 ... 0 V
Secondary voltage 6

0 ... 0 V
Secondary voltage 8

0 ... 0 V
Secondary voltage 10

0 ... 0 V
Type of insulation material according to IEC 85

B
Relative short circuit voltage

6.6 %
Height

91 mm
Degree of protection (IP)

IP00
Suitable for mounting on PCB

No
Conductor material

Copper

Built as isolating transformer

Yes
Primary voltage 1

400 ... 400 V
Primary voltage 3

0 ... 0 V
Primary voltage 5

0 ... 0 V
Primary voltage 7

0 ... 0 V
Primary voltage 9

0 ... 0 V
Secondary voltage 1

24 ... 24 V
Secondary voltage 3

0 ... 0 V
Secondary voltage 5

0 ... 0 V
Secondary voltage 7

0 ... 0 V
Secondary voltage 9

0 ... 0 V
Rated apparent power

160 VA
Short-circuit-proof

No
Width

85 mm
Depth

97 mm
Ring core

No
Modular version

No

Detalles del fabricante

Fabricante

Eaton Electric Sp. z o.o.
Dirección

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete	Skrzynia
Cantidad	1 uds.
Peso (kg)	2,596
Volumen (m3)	0,003
Ancho (m)	0,145
Longitud (m)	0,140
Profundidad (m)	0,130
