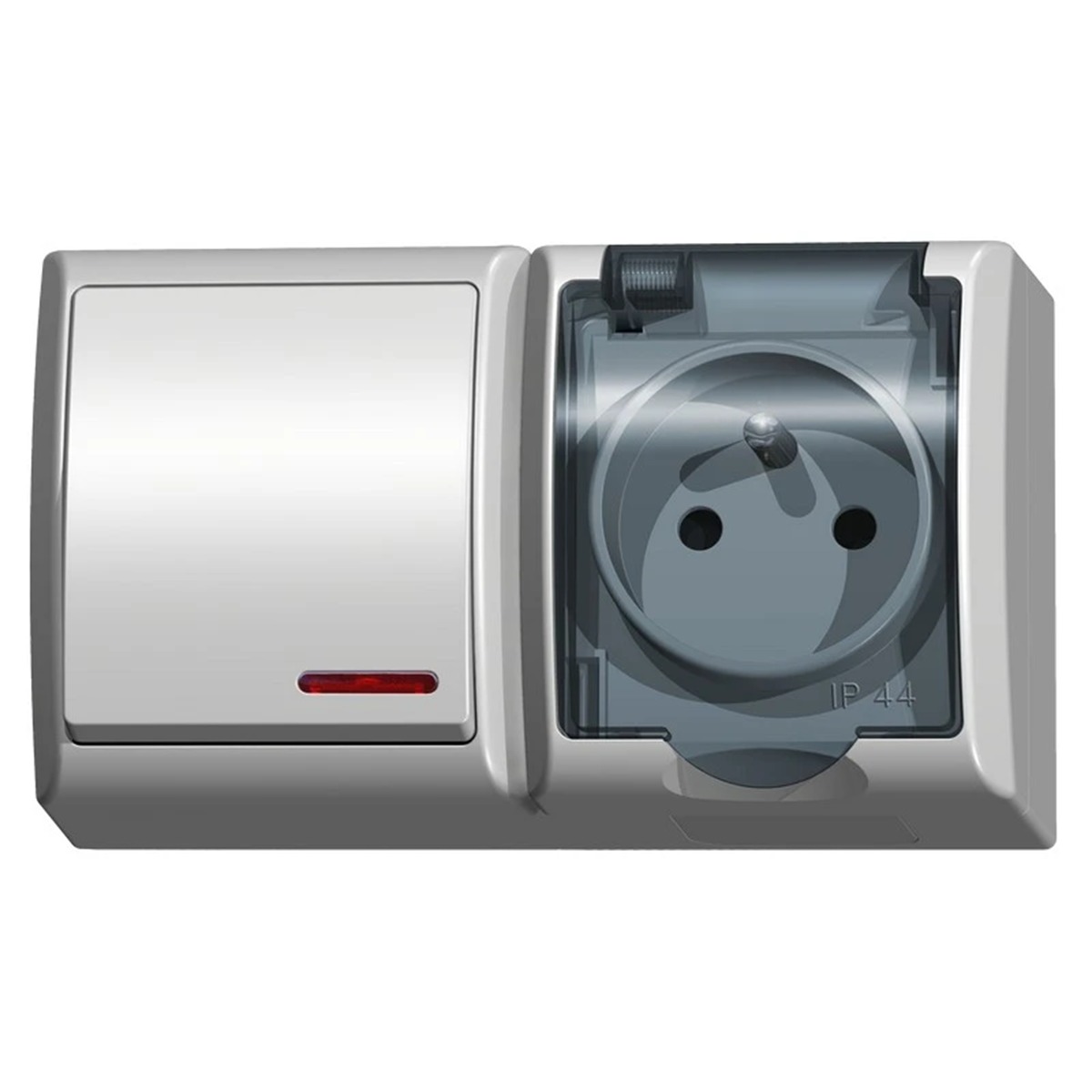

WAVE Unipolar switch with backlight + single socket with earthing, - white - Transparent lid ZH-Ł1SG/00/D
local index:
MFB045OSPE
Catalog No:
ZH-Ł1SG/00/D
EAN code:
5907577412425
Price:
8,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Hermetic wall-mounted electric socket from the Wave series, from Ospel. The product catalog number is ZH-Ł1SG/00/D.
FEATURES
- Z unipolar switch with backlight.
- Earthed socket; Grounding pin.
- Thread terminals.
- Color white.
- Socket lid transparent.
- Rated current of the socket 16 A.
- Rated current of the switch 10 AX.
- Rated voltage 230V.
- Ingress protection IP44.
- surface mounting.
Technical data
-

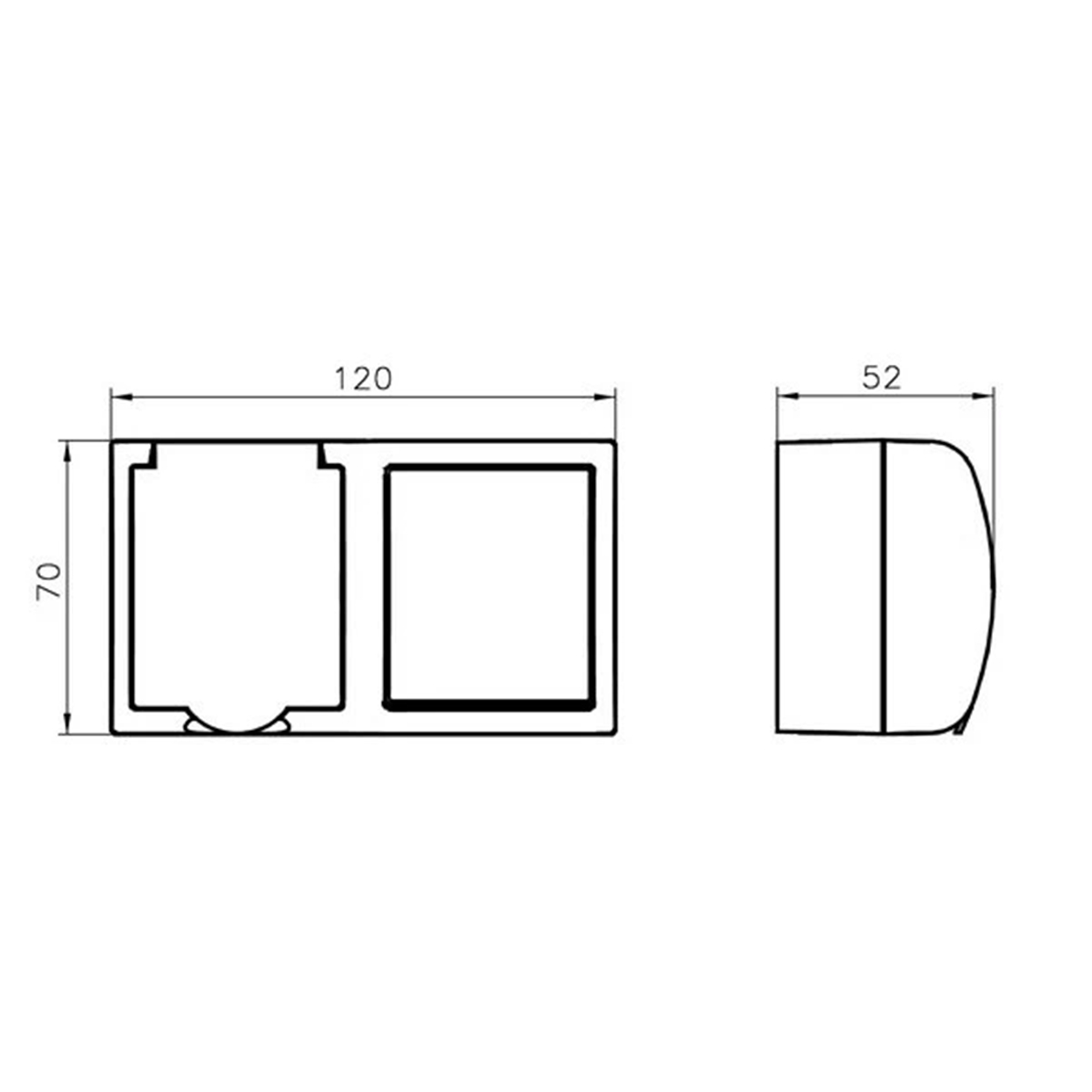

Depth [mm]52
-
ColorWhite
-
MaterialPlastic
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyWAVE
-
Width [mm]120
-
GroundHurt
-
Surface protectionNatural
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemNO
-
Additional connectorunipolar
-
Backlight typeLTS lamp
-
Number of sockets1
-
ShapeRectangular
-
Fixingscrews
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP44
-
TypeSurface-mounted
-
Height [mm]70
-
BacklightYes
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorTransparent
-
Exact materialPlastic Metal
-
PKWIU27.33.13.0
Other technical data
-
Type of switchOff switch
-
Number of socket outlets1
-
Mounting directionHorizontal
-
With lightingYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
Suitable for degree of protection (IP)IP44
-
Nominal current socket outlet16 A
-
Over voltage protectionNo
-
With miniature fuseNo
-
Number of active contacts (flat)0
-
Device height70 mm
-
Type of socket outletEarthing pin
-
Method of operationRocker/button
-
Type of fasteningMounting with claw and screw
-
Mounting methodSurface mounted
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
TransparentYes
-
Nominal voltage250 V
-
Rated current16 A
-
Fault current protectionNo
-
Number of active contacts (round)1
-
Device width120 mm
-
Device depth52 mm
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Width (m) | 0,070 | 0,162 |
| Length (m) | 0,120 | 0,237 |
| Depth (m) | 0,052 | 0,079 |
