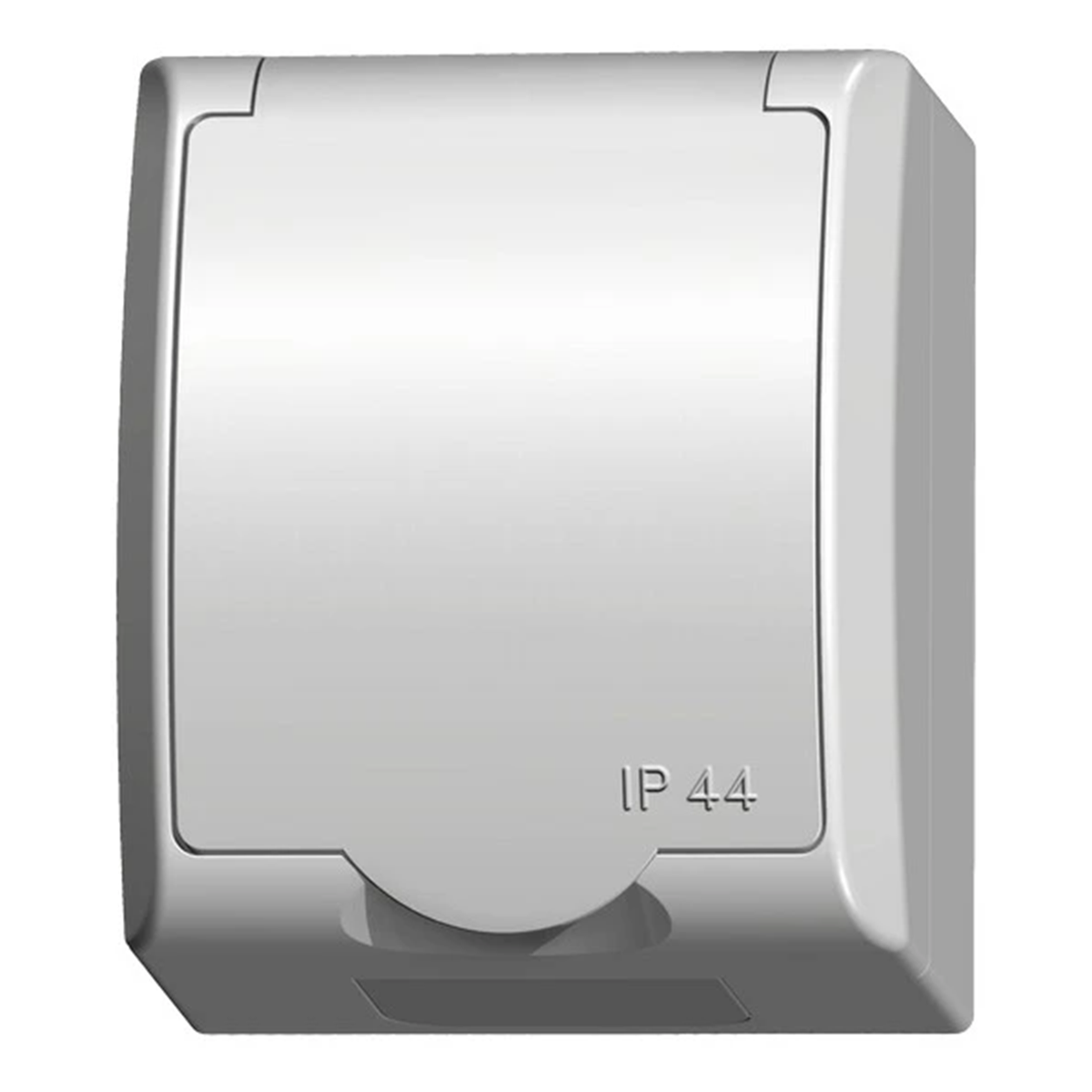

WAVE Single socket with grounding, white, white cover, equipped with shutters for current paths GNH-1HZP/00/W

Name: WAVE Single socket with grounding, white, white cover, equipped with shutters for current paths
Brand: OSPEL
SKU: MFB007OSPE
Price: 21.37 PLN
Availability: BackOrder

Index local:

MFB007OSPE

Numéro de catalogue:

GNH-1HZP/00/W

Code EAN:

5907577430528

WAVE Single socket with grounding, white, white cover, equipped with shutters for current paths

Cliquer sur la photo pour l'agrandir

Producteur: OSPEL

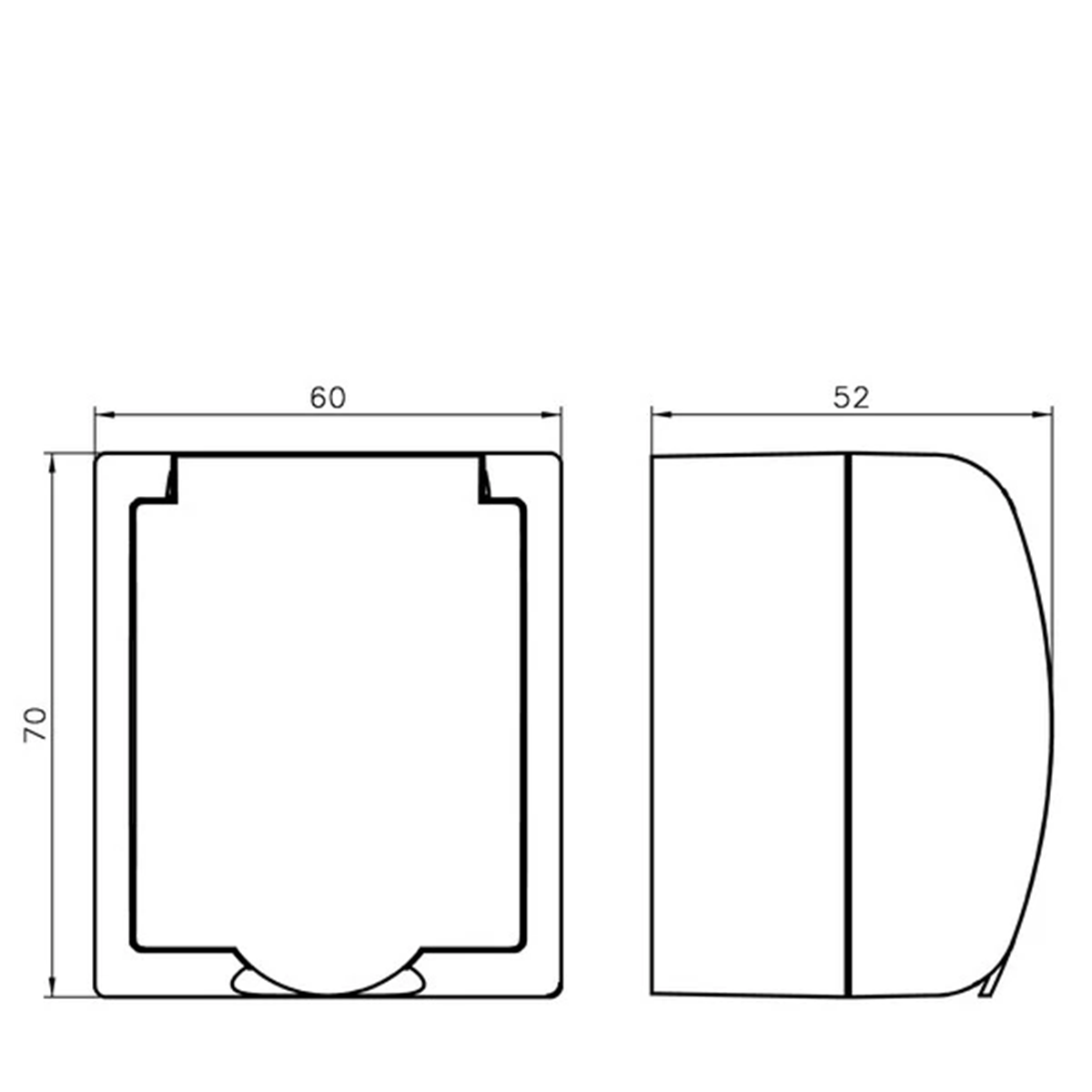

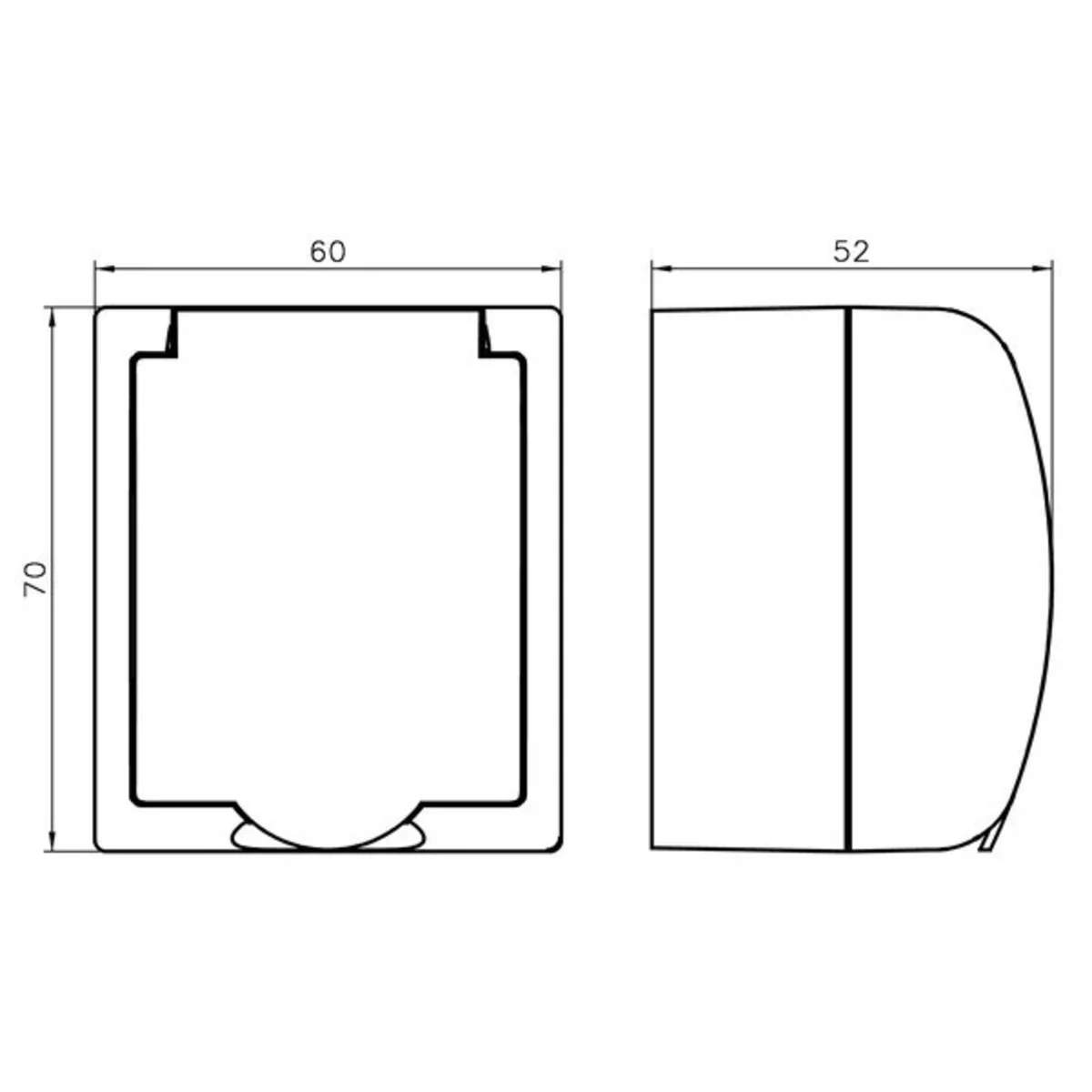

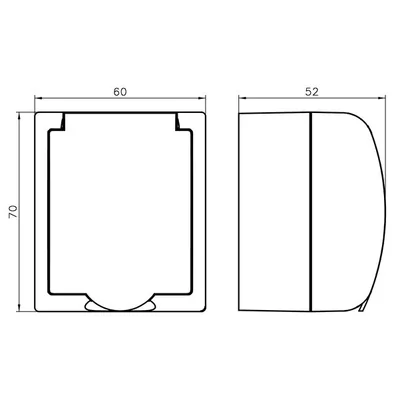

Depth [mm]: 52

Number of sockets: 1

Color: White

Voir la description complète

Prix:

21,37 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Hermetic wall-mounted electric socket from the Wave series, from Ospel. The product part number is GNH-1HZP/00/W.

FEATURES

Single .
Grounded; ground pin.
With shutters for current paths.
Thread terminals.
Socket color ;white.
Lid white.
Rated current 16A.
Rated voltage < strong>230V.
Ingress protection IP44.
surface mounting.

Données techniques

Depth [mm]

52
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

16
Family

WAVE
Width [mm]

60
Ground

Hurt
Surface protection

Natural
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

NO
Exact material

Plastic Metal

Number of sockets

1
Shape

Rectangular
Fixing

screws
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP44
Type

Surface-mounted
Height [mm]

70
Backlight

NO
Standard

European
On the DATA key

NO
Lid color

Socket color
PKWIU

27.33.13.0

Autres données techniques

Model

Multi-standard socket
Number of active contacts (flat)

0
Number of modules (module system)

0
Imprint/indication

Degree of protection (IP)
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

9003
Lockable

Yes
Insulated mounting

No
With orientation lighting

No
Fault current protection

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
With loop through function

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK03
Device height

70 mm

Number of active contacts (round)

1
With signal lamp

No
Number of socket outlets switchable

0
Connection type

Screwed terminal
With enhanced contact protection

Yes
Colour

White
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With on/off switch

No
Nominal current

16 A
Frequency

0 ... 0 Hz
Suitable for degree of protection (IP)

IP44
Device width

60 mm
Device depth

52 mm

Détails du fabricant

Producteur

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Emballage en vrac

Une sorte de paquet	Pudełko
Quantité	10 pcs.
Largeur (m)	0,600
Longueur (m)	0,700
