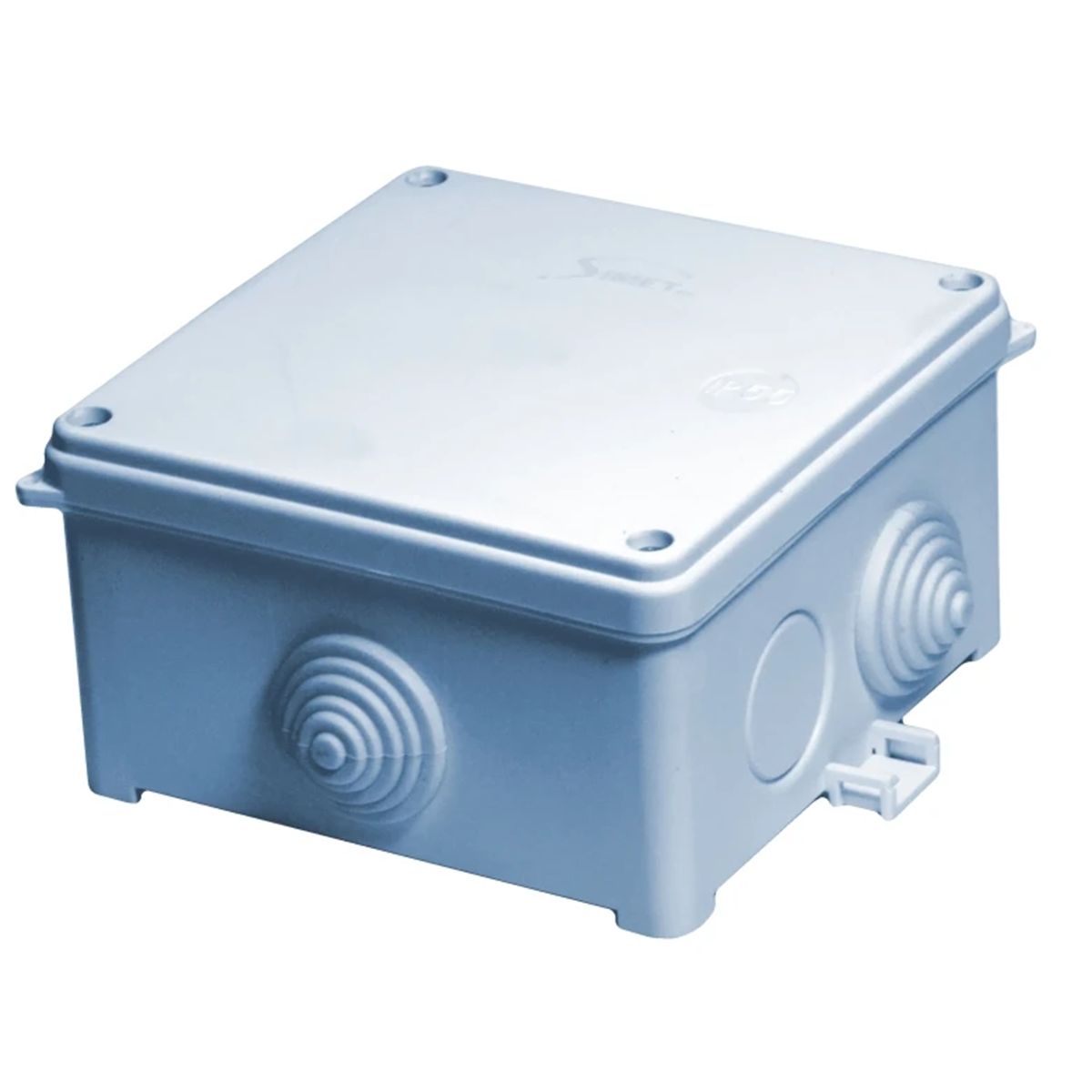

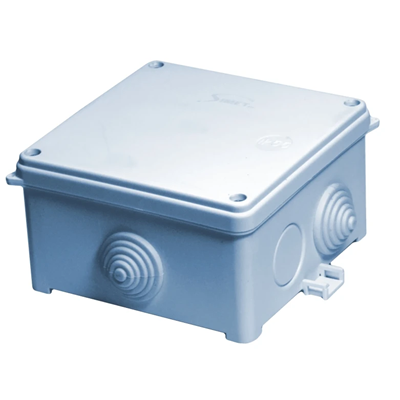

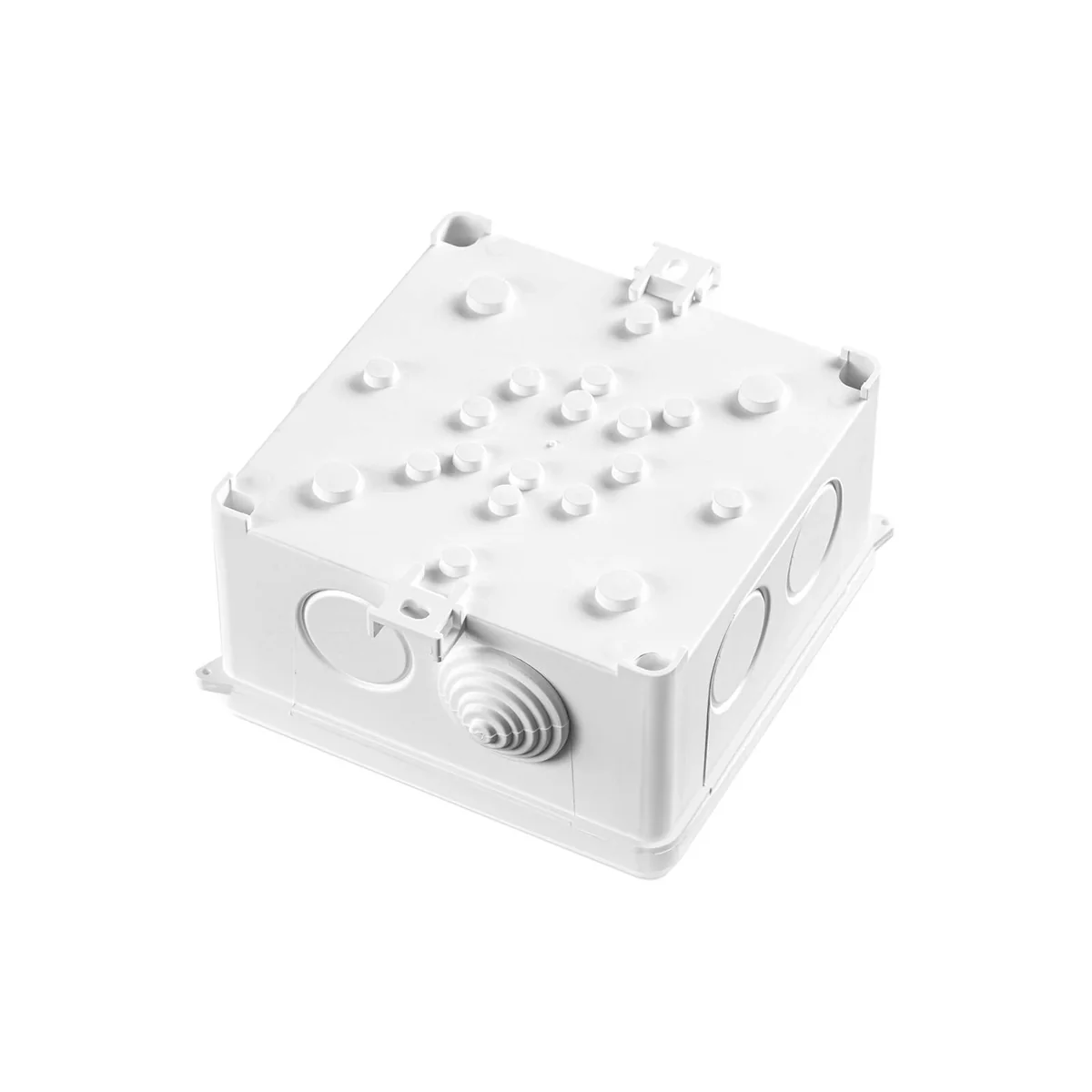

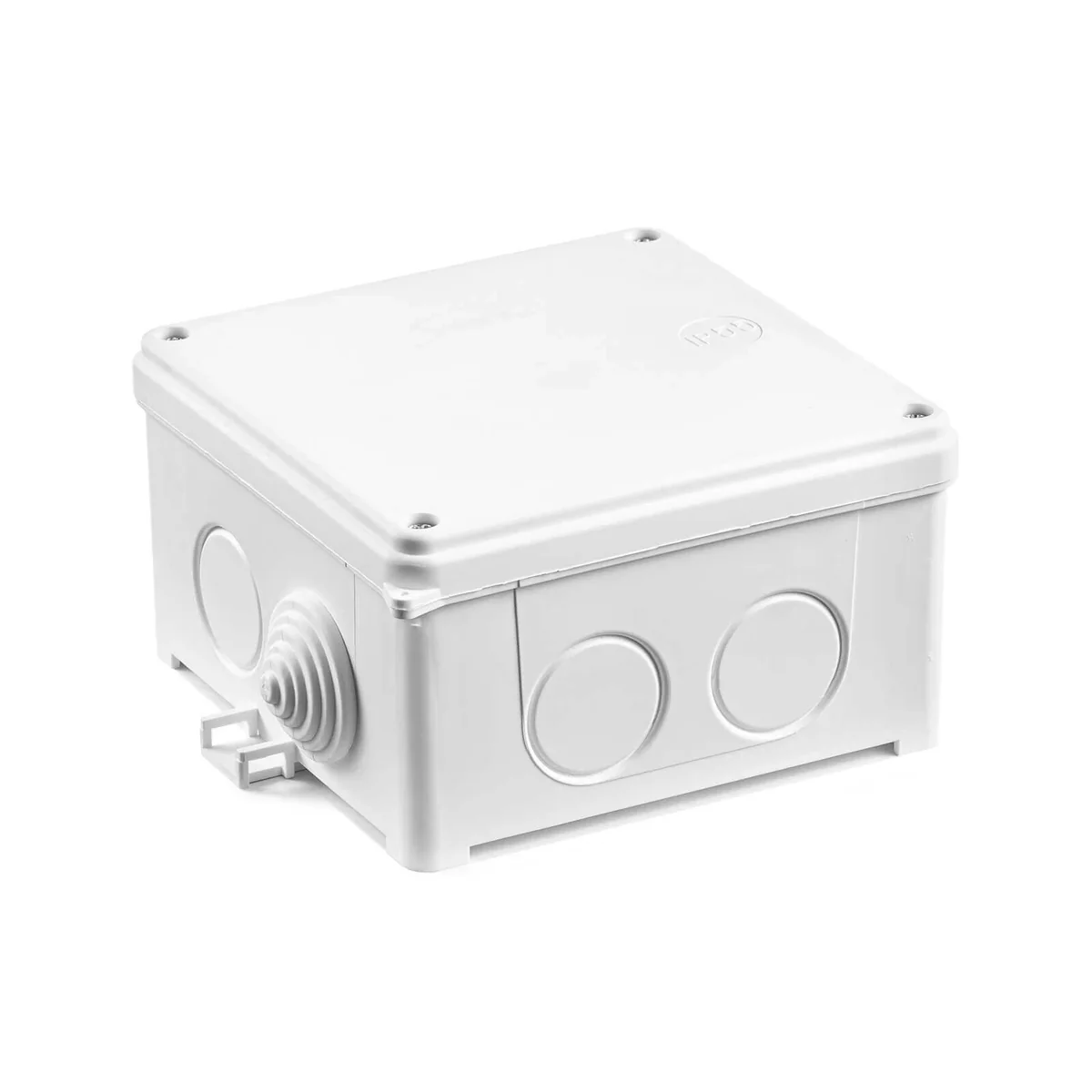

Wall-mounted box with glands 118x118x68mm IP55 white 35130206

local index:
MVN002SIME
Catalog No:
35130206
EAN code:
5907813210648
Manufacturer: SIMET
Halogen free: Yes
Depth [mm]: 68
Color: White
Price:
134,96 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Wall box

  • 7 knockouts for cable glands (Ø 28 mm)
  • 3 cable glands included DM1 (13, 16, 20 , 25 mm)

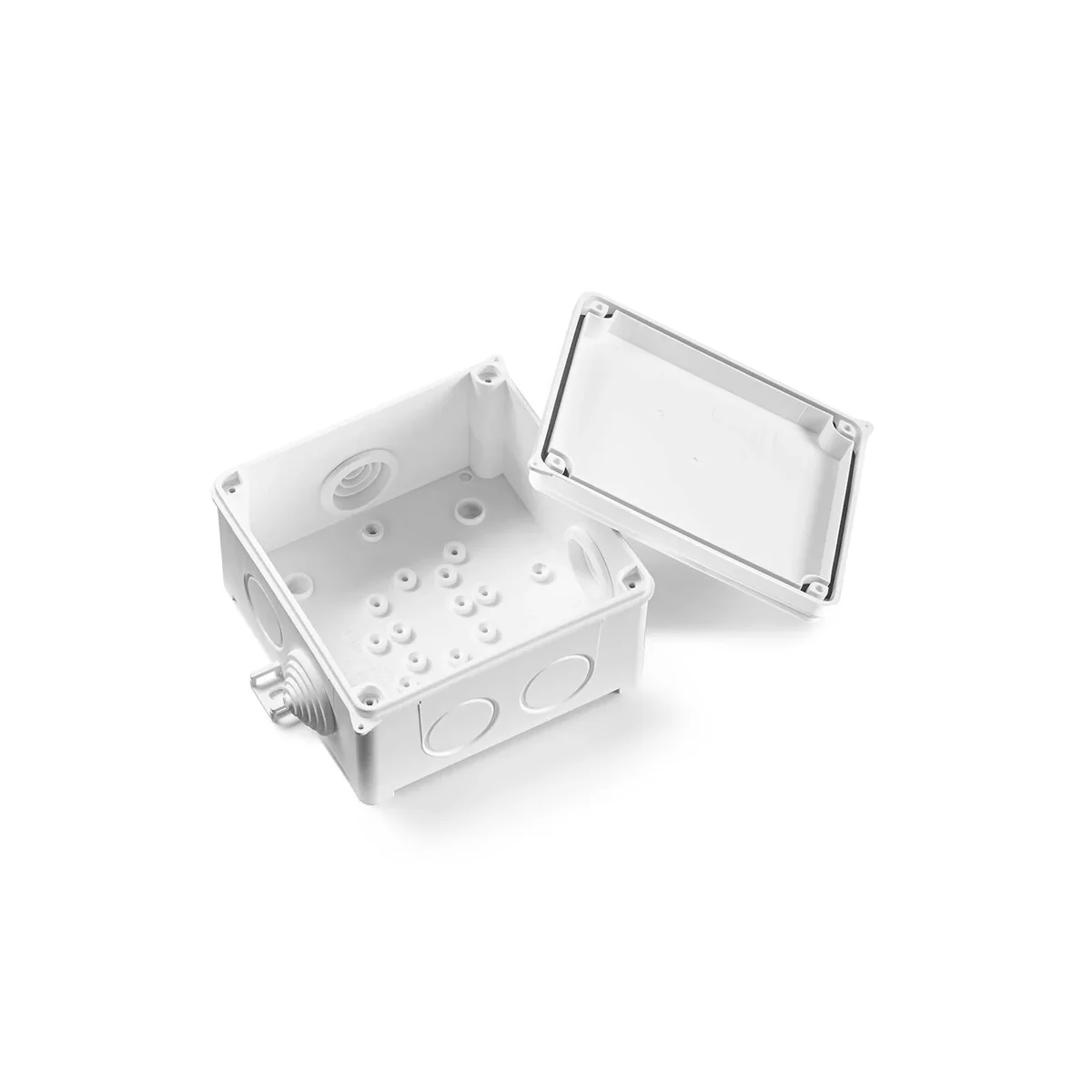

  • Lid fixed with 4 acid-proof screws
  • Rubber seal in the lid
  • Accessories matching the box:
    • Branch connectors: ZPT 4x2.5, ZPT 5x2.5, ZPT 4x4.0, ZPT 5x4.0, ZPT 4x10, ZPT 5x10
    • DM1 membrane gland

Technical data

  • Halogen free
    Yes
  • Color
    White
  • Material
    Polyamide
  • UV resistance
    Yes
  • Type
    Wall-mounted
  • Width [mm]
    118
  • Height [mm]
    118
  • Fire resistance
    Non-flammable
  • Fire resistance [°C]
    960
  • With terminal strip
    NO
  • Number of stuffing boxes
    3
  • Exact material
    PA6
  • Depth [mm]
    68
  • Shape
    Square
  • Installation
    Surface-mounted
  • Cover
    Yes
  • Level of security
    IP55
  • Type
    branching
  • Self-extinguishing
    Yes
  • Flammability class
    V0
  • For modular equipment
    Not applicable
  • Number of slots
    7
  • Stuffing box type
    PG21
  • PKWIU
    27.33.13.0

Other technical data

  • Max. conductor cross section
    10 mm²
  • Shape
    Square
  • For tube diameter
    25 mm
  • Length
    112 mm
  • Depth
    63 mm
  • Number of inlets
    7
  • Material
    Plastic
  • Surface protection
    Other
  • Degree of protection (IP)
    IP55
  • Cover attachment
    Screwed
  • With screening
    No
  • Explosion-tested version
  • Equipped with
    Other
  • Mounting method
    Wall-/ceiling mounting
  • Inlet from the rear
    No
  • Width
    112 mm
  • Tackable
    Yes
  • Type of housing feed-through
    Trimmable step membrane
  • Halogen free
    Yes
  • Colour
    White
  • Pokrywa
    Nieprzezroczyste
  • Sealable
    No
  • Weatherproof
    No
