Wall box 188x118x68mm IP67 white 35270206
local index:
MVN007SIME
Catalog No:
35270206
EAN code:
5907813221491
Click on the photo to enlarge
Manufacturer:
SIMET
Halogen free:
Yes
Depth [mm]:
68
Color:
White
See full description
Price:
105,07 €
gross / pkg.
(including VAT 23%)
11,67 € gross/pcs.
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Product description

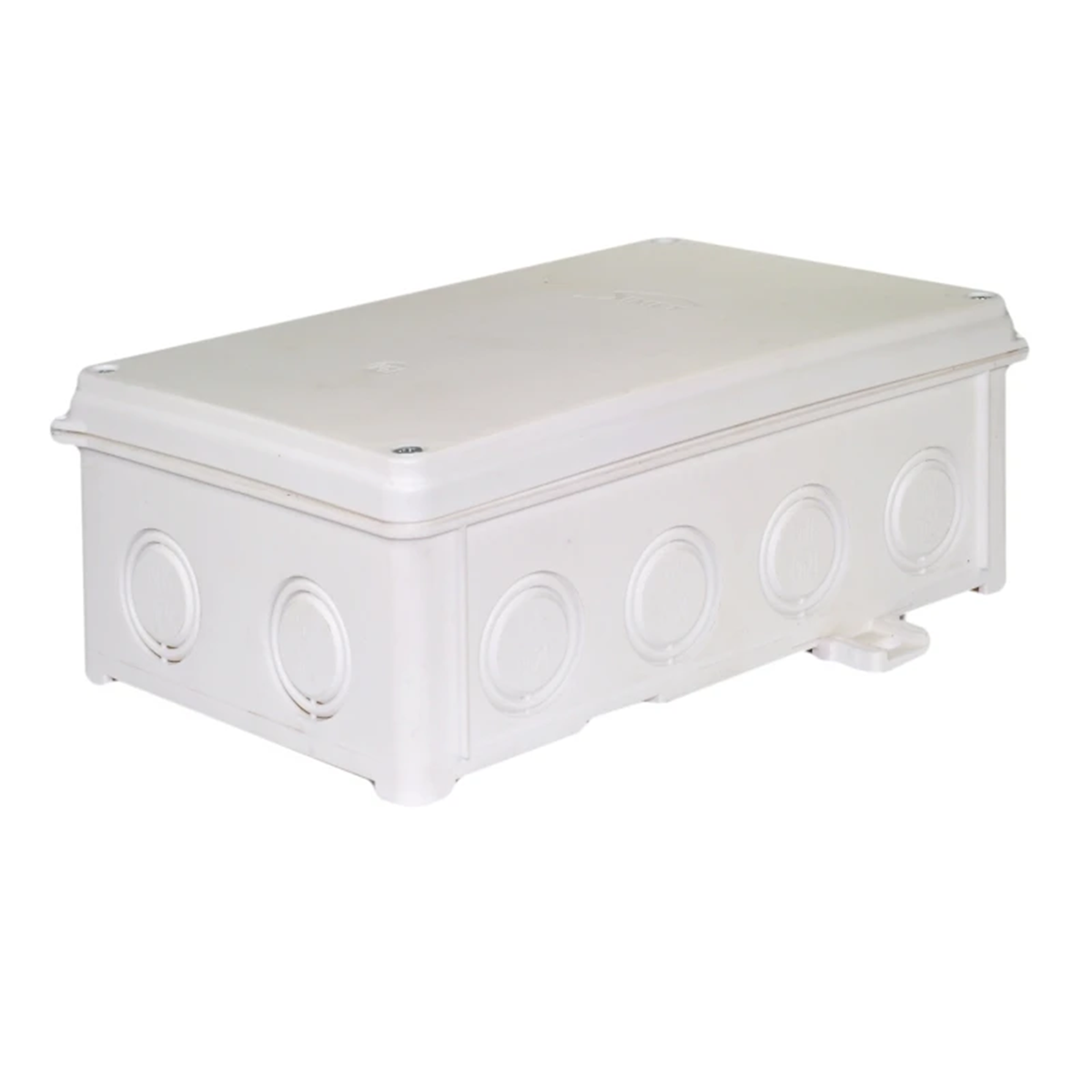

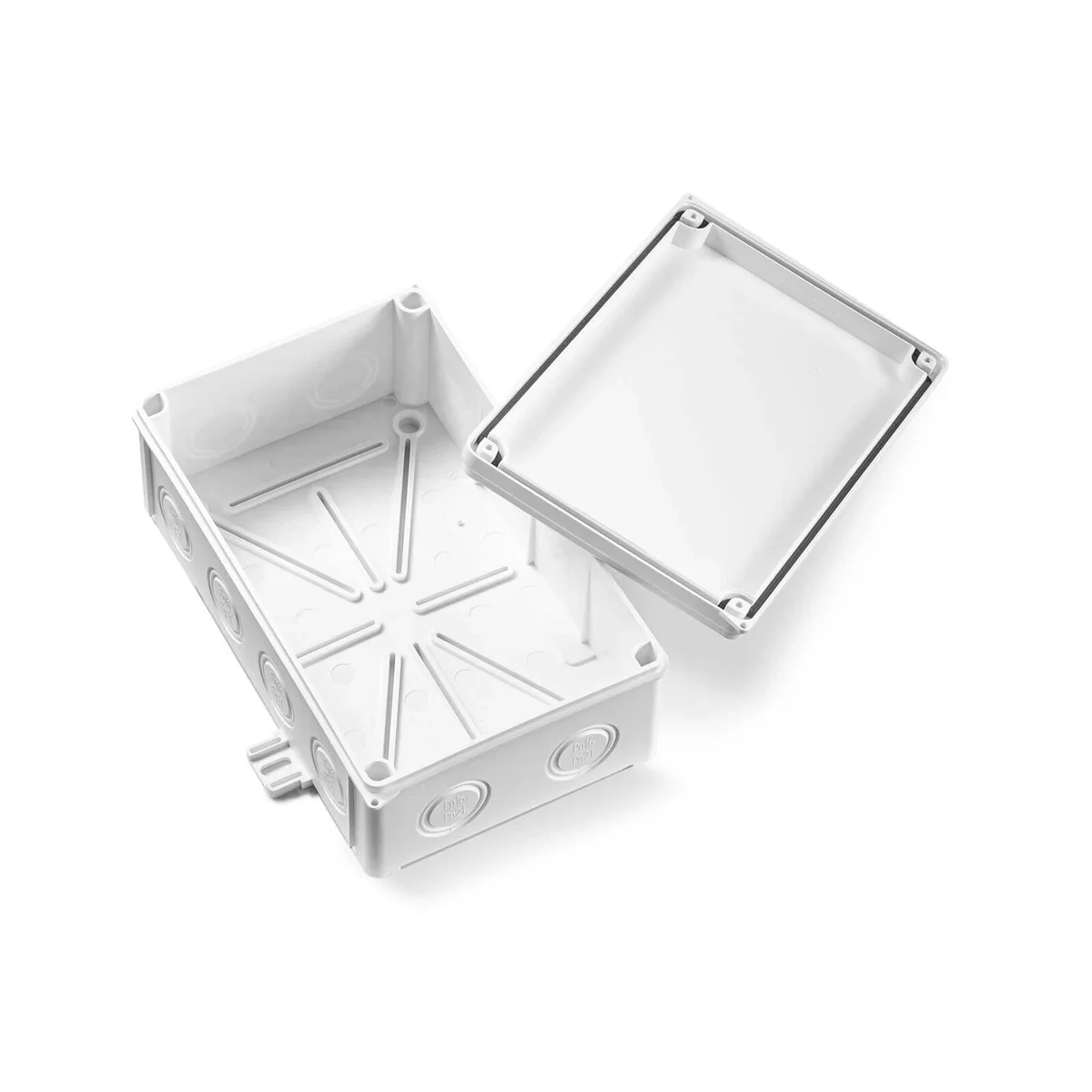

Wall box
Sealable. Fastening to the ground also with electrotechnical clamps
The lid is screwed with acid-resistant screws
With a rubber gasket in the lid
Convenient knockouts for inserting pipes and wires (12 knockouts with a diameter of 23 and 28mm - for screwed gland PG16 or PG21)
Technical data
Halogen free
Yes
Color
White
Material
Polyamide
UV resistance
Yes
Type
Wall-mounted
Width [mm]
188
Type
branching
Self-extinguishing
Yes
Flammability class
V0
For modular equipment
Not applicable
Number of slots
12
Exact material
PA6
Depth [mm]
68
Shape
Rectangular
Installation
Surface-mounted
Cover
Yes
Level of security
IP67
Pieces in the package
9
Height [mm]
118
Fire resistance
Non-flammable
Fire resistance [°C]
960
With terminal strip
NO
Stuffing box type
PG21 PG16
PKWIU
27.33.13.0
Other technical data
Assembly arrangement
Surface mounted box
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Length
187,8 mm
Width
117,8 mm
Tackable
With cover frame
With duct entry
Material
Plastic
Halogen free
Yes
Surface protection
Other
Colour
White
Pokrywa
Nieprzezroczyste
Sealable
No
With screening
No
Zakres temperatur pracy
... 960 °C
Equipped with
Other
Mounting direction
Horizontal and vertical
Inlet from the rear
No
Surface finishing
Matt
Depth
67,8 mm
Transparent
No
Number of inlets
12
Type of housing feed-through
Preembossing
With cable entry
With screw gland entry
Shock resistant
Degree of protection (IP)
IP67
Cover attachment
Screwed
Circuit integrity
None
Weatherproof
Explosion-tested version
See more >>
