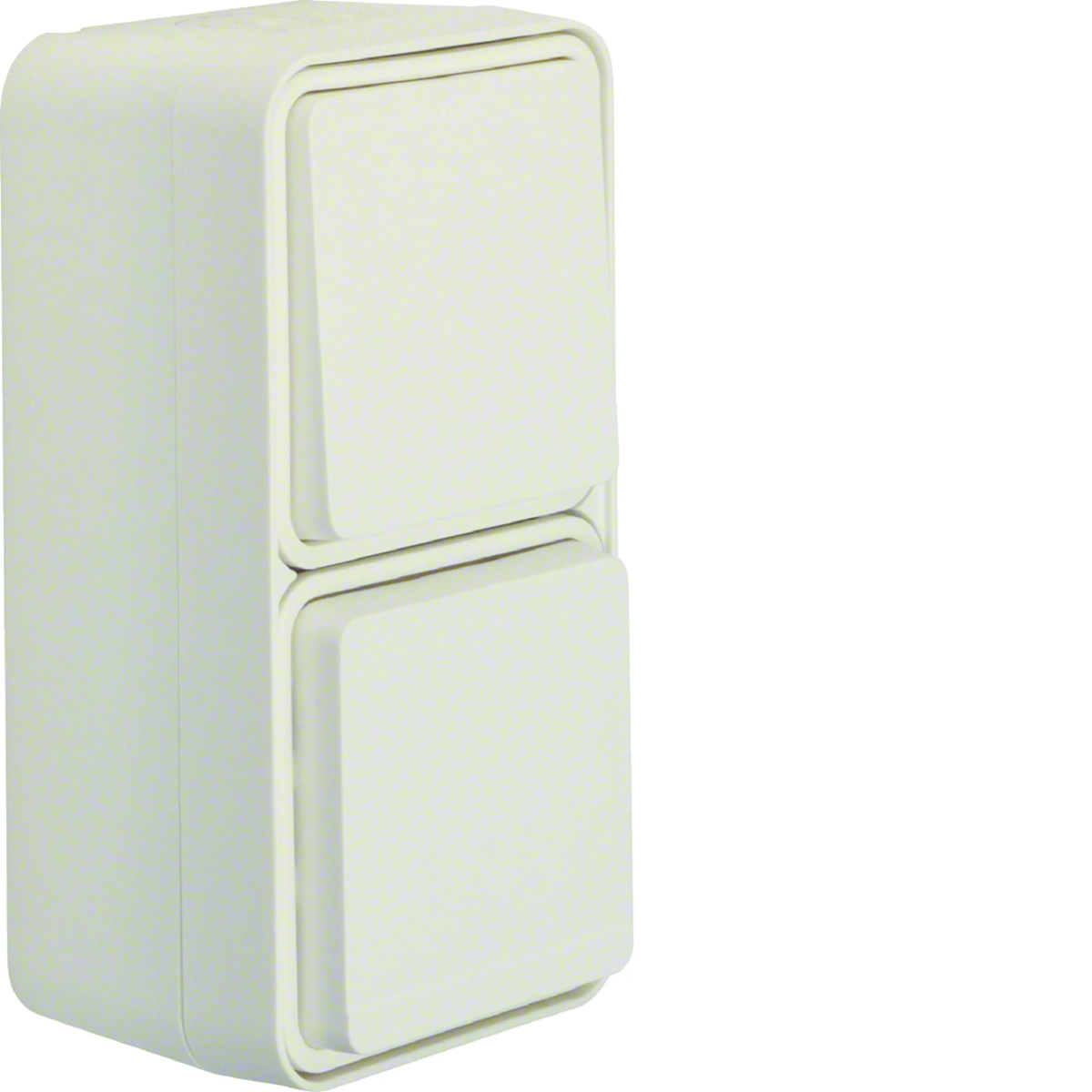

W.1 Universal connector with SCHUKO socket, vertical complete IP55 white 47803512

local index:
MFB033BERK
Catalog No:
47803512
EAN code:
4011334404446
Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Rectangular
Price:
36,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product part number is 47803512.



FEATURES

  • With universal connector.
  • SCHUKO ground socket.
  • Vertical mounting.
  • Color white.
  • With lockable cover, manually locked.
  • Rated current of the socket 16 A.
  • Current 10 AX.
  • Rated voltage 230 V.
  • Ingress protection IP55.< /li>
  • surface mounting.
  • With plug-in terminals.
  • With 2-wire entry and cable or pipe entry.
  • < li>With a full-surface seal on the rear side of the housing, enabling cable entry from the rear side and fitting to the plaster.
  • Variable connector and socket connected separately.
  • Hinged cover, made of stainless steel, quick release pins LOCKING.
  • With self-clamps.



SERIES DESCRIPTION

Berker W .1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Type
    Surface-mounted
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Additional connector
    Universal
  • Seal
    Yes
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Ground
    schuko
  • Surface finish
    matte
  • Mounting direction
    Vertical
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.13.0

Other technical data

  • Type of switch
    Two-way switch
  • Number of socket outlets
    1
  • Mounting direction
    Vertical
  • With lighting
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Suitable for degree of protection (IP)
    IP55
  • Nominal current socket outlet
    16 A
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Number of active contacts (flat)
    0
  • Device width
    76 mm
  • Device depth
    63 mm
  • Type of socket outlet
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Method of operation
    Rocker/button
  • Type of fastening
    Mounting with screw
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Nominal voltage
    250 V
  • Rated current
    10 A
  • Fault current protection
    No
  • Number of active contacts (round)
    2
  • Min. depth of built-in installation box
    0 mm
  • Device height
    147 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 18 pcs. 576 pcs.
Weight (kg) 0,229 0,260 5,086 182,752
Width (m) 0,076 0,080 0,300 0,800
Length (m) 0,063 0,070 0,225 1,050
Depth (m) 0,147 0,155 0,400 1,200
