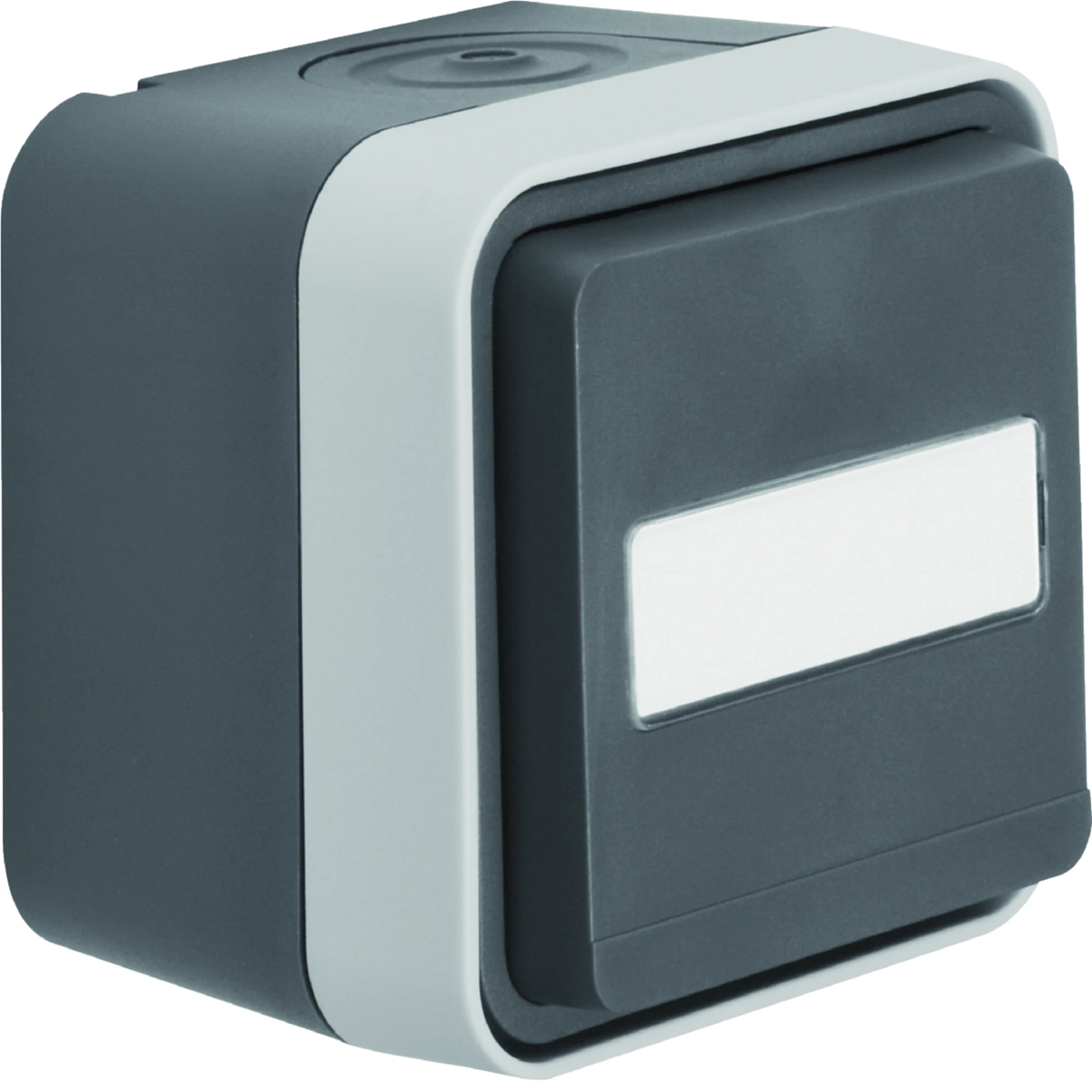

W.1 Socket with grounding 2P+E with description field complete IP55 grey 6768813525

local index:
MFB025BERK
Catalog No:
6768813525
EAN code:
4011334390954
Manufacturer: BERKER
Number of sockets: 1
Color: Gray
Shape: Square
Price:
16,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 6768813525.



FEATURES

  • 2P+Z .
  • 2-pole with grounding; ground pin.
  • With extended contact protection.
  • With labeling field (W x H) ≈ 50 x 16 mm.
  • Color grey.
  • Rated current 16 A.
  • Voltage rated 230 V.
  • Ingress protection IP55.
  • Mounting surface mounting.
  • With plug-in terminals.
  • With 2-conductor entry and cable or pipe entry.
  • With a full-surface seal on the back of the housing for cable entry from the back and adapting to plaster.
  • The springs of the latch cover are made of stainless steel, the pins of the latches are made of ZnAl alloy.
  • The height of the description field is adapted to P-touch strips with a height of 12 mm.
  • With self-clamps.



SERIES DESCRIPTION

Berker W.1 is a series waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Descriptive field
    Yes
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Backlight
    NO
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    W.1
  • Width [mm]
    76
  • Ground
    Hurt
  • Surface finish
    matte
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Seal
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Label space/information surface
    No
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    76 mm
  • Min. depth of built-in installation box
    0 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • With enhanced contact protection
    No
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Frequency
    50 ... 60 Hz
  • Device width
    76 mm
  • Device depth
    63 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 30 pcs. 960 pcs.
Weight (kg) 0,130 1,382 4,590 166,895
Width (m) 0,076 0,158 0,300 0,800
Length (m) 0,065 0,081 0,225 1,050
Depth (m) 0,076 0,325 0,400 1,200
