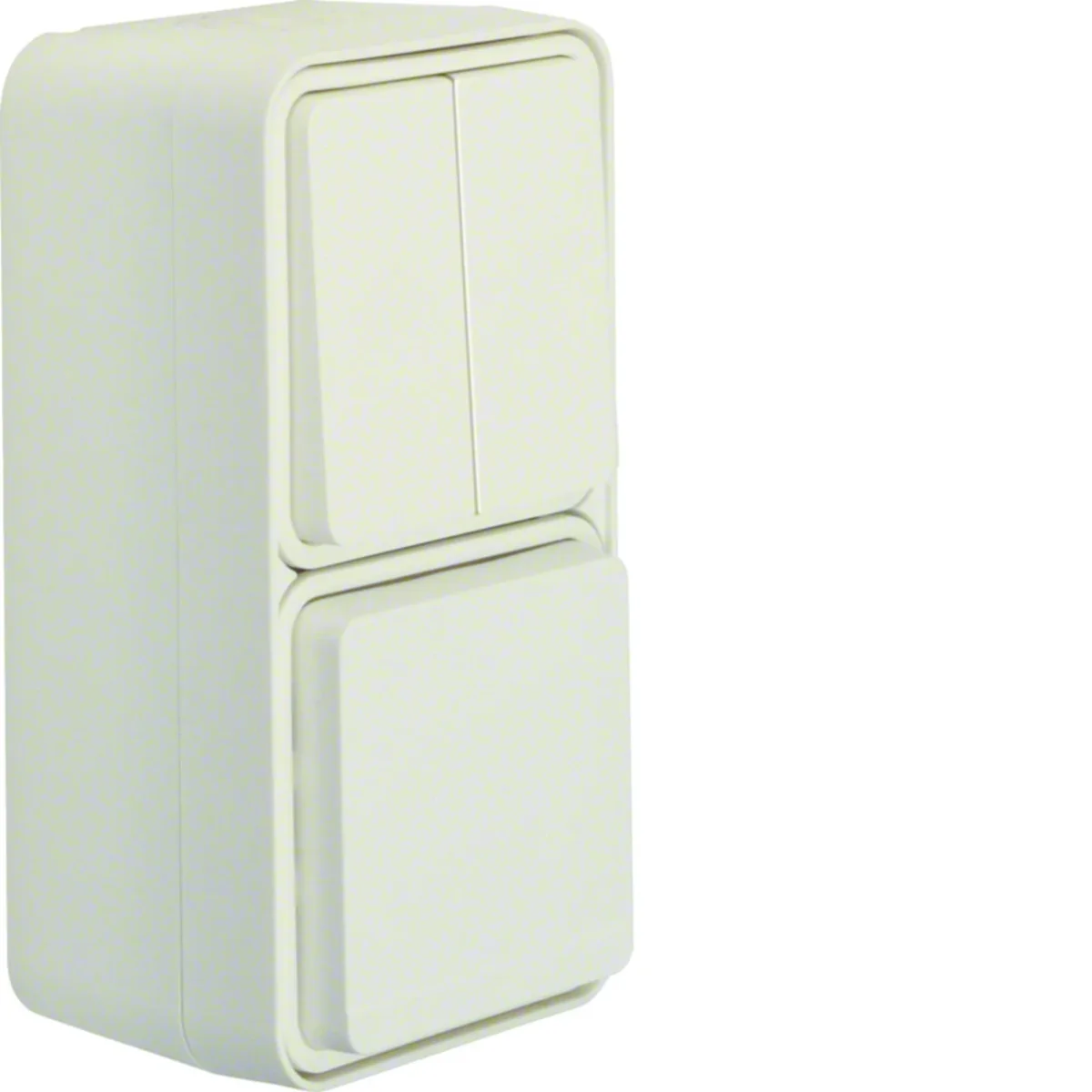

W.1 Serial switch with SCHUKO socket, complete vertical IP55 white 47903512

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product part number is 47903512.

FEATURES

• With serial connector.
• SCHUKO ground socket.
• Vertical mounting.
• Color white.
• With lockable cover, manually locked.
• Rated current of the socket 16 A.
• Current 10 AX.
• Rated voltage 230 V.
• Ingress protection IP55.< /li>
• Surface mounting.
• With Wago 2-pole connection terminal for wiring.
• With 2 clips for Wago 2-pole connection terminal in the underside of the housing.
• With plug-in terminals.
• With 2-wire entry and cable or pipe entry.
• With full-surface seal on the back of the housing for insertion cable from the back and adjustment to the plaster.
• Serial connector and socket separately connected.
• Hinged cover made of stainless steel, quick-release pins ZAMAK lock.
< li>With self-clamps.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories , which is distinguished by its innovative appearance. Hermetic surface-mounted electrical socket characterizes the features of this series.
