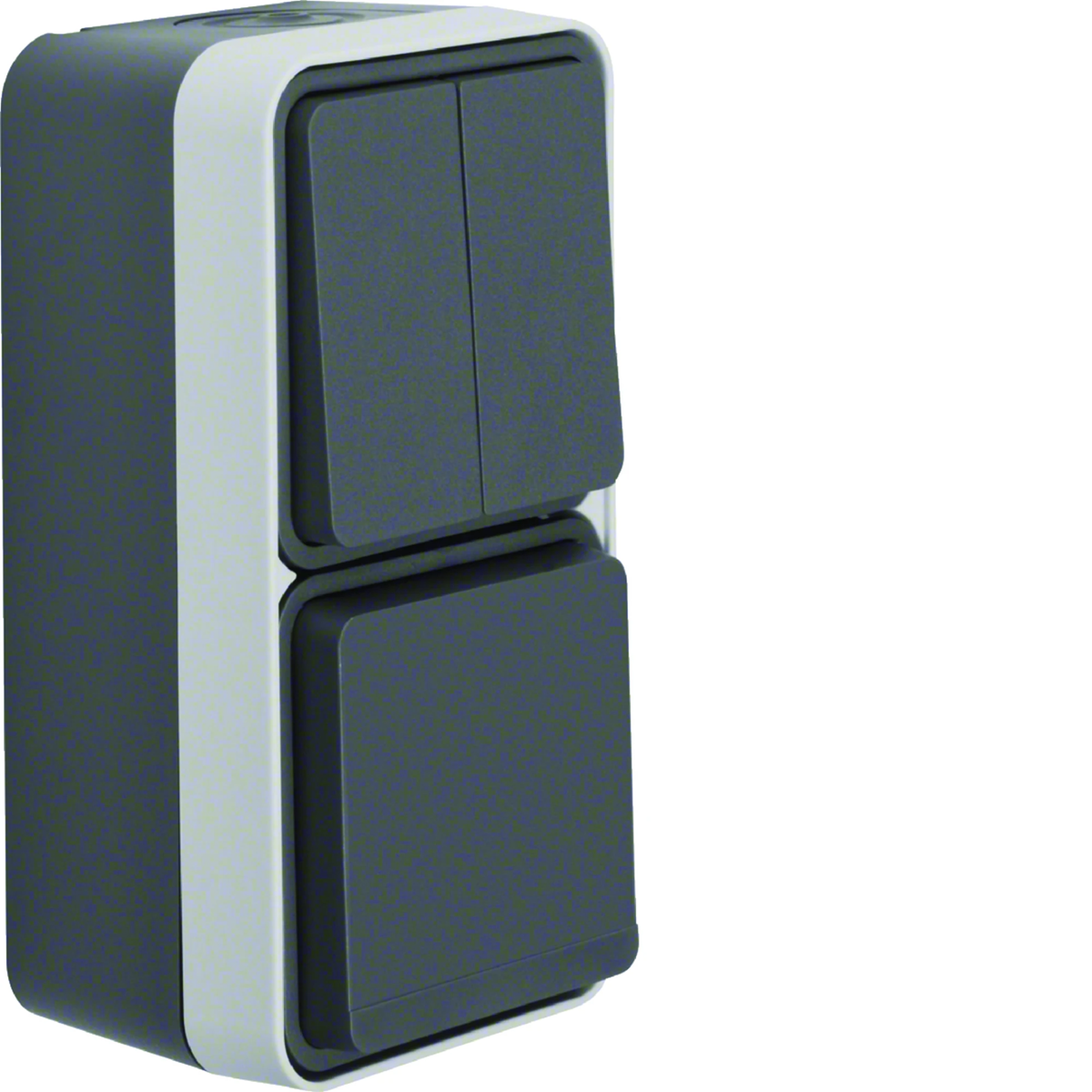

W.1 Serial connector with SCHUKO socket, complete vertical IP55 grey 47903515

Name: W.1 Serial connector with SCHUKO socket, complete vertical IP55 grey
Brand: BERKER
SKU: MFB038BERK
Price: 45.69 PLN

Index local:

MFB038BERK

Numéro de catalogue:

47903515

Code EAN:

4011334404453

W.1 Serial connector with SCHUKO socket, complete vertical IP55 grey

Cliquer sur la photo pour l'agrandir

Producteur: BERKER

Number of sockets: 1

Color: Gray

Shape: Rectangular

Voir la description complète

Prix:

45,69 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 10 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47903515.

FEATURES

With serial connector.
SCHUKO ground socket.
Vertical mounting.
Color dark gray.
With lockable cover, manually locked.
Rated current of socket 16 A.
Current 10 AX.
Rated voltage 230 V.
Ingress protection IP55.< /li>
Surface mounting.
With Wago 2-pole terminal block for wiring.
With 2 clips for Wago 2-pole terminal block in the underside of the housing.
With plug-in terminals.
With 2-wire entry and cable or pipe entry.
With full-surface seal on the back of the housing for insertion cable from the back and adjustment to the plaster.
Serial connector and socket separately connected.
Hinged cover made of stainless steel, quick-release pins ZAMAK lock.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories , which is distinguished by its innovative appearance. Hermetic surface-mounted electrical socket characterizes the features of this series.

Données techniques

Number of sockets

1
Shape

Rectangular
Installation

Surface-mounted
Rated current [A]

16
Family

W.1
Type

Surface-mounted
Degree of mechanical protection

IK05
Accurate color

dark grey
Mounting direction

Vertical
Standard

European
On the DATA key

NO
Lid color

Socket color
Exact material

Thermoplastic
PKWIU

27.33.13.0

Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP55
Ground

schuko
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Shutters of current paths

NO
For the frame system

NO
Additional connector

Serial
Seal

Yes

Autres données techniques

Type of switch

Series switch
Number of socket outlets

1
Mounting direction

Vertical
With lighting

No
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
Suitable for degree of protection (IP)

IP55
Nominal current socket outlet

16 A
Over voltage protection

No
With miniature fuse

No
Number of active contacts (flat)

0
Device width

76 mm
Device depth

65 mm

Type of socket outlet

Protective contact CEE 7/3 / CEE 7/4 (type F)
Method of operation

Rocker/button
Type of fastening

Mounting with screw
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Transparent

No
Nominal voltage

250 V
Rated current

10 A
Fault current protection

No
Number of active contacts (round)

2
Min. depth of built-in installation box

0 mm
Device height

147 mm

Détails du fabricant

Producteur

HAGER POLO Sp. z o. o.
Adresse

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Numéro identifiant TVA

6460015532
GLN

5900009931532

Emballage en vrac

Une sorte de paquet		Karton	Pakiet	Paleta
Quantité	1 pcs.	5 pcs.	15 pcs.	480 pcs.
poids (kg)	0,230	1,232	4,141	152,495
Largeur (m)	0,076	0,158	0,300	0,800
Longueur (m)	0,065	0,081	0,225	1,050
Profondeur (m)	0,147	0,325	0,400	1,200
