Manufacturer: BERKER
Number of sockets: 1
Color: Gray
Shape: Square
Price:
23,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

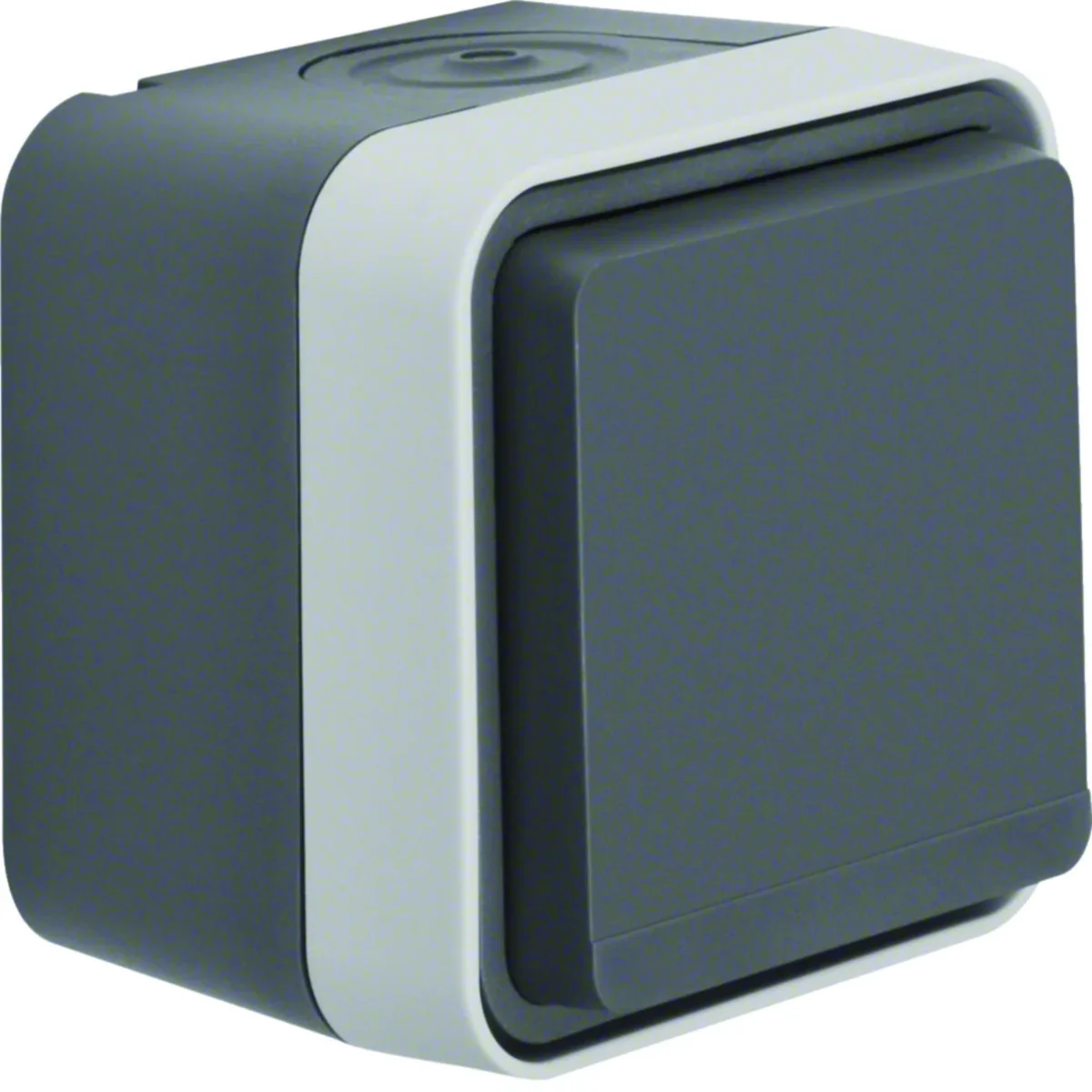

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product part number is 47403515.



FEATURES

  • 2P+Z.
  • With SCHUKO earth connection.
  • Color dark grey.
  • With lockable lid, manual lockable.
  • Rated current of the socket 16 A.
  • Rated voltage 230 V.
  • Grade protection IP55.
  • Mounting surface.
  • With Wago 2-pole wiring connector.
  • With 2 clips for Wago 2-pole connection terminal block on the underside of the housing.
  • With plug-in terminals.
  • With 2-wire entry and cable or pipe entry.
  • With a full-surface seal on the back of the housing, enabling cable entry from the back and fitting to the plaster.
  • Hinged cover, made of stainless steel, ZAMAK quick-release pins.
  • With self-clamps.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative appearance. Hermetic surface-mounted electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Width [mm]
    76
  • Ground
    schuko
  • Degree of mechanical protection
    IK05
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Seal
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    76 mm
  • Device depth
    63 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK05
  • Device height
    76 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 60 pcs. 2400 pcs.
Weight (kg) 0,123 1,285 8,175 350,000
Width (m) 0,076 0,160 0,350 0,800
Length (m) 0,063 0,085 0,215 1,840
Depth (m) 0,076 0,325 0,545 1,200
