W.1 Schuko socket 2P+E complete 3-way horizontal 2 inputs IP55 white 47733512

local index:
MFB011BERK
Catalog No:
47733512
EAN code:
4011334404309
Manufacturer: BERKER
Number of sockets: 3
Number of inputs: 2
Color: White
Price:
80,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

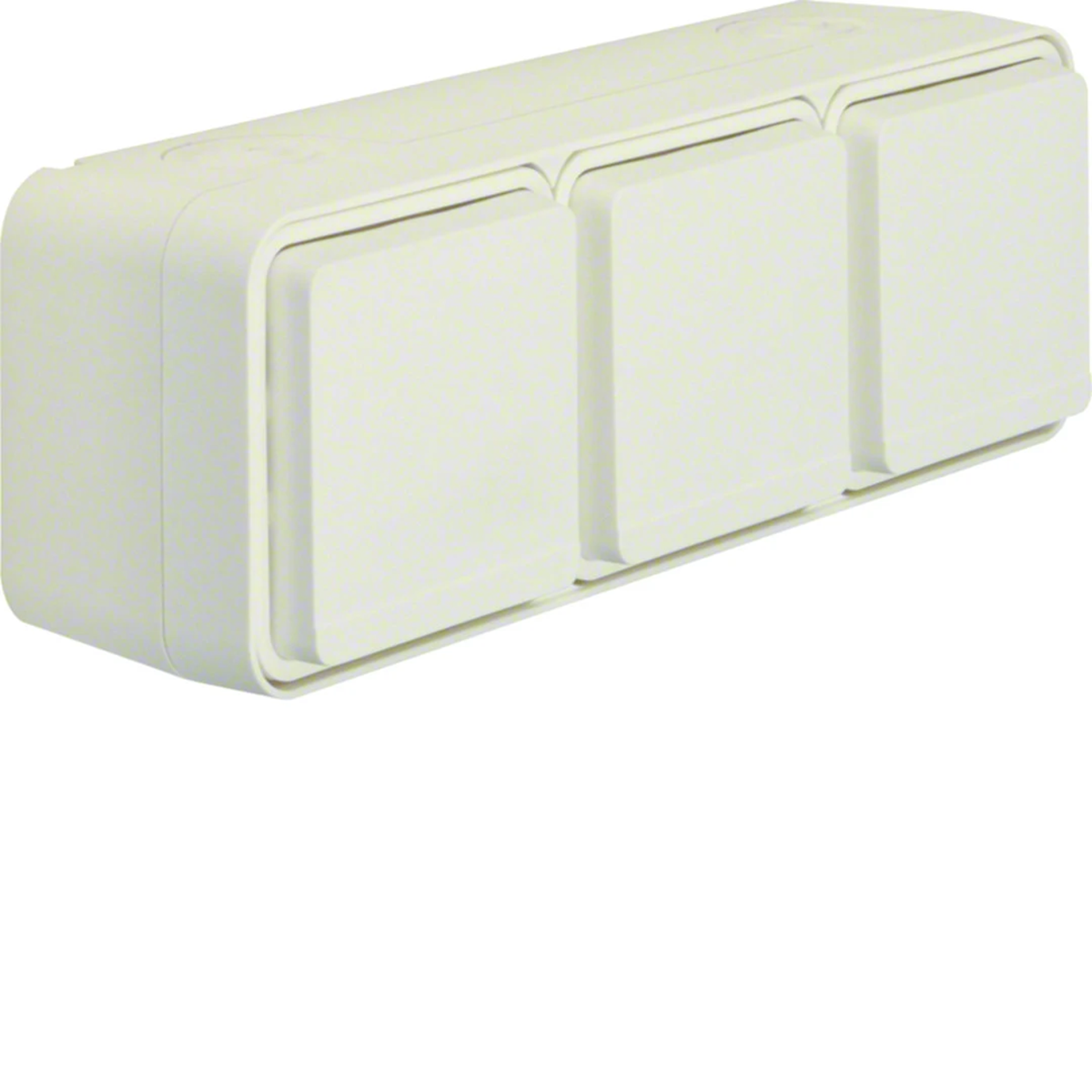

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47733512.



FEATURES

  • 3 x 2P+Z.< /strong>
  • Triple.
  • With SCHUKO earth connection.
  • For horizontal mounting.
  • Color white.
  • With closed lid, manually locked.
  • Rated current of the socket  ;16A.
  • Rated voltage 230V.
  • Rating IP55.
  • surface mounting.
  • With plug-in terminals.
  • Pre-wired mechanisms.
  • With 2-wire entry and 2 cable or pipe entries.
  • With a full-surface seal on the rear side of the housing for cable entry from the rear side and flush fitting.
  • Hinged cover, stainless steel, quick release pins lock.
  • With self-locking devices.



SERIES DESCRIPTION

Berker W.1< /strong> is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    3
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Ground
    schuko
  • Surface finish
    matte
  • Mounting direction
    Horizontal
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Seal
    Yes
  • Number of inputs
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Type
    Surface-mounted
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    0
  • Number of phases
    1
  • With hinged lid
    yes
  • Label space/information surface
    no
  • RAL-number (similar)
    9010
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    218 mm
  • Device depth
    63 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    2
  • With signal lamp
    no
  • Number of units
    3
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    no
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK05
  • Device height
    76 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 15 pcs. 480 pcs.
Weight (kg) 0,392 6,384 229,288
Width (m) 0,081 0,300 0,800
Length (m) 0,070 0,225 1,050
Depth (m) 0,223 0,400 1,200
