W.1 Schuko socket 2P+E complete 2-way horizontal 2 inputs IP55 white 47843512
Índice local:
MFB017BERK
Número de catálogo:
47843512
Código EAN:
4011334404286
Precio:
206,22 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto

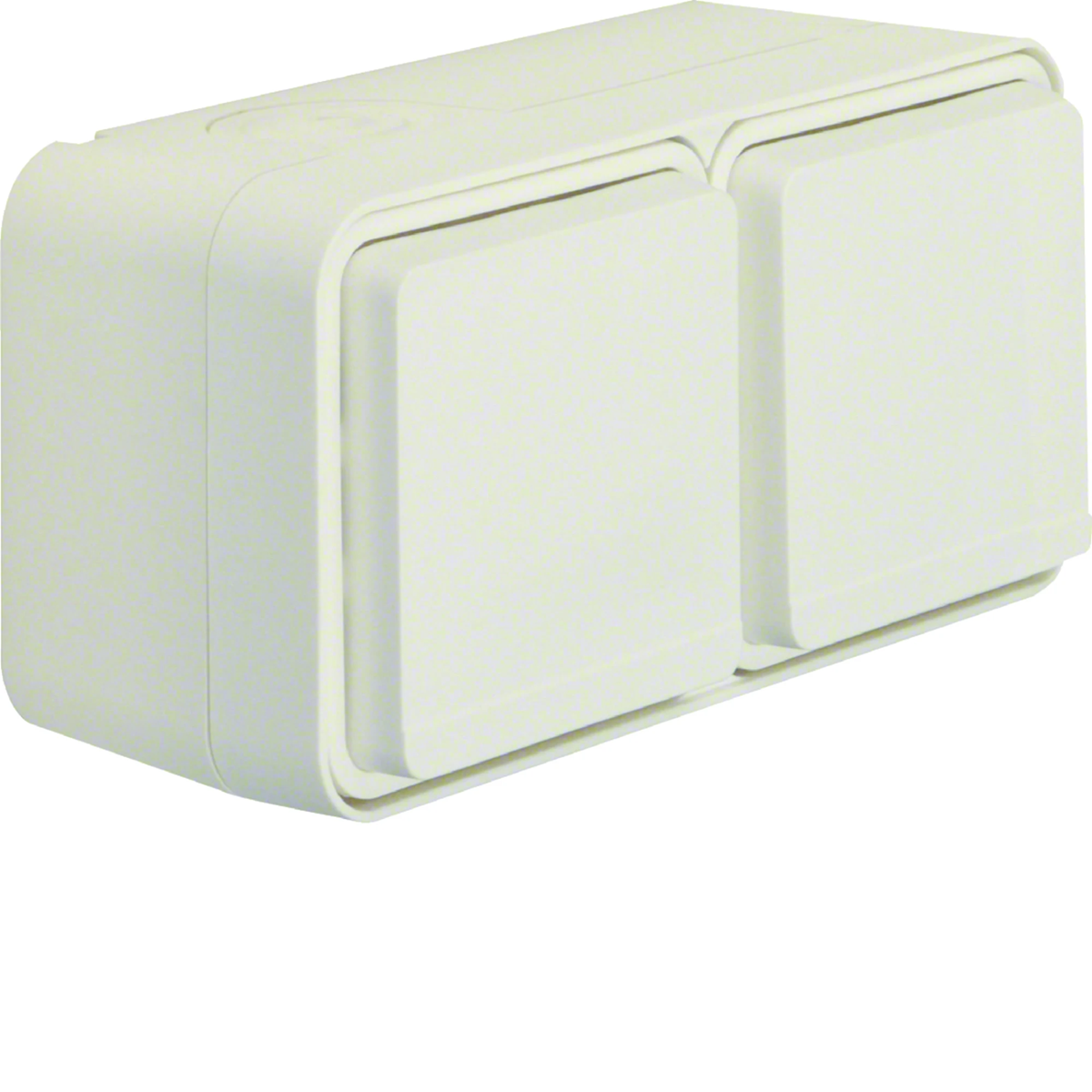

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product part number is 47843512.
FEATURES
- 2 x 2P+Z< /strong>.
- With SCHUKO ground.
- Horizontal.
- Color white.
- With lockable lid, manually locked.
- Rated current of socket 16 A.
- Voltage rated 230 V.
- Ingress protection IP55.
- Mounting surface mounting.
- With plug-in terminals.
- Cable gauge: 1…2.5 mm².
- Pre-wired mechanisms.
- 2 inputs.< /li>
- With a full-surface seal on the back of the housing, enabling cable entry from the back and fitting to the plaster.
- Hinged cover, made of stainless steel, ZAMAK quick release pins.
- With self-clamps.
SERIES DESCRIPTION
Berker W.1 is a series of waterproof accessories electrical installation, which is distinguished by its innovative appearance. Hermetic surface-mounted electrical socket characterizes the features of this series.
Datos técnicos
-
Number of sockets2
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP55
-
TypeSurface-mounted
-
Height [mm]76
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsNO
-
For the frame systemNO
-
Exact materialThermoplastic
-
PKWIU27.33.13.0
-
Number of inputs2
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyW.1
-
Width [mm]147
-
Groundschuko
-
Degree of mechanical protectionIK05
-
Wire cross-section [mm²]1 - 2.5
-
Mounting directionHorizontal
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
SealYes
Otros datos técnicos
-
Protective contactEarthing clips
-
Number of active contacts (flat)0
-
Number of ports USB-A0
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
Metallic colourNo
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Halogen freeYes
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Device width147 mm
-
Device depth63 mm
-
Compatible with Apple HomeKitNo
-
Compatible with Google AssistantNo
-
For heavy conditions according to VDENo
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of ports USB-C0
-
Number of socket outlets switchable0
-
Imprint/indicationNone
-
With enhanced contact protectionNo
-
RAL-number (similar)9010
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Surface finishingMatt
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Device height76 mm
-
Min. depth of built-in installation box0 mm
-
Compatible with Amazon AlexaNo
-
IFTTT support availableNo
Detalles del fabricante
-
FabricanteHager Electro S.A.S.
-
DirecciónFR 67215 Obernai 123 boulevard d’Europe Francja
Empaquetado a granel
| una especie de paquete | Karton | Pakiet | Paleta |
| Cantidad | 1 uds. | 18 uds. | 576 uds. |
| Peso (kg) | 0,270 | 5,300 | 194,600 |
| Ancho (m) | 0,080 | 0,300 | 0,800 |
| Longitud (m) | 0,070 | 0,220 | 1,050 |
| Profundidad (m) | 0,150 | 0,400 | 1,200 |
