W.1 Schuko socket 2P+E complete 2-fold horizontal 4 inputs IP55 gray 47753525

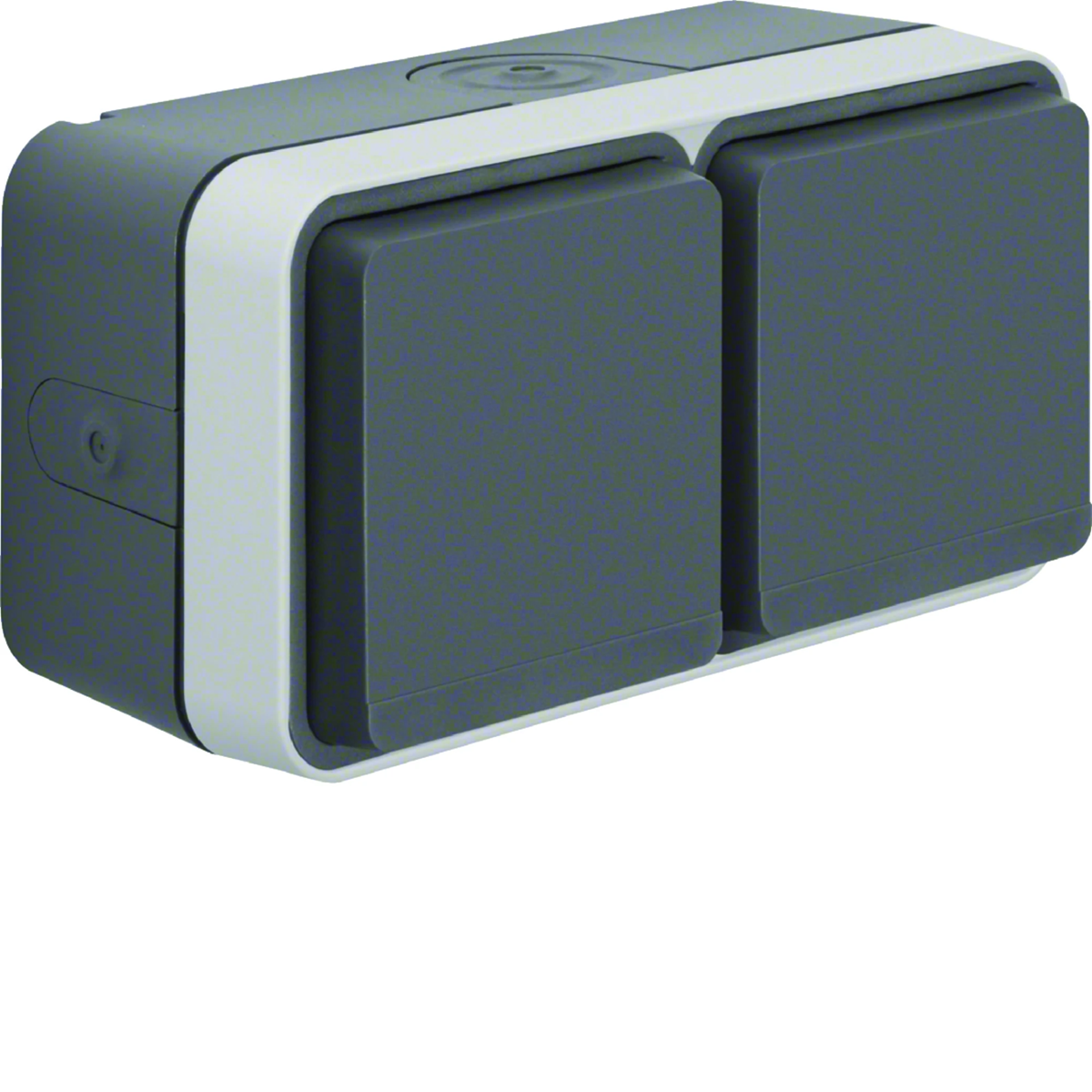

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47753525.

FEATURES

• 2 x 2P+Z.< /strong>
• Double.
• With SCHUKO grounding.
• For horizontal mounting.
• Color dark grey.
• With a lockable lid, manually locked.
• Rated current < strong>16A.
• Rated voltage 230V.
• Ingress protection IP55.
• surface mounting.
• Wire gauge: 1…2.5 mm².
• With plug-in terminals.
• Pre-wired mechanisms.
• 4 entries.
• Bottom and top cable entries are offset to the side for easy installation next to door frames, etc.
• 2 additional side cable entries.
• With one entry for two cables and one entry for a cable or tube.
• With full-surface seal on the rear side of the housing for cable entry from the rear side and adjustment to plaster.
• Hinged lid, made of stainless steel, quick-release pins, ZAMAK lock.
• With self-clamps.

  ;

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.
