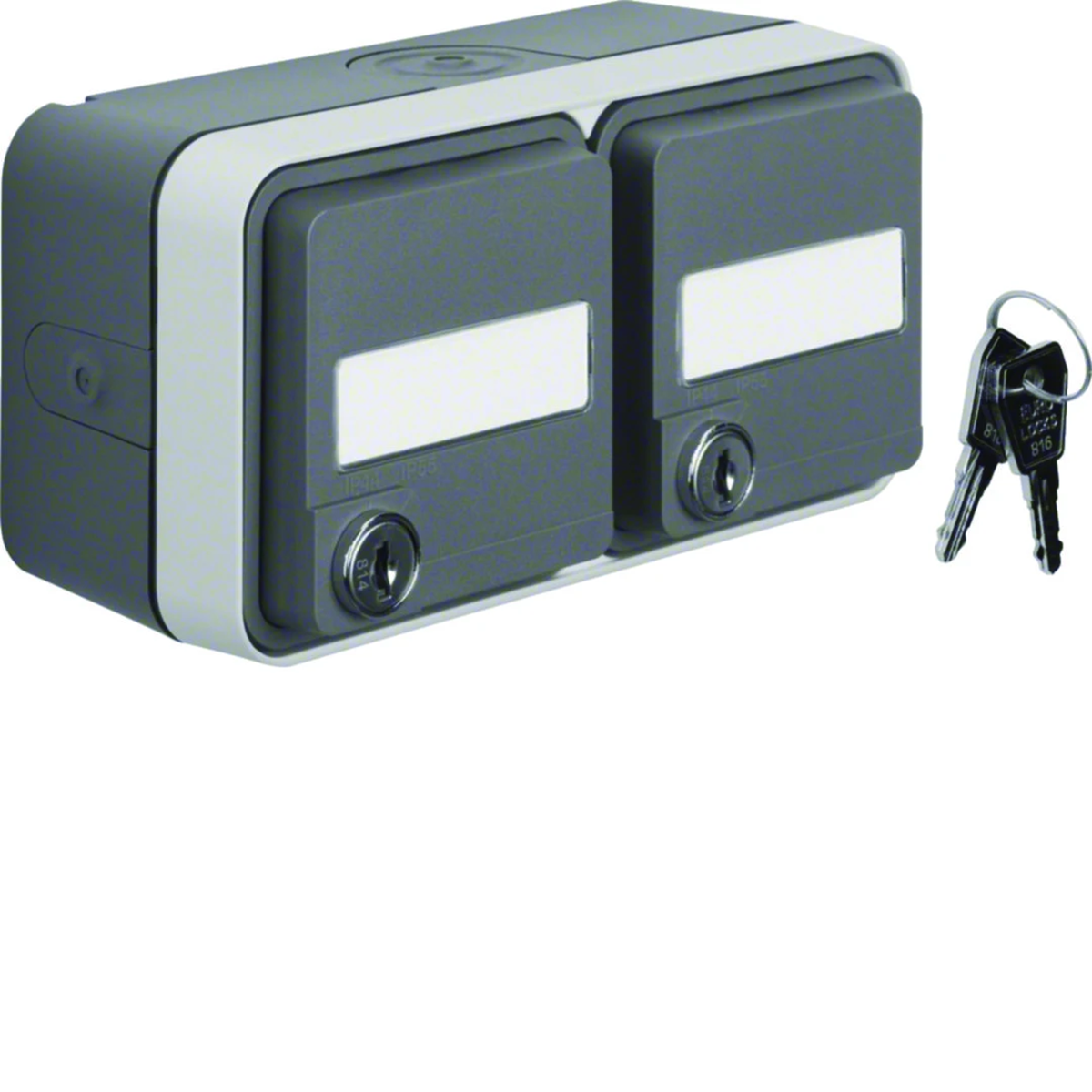

W.1 Schuko 2P+E key socket with description field 2-gang complete IP55 gray 47893525

local index:
MFB022BERK
Catalog No:
47893525
EAN code:
4011334428060
Manufacturer: BERKER
Number of sockets: 2
Color: Gray
Shape: Rectangular
Price:
125,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47893525.



FEATURES

  • 2 x 2P+Z.
  • Double.
  • With SCHUKO earth connection.
  • Keyed.
  • Color dark gray.
  • Socket rated current 16 A.
  • < li>Rated voltage 230 V.
  • Ingress protection IP55.
  • Mounting surface mounting.< /li>
  • 4 cable entries.
  • With lockable cover, manually locked.
  • For horizontal mounting.
  • With 2 clips for Wago 2 connection terminal block -pole on the underside of the housing.
  • With 2-pole Wago connection terminal for wiring.
  • With plug-in terminals.
  • 2 additional lateral cable entries.
  • With cable entry for 2 cables and cable or pipe entry.
  • With a full-surface seal on the rear side of the housing for cable entry from the rear side and fitting to the plaster.
  • With extended contact protection.
  • Hinged lid, stainless steel, lock quick-release pins.
  • Housing screws and springs, stainless steel.
  • < li>The height of the labeling field is adapted to the P-touch strip 12 mm.
  • The upper and lower insertion lines are offset and therefore particularly suitable for installation next to the door frame.
  • The locks of one product have the same keys. When ordering several products, you usually receive different keys.
  • Description field (W x H) ≈ 50 x 16 mm.
  • With self-clamps.



SERIES DESCRIPTION

Berker W. 1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Descriptive field
    Yes
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    76
  • Surface finish
    matte
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • Exact material
    Thermoplastic
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    16
  • Family
    W.1
  • Width [mm]
    147
  • Ground
    schuko
  • Degree of mechanical protection
    IK05
  • Accurate color
    dark grey
  • Terminal type
    Threadless
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • Additional information
    Locked
  • Seal
    Yes

Other technical data

  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • Number of units
    2
  • With hinged lid
    Yes
  • Transparent
    No
  • Eject-mechanism
    No
  • Fault current protection
    No
  • Type of fastening
    Mounting with screw
  • Halogen free
    Yes
  • Anti-bacterial treatment
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    100.7 mm
  • Device depth
    51 mm
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Label space/information surface
    No
  • Lockable
    Yes
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • With loop through function
    No
  • Impact strength
    IK05
  • Device height
    80 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 15 pcs. 480 pcs.
Weight (kg) 0,282 1,490 4,920 180,440
Width (m) 0,147 0,155 0,295 0,800
Length (m) 0,065 0,085 0,230 1,050
Depth (m) 0,076 0,335 0,400 1,200
