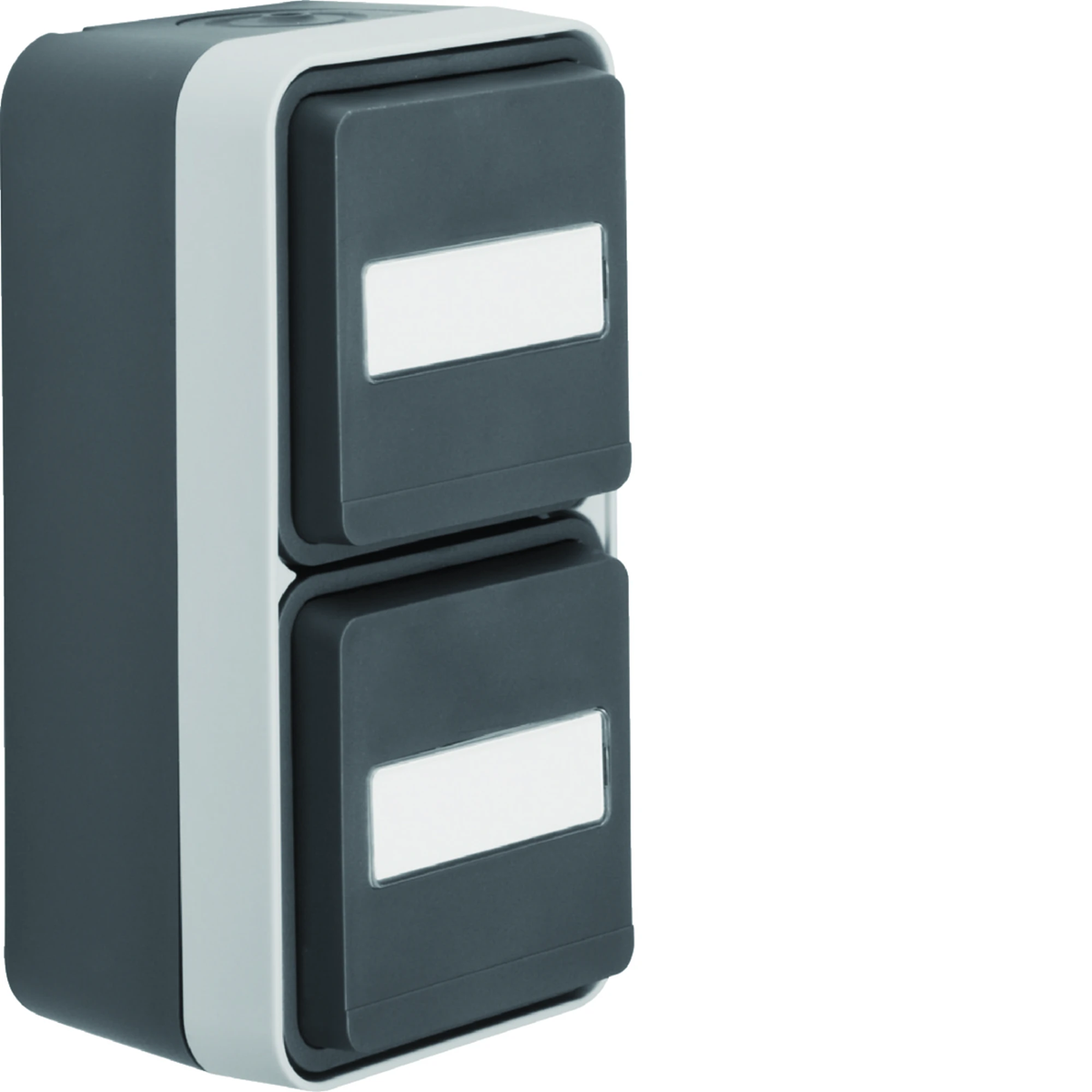

Name: W.1 Schuko 2P+E complete double vertical socket with description field IP55 gray
Brand: BERKER
SKU: MFB010BERK
Price: 54.81 PLN

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47703535.

FEATURES

2 x 2P+Z.< /strong>

Double.

With SCHUKO grounding.

Vertical.

Color dark grey.

With description field (W x H) ≈ 50 x 16 mm.

With lockable cover, manually locked.

Rated current of the socket 16 A.

Rated voltage 230 V.

Ingress protection IP55.

surface mounting.
< li>Cable gauge: 1…2.5 mm².
With plug-in terminals.

Pre-wired mechanisms.

With 2 entry cables and cable or pipe entry.

With a full-surface seal on the rear side of the housing for cable entry from the rear side and adjustment to the plaster.

Hinged lid, stainless steel, pins quick-release ZAMAK lock.

Lettering field height adapted to 12 mm high P-touch strips.

With self-clamps.

;

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Number of sockets

2
Shape

Rectangular
Installation

Surface-mounted
Descriptive field

Yes
Type

Electrical hermetic
Level of security

IP55
Type

Surface-mounted
Height [mm]

147
Surface finish

matte
Wire cross-section [mm²]

1 - 2.5
Mounting direction

Vertical
Standard

European
On the DATA key

NO
Lid color

Socket color
Seal

Yes

Color

Gray
Material

Plastic
Rated voltage [V]

230
Rated current [A]

16
Family

W.1
Width [mm]

76
Ground

schuko
Degree of mechanical protection

IK05
Accurate color

dark grey
Backlight

NO
Terminal type

Threadless
Shutters of current paths

NO
For the frame system

NO
Exact material

Thermoplastic
PKWIU

27.33.13.0

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

No
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of modules (module system)

0
Number of phases

1
With hinged lid

Yes
Label space/information surface

Yes
RAL-number (similar)

7011
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP55
Device width

76 mm
Device depth

65 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

2
Number of socket outlets switchable

0
Connection type

Push-in clamp
With enhanced contact protection

No
Colour

Grey
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK05
Device height

147 mm
Min. depth of built-in installation box

0 mm

A kind of package	Paleta		Karton	Pakiet
Quantity	480 pcs.	1 pcs.	5 pcs.	15 pcs.
Weight (kg)	157,295	0,240	1,282	4,291
Width (m)	0,800	0,076	0,158	0,300
Length (m)	1,050	0,065	0,081	0,225
Depth (m)	1,200	0,147	0,325	0,400
