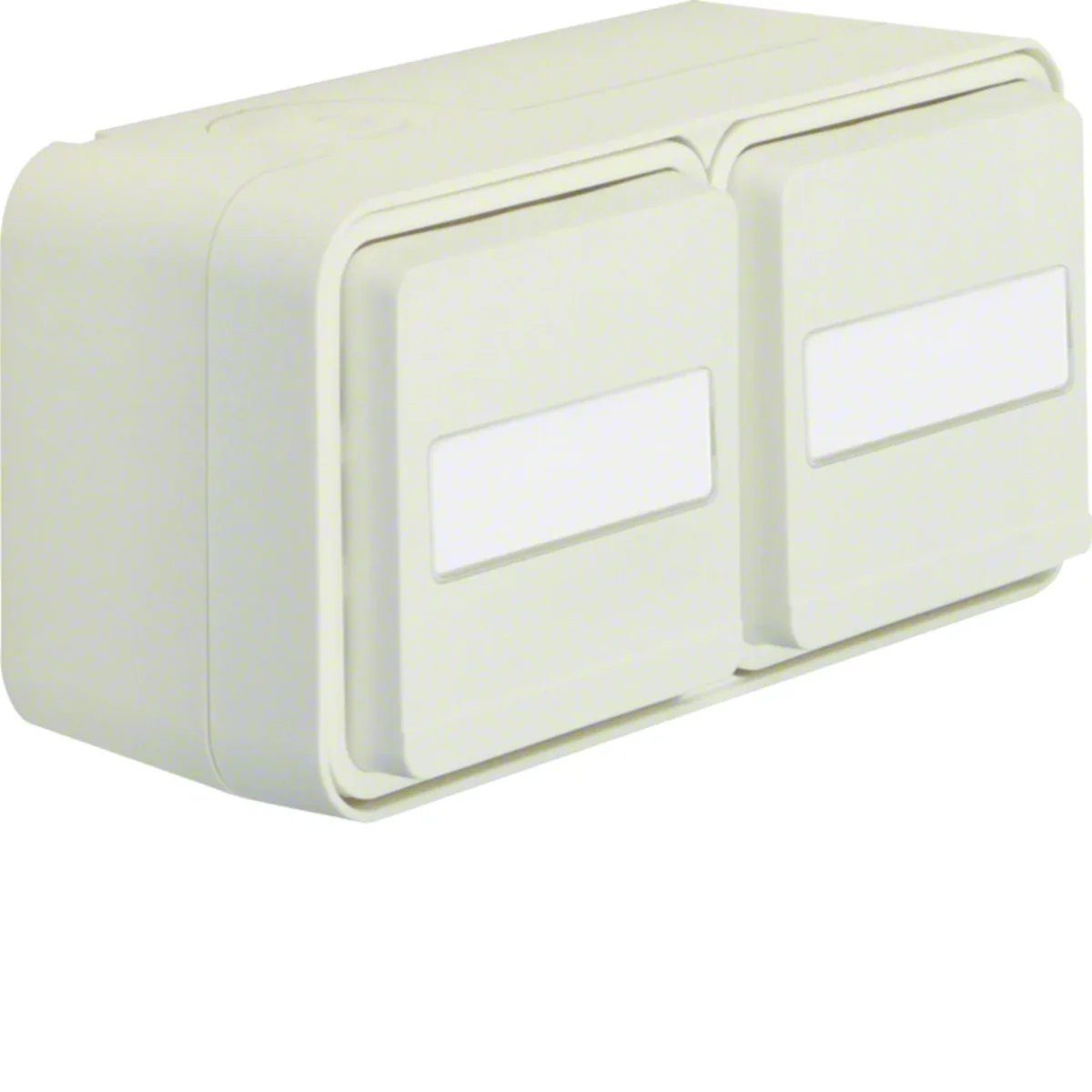

W.1 Schuko 2P+E complete double horizontal socket with description field IP55 white 47753532

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47753532.

FEATURES

• 2 x 2P+Z.< /strong>
• Double.
• With SCHUKO grounding.
• Horizontal.
• Color white.
• With descriptive field (width x height) ≈ 50 x 16 mm.
• With lockable cover, manually locked.
• Rated current 16 A.
• Rated voltage 230 V.
• Ingress protection IP55.
• surface mounting.
• Cable gauge: 1…2.5 mm².
• With plug-in terminals.
• Pre-wired mechanisms.
• With 2-wire entry and entry cable or pipe.
• With a full-surface seal on the rear side of the housing, enabling the cable to be inserted from the rear side and fitting to the plaster.
• Hinged cover, made of stainless steel, quick-release pins, ZAMAK lock .
• The height of the labeling field is adapted to P-touch strips with a height of 12 mm.
• With self-clamps.
