W.1 Schuko 2P+E complete 2-fold vertical IP55 white socket 47703522
local index:
MFB007BERK
Catalog No:
47703522
EAN code:
4011334404323
Price:
51,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

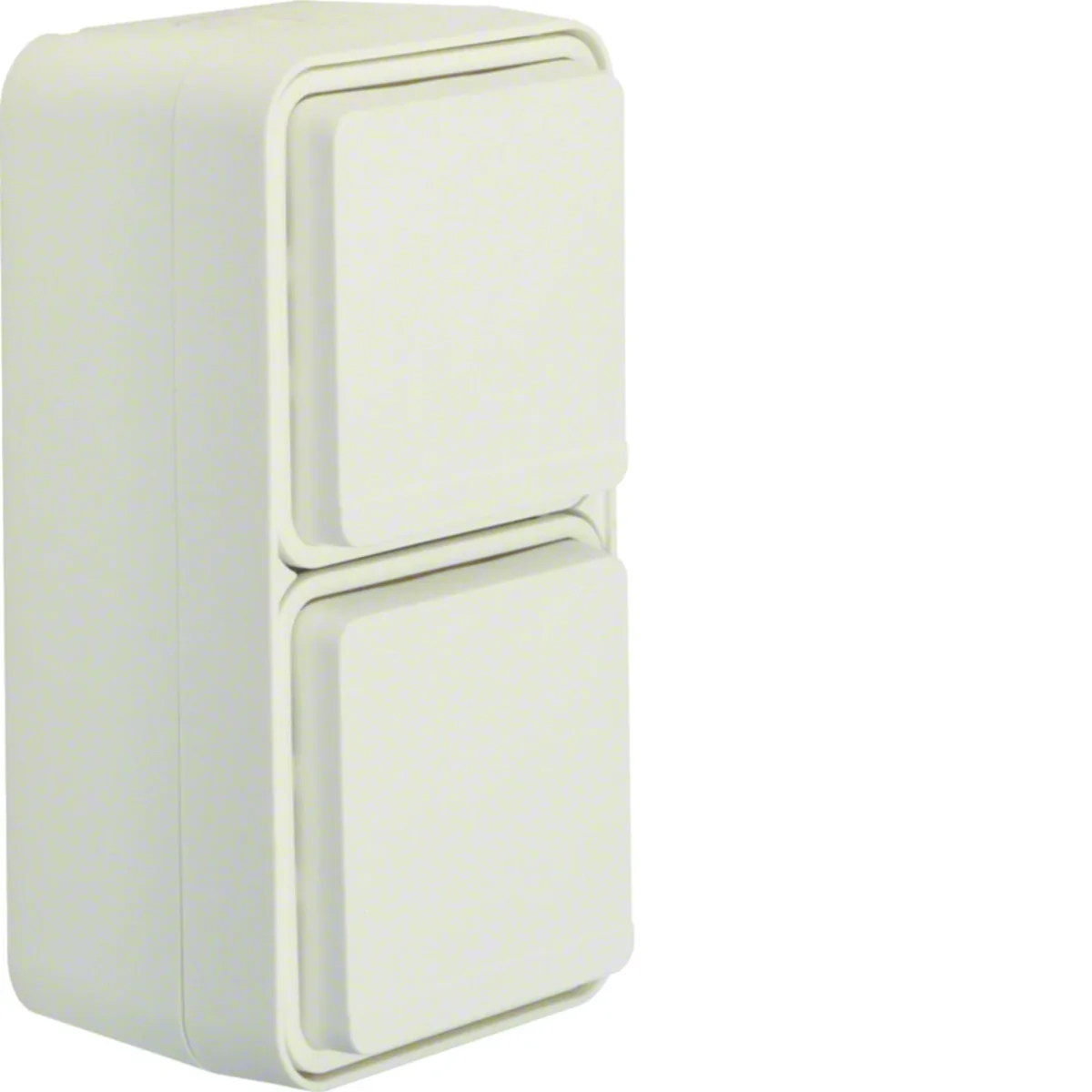

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 47703522.
FEATURES
- 2 x 2P+Z.< /strong>
- Double.
- With SCHUKO grounding.
- Vertical.
- Color white.
- With closed lid, manually locked.
- Rated current of the socket < strong>16A.
- Rated voltage 230V.
- Ingress protection IP55.
- surface mounting.
- Wire gauge: 1…2.5 mm².
- With plug-in terminals.
- Wired mechanisms.
- With entry for 2 wires and entry of a cable or pipe.
- With a full-surface seal on the back of the housing for cable entry from the back and adjustment to plaster.
- Hinged lid, stainless steel, quick-release pins, ZAMAK lock.
- With self-clamps.
SERIES DESCRIPTION
Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.
Technical data
-
Number of sockets2
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]16
-
FamilyW.1
-
Width [mm]76
-
Groundschuko
-
Degree of mechanical protectionIK05
-
Wire cross-section [mm²]1 - 2.5
-
Mounting directionVertical
-
StandardEuropean
-
On the DATA keyNO
-
Lid colorSocket color
-
SealYes
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectrical hermetic
-
Level of securityIP55
-
TypeSurface-mounted
-
Height [mm]147
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsNO
-
For the frame systemNO
-
Exact materialThermoplastic
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Number of phases1
-
With hinged lidYes
-
Label space/information surfaceNo
-
RAL-number (similar)9010
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP55
-
Device width76 mm
-
Device depth65 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units2
-
Number of socket outlets switchable0
-
Connection typePush-in clamp
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK05
-
Device height147 mm
-
Min. depth of built-in installation box0 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 18 pcs. | 576 pcs. |
| Weight (kg) | 0,240 | 0,269 | 5,284 | 189,088 |
| Width (m) | 0,076 | 0,081 | 0,300 | 0,800 |
| Length (m) | 0,065 | 0,071 | 0,225 | 1,050 |
| Depth (m) | 0,147 | 0,153 | 0,400 | 1,200 |
