W.1 Earthed socket 2P+E complete 2-fold horizontal 4 inputs IP55 gray 6768823515

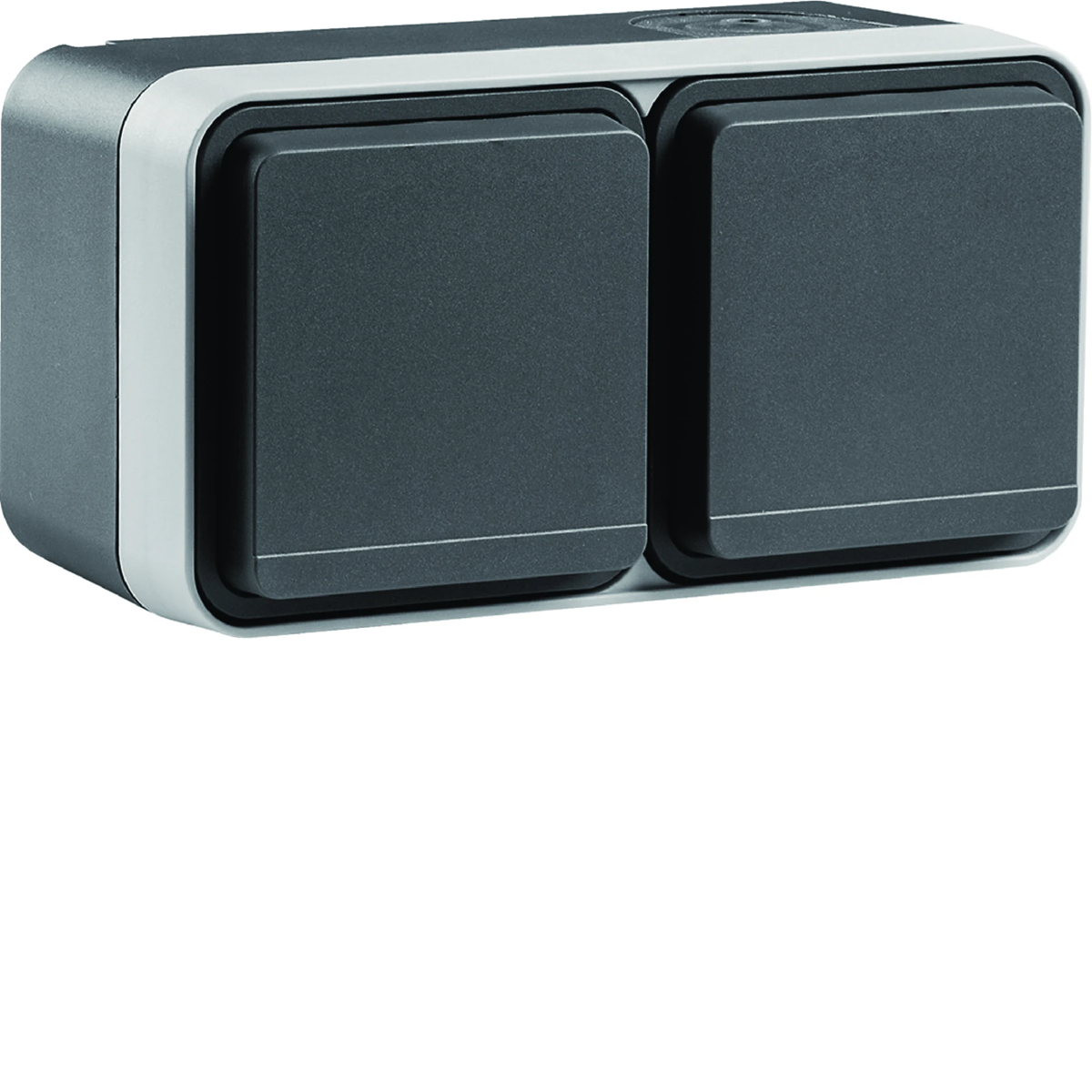

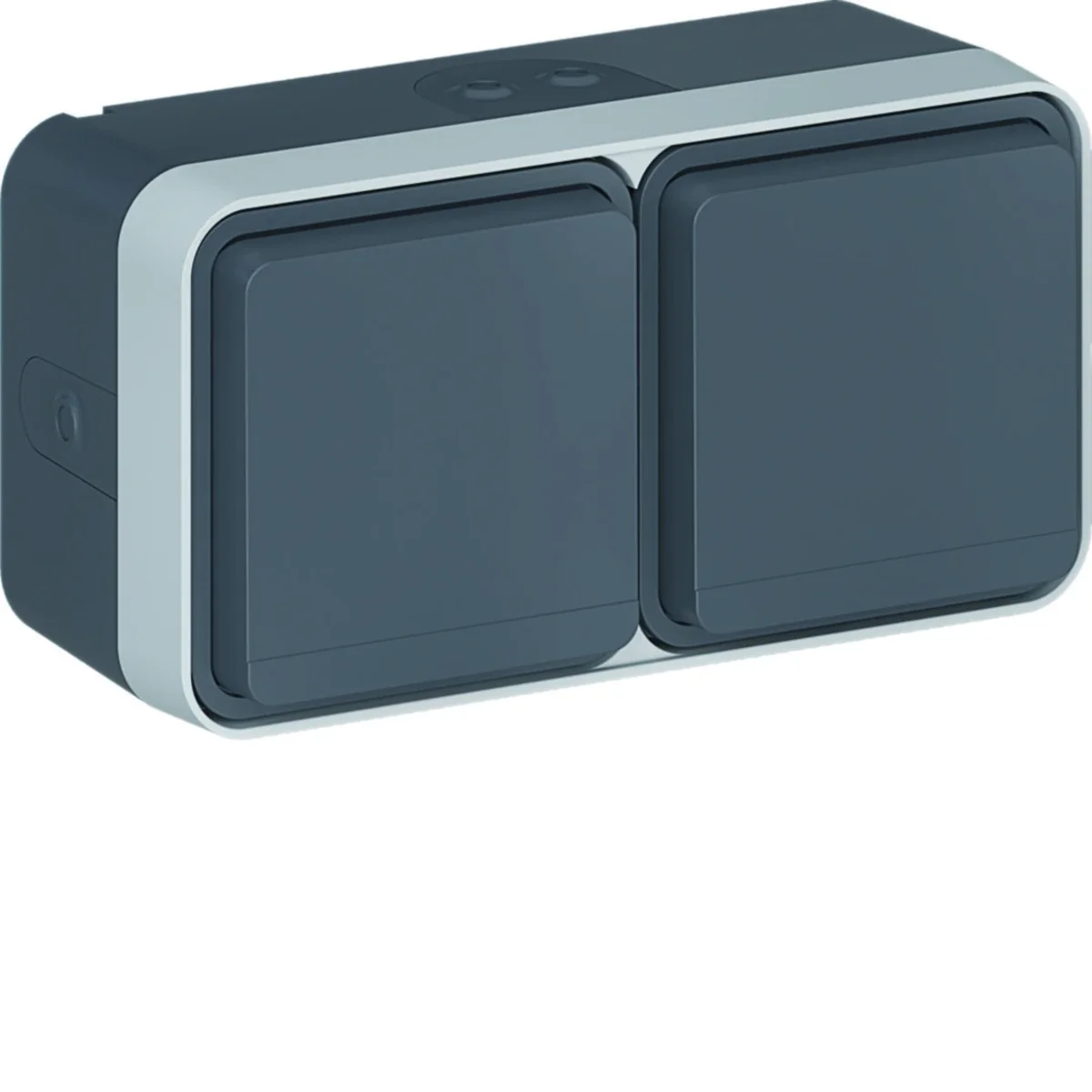

Name: W.1 Earthed socket 2P+E complete 2-fold horizontal 4 inputs IP55 gray
Brand: BERKER
SKU: MFB041BERK
Price: 119.85 PLN
Availability: InStock

Внутрішній артикул:

MFB041BERK

№ каталоговий:

6768823515

Код EAN:

4011334390817

W.1 Earthed socket 2P+E complete 2-fold horizontal 4 inputs IP55 gray

Натисни на фото щоб збільшити

Виробник: BERKER

Number of sockets: 2

Number of inputs: 4

Color: Gray

Дивіться повний опис

Ціна:

119,85 zł

gross / шт.

(з ПДВ 23%)

Доступний 63 шт.

Кількість шт.

(багаторазовий:

)

Додати до запиту на пропозицію

Додати в буфер обміну

Роздрукувати

Запитайте про товар

Опис товару Технічні дані Інформація про виробника Об'ємна упаковка Файли для завантаження

Опис товару

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 6768823515.

FEATURES

2 x 2P+Z.

Double.

2-pole grounding; ground pin.

Horizontal.

4 cable entries.

With extended contact protection .

Color grey.

Rated current 16 A.

Rated voltage 230 V.

Ingress protection IP55.

surface mounting.

Z plug-in terminals.

With 2-wire entry and cable or pipe entry.

2 additional side cable entries.

With full-surface seal on the rear side of the housing for cable entry from the rear side and adjustment to the plaster.

Stainless stainless steel latch cover springs, ZnAl alloy latch pins.

Bottom and top cable entry shifted to the side, which facilitates assembly next to the door frame, etc.

With self-clamps.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Технічні дані

Number of sockets

2
Color

Gray
Material

Plastic
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP55
Type

Surface-mounted
Height [mm]

76
Backlight

NO
Terminal type

Threadless
Shutters of current paths

Yes
For the frame system

NO
Exact material

Thermoplastic
PKWIU

27.33.13.0

Number of inputs

4
Shape

Rectangular
Installation

Surface-mounted
Rated current [A]

16
Family

W.1
Width [mm]

147
Ground

Hurt
Surface finish

matte
Mounting direction

Horizontal
Standard

European
On the DATA key

NO
Lid color

Socket color
Seal

Yes

Інші технічні дані

Model

Socket outlet CEE 7/3 (type F)
Protective contact

Round
Number of active contacts (flat)

0
Number of units

2
Number of socket outlets switchable

0
Imprint/indication

None
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

7011
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Other
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
With loop through function

No
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK07
Device height

76 mm
Min. depth of built-in installation box

0 mm
Compatible with Amazon Alexa

No
IFTTT support available

No
With built-in bluetooth speaker

No
Compliant with UK Building Regulations Part M

No

Concurrently switching neutral conductor

No
Number of active contacts (round)

2
With signal lamp

No
Number of modules (module system)

2
Number of phases

1
Connection type

Screwed terminal
With enhanced contact protection

No
Colour

Grey
Metallic colour

No
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
Number of loop throughs

1
Colour of switch operator

Grey
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP55
Device width

147 mm
Device depth

65 mm
Compatible with Apple HomeKit

No
Compatible with Google Assistant

No
With Wi-Fi signal repeater

No
For heavy conditions according to VDE

No

Інформація про виробника

Виробник

Hager Electro S.A.S.
Адреса

FR 67215 Obernai 123 boulevard d’Europe Francja
Електронна пошта

wsparcie.klienta@hager.com

Об'ємна упаковка

Свого роду пакет	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Кількість	5 шт.	15 шт.	480 шт.	5 шт.	15 шт.	480 шт.
Вага (кг)	1,200	3,600	115,200	1,200	3,600	115,200
Ширина (м)	0,160	0,300	0,800	0,160	0,300	0,800
Довжина (м)	0,080	0,220	1,050	0,080	0,220	1,050
Глибина (м)	0,320	0,400	1,200	0,320	0,400	1,200
