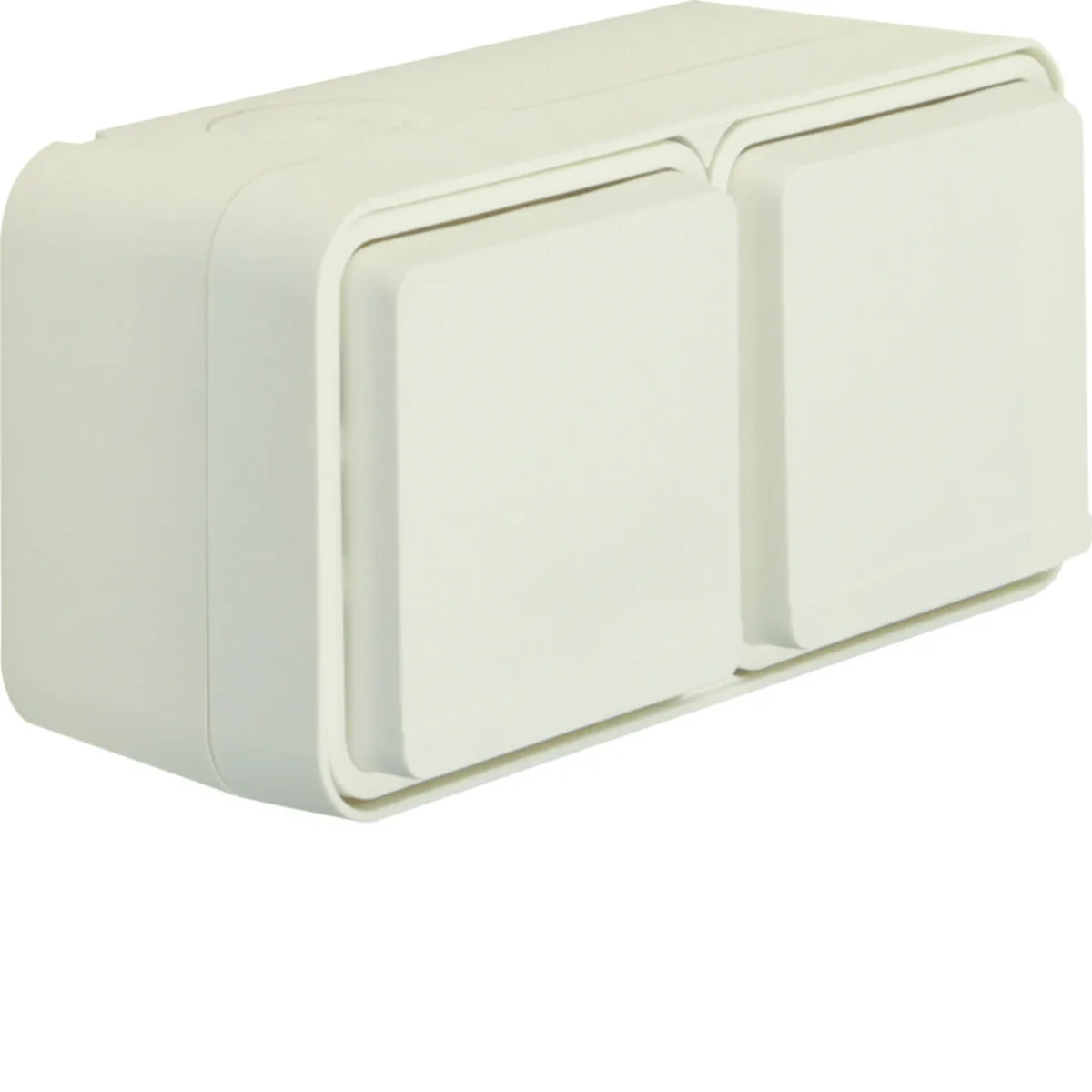

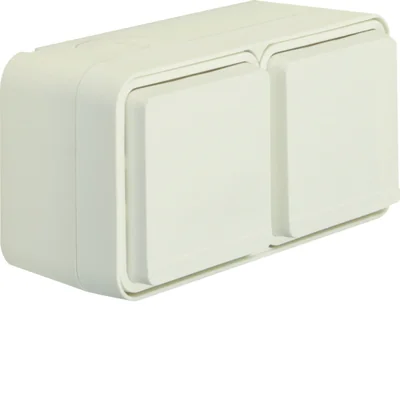

Name: W.1 Earthed socket 2P+E complete 2-fold horizontal 2 inputs IP55 white
Brand: BERKER
SKU: MFB026BERK
Price: 25.63 PLN

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product catalog number is 6768823522.

FEATURES

2 x 2P+Z.

Double.

2-pole grounding; ground pin.

Horizontal.

2 cable entries.

With extended contact protection .

Color snow white.

Rated current 16 A.

Rated voltage 230 V.

Ingress protection IP55.

surface mounting.

For screw connection.

With plug-in terminals.

With one entry for two wires and one entry for a cable or tube.

With full-surface seal on on the back side of the housing, enabling cable entry from the rear side and fitting to the plaster.

Sliding cover springs made of stainless steel, latch pins made of ZnAl alloy.

Bottom and top cable entry moved to the side, which facilitates installation next to the door frame, etc.

With self-clamps.

SERIES DESCRIPTION
Berker W.1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. Hermetic surface-mounted electrical socket characterizes the features of this series.

Number of sockets

2
Color

White
Material

Plastic
Rated voltage [V]

230
Type

Electrical hermetic
Level of security

IP55
Type

Surface-mounted
Height [mm]

76
Accurate color

Snow white
Mounting direction

Horizontal
Shutters of current paths

Yes
For the frame system

NO
Exact material

Thermoplastic
PKWIU

27.33.13.0

Number of inputs

2
Shape

Rectangular
Installation

Surface-mounted
Rated current [A]

16
Family

W.1
Width [mm]

147
Ground

Hurt
Surface finish

matte
Backlight

NO
Standard

European
On the DATA key

NO
Lid color

Socket color
Seal

Yes

Other technical data

Model

Protective contact CEE 7/3 / CEE 7/4 (type F)
Okrągły styk ochronny

Yes
Number of active contacts (flat)

0
With built-in USB power supply

No
Number of modules (module system)

0
Number of phases

1
With hinged lid

Yes
Label space/information surface

No
RAL-number (similar)

9010
Lockable

No
Insulated mounting

Yes
With orientation lighting

No
Fault current protection

No
Special power supply

No special power supply
Type of fastening

Mounting with screw
Material quality

Thermoplastic
Surface protection

Untreated
Anti-bacterial treatment

No
With loop through function

No
Nominal current

16 A
Frequency

50 ... 60 Hz
Suitable for degree of protection (IP)

IP55
Device width

147 mm
Device depth

63 mm

Protective contact

Yes
Number of active contacts (round)

2
With signal lamp

No
Number of units

2
Number of socket outlets switchable

0
Connection type

Push-in clamp
With enhanced contact protection

Yes
Colour

White
Transparent

No
Eject-mechanism

No
With function lighting

No
Over voltage protection

No
With miniature fuse

No
Mounting method

Surface mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
With on/off switch

No
Rotated central insert

No
Nominal voltage

250 V
Rated fault current

0 mA
Impact strength

IK05
Device height

76 mm
Min. depth of built-in installation box

0 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	18 pcs.	576 pcs.
Weight (kg)	0,240	0,270	5,300	194,600
Width (m)	0,147	0,081	0,300	0,800
Length (m)	0,065	0,070	0,225	1,050
Depth (m)	0,076	0,155	0,400	1,200
