W.1 Earthed 2-way socket with cover IP55 white WNC132

Místní index:
MFB029BERK
Katalogové číslo.:
WNC132
EAN kód:
3250617171328
Výrobce: BERKER
Depth [mm]: 22.8
Number of sockets: 2
Color: Gray
Cena:
151,29 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 4 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

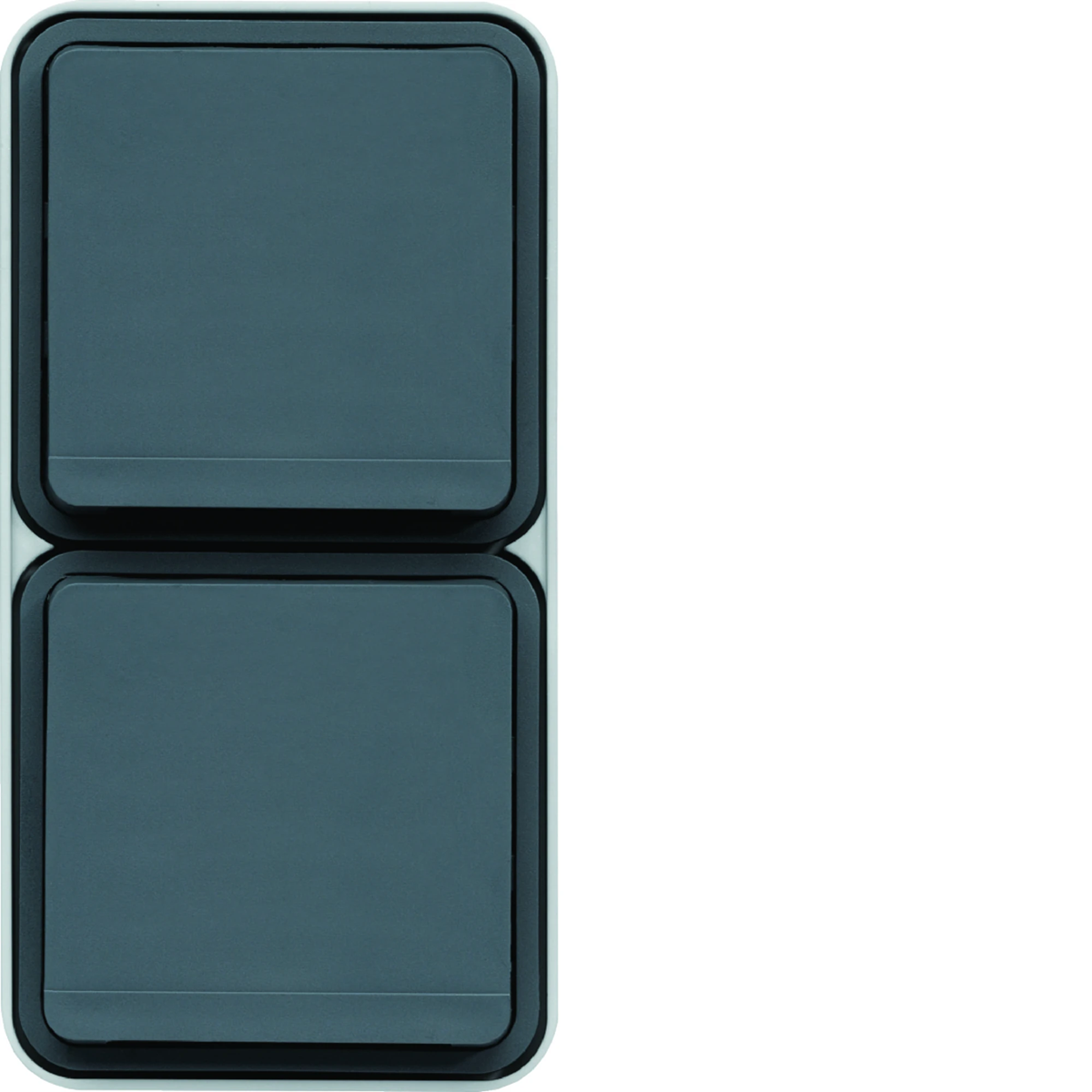

Hermetic wall-mounted electric socket from the W.1 series, from the manufacturer Berker. The product part number is WNC132.



FEATURES

  • Double .
  • With earthing; ground pin.
  • Pole arrangement 2P+T.
  • Color grey.
  • Rated current 16 A.
  • Rated voltage 230 V.
  • Rating IP55.
  • Surface mounting.
  • Clamp connection.
  • Screw mounting.
  • Through the rigid duct ( wire) in clamp: min. 2x1mm² - max. 2x2.5 mm².
  • Connection type: Quick Connect.
  • Phase branch: L1.

Technické údaje

  • Depth [mm]
    22.8
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Ground
    Hurt
  • Surface finish
    Matt satin
  • Standard
    European
  • On the DATA key
    NO
  • Lid color
    Socket color
  • PKWIU
    27.12.40.0
  • Number of sockets
    2
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Width [mm]
    76
  • Connection type
    Quick Connect
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Exact material
    PP

Další technické údaje

  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    4
  • Imprint/indication
    Other
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    7011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Other
  • Material
    Plastic
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    75 mm
  • Device depth
    22.8 mm
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK07
  • Device height
    75 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta
Množství 5 kusů. 15 kusů. 360 kusů.
Hmotnost (kg) 1,200 3,600 86,400
Šířka (m) 0,150 0,300 0,800
Délka (m) 0,080 0,210 1,050
Hloubka (m) 0,320 0,350 1,200
