W.1 3-gang horizontal surface-mounted box 2 inputs IP55 white 6019303502

Name: W.1 3-gang horizontal surface-mounted box 2 inputs IP55 white
Brand: BERKER
SKU: MVN071BERK
Price: 110.47 PLN
Availability: BackOrder

Indice locale:

MVN071BERK

Numero di catalogo:

6019303502

Codice EAN:

4011334390121

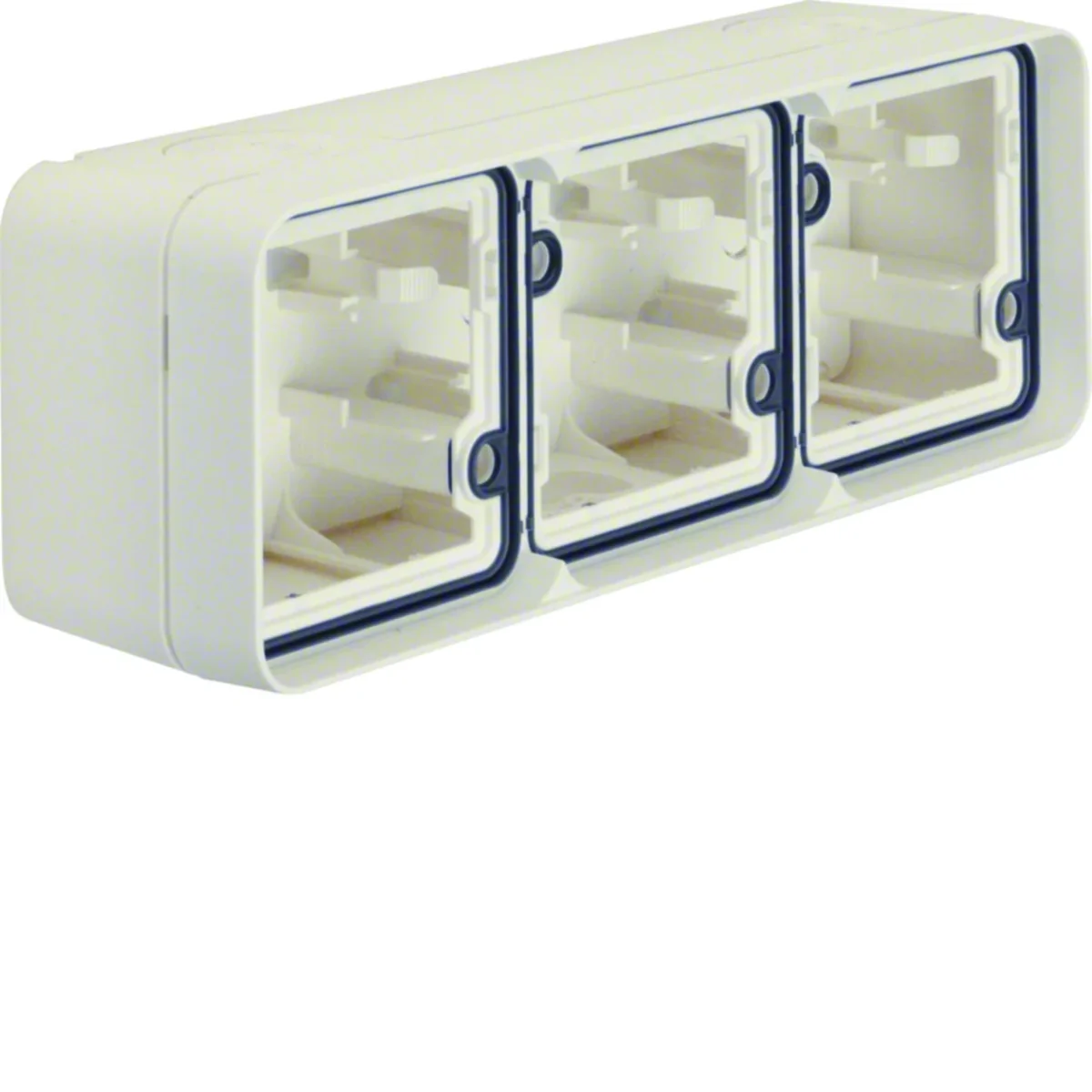

W.1 3-gang horizontal surface-mounted box 2 inputs IP55 white

Clicca sulla foto per ingrandire

Produttore: BERKER

Depth [mm]: 56

Color: White

Shape: Rectangular

Vedi la descrizione completa

Prezzo:

110,47 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

3-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

2 entries.
With a full-surface seal on the rear side of the housing for cable entry from the rear side and flush fitting.
With cable entry for 2 wires and 2 cable or pipe entries.
The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Dati tecnici

Depth [mm]

56
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP55
Type

For attachments
Surface finish

matte
Mounting direction

Horizontal
For modular equipment

Not applicable
Number of slots

2

Color

White
Material

Thermoplastic
Cover

NO
Family

W.1
Width [mm]

218
Height [mm]

76
Fire resistance

Not applicable
Number of segments

3
With terminal strip

NO
PKWIU

27.12.40.0

Altri dati tecnici

Assembly arrangement

Surface mounted box
Number of modules (module system)

3
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

9010
With cover frame

Yes
With cable entry

Yes
Number of inlets

4
Degree of protection (IP)

IP55
Height

78 mm
Compliant with BS 4662

No

Suitable for mounting over existing flush-mounted box

Yes
Desktop device

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
With duct entry

Yes
With screw gland entry

No
Number of earthing terminals

1
Width

218 mm
Depth

55.7 mm

Dettagli del produttore

Produttore

Berker GmbH & Co. KG.
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta
Quantità	1 pezzi	15 pezzi	480 pezzi
Peso (kg)	0,200	3,500	135,000
Larghezza (m)	0,080	0,300	0,800
Lunghezza (m)	0,070	0,220	1,050
Profondità (m)	0,220	0,400	1,200
