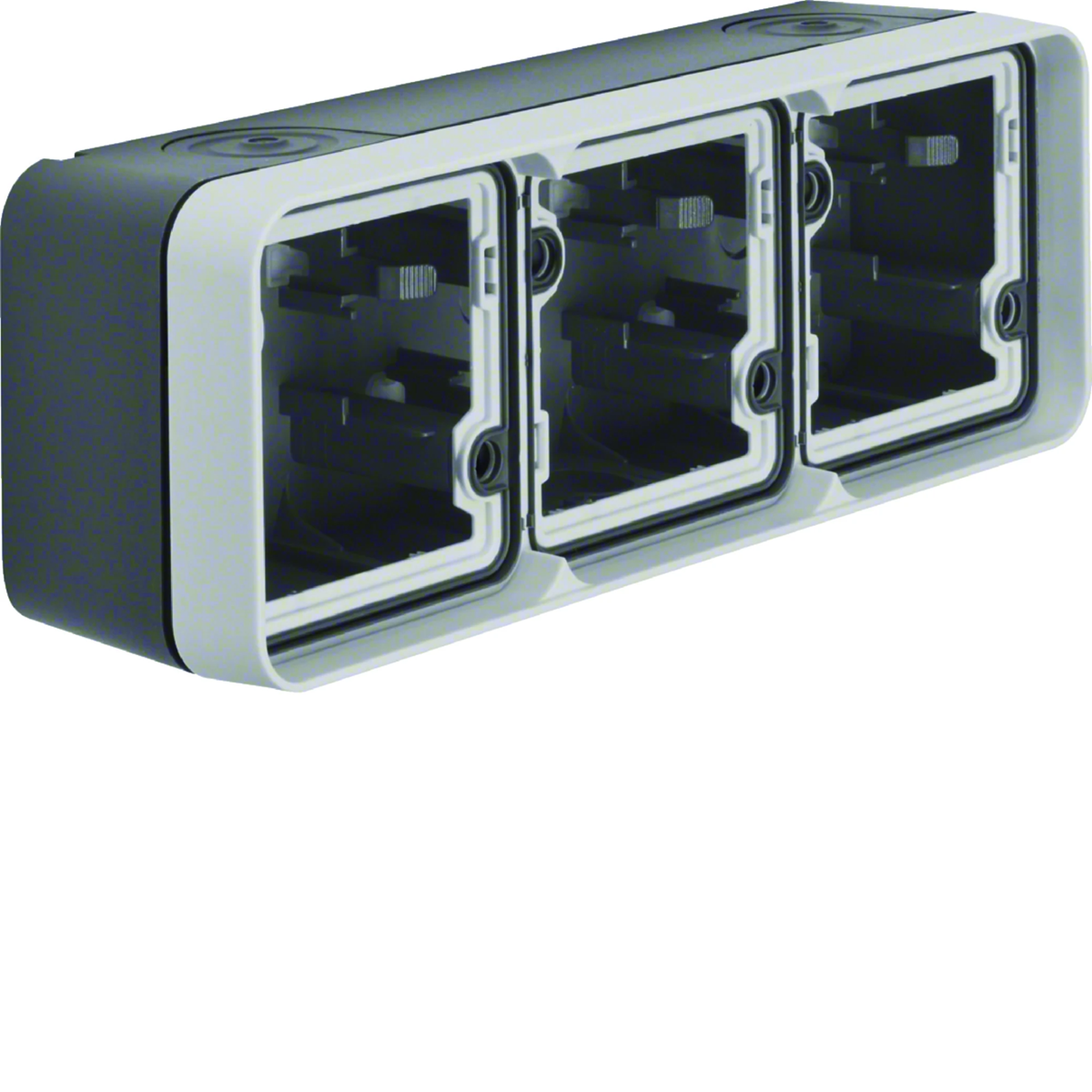

W.1 3-gang horizontal surface-mounted box 2 inputs IP55 dark grey 6019303505

Name: W.1 3-gang horizontal surface-mounted box 2 inputs IP55 dark grey
Brand: BERKER
SKU: MVN072BERK
Price: 110.47 PLN
Availability: BackOrder

Indeks lokalny:

MVN072BERK

Numer katalogowy:

6019303505

Kod EAN:

4011334390114

W.1 3-gang horizontal surface-mounted box 2 inputs IP55 dark grey

Kliknij zdjęcie, aby powiększyć

Producent: BERKER

Depth [mm]: 56

Color: Gray

Shape: Rectangular

Zobacz cały opis

Cena:

110,47 zł

gross / szt.

(w tym VAT 23%)

do 10 tygodni

Na zamówienie

Ilość szt.

(wielokrotność:

)

Dodaj do zapytania ofertowego

Dodaj do schowka

Drukuj

Zapytaj o produkt

Opis produktu Dane techniczne Dane producenta Opakowania zbiorcze Pliki do pobrania

Opis produktu

3-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

2 entries.
With a full-surface seal on the rear side of the housing for cable entry from the rear side and flush fitting.
With cable entry for 2 wires and 2 cable or pipe entries.
The IP55 degree of protection is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Dane techniczne

Depth [mm]

56
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP55
Type

For attachments
Surface finish

matte
Fire resistance

Not applicable
Number of segments

3
With terminal strip

NO
PKWIU

27.12.40.0

Color

Gray
Material

Thermoplastic
Cover

NO
Family

W.1
Width [mm]

218
Height [mm]

76
Accurate color

dark grey
Mounting direction

Horizontal
For modular equipment

Not applicable
Number of slots

2

Pozostałe dane techniczne

Assembly arrangement

Surface mounted box
Number of modules (module system)

3
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
With cover frame

Yes
With cable entry

Yes
Number of inlets

4
Degree of protection (IP)

IP55
Height

78 mm
Compliant with BS 4662

No

Suitable for mounting over existing flush-mounted box

Yes
Desktop device

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Transparent

No
With duct entry

Yes
With screw gland entry

No
Number of earthing terminals

1
Width

218 mm
Depth

55.7 mm

Dane producenta

Producent

Berker GmbH & Co. KG.
Adres

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Opakowania zbiorcze

Rodzaj opakowania	Karton	Pakiet	Paleta
Ilość	1 szt.	15 szt.	480 szt.
Waga (kg)	0,195	3,380	133,160
Szerokość (m)	0,080	0,300	0,800
Długość (m)	0,070	0,220	1,050
Głębokość (m)	0,220	0,400	1,200
