W.1 2-gang vertical surface-mounted box 2 inputs IP55 dark grey 6719333505

Name: W.1 2-gang vertical surface-mounted box 2 inputs IP55 dark grey
Brand: BERKER
SKU: MVN099BERK
Price: 79.65 PLN
Availability: BackOrder

Indice locale:

MVN099BERK

Numero di catalogo:

6719333505

Codice EAN:

4011334390091

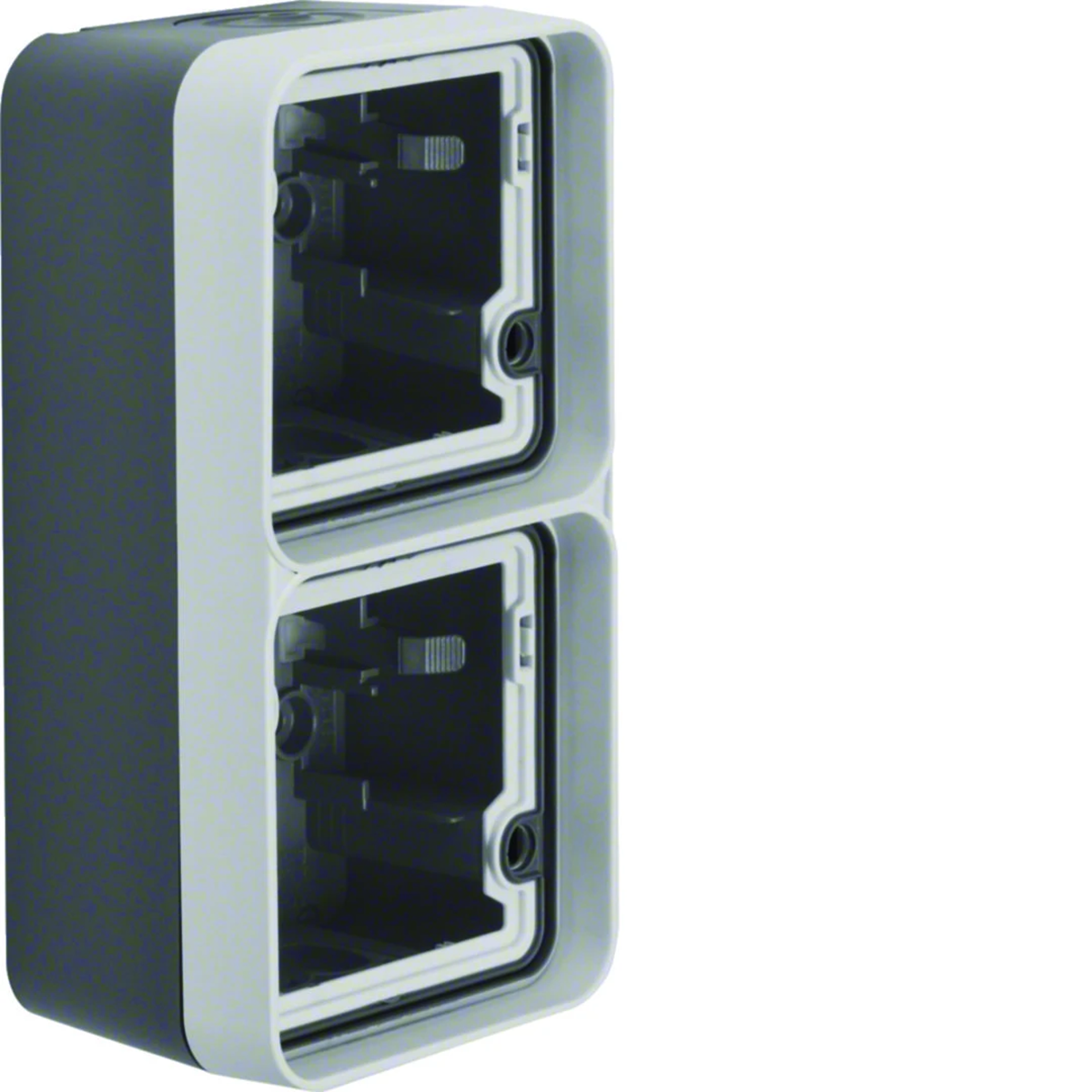

W.1 2-gang vertical surface-mounted box 2 inputs IP55 dark grey

Clicca sulla foto per ingrandire

Produttore: BERKER

Depth [mm]: 56

Color: Gray

Shape: Rectangular

Vedi la descrizione completa

Prezzo:

79,65 zł

gross / pezzi

(inclusa IVA 23%)

fino a 10 settimane

Su ordinazione

Quantità pezzi

(multiplo:

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

2-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

2 entrances.
The IP55 protection degree is provided only in the case of the flush-mounted mechanism of the Berker W.1 product line.

Dati tecnici

Depth [mm]

56
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP55
Type

For attachments
Surface finish

matte
Fire resistance

Not applicable
Number of segments

2
With terminal strip

NO
PKWIU

27.12.40.0

Color

Gray
Material

Thermoplastic
Cover

NO
Family

W.1
Width [mm]

76
Height [mm]

147
Accurate color

dark grey
Mounting direction

Vertical
For modular equipment

Not applicable
Number of slots

2

Altri dati tecnici

Assembly arrangement

Surface mounted box
Suitable for modular domestic switching devices

No
Number of units

2
Shape

Rectangular
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
With cover frame

Yes
With duct entry

Yes
With screw gland entry

No
Inlet from the rear

Yes
Number of earthing terminals

1
Degree of protection (IP)

IP55
Height

76 mm
Compliant with BS 4662

No

Suitable for mounting over existing flush-mounted box

No
Number of modules (module system)

2
Mounting direction

Vertical
Desktop device

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Transparent

No
Cross-trunking mounting

No
With cable entry

Yes
With installation tube entry

Yes
Number of inlets

2
Shock resistant

Yes
Width

147 mm
Depth

55.7 mm

Dettagli del produttore

Produttore

Berker GmbH & Co. KG.
Indirizzo

DE 66440 Blieskastel Zum Gunterstal Niemcy
Email

wsparcie.klienta@hager.com

Imballaggio sfuso

Una specie di pacchetto	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantità	5 pezzi	15 pezzi	480 pezzi	5 pezzi	15 pezzi	480 pezzi
Peso (kg)	0,657	2,330	99,560	0,657	2,330	99,560
Larghezza (m)	0,160	0,300	0,800	0,160	0,300	0,800
Lunghezza (m)	0,080	0,220	1,050	0,080	0,220	1,050
Profondità (m)	0,320	0,400	1,200	0,320	0,400	1,200
