W.1 2-gang horizontal surface-mounted box 4 inputs IP55 grey 6719323515

local index:
MVN078BERK
Catalog No:
6719323515
EAN code:
4011334390077
Manufacturer: BERKER
Halogen free: Yes
Depth [mm]: 56
Color: Gray
Price:
19,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

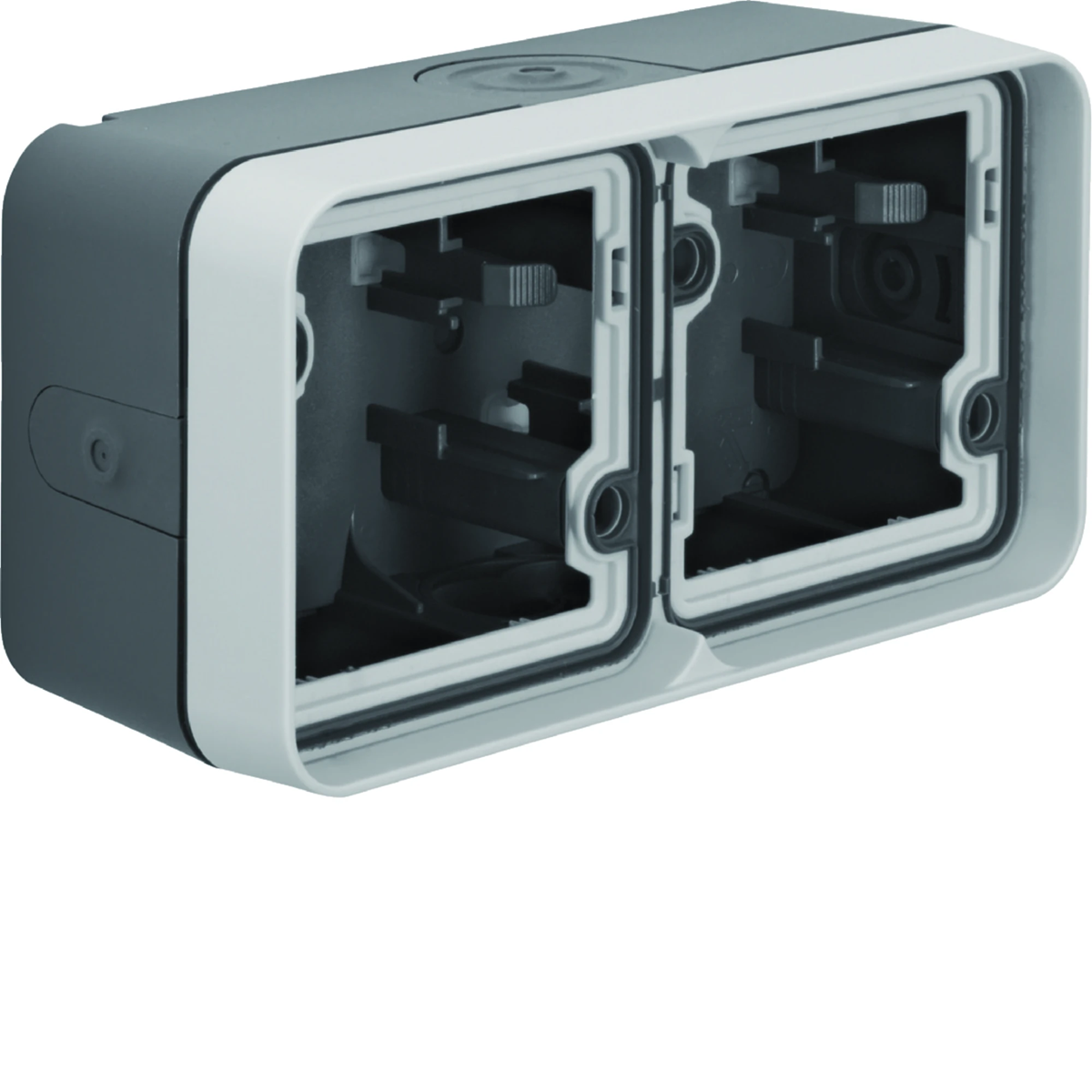

2-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

    < li>For horizontal mounting.
  • 4 entries.
  • With 2 clips for Wago 2-pole connection terminal on the bottom of the housing.
  • With Wago 2 connection terminal -pole for wiring.
  • With a full-surface seal on the rear side of the housing for cable entry from the rear side and fitting to the plaster.
  • 2 additional side cable entries.
  • With 2-wire entry and cable or pipe entry.
  • The IP55 degree of protection is provided only for the concealed mechanism of the Berker W.1 product line.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    W.1
  • Width [mm]
    147
  • Height [mm]
    76
  • Accurate color
    dark grey
  • Mounting direction
    Horizontal
  • For modular equipment
    Not applicable
  • Number of slots
    4
  • Depth [mm]
    56
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP55
  • Type
    For attachments
  • Surface finish
    matte
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Surface mounted box
  • Number of units
    2
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Device height
    76 mm
  • Number of modules (module system)
    0
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • With cover frame
    Yes
  • With cable entry
    Yes
  • Device width
    147 mm
  • Device depth
    56 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 5 pcs. 15 pcs. 480 pcs.
Weight (kg) 0,118 0,672 2,461 98,735
Width (m) 0,147 0,158 0,300 0,800
Length (m) 0,056 0,081 0,225 1,050
Depth (m) 0,076 0,325 0,400 1,200
