W.1 2-gang horizontal surface-mounted box 2 inputs IP55 white 6719323502

Místní index:
MVN075BERK
Katalogové číslo.:
6719323502
EAN kód:
4011334390060
Výrobce: BERKER
Halogen free: Yes
Depth [mm]: 56
Color: White
Cena:
82,79 zł
gross / kusů.
(včetně DPH 23%)
do 10 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

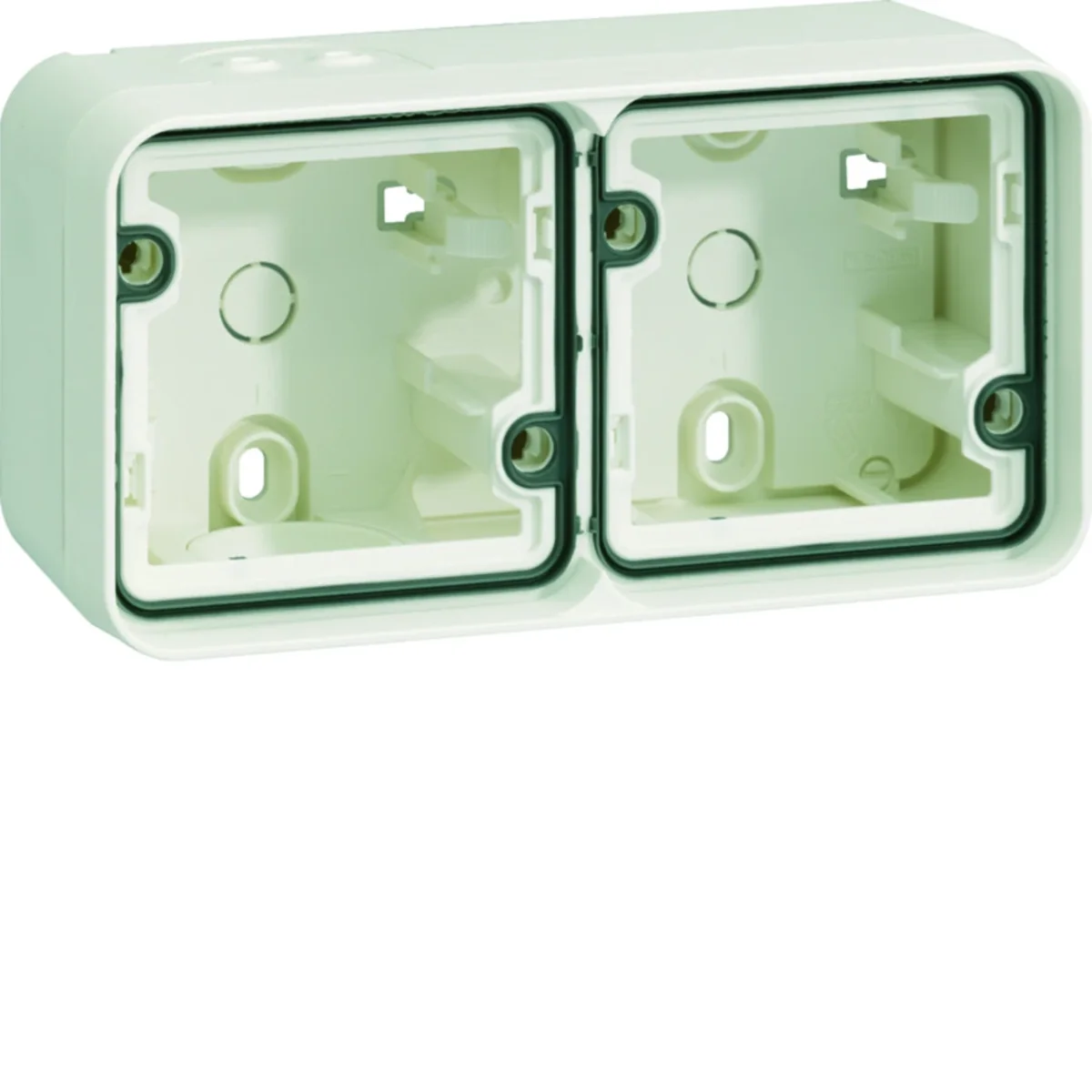

2-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

    < li>For horizontal mounting.
  • 2 entries.
  • With 2 latches for Wago 2-pole connection terminal on the bottom of the housing.
  • With Wago 2 connection terminal -pole for wiring.
  • With a full-surface seal on the rear side of the housing, enabling cable entry from the rear side and fitting to the plaster.
  • With an entry for 2 cables and entry of a cable or pipe.< /li>
  • The IP55 degree of protection is provided only for the flush-mounted mechanism of the Berker W.1 product line.

Technické údaje

  • Halogen free
    Yes
  • Color
    White
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    W.1
  • Width [mm]
    147
  • Height [mm]
    76
  • Fire resistance
    Not applicable
  • Number of segments
    2
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0
  • Depth [mm]
    56
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP55
  • Type
    For attachments
  • Surface finish
    matte
  • Mounting direction
    Horizontal
  • For modular equipment
    Not applicable
  • Number of slots
    2

Další technické údaje

  • Assembly arrangement
    Surface mounted box
  • Number of modules (module system)
    0
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • With cover frame
    Yes
  • With cable entry
    Yes
  • Number of inlets
    4
  • Degree of protection (IP)
    IP55
  • Height
    76 mm
  • Compliant with BS 4662
    No
  • Suitable for mounting over existing flush-mounted box
    Yes
  • Desktop device
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With duct entry
    Yes
  • With screw gland entry
    No
  • Number of earthing terminals
    1
  • Width
    147 mm
  • Depth
    55.7 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Karton Pakiet Paleta
Množství 5 kusů. 15 kusů. 480 kusů.
Hmotnost (kg) 0,657 2,415 97,295
Šířka (m) 0,150 0,300 0,800
Délka (m) 0,080 0,220 1,050
Hloubka (m) 0,320 0,400 1,200
