W.1 2-gang horizontal surface-mounted box 2 inputs IP55 dark grey 6719323505

Name: W.1 2-gang horizontal surface-mounted box 2 inputs IP55 dark grey
Brand: BERKER
SKU: MVN076BERK
Price: 81.17 PLN
Availability: BackOrder

local index:

MVN076BERK

Catalog No:

6719323505

EAN code:

4011334390053

W.1 2-gang horizontal surface-mounted box 2 inputs IP55 dark grey

Click on the photo to enlarge

Manufacturer: BERKER

Halogen free: Yes

Depth [mm]: 56

Color: Gray

See full description

Price:

81,17 zł

gross / pcs.

(including VAT 23%)

up to 10 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

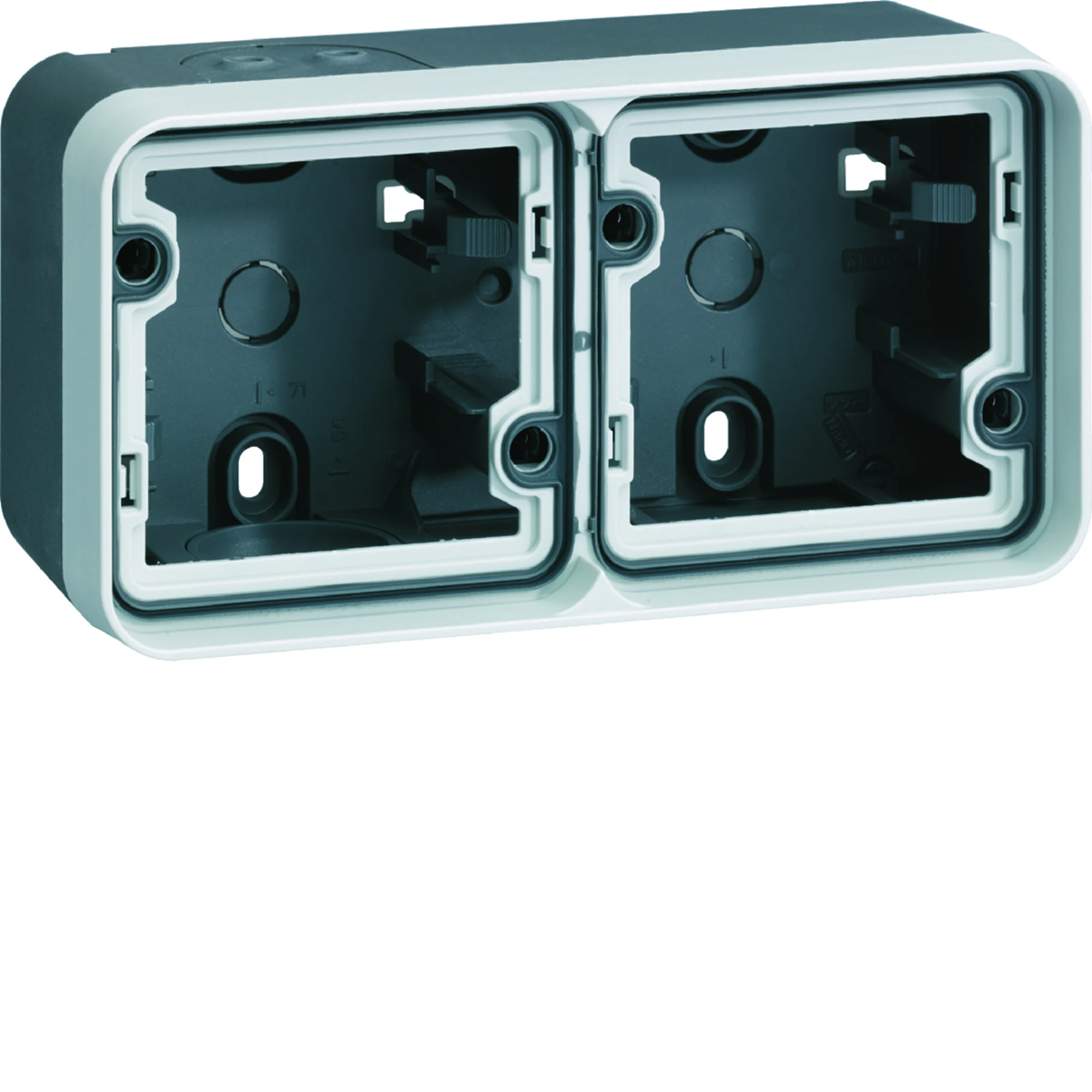

2-gang surface-mounted box, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance.

2 entries.
With 2 latches for Wago 2-pole connection terminal on the bottom of the housing.
With Wago 2 connection terminal -pole for wiring.
With a full-surface seal on the rear side of the housing, enabling cable entry from the rear side and fitting to the plaster.
With an entry for 2 cables and entry of a cable or pipe.< /li>
The IP55 degree of protection is provided only for the flush-mounted mechanism of the Berker W.1 product line.

Technical data

Halogen free

Yes
Color

Gray
Material

Thermoplastic
Cover

NO
Family

W.1
Width [mm]

147
Height [mm]

76
Accurate color

dark grey
Mounting direction

Horizontal
For modular equipment

Not applicable
Number of slots

2

Depth [mm]

56
Shape

Rectangular
Installation

Surface-mounted
Type

Wall-mounted
Level of security

IP55
Type

For attachments
Surface finish

matte
Fire resistance

Not applicable
Number of segments

2
With terminal strip

NO
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Surface mounted box
Suitable for modular domestic switching devices

No
Number of units

2
Shape

Rectangular
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
With cover frame

Yes
With duct entry

Yes
With screw gland entry

No
Shock resistant

Yes
Degree of protection (IP)

IP55
Width

147 mm
Height

76 mm
Device width

147 mm
Device depth

56 mm

Suitable for mounting over existing flush-mounted box

Yes
Number of modules (module system)

0
Mounting direction

Horizontal
Desktop device

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Transparent

No
Cross-trunking mounting

No
With cable entry

Yes
With installation tube entry

Yes
Number of inlets

4
Inlet from the rear

Yes
Number of earthing terminals

1
Depth

55.7 mm
Device height

76 mm
Compliant with BS 4662

No

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta	Karton	Pakiet	Paleta
Quantity	5 pcs.	15 pcs.	480 pcs.	5 pcs.	15 pcs.	480 pcs.
Weight (kg)	0,570	1,720	55,200	0,570	1,720	55,200
Width (m)	0,160	0,300	0,800	0,160	0,300	0,800
Length (m)	0,080	0,220	1,050	0,080	0,220	1,050
Depth (m)	0,320	0,400	1,200	0,320	0,400	1,200
