V5 12-inlet flexible wall-mounted box with knockouts 75x75x41mm IP54 click-clack white 035-01

Name: V5 12-inlet flexible wall-mounted box with knockouts 75x75x41mm IP54 click-clack white
Brand: VIPLAST
SKU: MVN039VIPL
Price: 1.03 PLN
Availability: InStock

local index:

MVN039VIPL

Catalog No:

035-01

EAN code:

5906365212636

V5 12-inlet flexible wall-mounted box with knockouts 75x75x41mm IP54 click-clack white

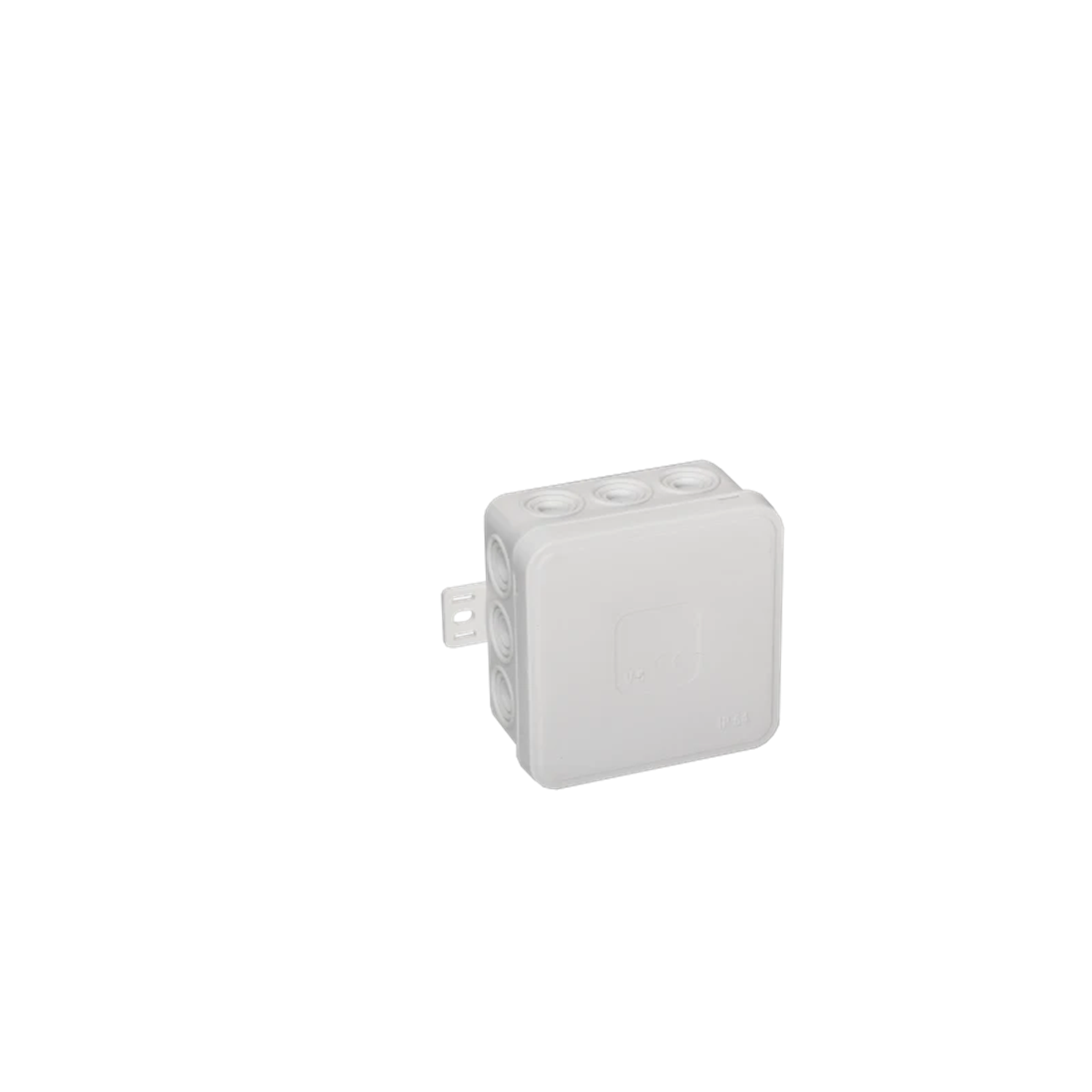

Click on the photo to enlarge

Manufacturer: VIPLAST

Depth [mm]: 41

Color: White

Shape: Square

See full description

Price:

1,03 €

gross / pcs.

(including VAT 23%)

Accessible 368 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Flexible surface-mounted box with a lid closed in the click-clack system. The IP54 degree of protection makes the box impermeable to dust and splash water.

Technical data

Depth [mm]

41
Shape

Square
Installation

Surface-mounted
Cover

Yes
Family

V5
Width [mm]

75
Height [mm]

75
Fire resistance

Not applicable
With terminal strip

NO

Color

White
Material

PP PVC
Rated voltage [V]

400
Type

Wall-mounted
Level of security

IP54
Type

branching
Degree of mechanical protection

IK07
For modular equipment

Not applicable
Number of slots

12

Manufacturer details

Manufacturer

ViPlast Sp.z o.o.
Address

41-503 Chorzów Azotowa 21 Polska
E-mail

viplast@viplast.pl

Bulk packaging

A kind of package		Karton	Karton
Quantity	1 pcs.	10 pcs.	66 pcs.
Weight (kg)	0,040	-	-
Width (m)	0,075	-	-
Length (m)	0,075	-	-
Depth (m)	0,041	-	-
