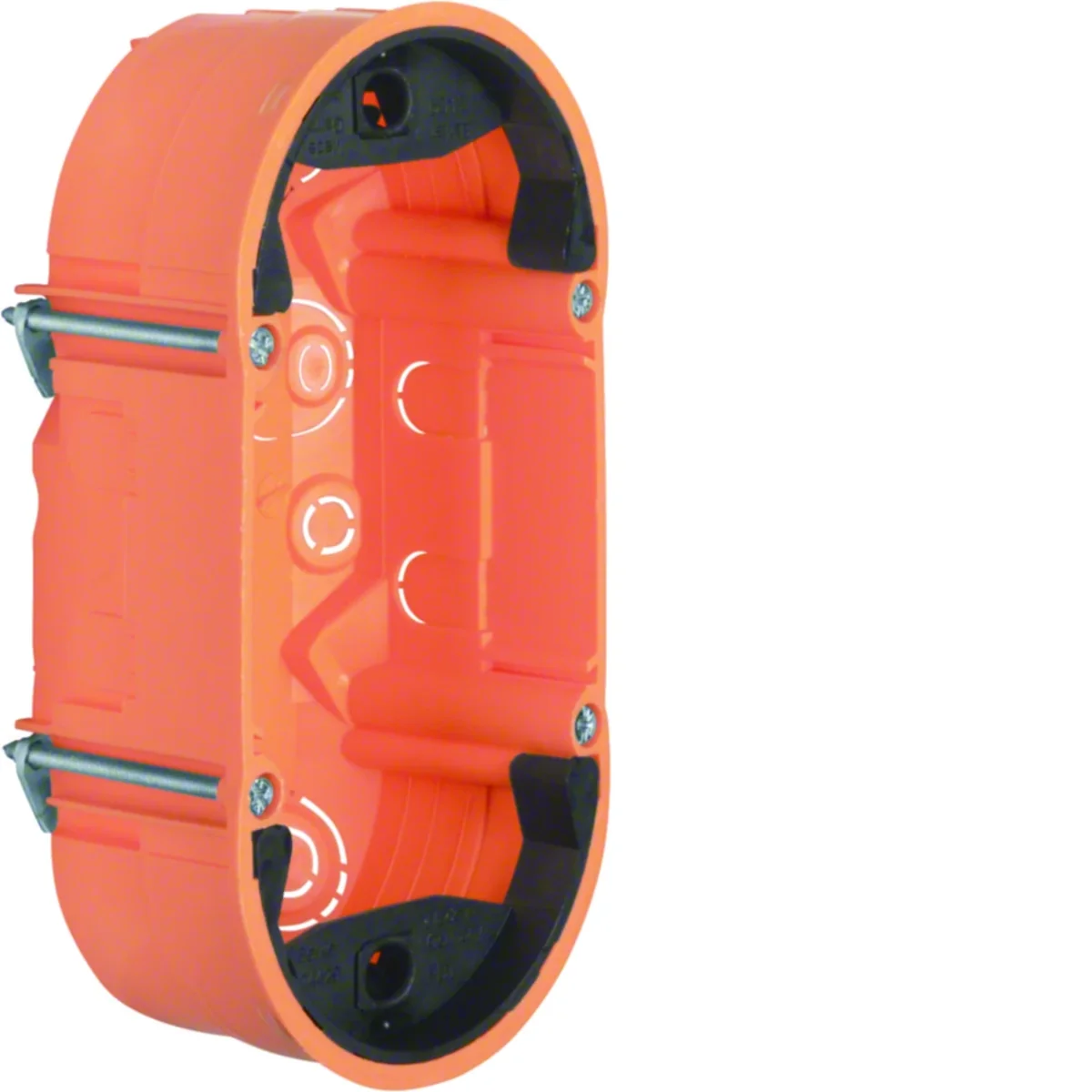

TS SENSOR Cup 2-fold orange plate 1871

local index:
MVP003BERK
Catalog No:
1871
EAN code:
4011334321880
Manufacturer: BERKER
Depth [mm]: 47.5
Color: Orange
Shape: Oval
Price:
38,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted boxfrom the Berker TS Sensor series. Touch sensors should be installed in it. For installation in plasterboard walls.

Technical data

  • Depth [mm]
    47.5
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    For plasterboards
  • Width [mm]
    68
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Color
    Orange
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    TS SENSOR
  • Mounting hole diameter [mm]
    71
  • Height [mm]
    139
  • Number of segments
    2
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Hollow wall
  • Construction type
    Device connection box (round/square)
  • Provided with revolving ring
    No
  • Equipped with
    None
  • Length
    139 mm
  • Depth
    47.5 ... 47.5 mm
  • For number of electric fittings
    2
  • With screws
    Yes
  • Housing feed-through by seal membrane
    No
  • Housing feed-through by step membrane
    No
  • Suitable for cable diameter
    11 ... 11 mm
  • Pipe locking optional
    No
  • Number of inlets
    12
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP3X
  • Cover model
    None
  • Cover attachment
    Other
  • Circuit integrity
    None
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No
  • Shape
    Oval
  • Model
    Single
  • Couplable
    No
  • Diameter
    68 mm
  • Width
    68 mm
  • Inner depth
    45 mm
  • Mounting switching equipment
    Screwing
  • Housing feed-through by break-out opening
    Yes
  • Housing feed-through by nozzle
    No
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Inlet from the rear
    No
  • Number of included spouts
    0
  • Halogen free
    No
  • Colour
    Orange
  • Degree of protection (NEMA)
    1
  • Transparent cover
    No
  • Sealable
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Clamp position fixed
    Yes
  • Nozzle
    Other
  • Special application
    None

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 48 pcs. 1536 pcs.
Weight (kg) 0,057 0,060 3,226 123,232
Width (m) 0,047 0,180 0,300 0,800
Length (m) 0,139 0,050 0,225 1,050
Depth (m) 0,068 0,250 0,400 1,200
