TS Oval flush-mounted box IP20 black 1809

local index:
MVP001BERK
Catalog No:
1809
EAN code:
4011334216124
Manufacturer: BERKER
Depth [mm]: 41.7
Color: Black
Shape: Oval
Price:
8,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Individual inquiry
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

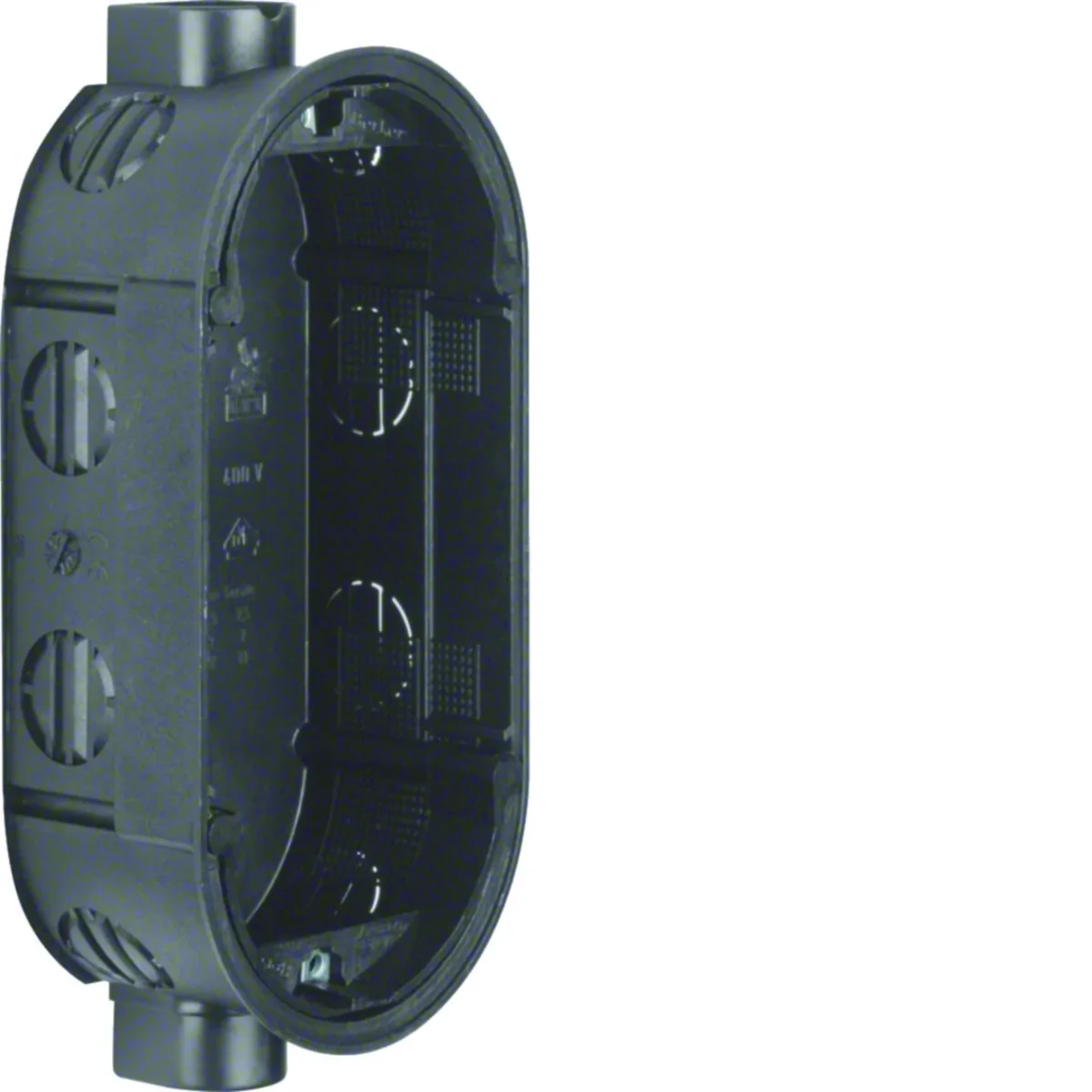

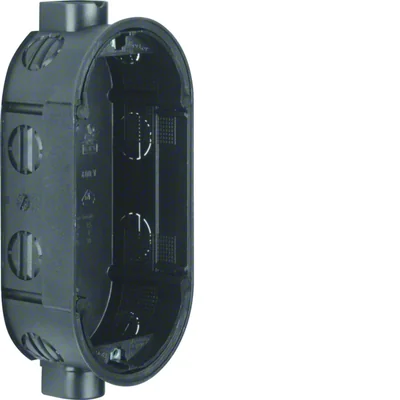

Flush-mounted box, from the BerkerTS series, in black.

Characteristics of the series:

Berker TS is not only unusual design. In this program you can also use intelligent control systems: KNX, Berker.Net and tebis TX. The choice of colors and materials gives you full freedom of creativity in arranging rooms.

Technical data

  • Depth [mm]
    41.7
  • Shape
    Oval
  • Installation
    Flush-mounted
  • Type
    To the wall
  • Level of security
    IP20
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    27.12.40.0
  • Color
    Black
  • Material
    Thermoplastic
  • Cover
    NO
  • Family
    TS
  • Width [mm]
    67.2
  • Height [mm]
    140
  • Number of segments
    2
  • Number of slots
    12

Other technical data

  • Mounting method
    Flush-mounted
  • Construction type
    Device connection box (round/square)
  • Provided with revolving ring
    No
  • Equipped with
    None
  • Width
    67.2 mm
  • Inner depth
    40 mm
  • Mounting switching equipment
    Screwing
  • Housing feed-through by break-out opening
    Yes
  • Housing feed-through by nozzle
    No
  • For tube diameter
    20 mm
  • Pipe locking
    No
  • Inlet from the rear
    Yes
  • Number of included spouts
    0
  • Halogen free
    No
  • Colour
    Black
  • Degree of protection (NEMA)
    1
  • Transparent cover
    No
  • Circuit integrity
    None
  • Air tight
    No
  • Number of poles of the clamp
    0
  • Nozzle
    Other
  • Special application
    None
  • Shape
    Oval
  • Model
    Single
  • Couplable
    Yes
  • Length
    140 mm
  • Depth
    41.7 ... 41.7 mm
  • For number of electric fittings
    2
  • With screws
    No
  • Housing feed-through by seal membrane
    No
  • Housing feed-through by step membrane
    No
  • Suitable for cable diameter
    10.4 ... 10.4 mm
  • Pipe locking optional
    No
  • Number of inlets
    12
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP2X
  • Cover model
    None
  • Sealable
    No
  • With screening
    No
  • Max. conductor cross section
    2.5 mm²
  • Luminaire hook mounting
    No
  • Z zaczepami pazurkowatymi
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 50 pcs. 50 pcs. 1600 pcs.
Weight (kg) 0,041 2,432 2,432 102,824
Width (m) 0,067 0,300 0,300 0,800
Length (m) 0,042 0,225 0,225 1,050
Depth (m) 0,160 0,400 0,400 1,200
