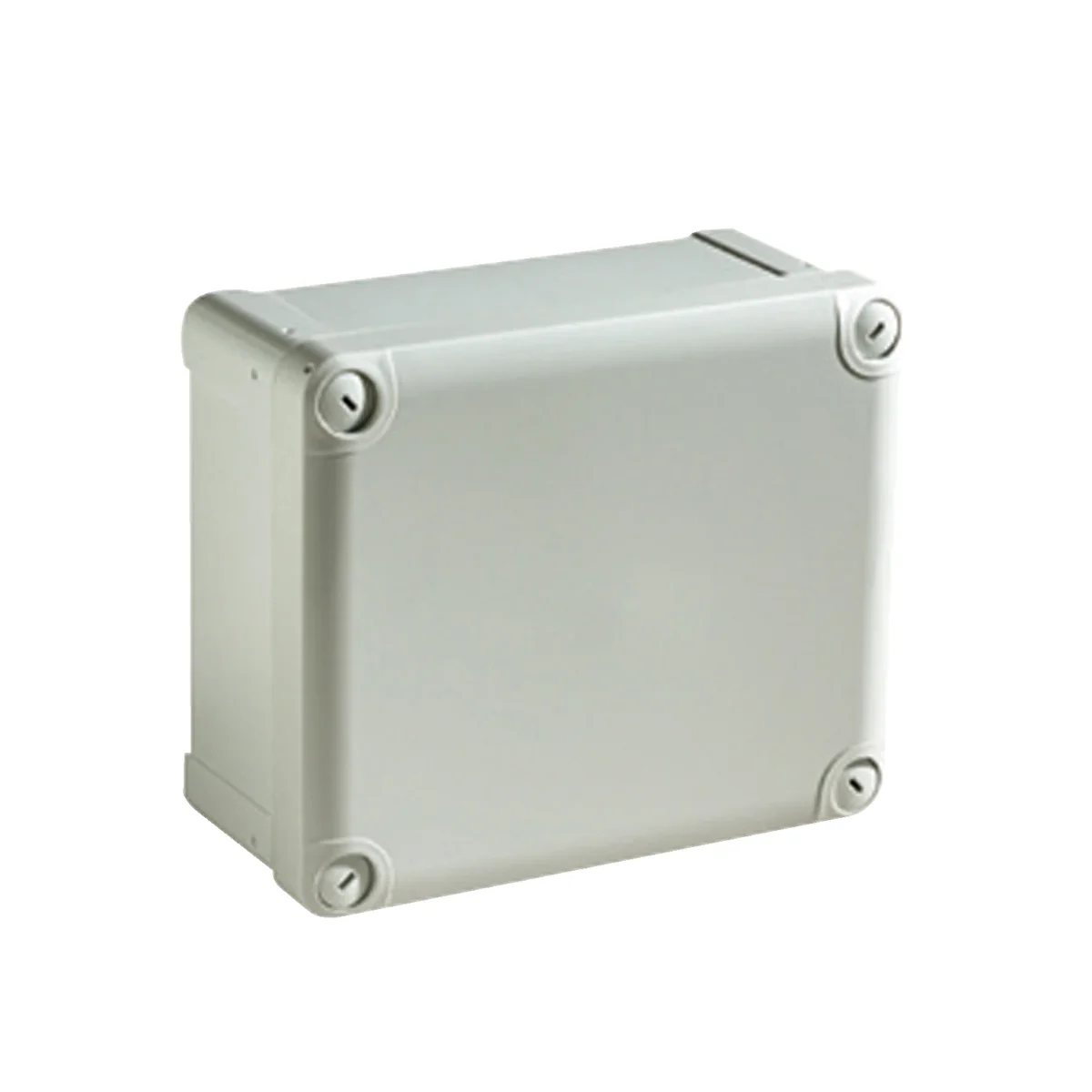

THALASSA Universal box made of ABS opaque cover high 241x194x107mm NSYTBS241910H

local index:
MVN008SCHN
Catalog No:
NSYTBS241910H
EAN code:
3606480165344
Manufacturer: SCHNEIDER ELECTRIC
Depth [mm]: 107
Protection class: II
Color: Gray
Price:
27,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal canwith opaque cover, from the Thalassa series. It was made of high quality ABS plastic.

Technical data

  • Depth [mm]
    107
  • Color
    Gray
  • Material
    ABS
  • Cover
    Yes
  • Family
    THALASSA
  • Width [mm]
    194
  • Height [mm]
    241
  • Degree of mechanical protection
    IK07
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • PKWIU
    27.12.40.0
  • Protection class
    II
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Type
    Wall-mounted
  • Level of security
    IP66
  • Type
    branching
  • Operating temperature range [°C]
    -25 to +60
  • Fire resistance
    Hardly flammable
  • For modular equipment
    Not applicable
  • Number of slots
    2

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Height
    241 mm
  • Depth
    107 mm
  • Material plate thickness cabinet
    12.5 mm
  • Colour
    Grey
  • Number of modules
    0
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    2
  • Surface protection
    Untreated
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP66
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Cover
  • Type of door
    None
  • With lock
    No
  • Width
    194 mm
  • Inner depth
    100 mm
  • Material plate thickness door/cover
    12.5 mm
  • RAL-number
    7035
  • Number of rows
    0
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    Yes
  • Degree of protection (NEMA)
    4
  • Impact strength
    IK07
