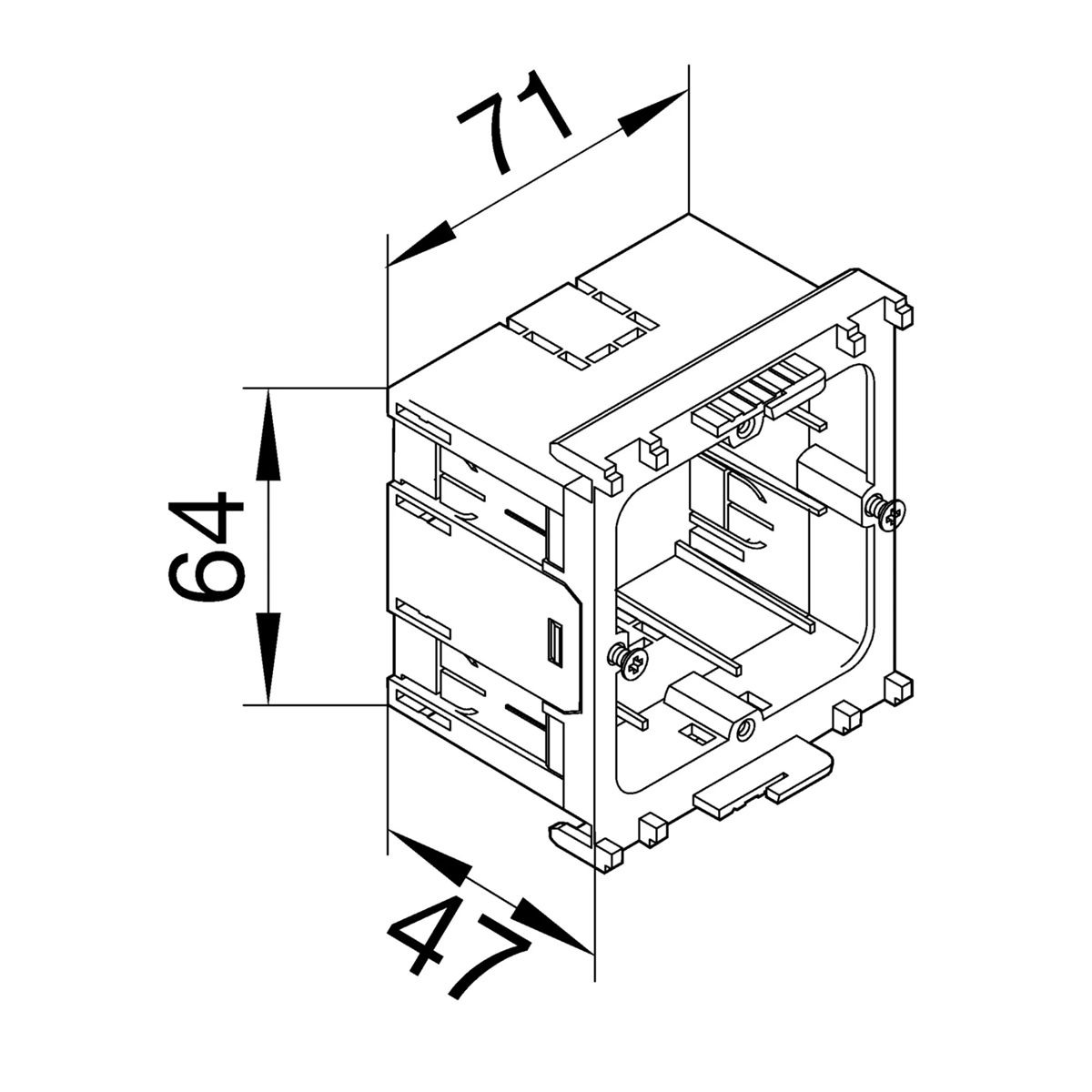

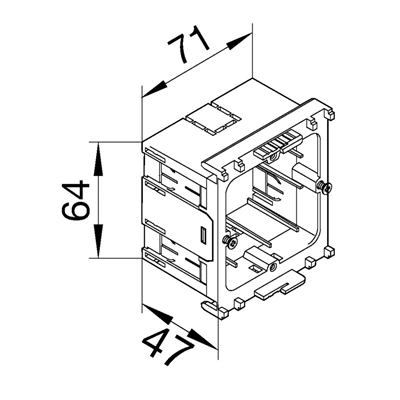

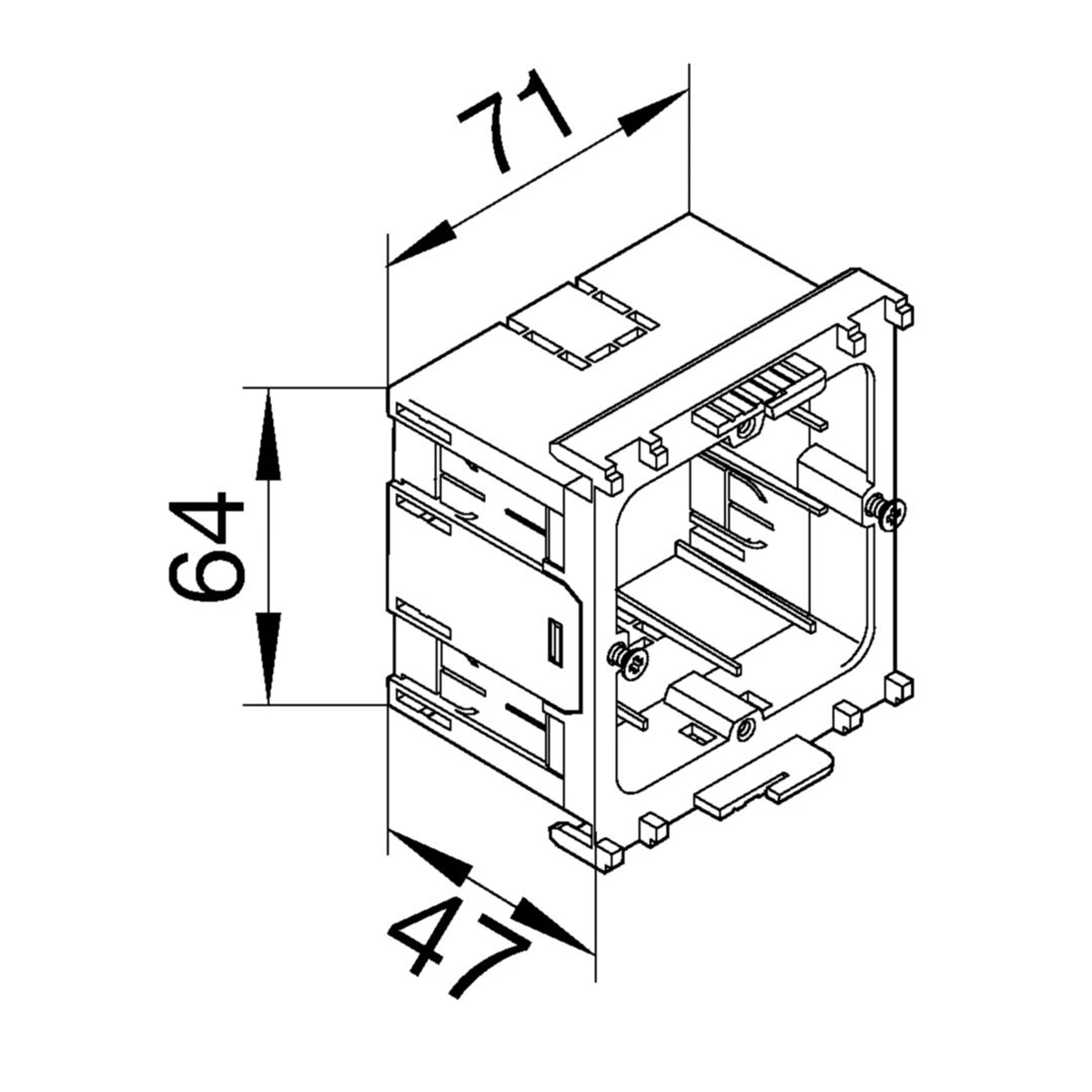

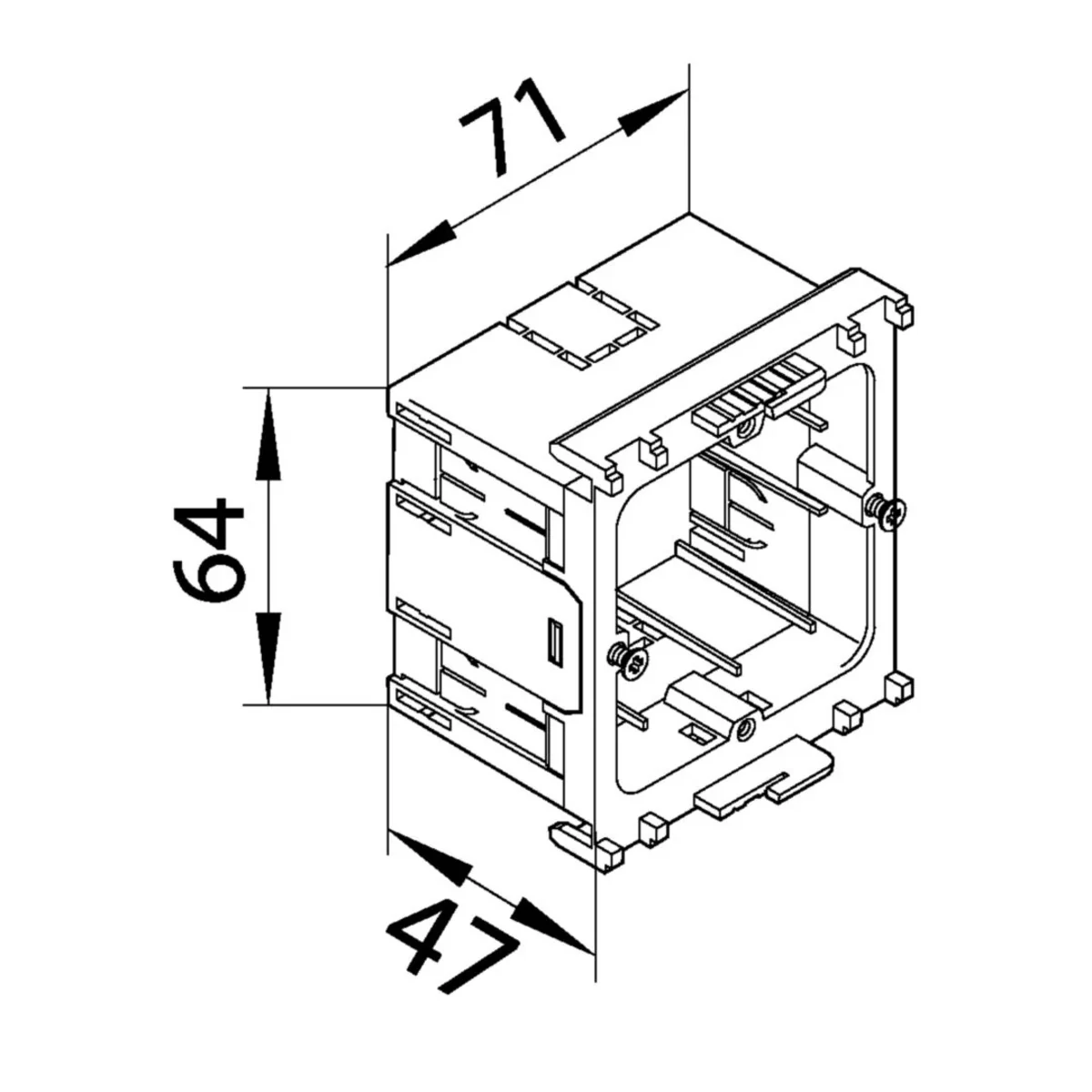

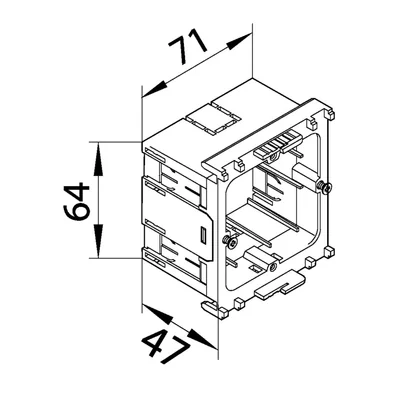

TEHALIT.WA Junction box tehalit edge mounting 47x64x71mm light gray GLT4001

local index:
MVN008TEHA
Catalog No:
GLT4001
EAN code:
4012740869720
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 47
Color: Gray
Price:
5,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

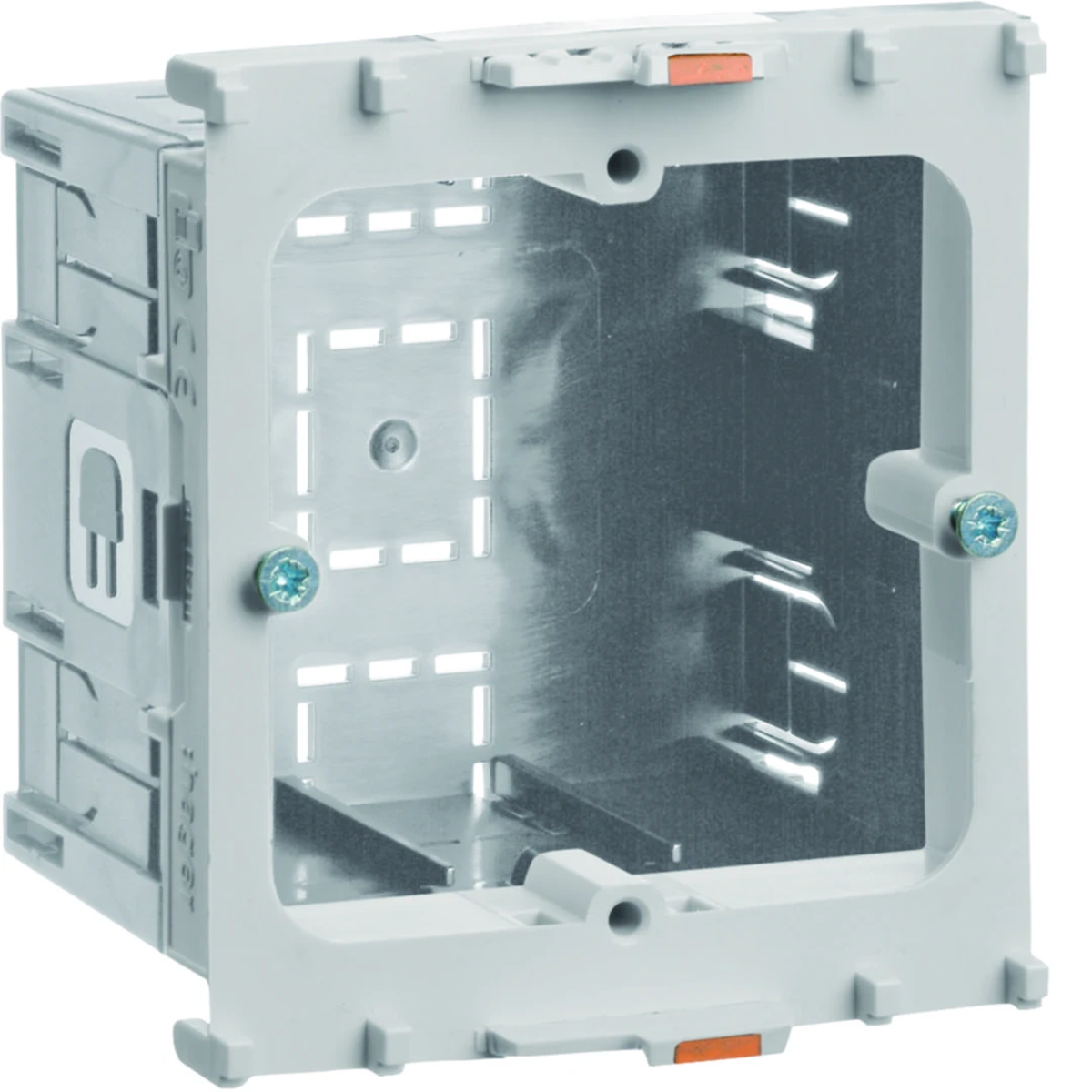

Single installation box

  • Edge mounting.
  • Screwed.
  • Made of polyamide.
  • Anti-pull protection possible.
  • Compatible socket type: 60mm standard.
  • With connection space: no.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    Polyamide
  • Cover
    NO
  • Family
    TEHALIT.WA
  • Type
    For attachments
  • Accurate color
    light gray
  • Number of segments
    1
  • With terminal strip
    NO
  • Depth [mm]
    47
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    To the channels
  • Width [mm]
    64
  • Height [mm]
    71
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    22.23.19.0

Other technical data

  • Number of units
    1
  • Model
    Closed
  • Mounting track
    60 mm
  • Strain relief possibility
    Yes
  • Material
    Plastic
  • Mounting method box
    Front
  • Type of device
    With bearer ring/bearer bracket
  • Mounting method installation unit
    Screwing
  • With connection space
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 30 pcs. 1440 pcs.
Weight (kg) 0,044 0,051 1,708 106,984
Width (m) 0,071 0,080 0,180 0,800
Length (m) 0,057 0,060 0,210 1,050
Depth (m) 0,081 0,070 0,380 1,200
