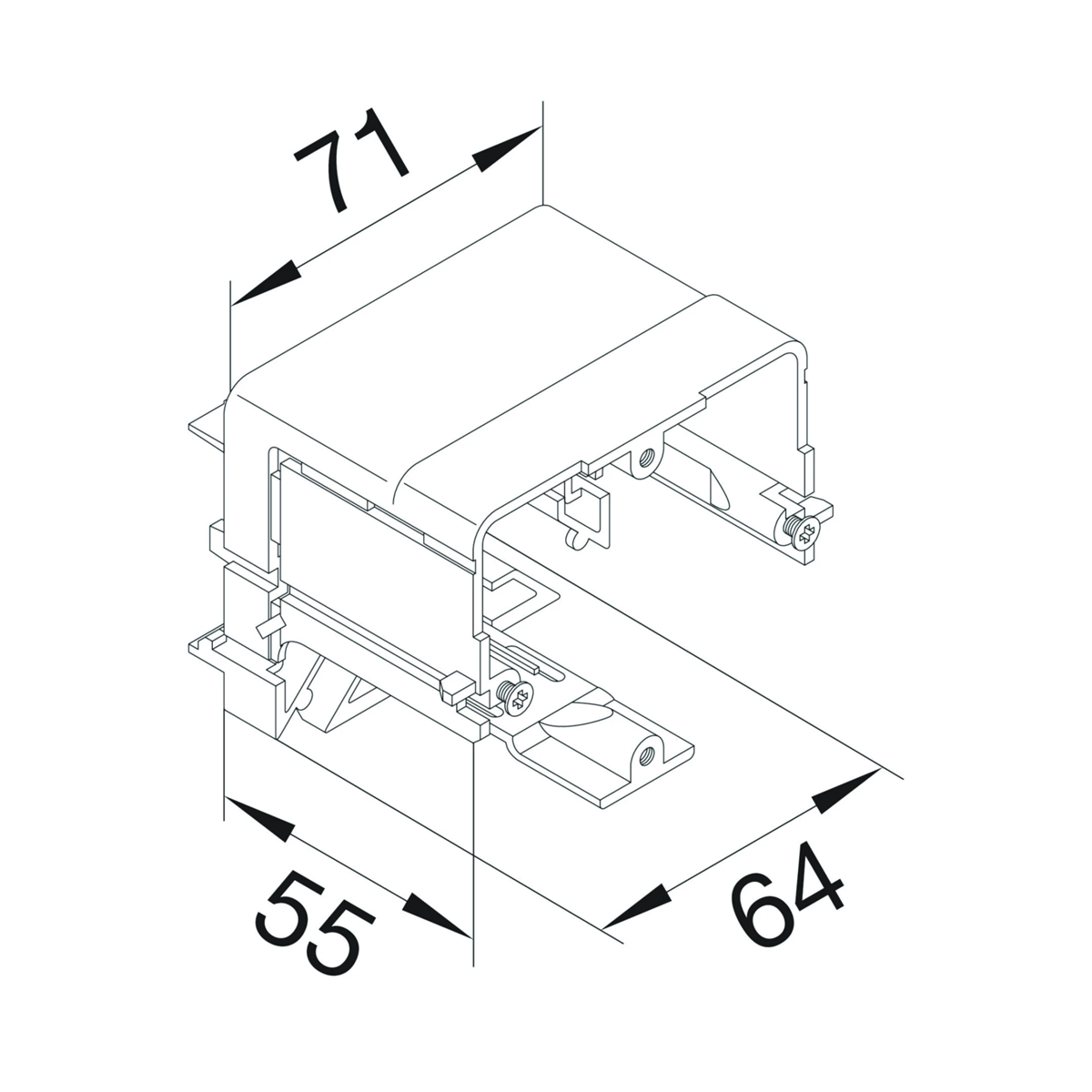

TEHALIT.WA Installation box for installation in C-profiles with a frame 55x64x71mm black GLS5510

local index:
MVN007TEHA
Catalog No:
GLS5510
EAN code:
4012740869645
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 55
Color: Black
Price:
4,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

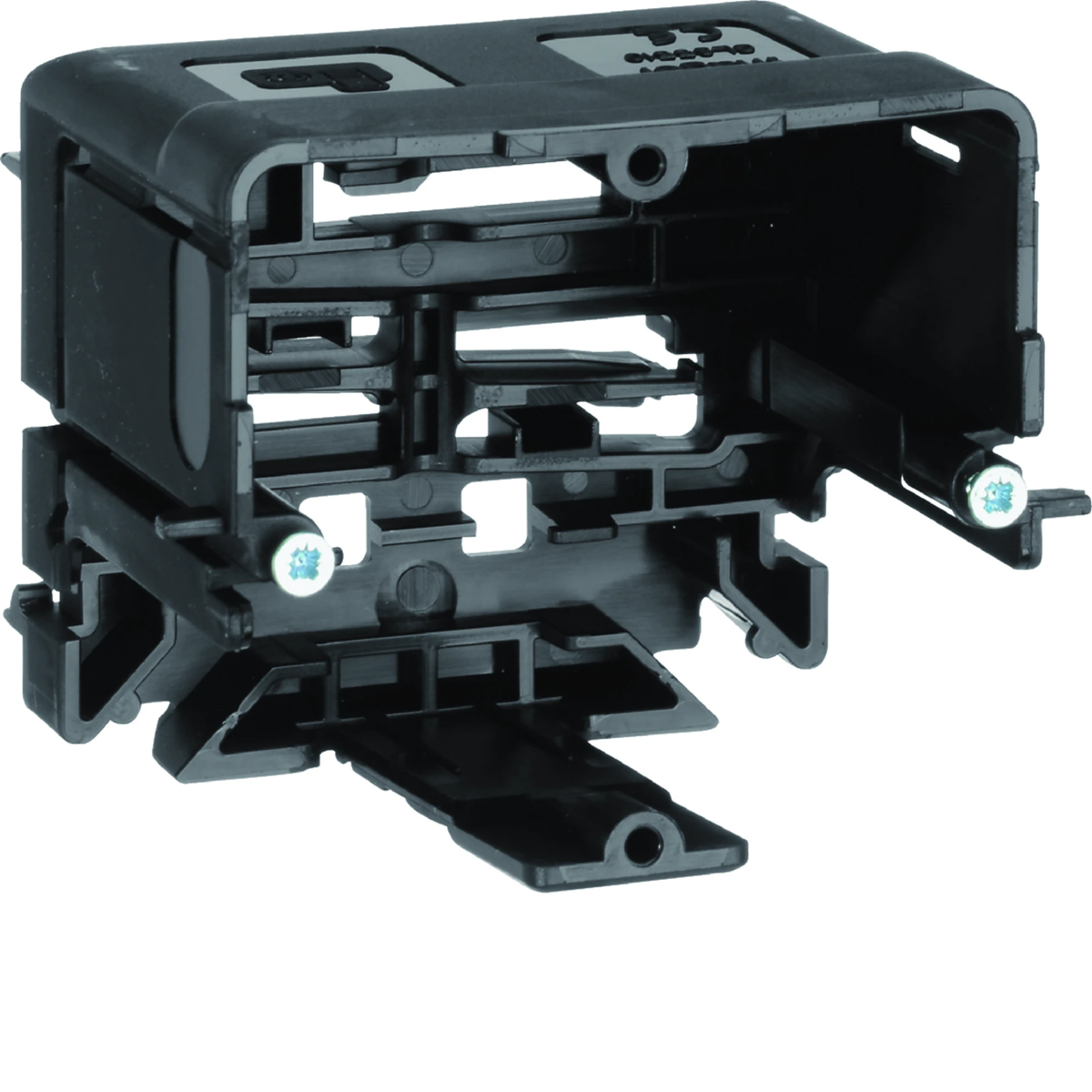

Product description

Installation box

  • Mounting in C-profiles.
  • For ICT/antenna sockets.
  • Made of polyamide.
  • Screw-on.
  • Compatible socket type: 60mm standard.
  • With connection space: no.

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Material
    Polyamide
  • Cover
    NO
  • Family
    TEHALIT.WA
  • Type
    For attachments
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    22.23.19.0
  • Depth [mm]
    55
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    To the channels
  • Width [mm]
    64
  • Height [mm]
    71
  • Number of segments
    1
  • With terminal strip
    NO

Other technical data

  • Number of units
    1
  • Model
    Open
  • Mounting track
    60 mm
  • Strain relief possibility
    Yes
  • Material
    Plastic
  • Mounting method box
    Rear panel
  • Type of device
    With bearer ring/bearer bracket
  • Mounting method installation unit
    Screwing
  • With connection space
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 75 pcs. 1800 pcs.
Weight (kg) 0,038 0,046 3,765 115,360
Width (m) 0,067 0,070 0,380 0,800
Length (m) 0,065 0,065 0,210 1,050
Depth (m) 0,071 0,075 0,380 1,200
