TEHALIT.WA 1-way installation box, mounting in C-profiles, full black GLS5500

local index:
MVN005TEHA
Catalog No:
GLS5500
EAN code:
4012740897006
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 55
Color: Black
Price:
3,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

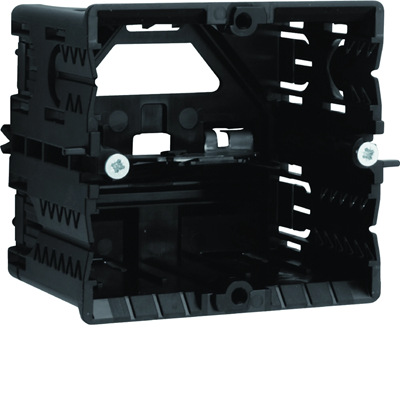

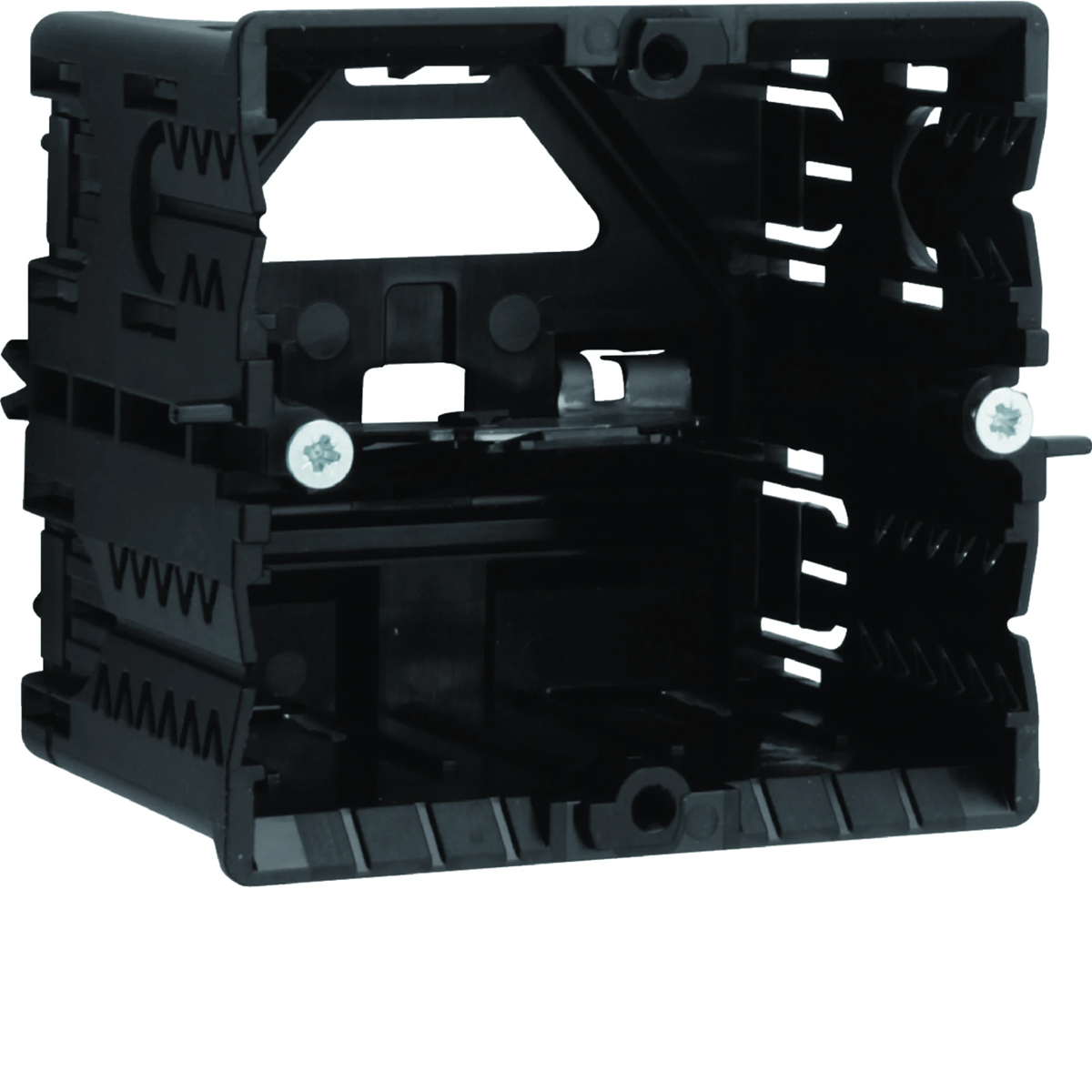

Product description

Single installation box

  • Mounting in C-profiles.
  • Solid.
  • Made of polyamide.< /li>
  • Screw-on.
  • Compatible socket type: 60mm standard.
  • With connection space: no.

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Material
    Polyamide
  • Cover
    NO
  • Family
    TEHALIT.WA
  • Type
    For attachments
  • Surface protection
    Natural
  • Number of segments
    1
  • With terminal strip
    NO

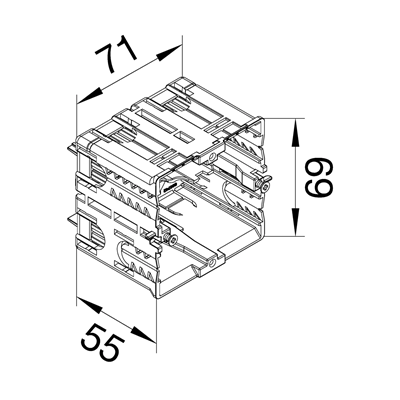

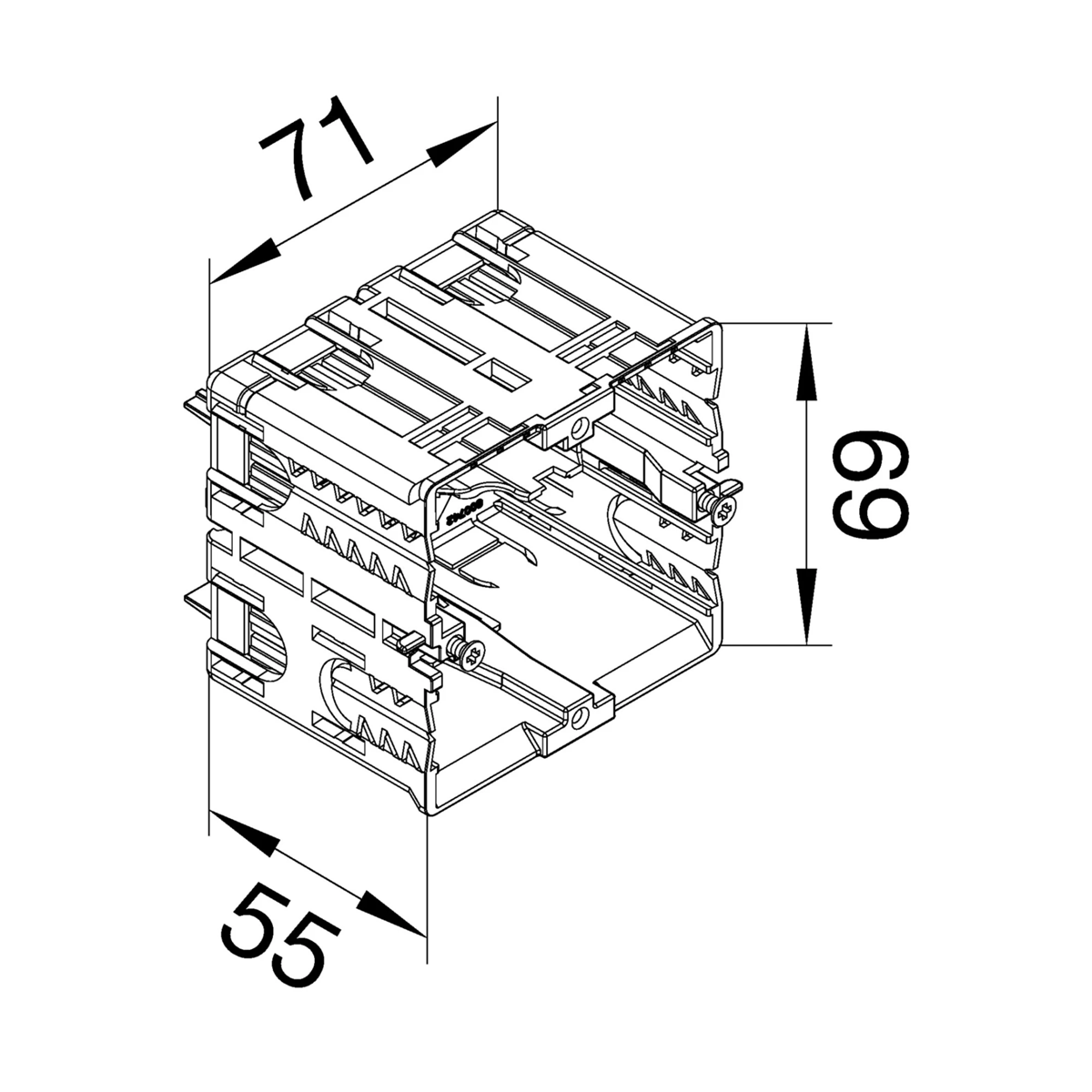

  • Depth [mm]
    55
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    To the channels
  • Width [mm]
    71
  • Height [mm]
    65
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • PKWIU
    22.23.19.0

Other technical data

  • Number of units
    1
  • Model
    Closed
  • Mounting track
    60 mm
  • Strain relief possibility
    Yes
  • Material
    Plastic
  • Mounting method box
    Rear panel
  • Type of device
    With bearer ring/bearer bracket
  • Mounting method installation unit
    Screwing
  • With connection space
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 75 pcs. 1800 pcs.
Weight (kg) 0,045 0,060 4,600 133,400
Width (m) 0,065 0,070 0,383 0,800
Length (m) 0,055 0,065 0,225 1,050
Depth (m) 0,071 0,075 0,400 1,200
