T-SERIES Junction box T350 light grey 2007125

local index:
MVN021OBOB
Catalog No:
2007125
EAN code:
4012195246824
Manufacturer: OBO BETTERMANN
Halogen free: Yes
Depth [mm]: 120
Color: Gray
Price:
41,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 28 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

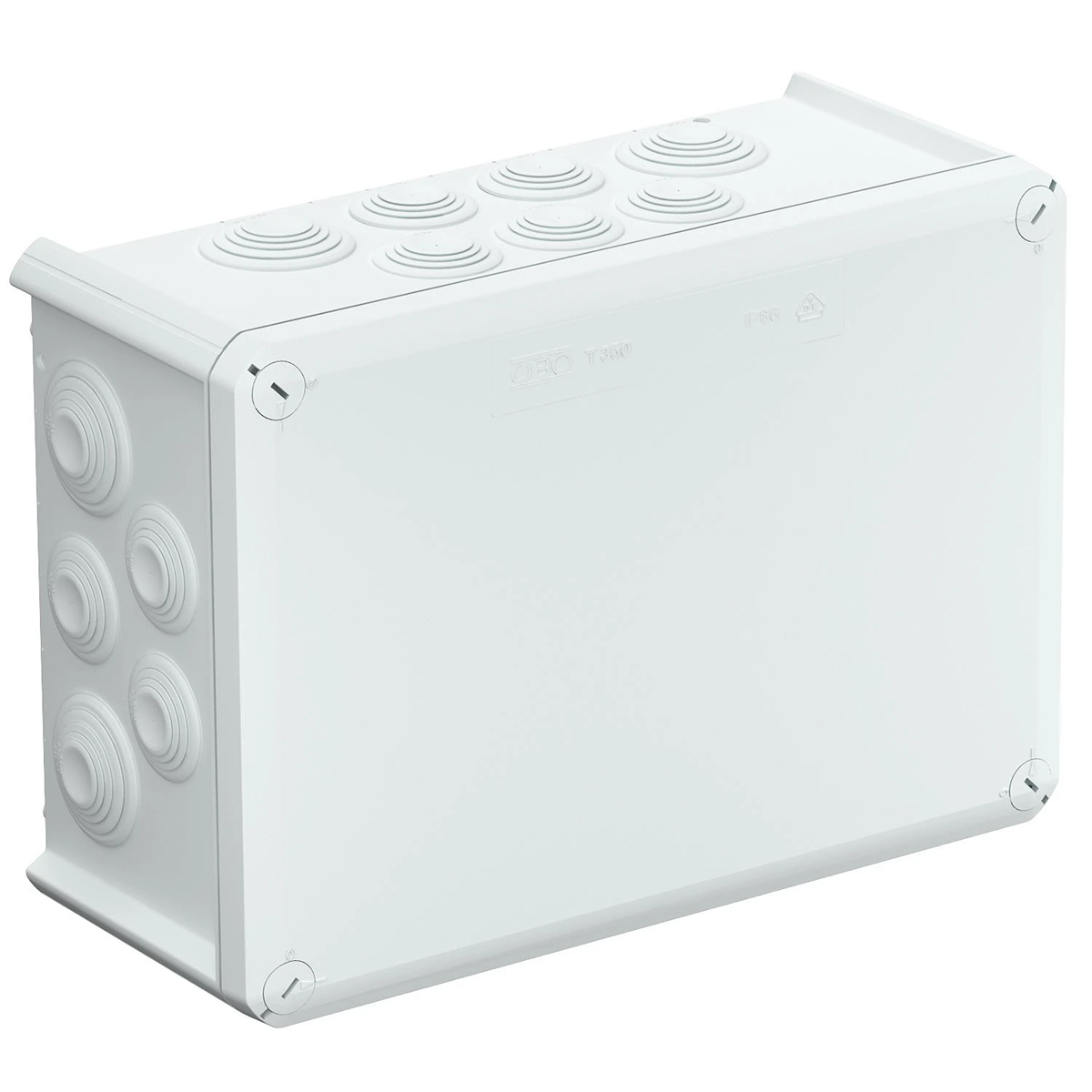

T-Series junction box, with flexible glands.

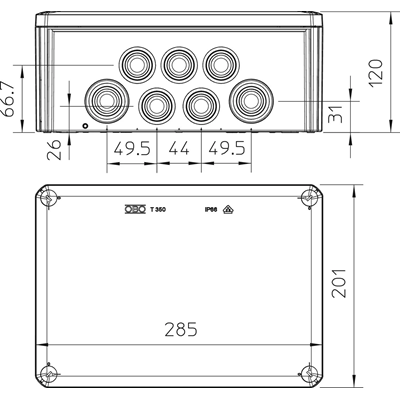

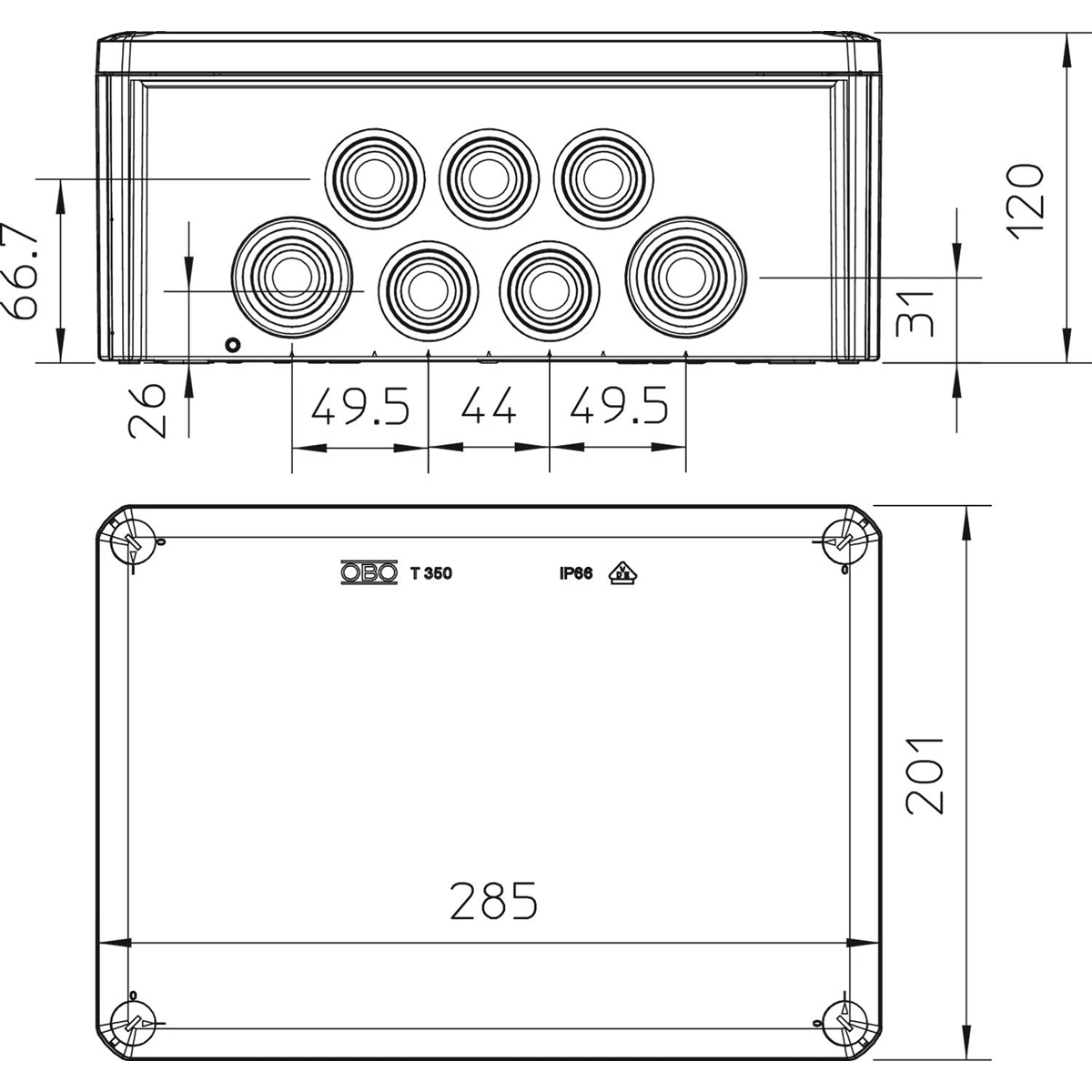

Junction boxes are made of polypropylene, thermoplastic, while flexible glands 16 x M32 + 8 x M40 are made of they are made of ethylene vinyl acetate (EVA). Thanks to this, the cables can be installed by directly piercing the flexible glands with the cable, or the flexible glands can be cut with a knife to make an opening for the introduction of cables or pipes. Alternatively, instead of flexible glands, cable glands can be installed, which are then secured from the inside with a locknut. The junction boxes can be mounted on mounting plates using 3.5 x 9.5 sheet metal screws. Clear internal dimensions: 267 x 182 x 110 mm. Lids with a description field, sealed.

The popular family of T-series boxes is still growing. Sizes from T25 to T350, various designs and universal accessories allow for many applications. All T-series boxes are made of halogen-free material resistant to UV radiation and impact, which makes them ideal for indoor and outdoor applications.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PP
  • Rated voltage [V]
    500
  • Cover
    Yes
  • Family
    T-SERIES
  • Width [mm]
    285
  • Height [mm]
    201
  • Degree of mechanical protection
    IK05
  • Accurate color
    light gray
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • Stuffing box type
    M32 M40
  • PKWIU
    22.29.29.0
  • Depth [mm]
    120
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • UV resistance
    Yes
  • Type
    Wall-mounted
  • Level of security
    IP66
  • Type
    branching
  • Operating temperature range [°C]
    -5 to +60
  • Maximum conductor cross-section [mm²]
    35
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    24
  • Exact material
    PP GF

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 1 pcs. 5 pcs. 60 pcs.
Weight (kg) 0,631 3,784 67,908
Volume (m3) 0,007 0,057 0,912
Width (m) 0,201 0,388 0,800
Length (m) 0,285 0,595 1,200
Depth (m) 0,120 0,249 0,950
