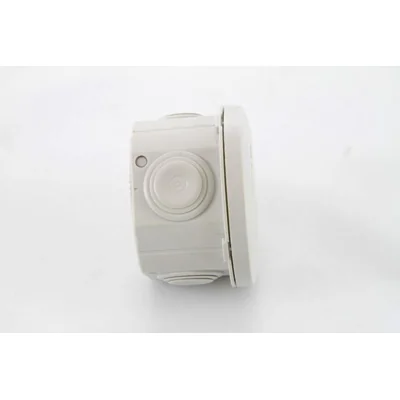

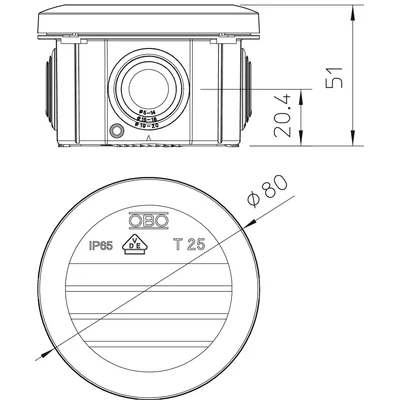

T-SERIES Junction box T25 fi80mm light grey 2007029

local index:
MVN015OBOB
Catalog No:
2007029
EAN code:
4012195246770
Manufacturer: OBO BETTERMANN
Halogen free: Yes
Depth [mm]: 51
Color: Gray
Price:
1,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 105 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

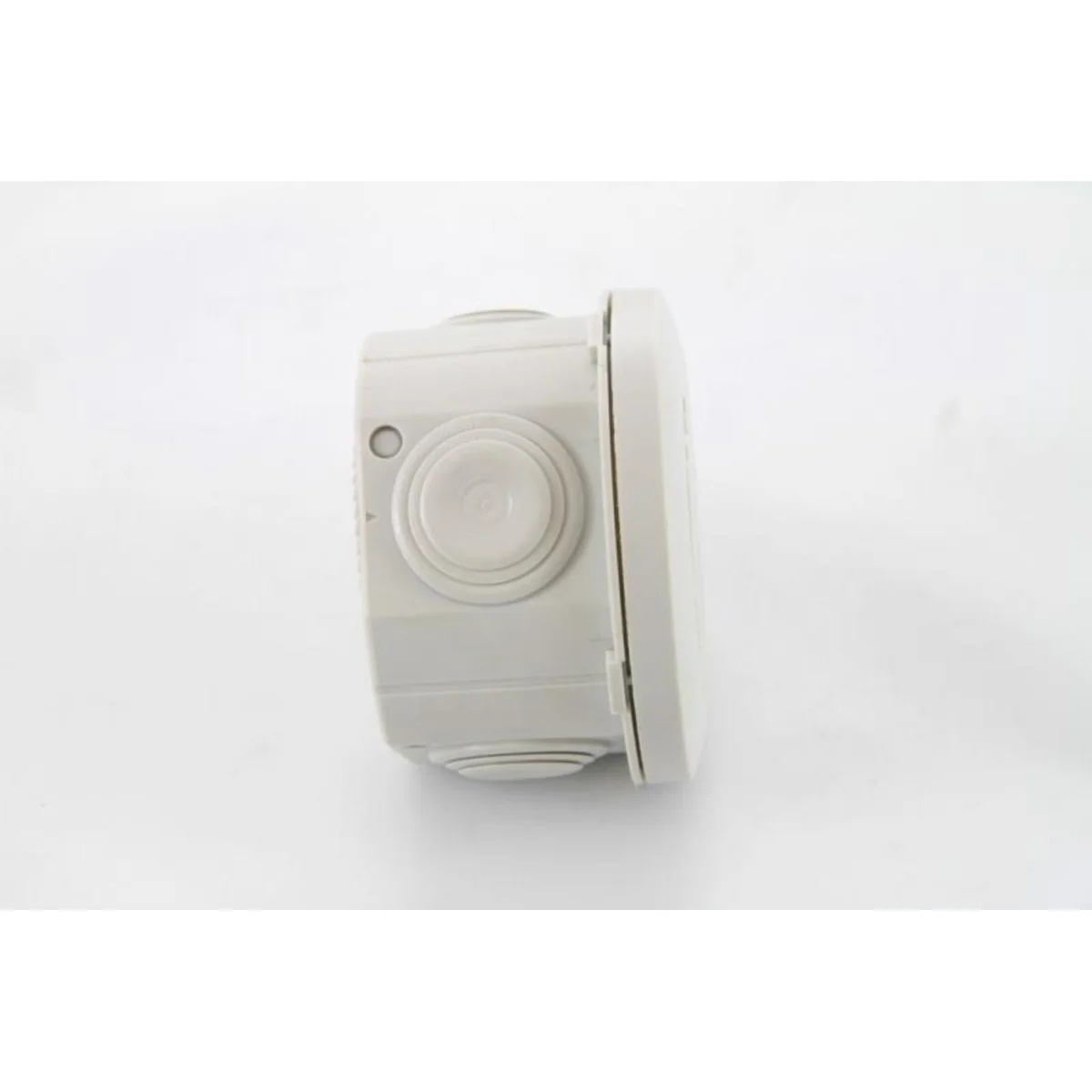

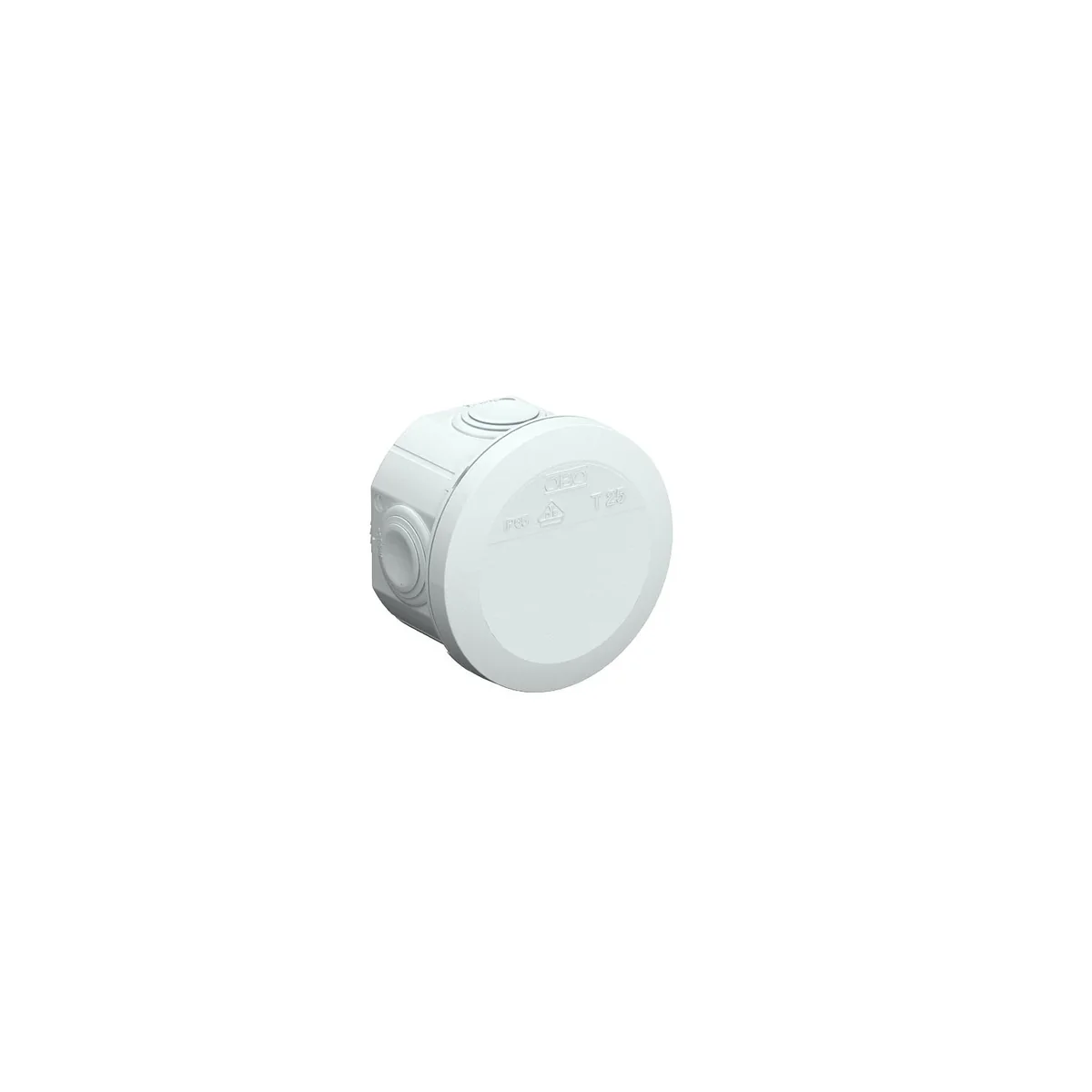

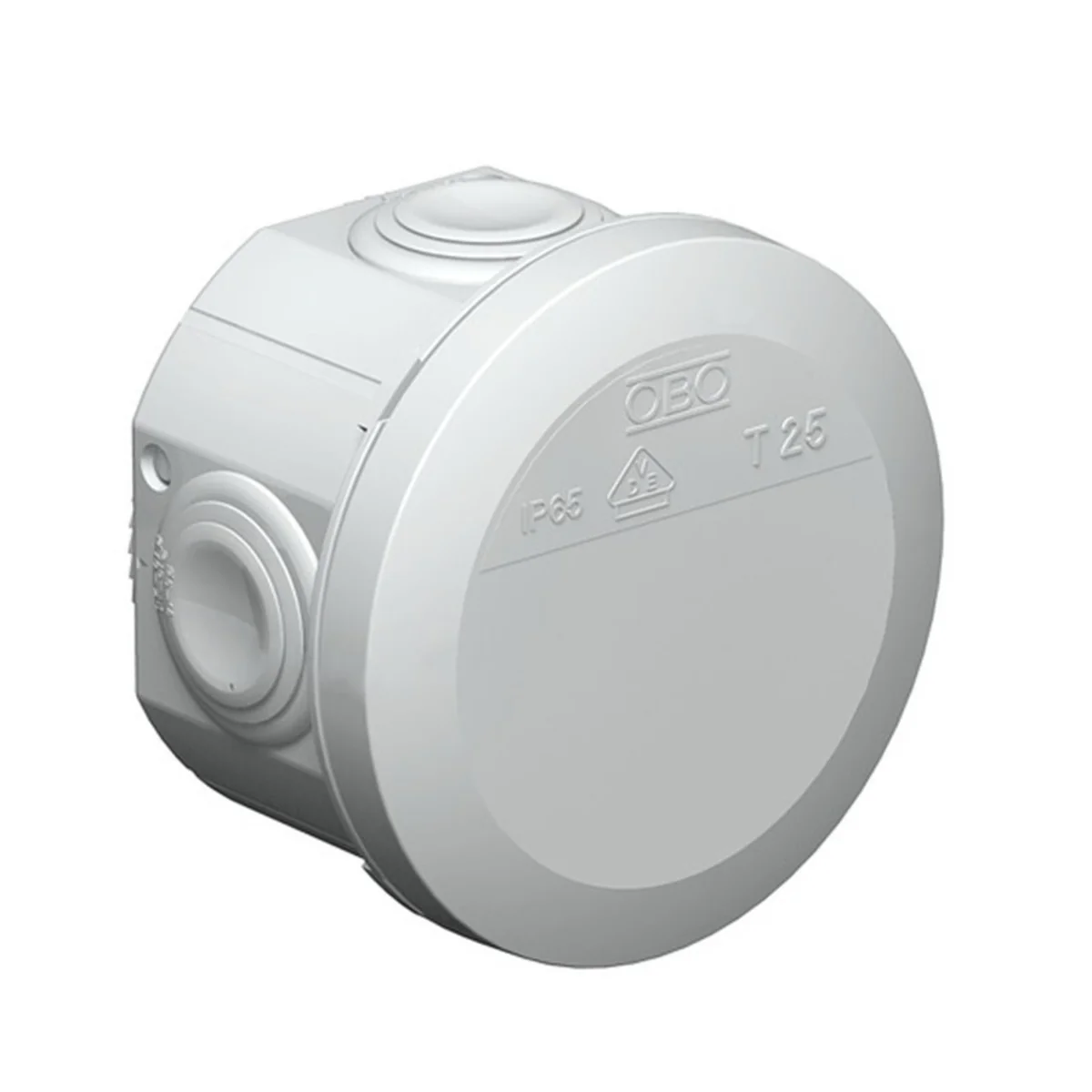

T-Series junction box, with flexible glands.

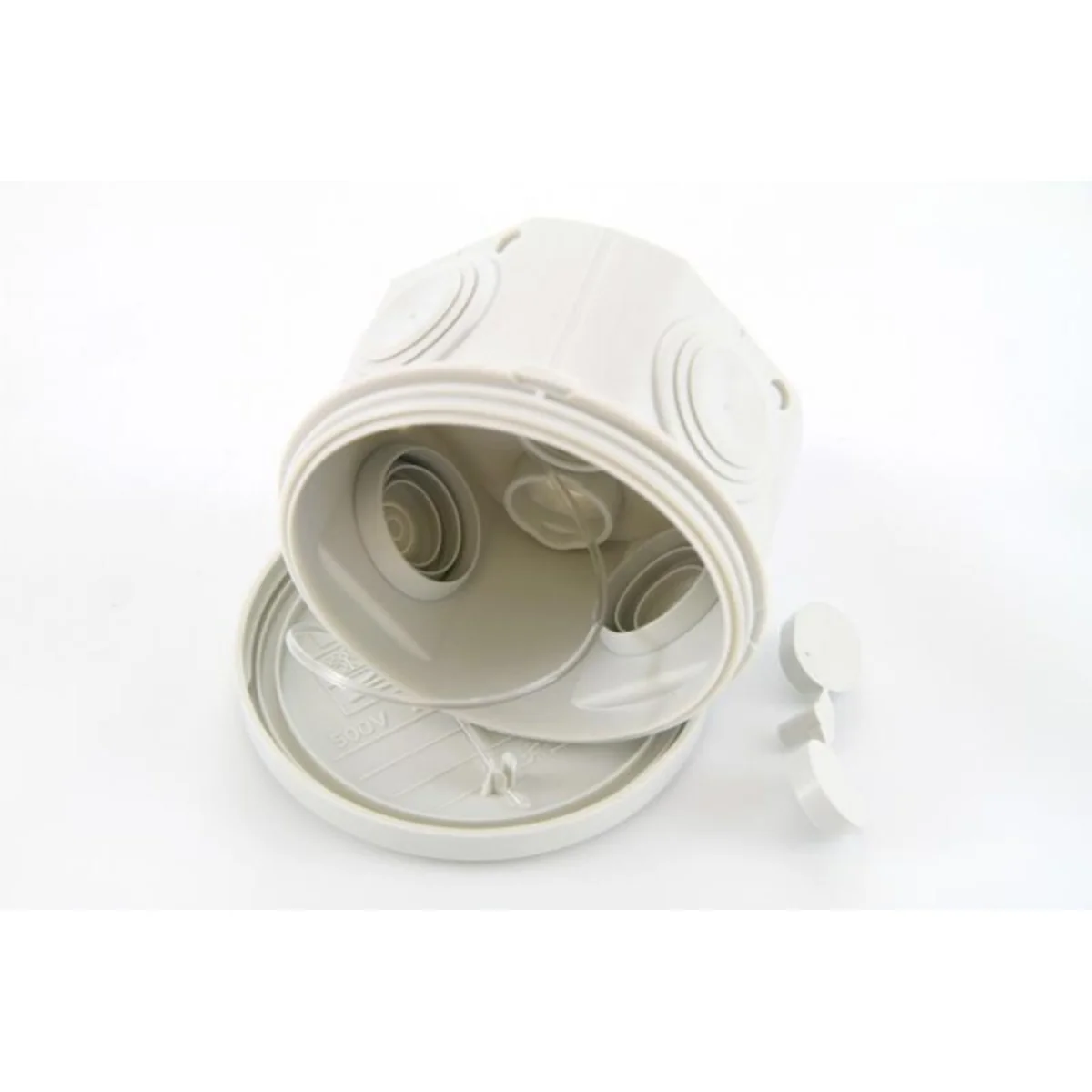

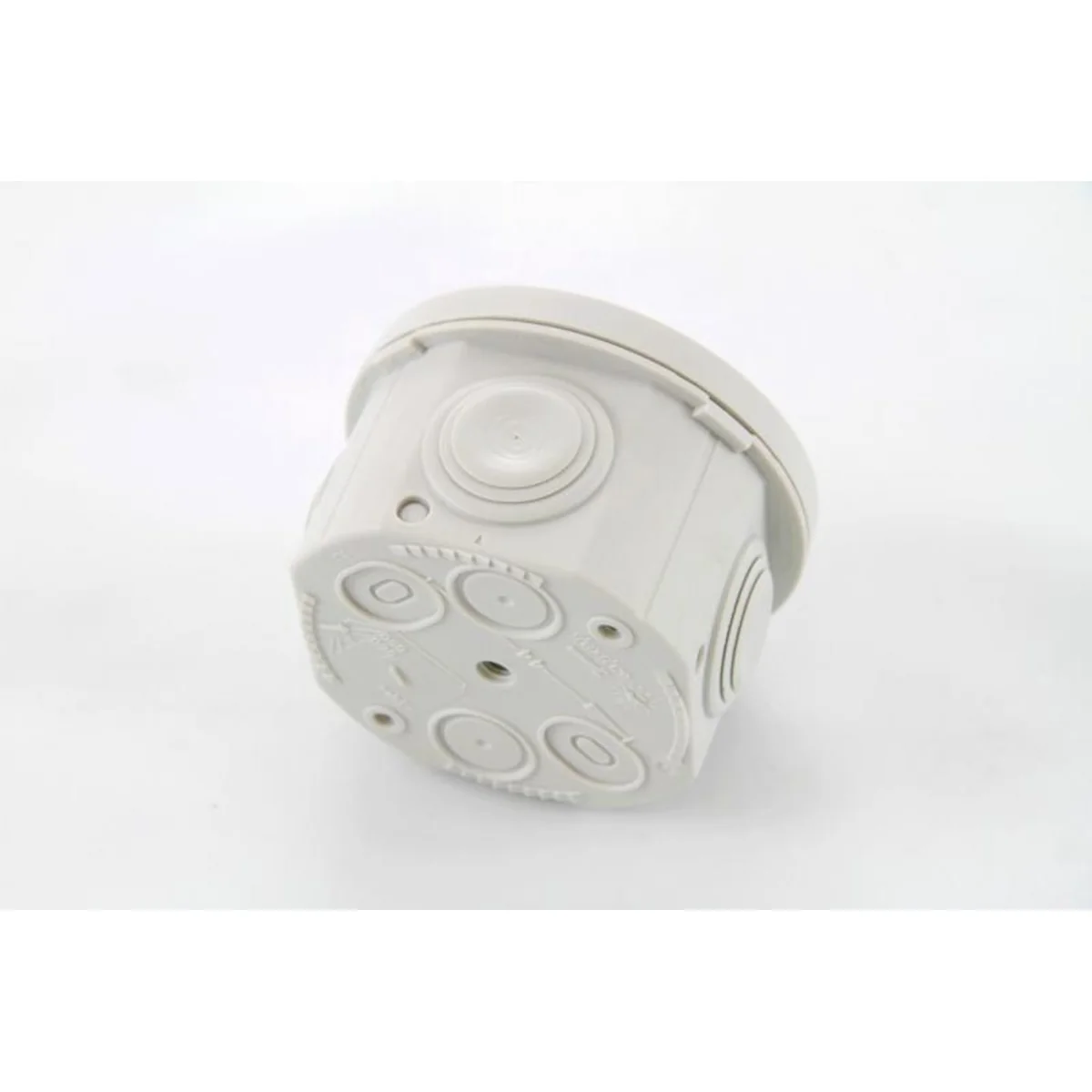

Junction boxes are made of polypropylene, thermoplastic, while 4 x M25 flexible glands are made of ethylene vinyl acetate (EVA). This material is soft, which makes it easy to shape. Thanks to this, the cables can be installed by directly piercing the flexible glands with the cable, or the flexible gland can be cut with a knife to make an opening for the introduction of cables or pipes. Alternatively, instead of flexible glands, cable glands can be installed, which are then secured from the inside with a locknut. The junction boxes can be screwed onto the M6 thread as well as mounted on mounting plates using 3.5 x 9.5 sheet metal screws. A lid with a description field.

The popular family of T-series boxes is still growing. Sizes from T25 to T350, various designs and universal accessories allow for many applications. All T-series boxes are made of halogen-free material resistant to UV radiation and impact, which makes them ideal for indoor and outdoor applications.

Technical data

  • Halogen free
    Yes
  • Color
    Gray
  • Material
    PP
  • Rated voltage [V]
    500
  • Cover
    Yes
  • Family
    T-SERIES

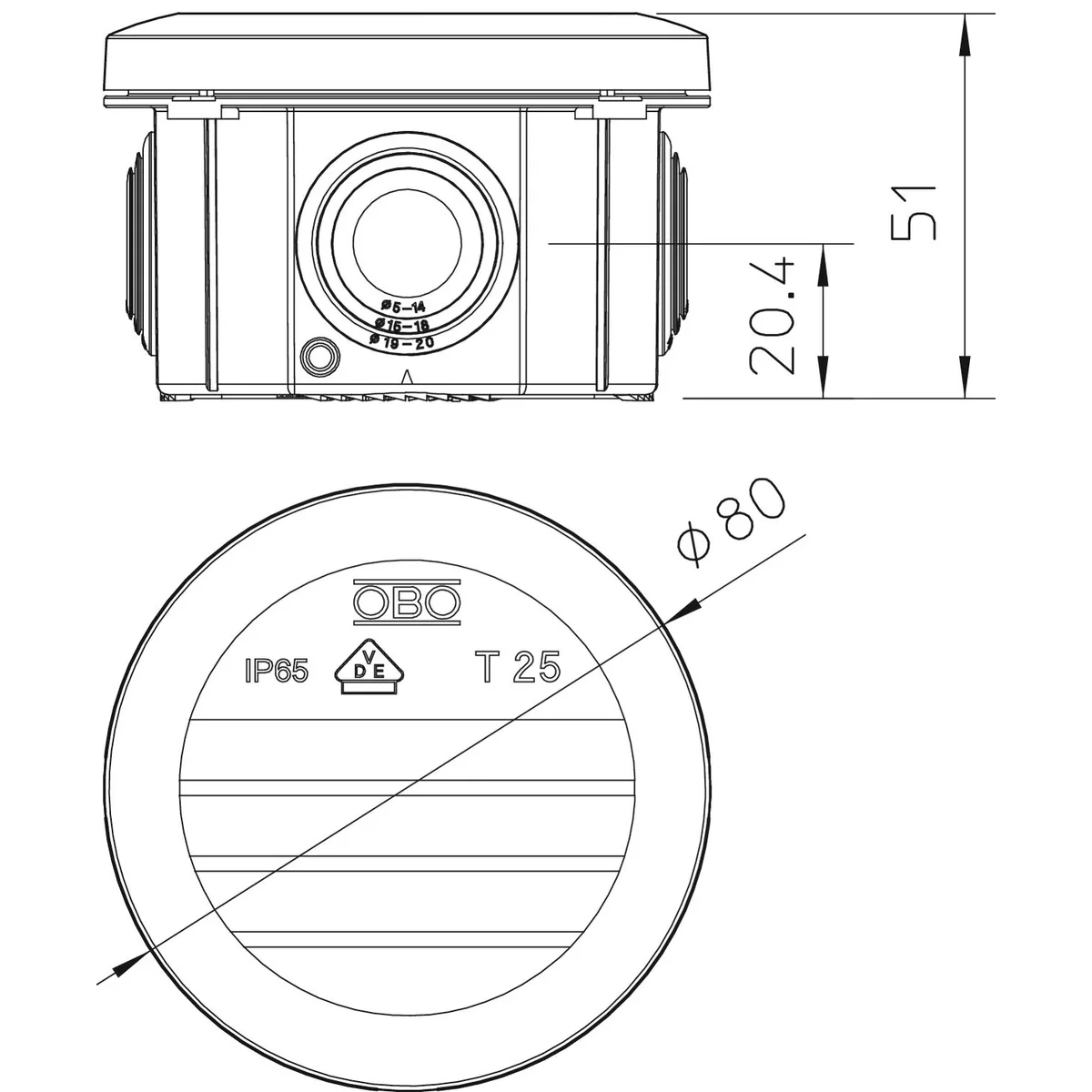

  • Diameter [mm]
    80
  • Operating temperature range [°C]
    -5 to +60
  • Maximum conductor cross-section [mm²]
    2.5
  • Fire resistance
    Not applicable
  • For modular equipment
    Not applicable
  • Number of stuffing boxes
    4
  • PKWIU
    22.29.29.0
  • Depth [mm]
    51
  • Shape
    Round
  • Installation
    Surface-mounted
  • UV resistance
    Yes
  • Type
    Wall-mounted
  • Level of security
    IP65
  • Type
    branching
  • Degree of mechanical protection
    IK07
  • Accurate color
    light gray
  • Fire resistance [°C]
    650
  • With terminal strip
    NO
  • Stuffing box type
    M25

Bulk packaging

A kind of package Torebka Karton Paleta
Quantity 5 pcs. 125 pcs. 2250 pcs.
Weight (kg) 0,211 5,783 126,594
Volume (m3) 0,002 0,038 0,912
Width (m) 0,080 0,388 0,800
Length (m) 0,400 0,395 1,200
Depth (m) 0,051 0,249 0,950
