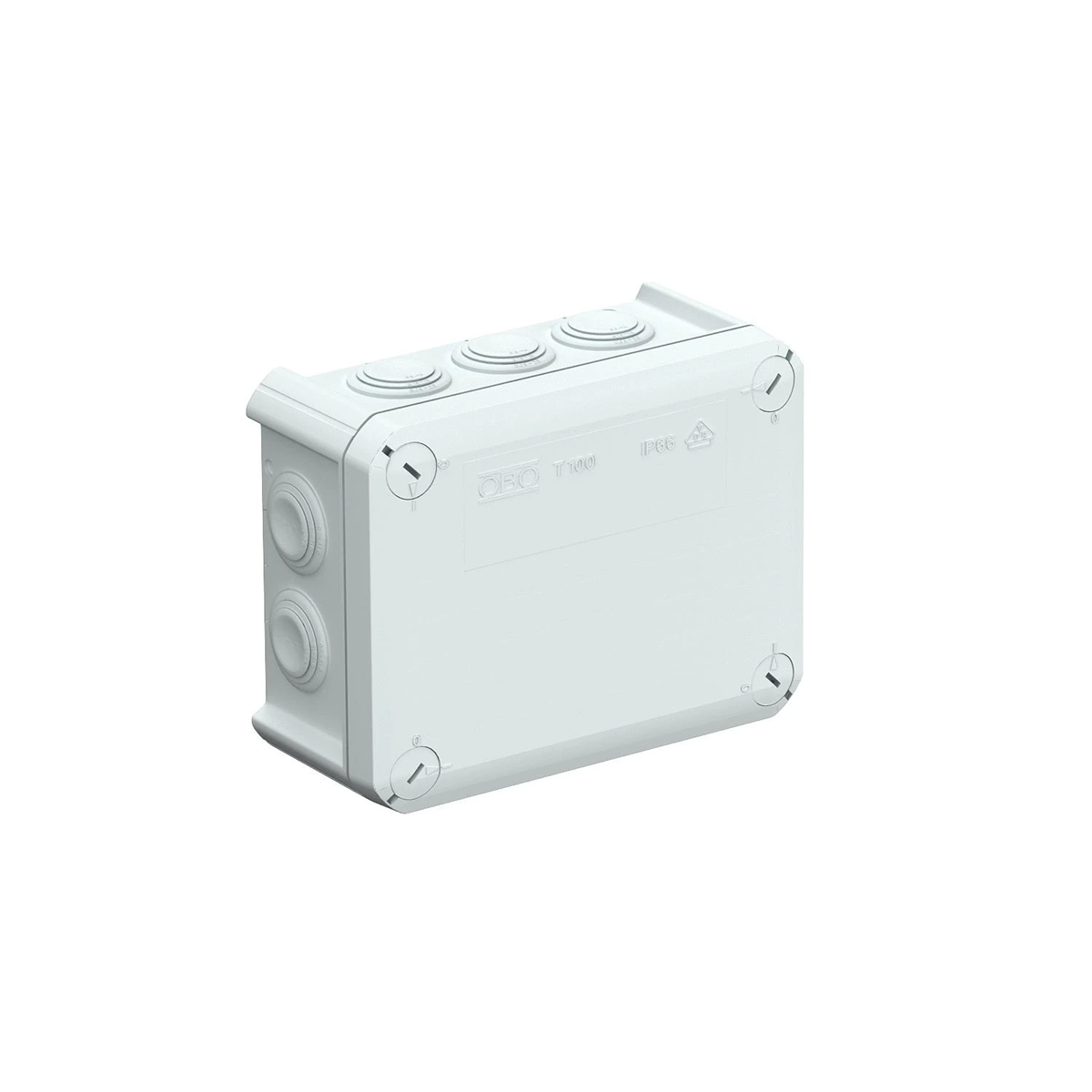

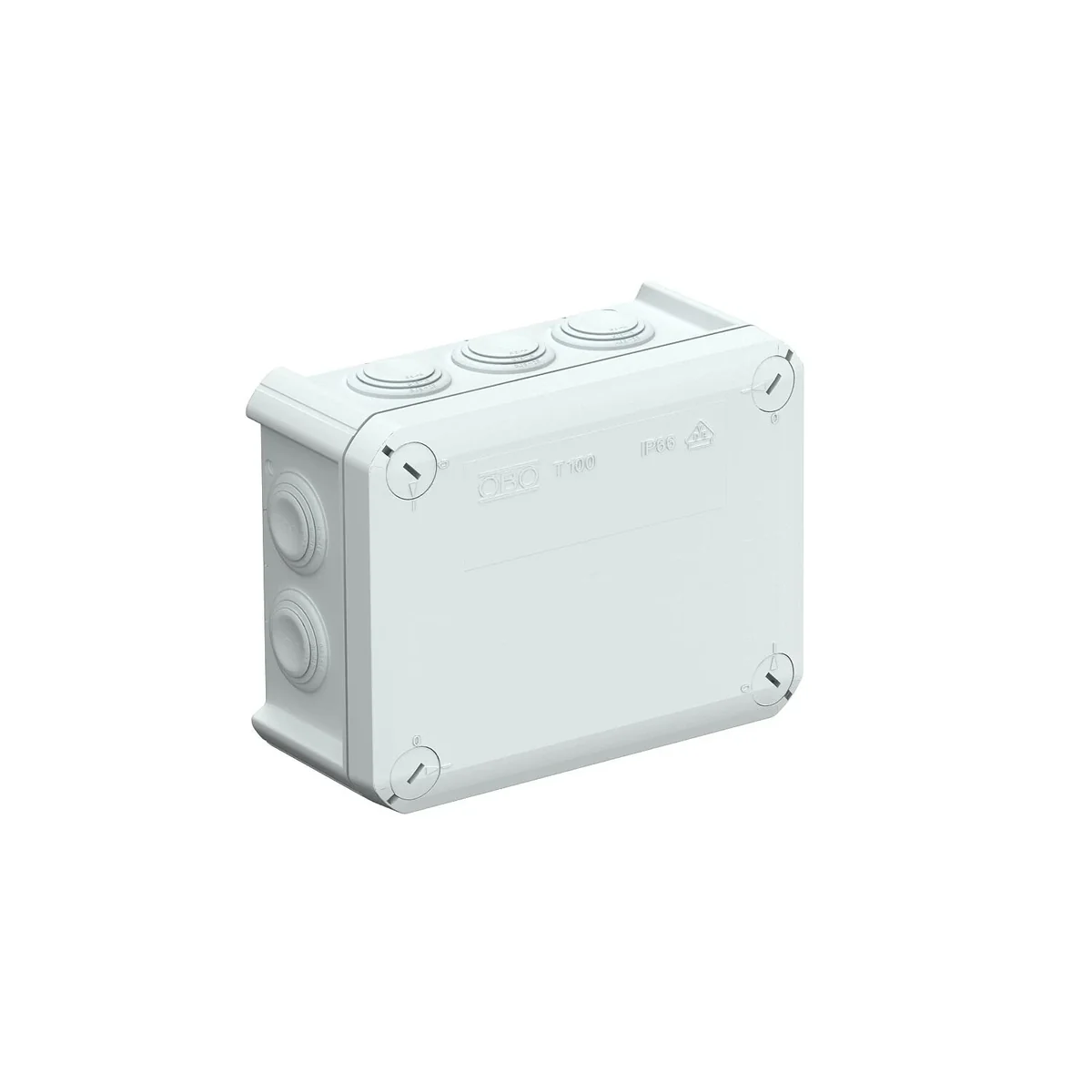

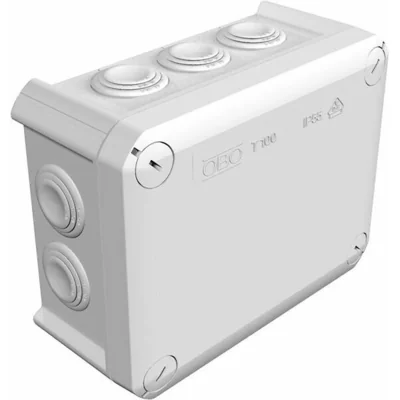

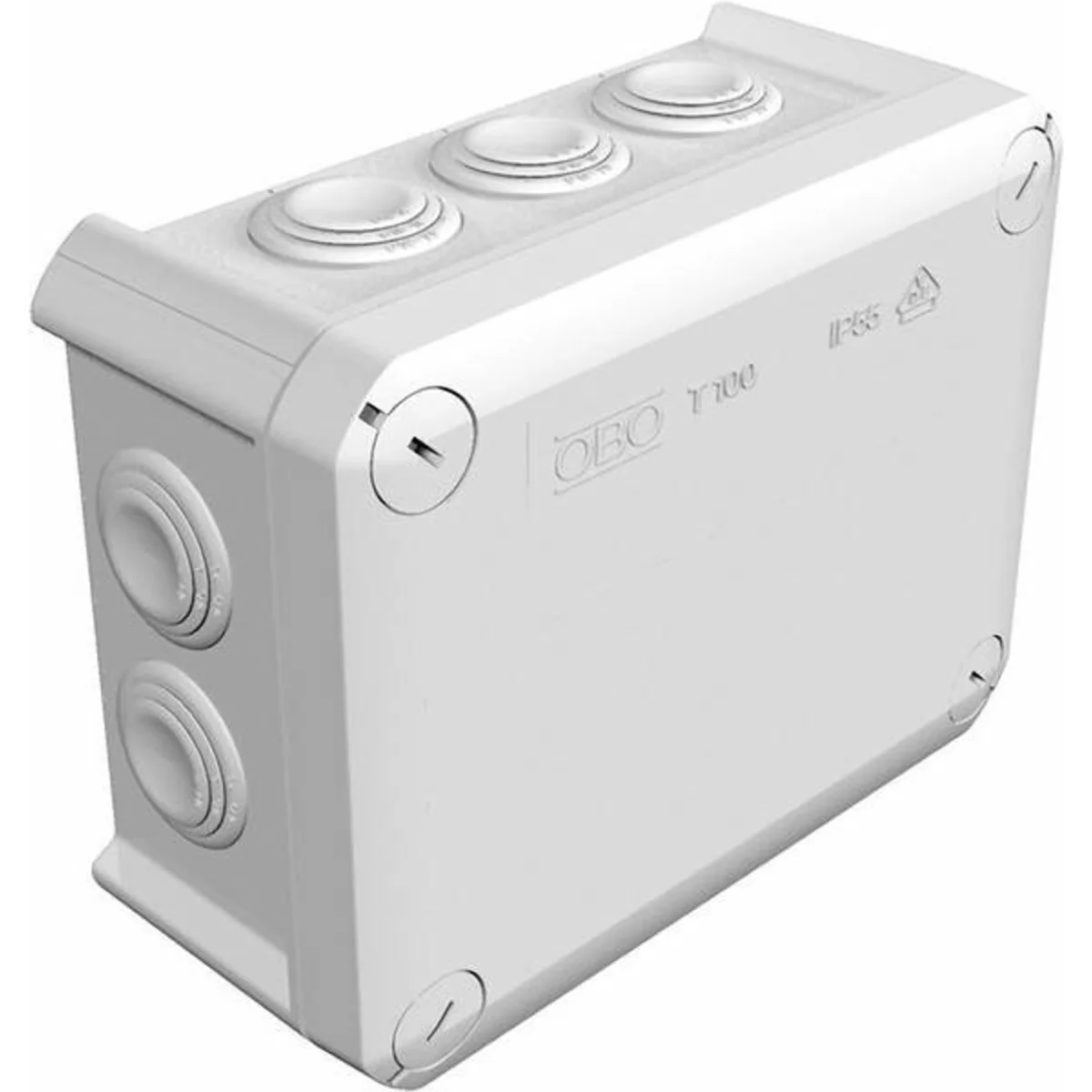

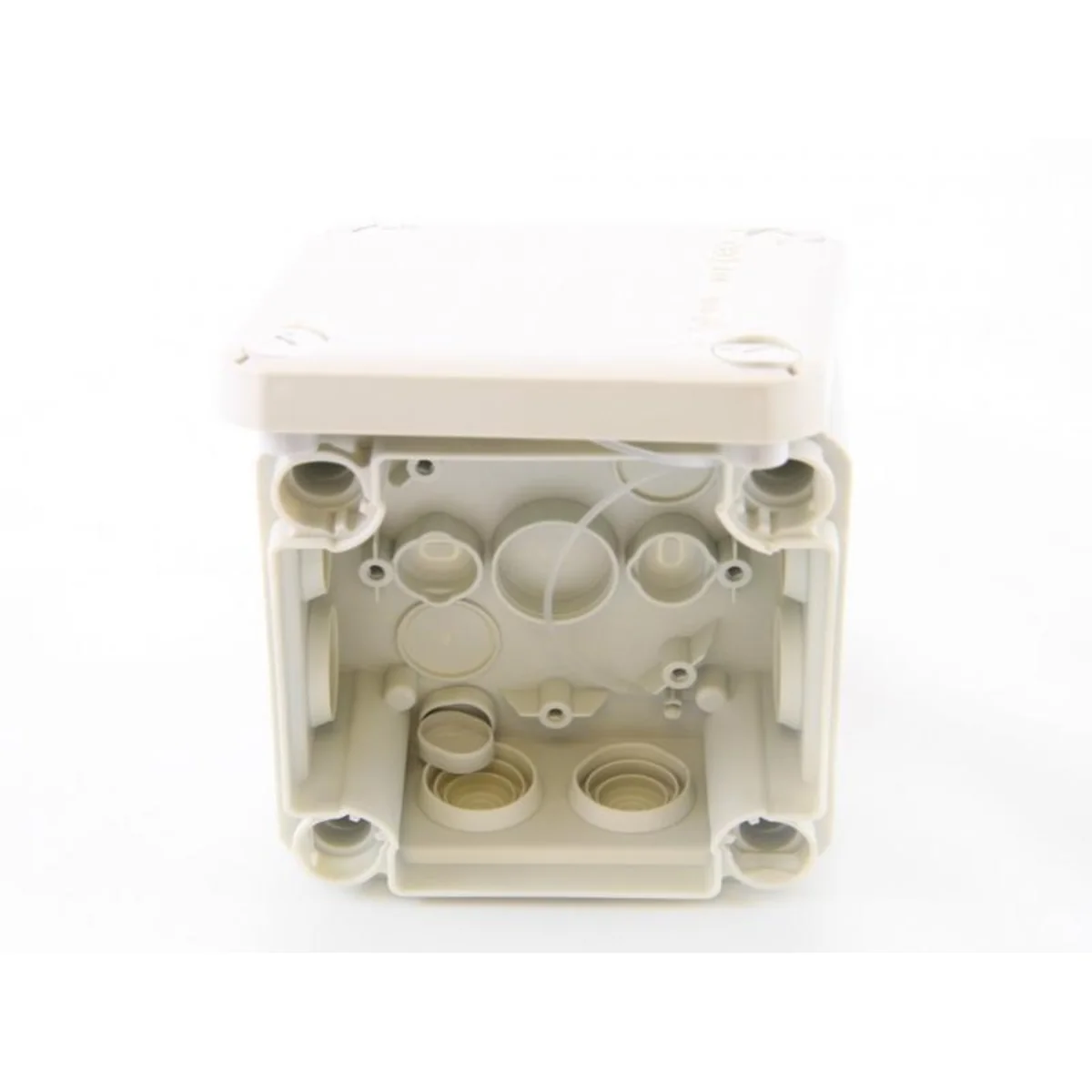

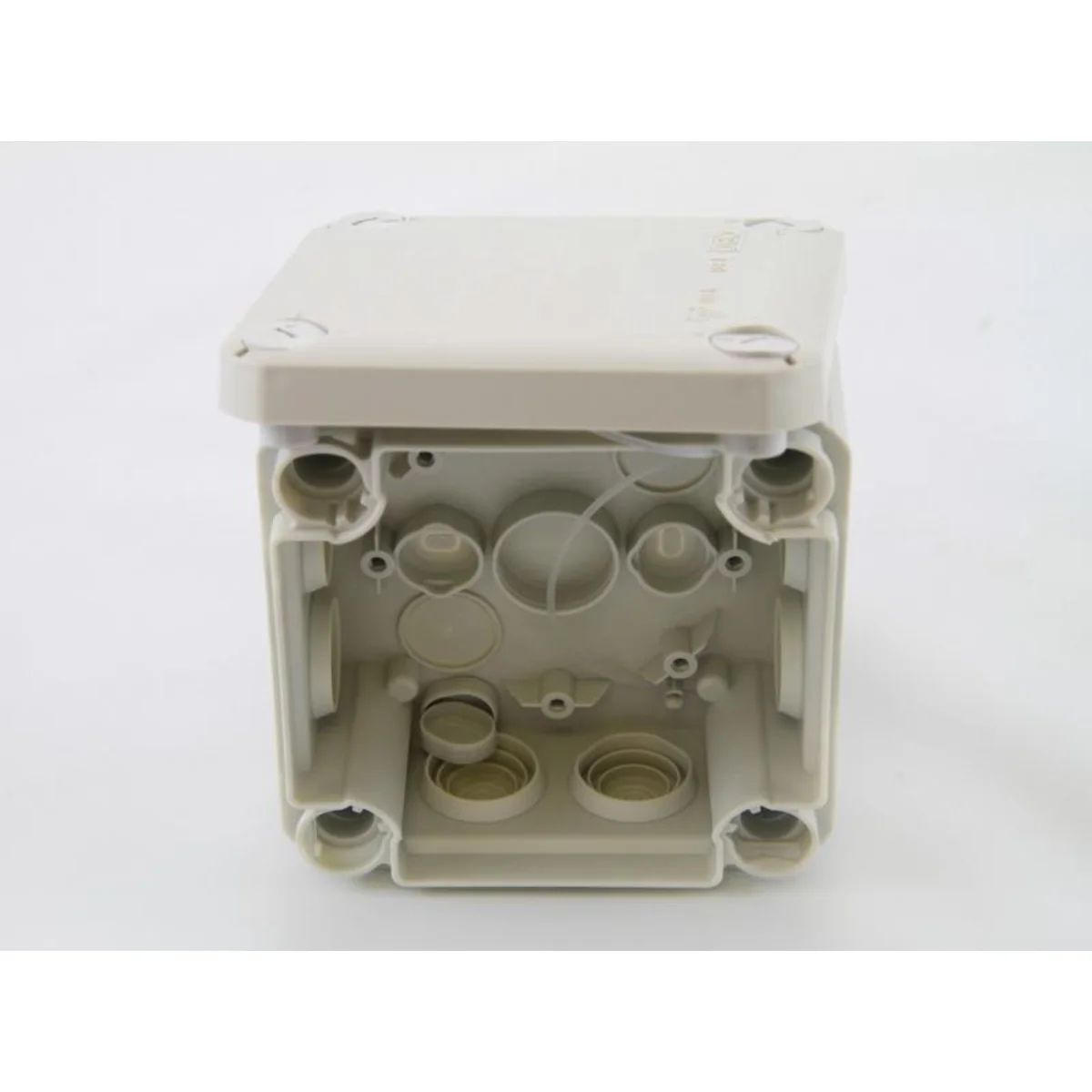

T-SERIES Junction box T100 light grey 2007077

T-Series Junction Box, with flex glands.

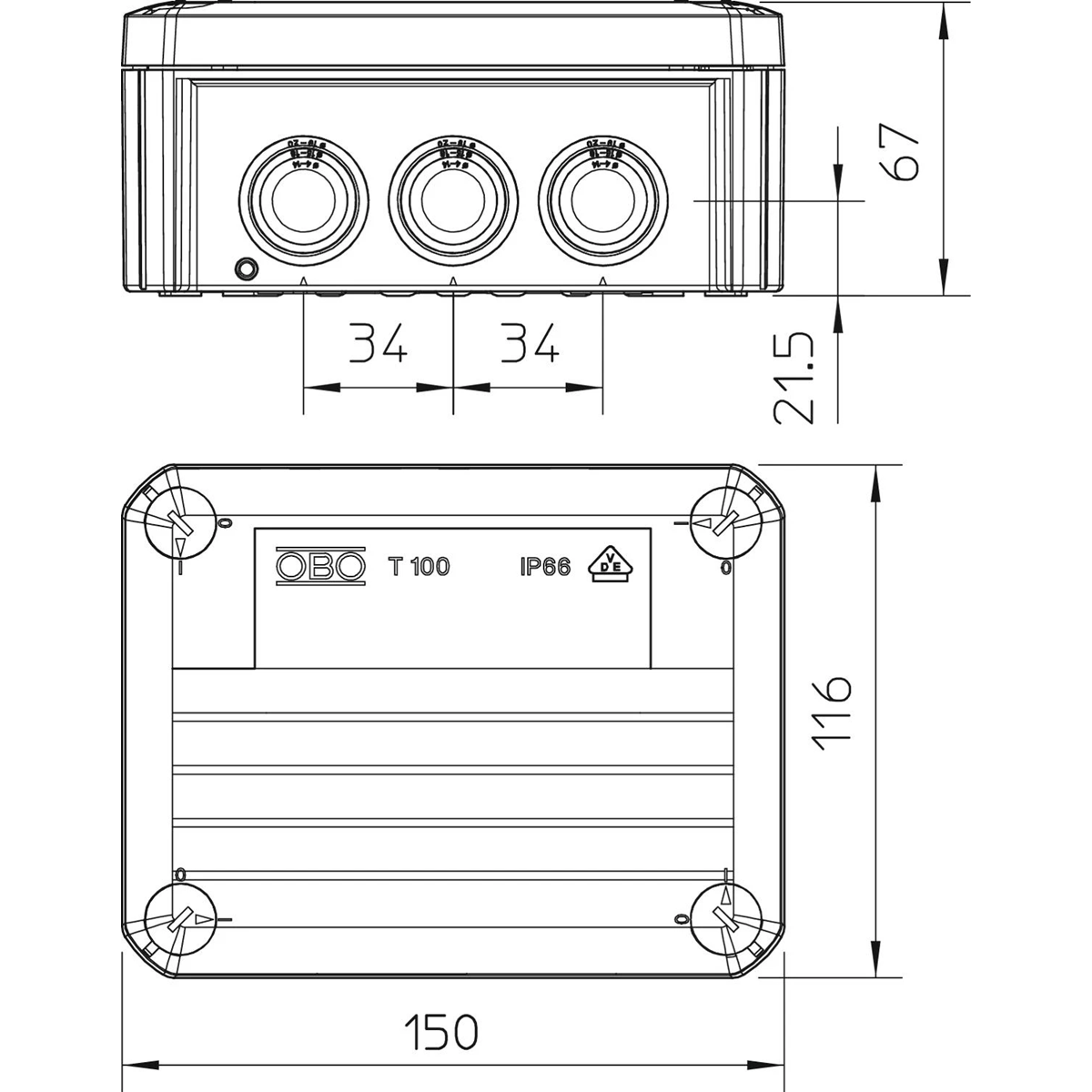

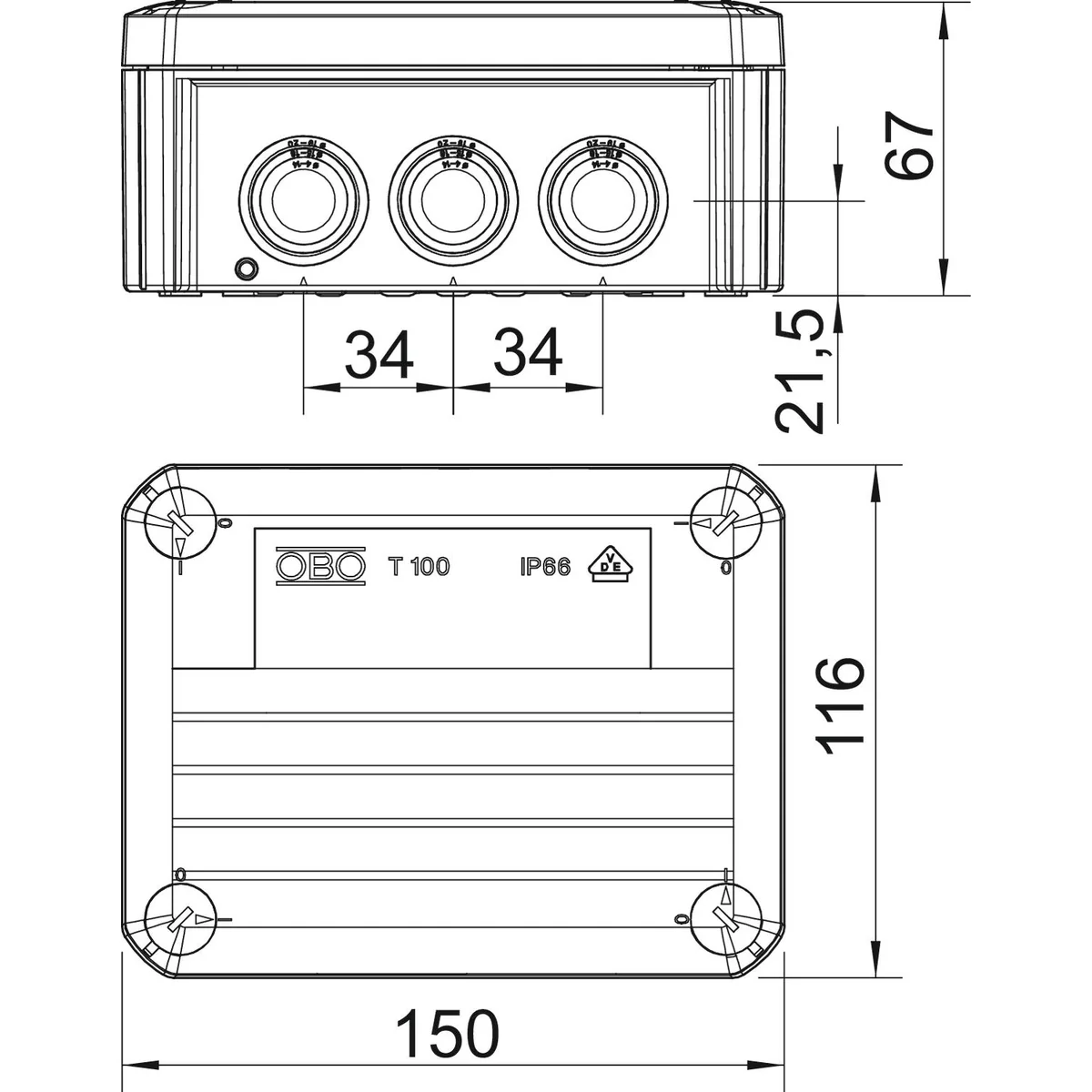

Junction boxes are made of polypropylene, a thermoplastic, while 10 x M25 flex glands are made of ethylene vinyl acetate (EVA). Thanks to this, the cables can be installed by directly piercing the flexible glands with the cable, or the flexible glands can be cut with a knife to make an opening for the introduction of cables or pipes. Alternatively, instead of flexible glands, cable glands can be installed, which are then secured from the inside with a locknut. The junction boxes can be mounted on mounting plates using 3.5 x 9.5 sheet metal screws. Clear internal dimensions: 136 x 102 x 57 mm. Lids with a description field, sealed.

The popular family of T-series boxes is still growing. Sizes from T25 to T350, various designs and universal accessories allow for many applications. All T-series boxes are made of halogen-free material resistant to UV radiation and impact, which makes them ideal for indoor and outdoor applications.
