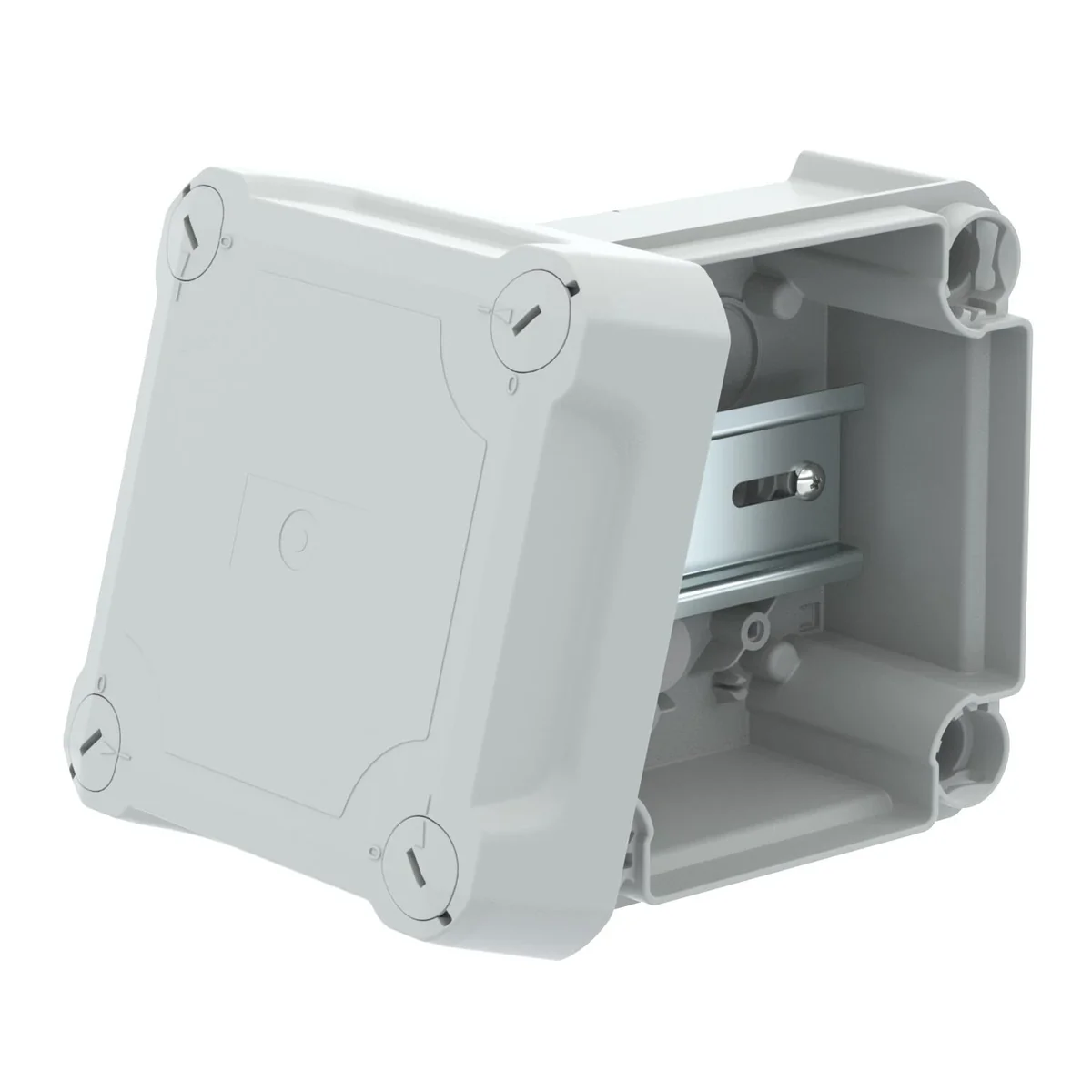

T 60 OE HD LGR Junction box with raised cover 2007730

Indeks lokalny:
MVN071OBOB
Numer katalogowy:
2007730
Kod EAN:
4012195985839
Producent: OBO BETTERMANN
Cena:
97,27 zł
gross / szt.
(w tym VAT 23%)
do 2 tygodni
Na zamówienie
Ilość szt.
(wielokrotność:
16
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Dane techniczne

Pozostałe dane techniczne

  • Equipped with
    Support rail
  • Mounting method
    Wall-/ceiling mounting

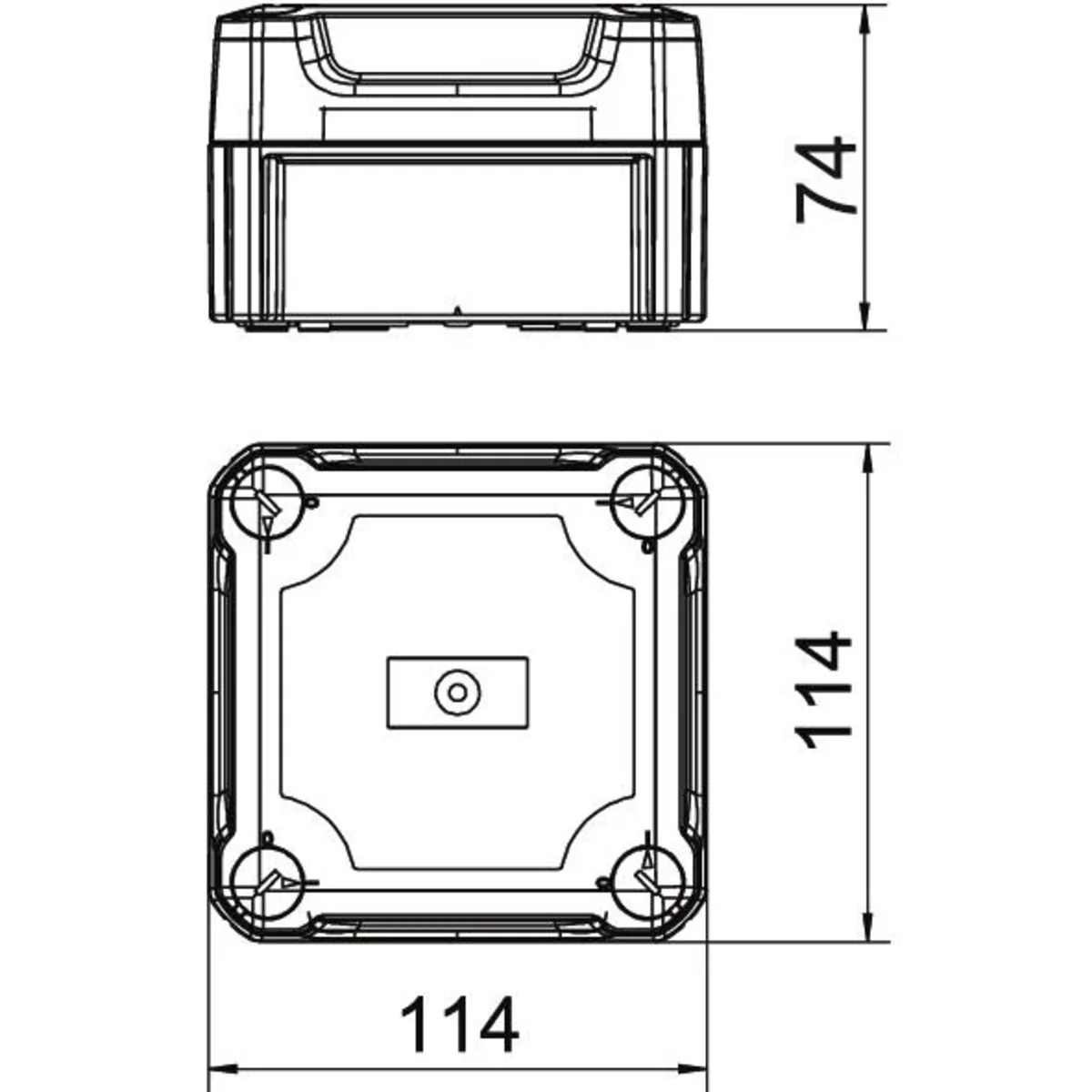

  • Length
    114 mm
  • Depth
    74 mm
  • Type of housing feed-through
    None
  • Halogen free
    Yes
  • RAL-number (similar)
    7035
  • Transparent cover
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Shape
    Square
  • Inlet from the rear
    Yes
  • Width
    114 mm
  • Tackable
    Yes
  • Material
    Plastic
  • Colour
    Grey
  • Degree of protection (IP)
    IP66
  • Cover attachment
    Screwed
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 65 °C
  • For Ex-zone gas
    None

Dane producenta

  • Producent
    OBO Bettermann Holding GmbH & Co. KG
  • Adres
    58710 Menden Hüingser Ring 52 Niemcy

Opakowania zbiorcze

Rodzaj opakowania Torebka Karton Paleta
Ilość 1 szt. 16 szt. 576 szt.
Waga (kg) 0,167 3,010 130,860
Objętość (m3) 0,001 0,017 0,912
Szerokość (m) 0,114 0,228 0,800
Długość (m) 0,114 0,395 1,200
Głębokość (m) 0,076 0,188 0,950
