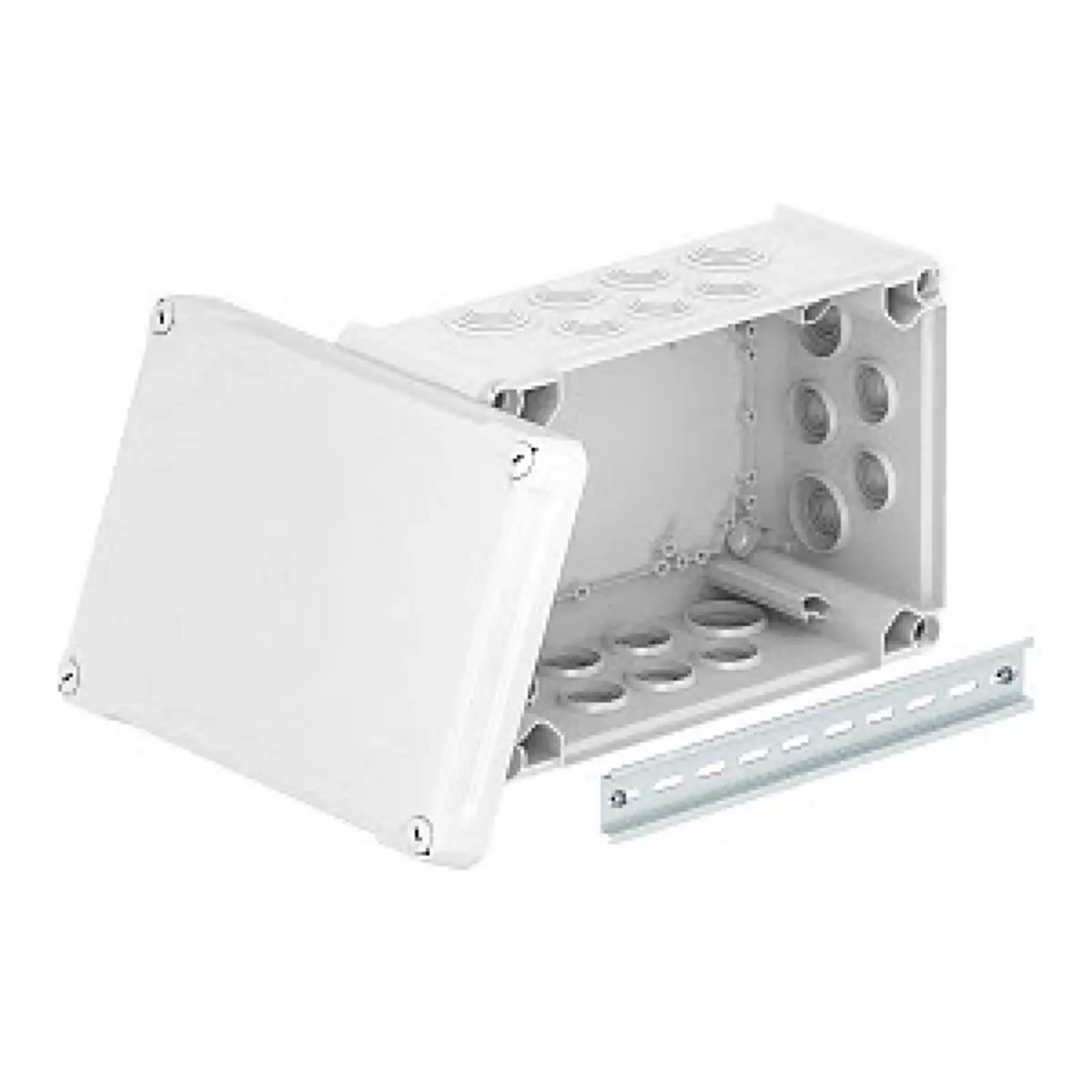

T 350 HD LGR Junction box with raised cover 2007718

Índice local:
MVN070OBOB
Número de catálogo:
2007718
Código EAN:
4012195985891
Fabricante: OBO BETTERMANN
Precio:
232,69 zł
gross / uds.
(IVA incluido 23%)
hasta 2 semanas
Por encargo
Cantidad uds.
(múltiple:
2
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Datos técnicos

Otros datos técnicos

  • Equipped with
    None
  • Mounting method
    Wall-/ceiling mounting

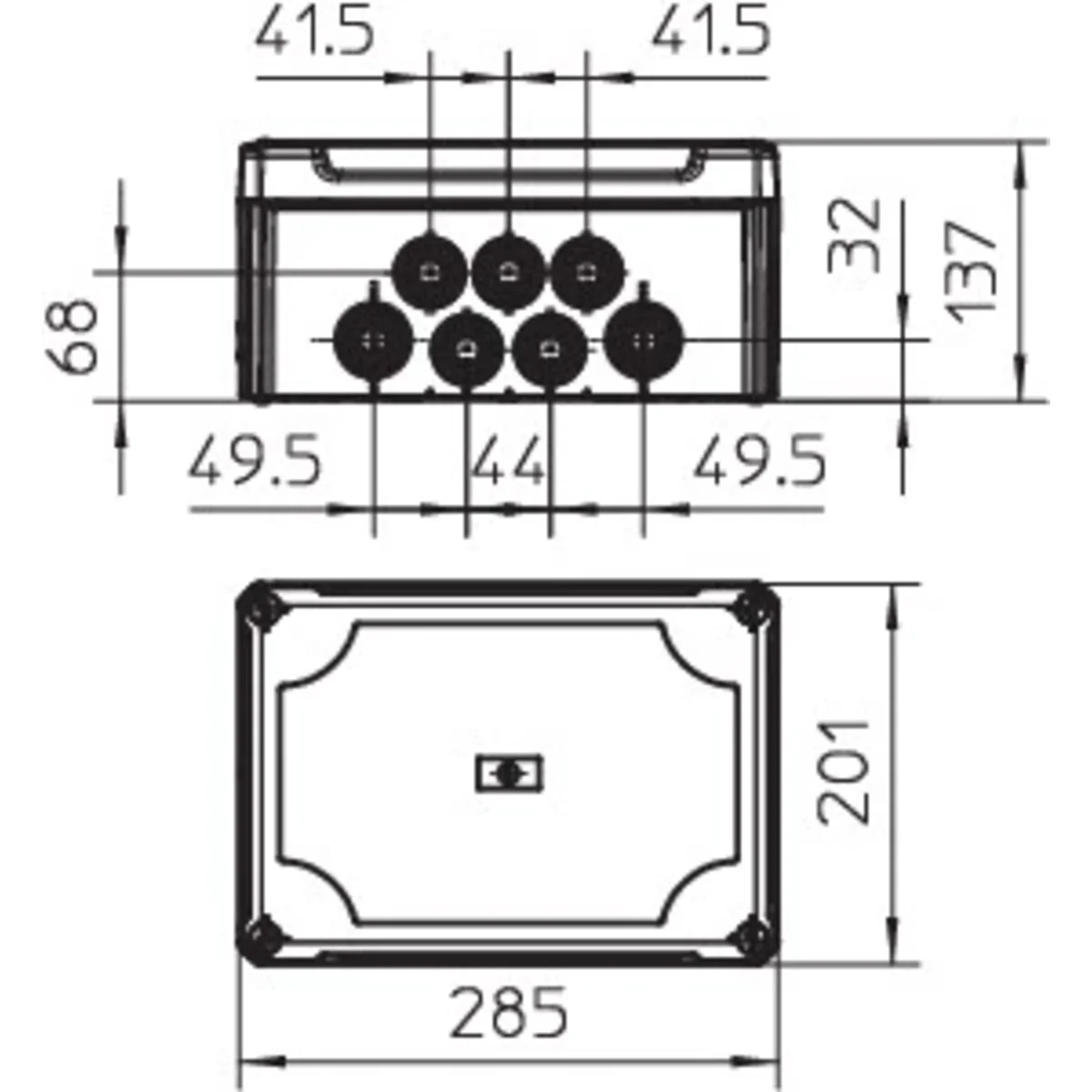

  • Length
    285 mm
  • Depth
    137 mm
  • Number of inlets
    24
  • Halogen free
    Yes
  • Colour
    Grey
  • Cover attachment
    Screwed
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -5 ... 60 °C
  • For Ex-zone gas
    None
  • Shape
    Rectangular
  • Inlet from the rear
    Yes
  • Width
    201 mm
  • Tackable
    Yes
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP66
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Detalles del fabricante

  • Fabricante
    OBO Bettermann Holding GmbH & Co. KG
  • Dirección
    58710 Menden Hüingser Ring 52 Niemcy

Empaquetado a granel

una especie de paquete Torebka Karton Paleta
Cantidad 1 uds. 2 uds. 36 uds.
Peso (kg) 0,728 1,855 58,394
Volumen (m3) 0,008 0,021 0,912
Ancho (m) 0,201 0,300 0,800
Longitud (m) 0,285 0,300 1,200
Profundidad (m) 0,139 0,230 0,950
