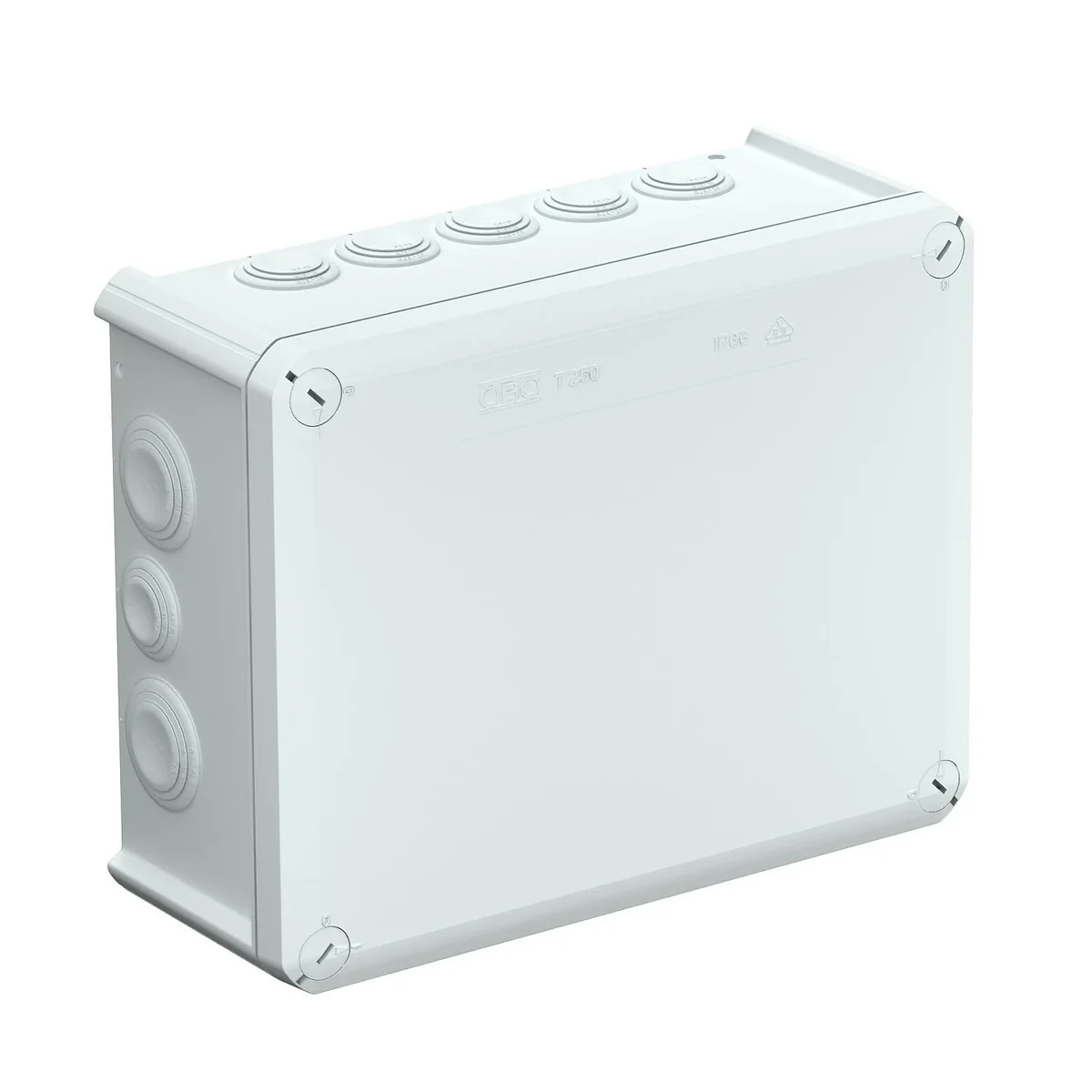

T 250 F Junction box with leads 2007363
local index:
MVN045OBOB
Catalog number:
2007363
EAN code:
4012195286561
Manufacturer:
OBO BETTERMANN
Price:
86,92 zł
gross / pcs.
(including VAT 23%)
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Equipped withNone
-
Mounting methodWall-/ceiling mounting
-
Inlet from the rearYes
-

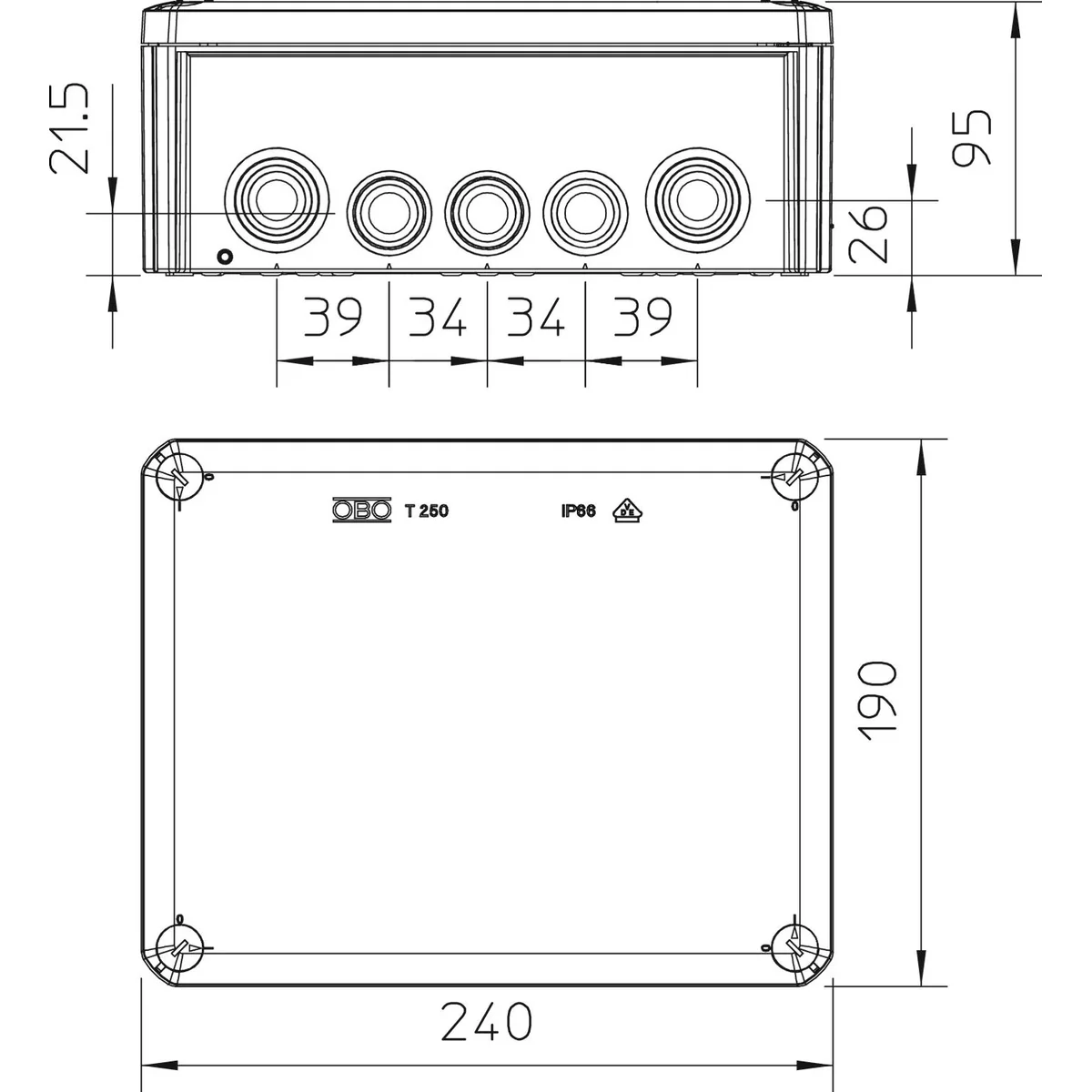

Width190 mm
-
TackableYes
-
MaterialPlastic
-
RAL-number (similar)7035
-
Transparent coverNo
-
SealableYes
-
Circuit integrityNone
-
WeatherproofNo
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
ShapeRectangular
-
Number of inlets16
-
Length240 mm
-
Depth95 mm
-
Type of housing feed-throughTrimmable step membrane
-
ColourGrey
-
Degree of protection (IP)IP66
-
Cover attachmentScrewed
-
Rated insulation voltage Ui500 V
-
With screeningNo
-
Operating temperature-25 ... 65 °C
-
For Ex-zone gasNone
Manufacturer details
-
ManufacturerOBO Bettermann Holding GmbH & Co. KG
-
Address58710 Menden Hüingser Ring 52 Niemcy
-
E-mail
Bulk packaging
| A kind of package | Torebka | Karton | Paleta |
| Quantity | 1 pcs. | 8 pcs. | 144 pcs. |
| Weight (kg) | 0,501 | 4,516 | 103,788 |
| Volume (m3) | 0,004 | 0,038 | 0,912 |
| Width (m) | 0,190 | 0,388 | 0,800 |
| Length (m) | 0,240 | 0,395 | 1,200 |
| Depth (m) | 0,095 | 0,249 | 0,950 |
